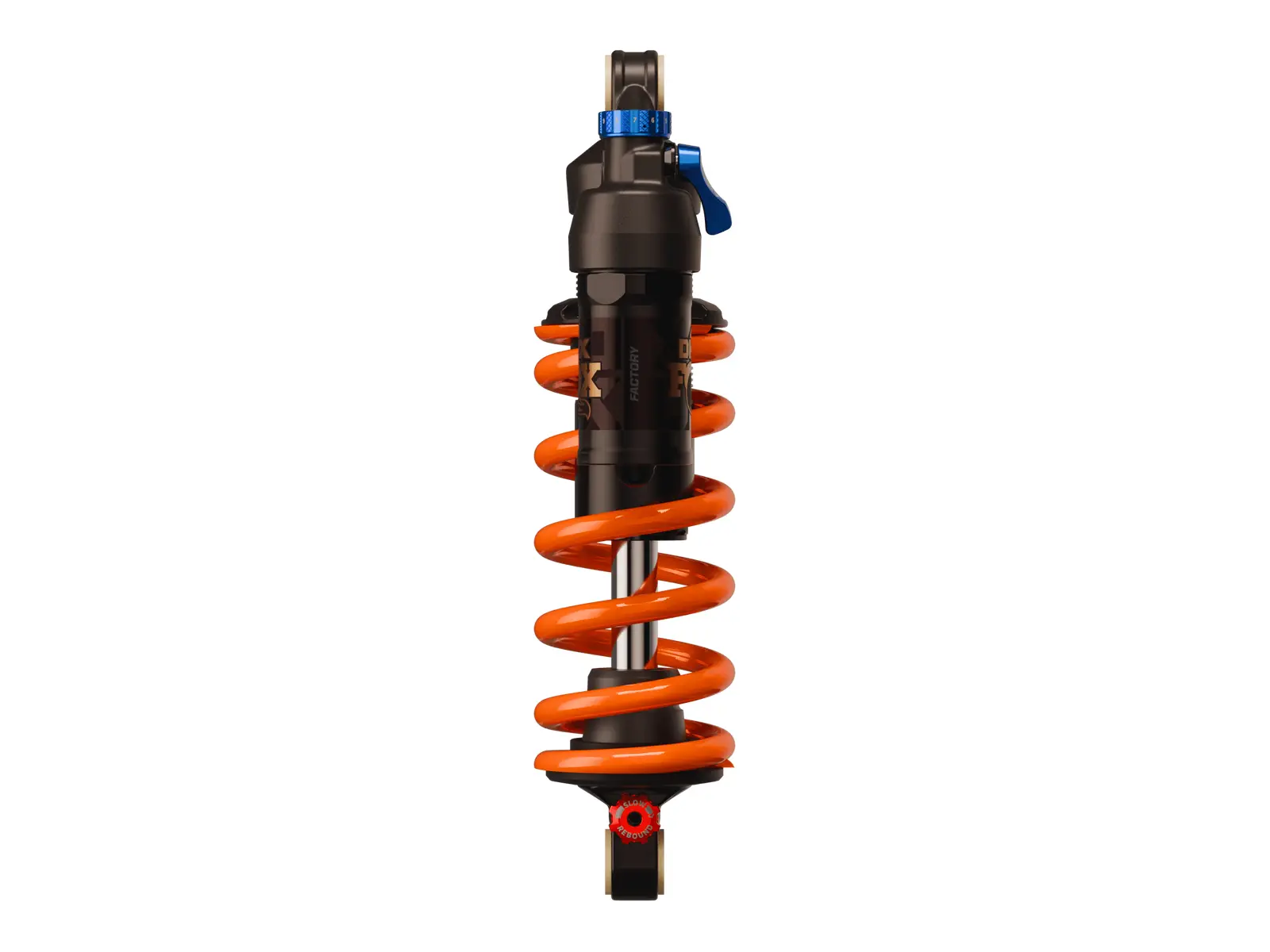

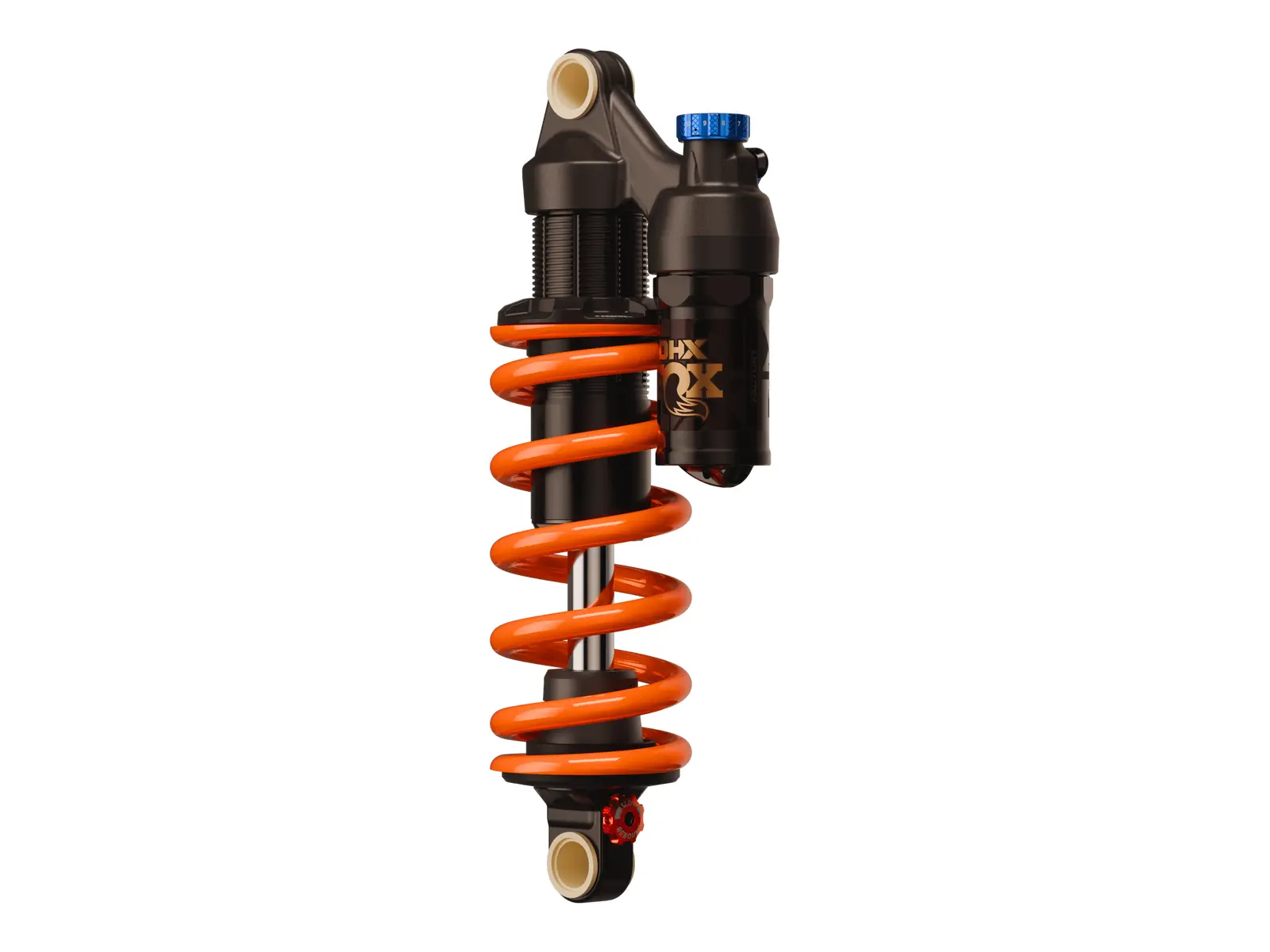

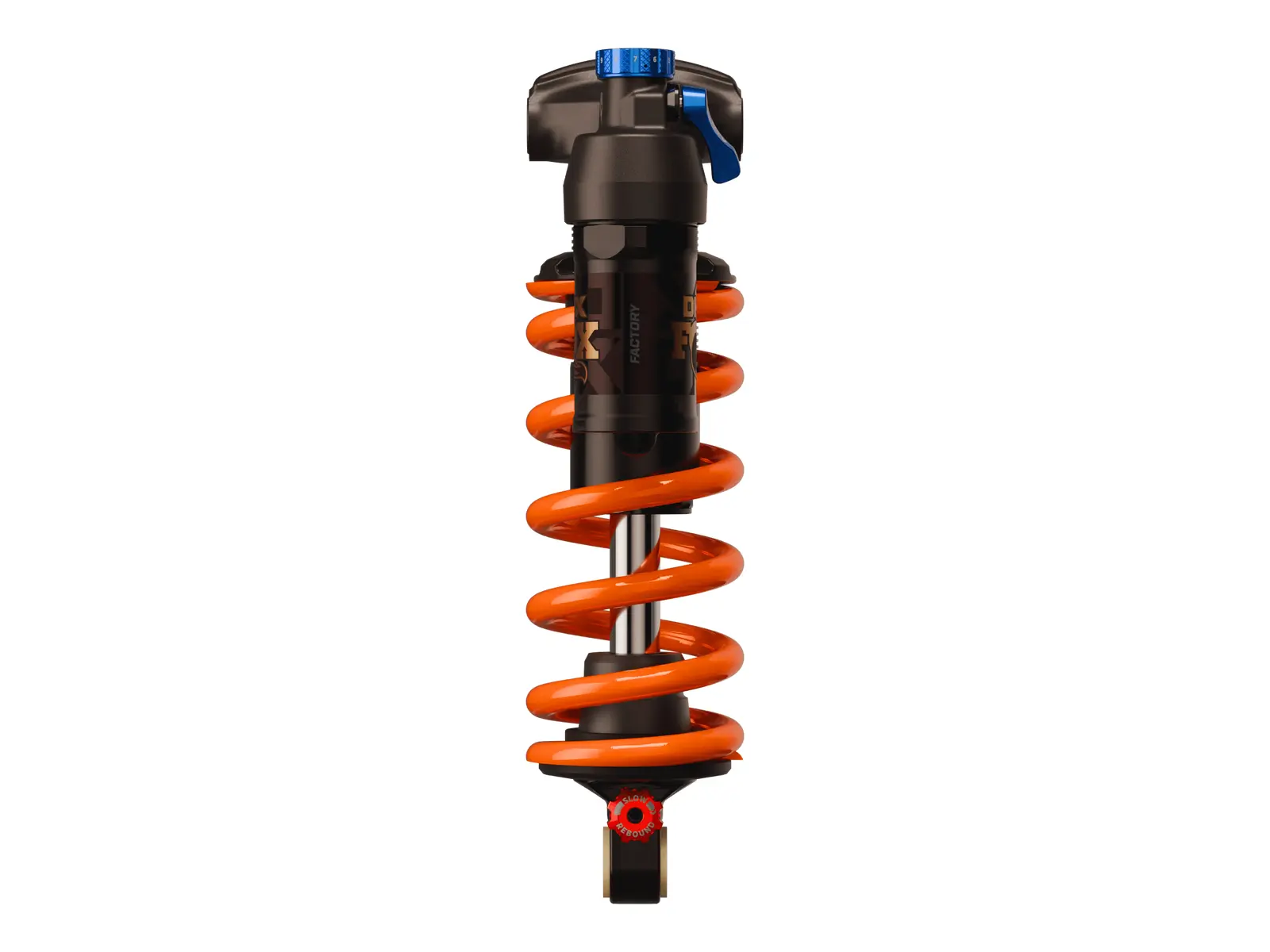

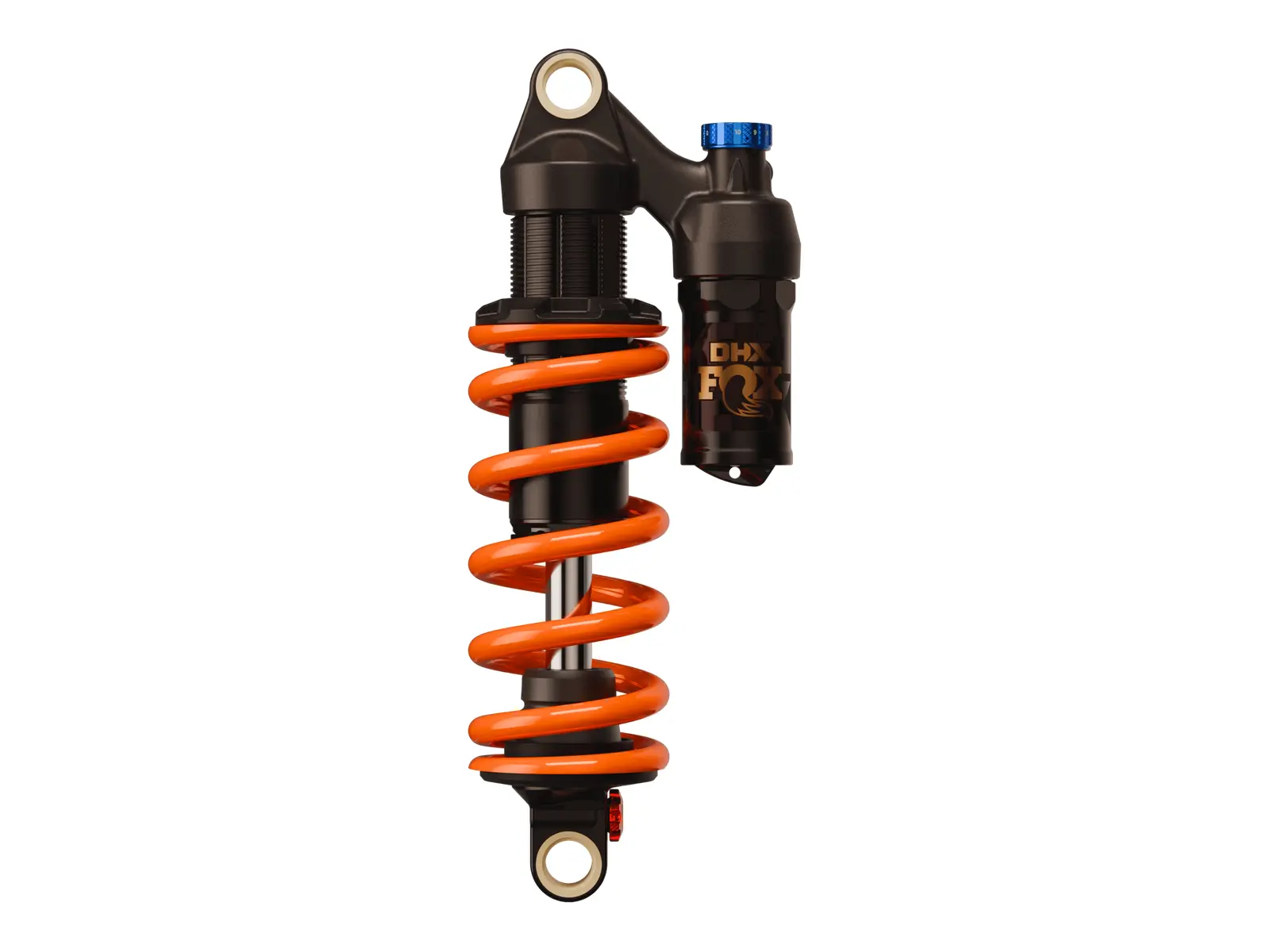

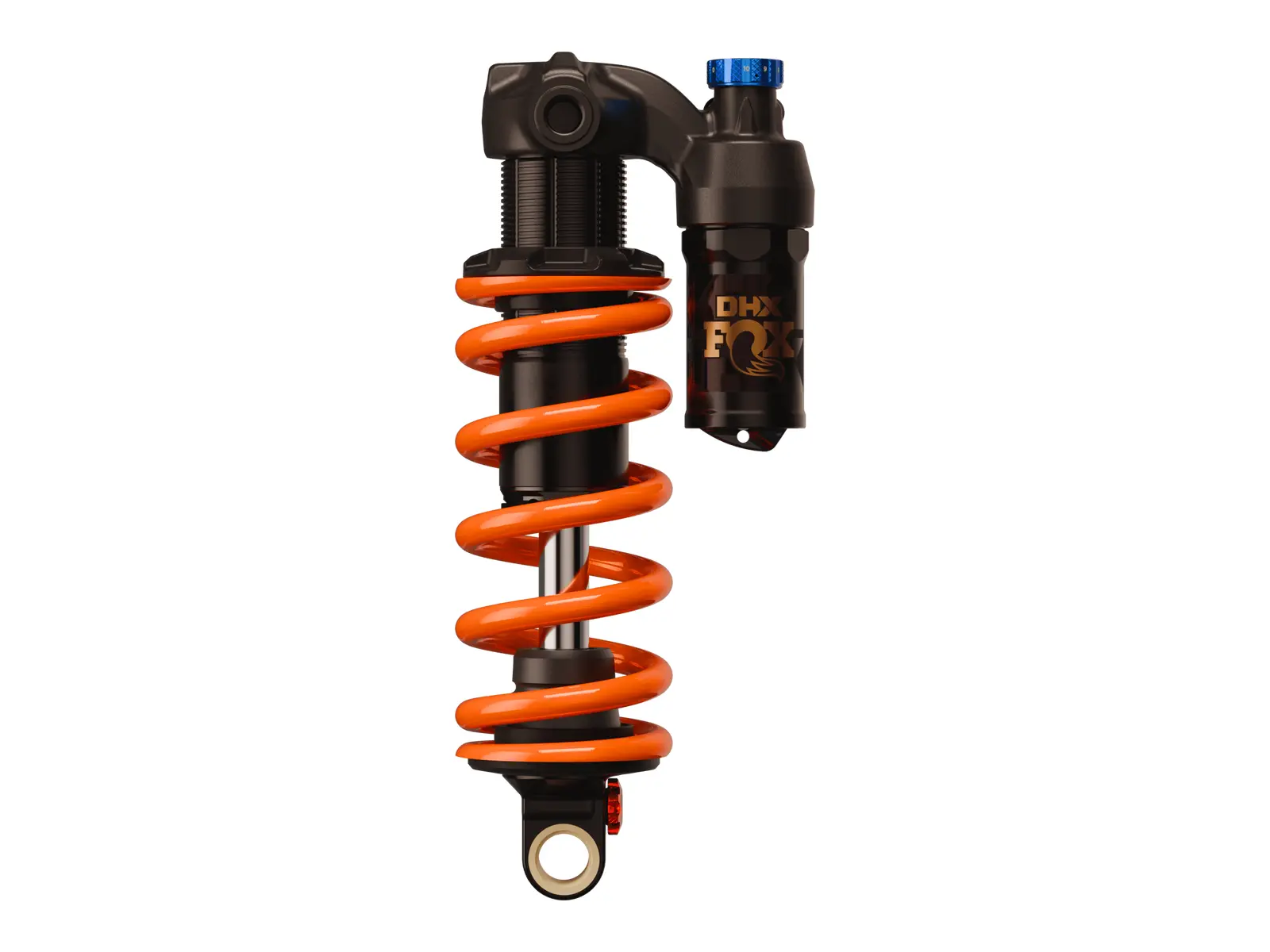

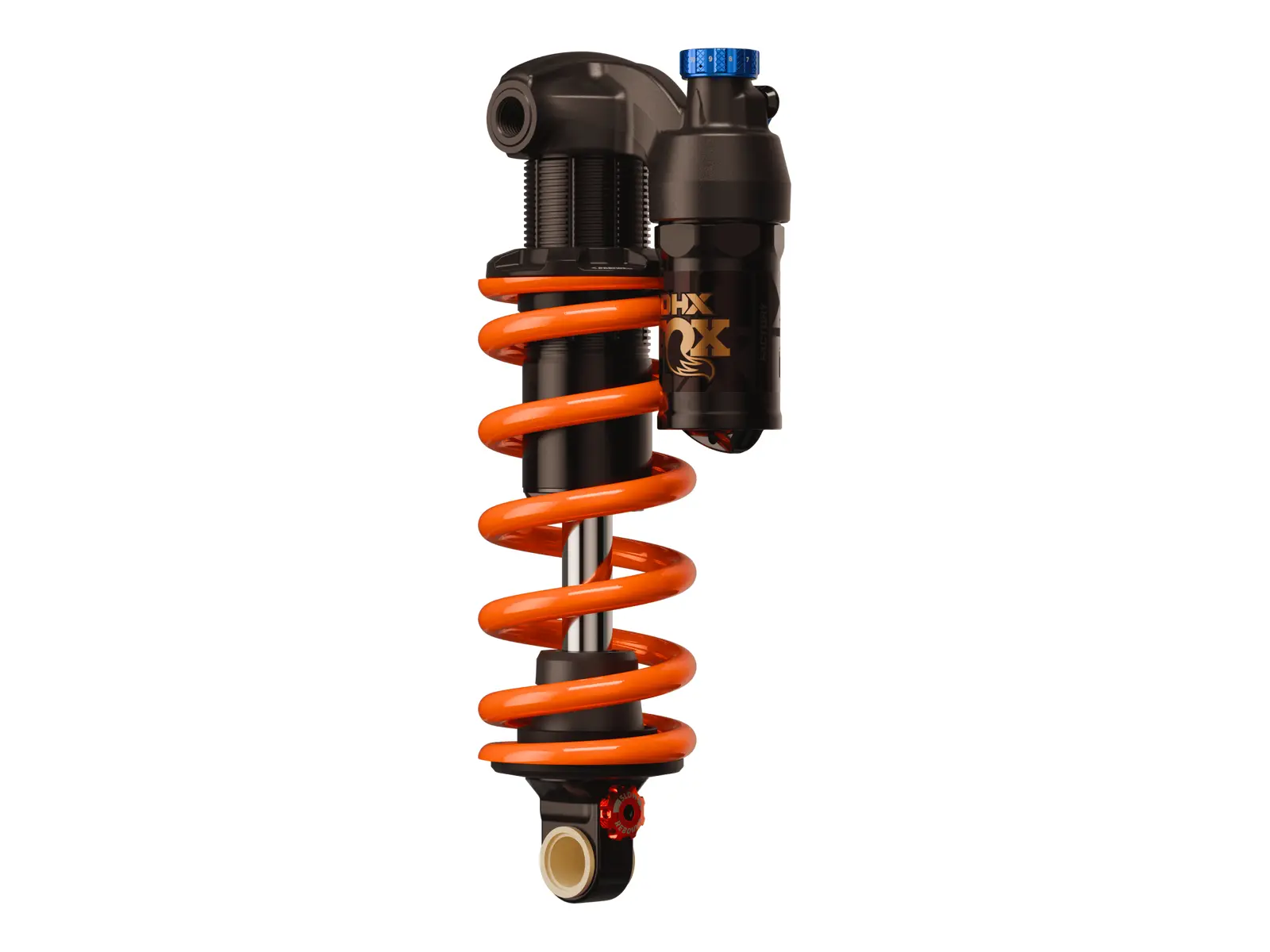

FOX "DHX Factory" MTB Rear Shock
-
Weight : 0.47kg / 1.04lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36457
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The FOX "DHX Factory" MTB Rear Shock is the FOX all-mountain coil shock: monotube architecture with a new high-flow main piston for sensitivity, support and rear tyre grip close to the DHX2. The piggyback reservoir adds oil volume and a secondary compression circuit; its length is optimised per shock size so the FOX "DHX Factory" MTB Rear Shock fits more frames. Tool-free adjusters: low-speed compression with 11 clicks and low-speed rebound with 16 clicks, the 2-position lever toggles between Open and Firm. The FOX "DHX Factory" MTB Rear Shock ships without spring, FOX Coil or SLS springs are sold separately.
Facts: FOX "DHX Factory" MTB Rear Shock
- Eye-to-Eye x Stroke: 205 x 60 mm (Trunnion), 205 x 62.5 mm (Trunnion), 210 x 55 mm, 230 x 60 mm or 230 x 65 mm
- Spring: Coil (not included, FOX Coil or SLS spring sold separately), piggyback reservoir with size-specific length
- Damping:
- 2-position lever Open/Firm (2POS)
- Low-speed compression: 11 clicks, tool-free
- Low-speed rebound: 16 clicks, tool-free
- Monotube with high-flow main piston, MCU bottom-out bumper, top-out bumper - Mounting: Metric or trunnion, see version
- Hardware: Not included (mounting hardware depends on the frame); bearing mount compatible on both ends
- Weight: From 465 g without spring (manufacturer)
- Contains: 1 shock, owner's manual
- Extras: Factory series, chrome body finish per data sheet; model year 2027
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
