Formula Shock Eyelet Bushing Kit - MOD, Nebbia
- Weight : 0.03kg / 0.07lbs
- Packaging Unit: 1 Set
- Product ID (PID): 40318
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/formula-shock-eyelet-bushing-kit-mod-nebbia-p-40318
Printed: 11/07/2026
Printed: 11/07/2026
The Formula Shock Eyelet Bushing Kit - MOD, Nebbia is the mounting hardware for the shock eyelets of the Formula MOD, MOD YOKE and Nebbia shocks: one sleeve and two flanged bushings that fit the shock to the bolt and the mounting width of your frame. Width and bolt diameter are chosen in the variant.
Facts: Formula Shock Eyelet Bushing Kit - MOD, Nebbia
- Fits: Formula MOD, MOD YOKE and Nebbia rear shocks; width and bolt diameter have to match the shock mount of the frame
- Version: Mount width 20 mm, 8 mm bolt, Mount width 22 mm, 10 mm bolt, Mount width 22 mm, 8 mm bolt, Mount width 25 mm, 8 mm bolt, Mount width 30 mm, 10 mm bolt, Mount width 30 mm, 8 mm bolt, Mount width 35 mm, 8 mm bolt, Einbaubreite 25 mm, 10 mm Schraube or Einbaubreite 40 mm, 8 mm Schraube

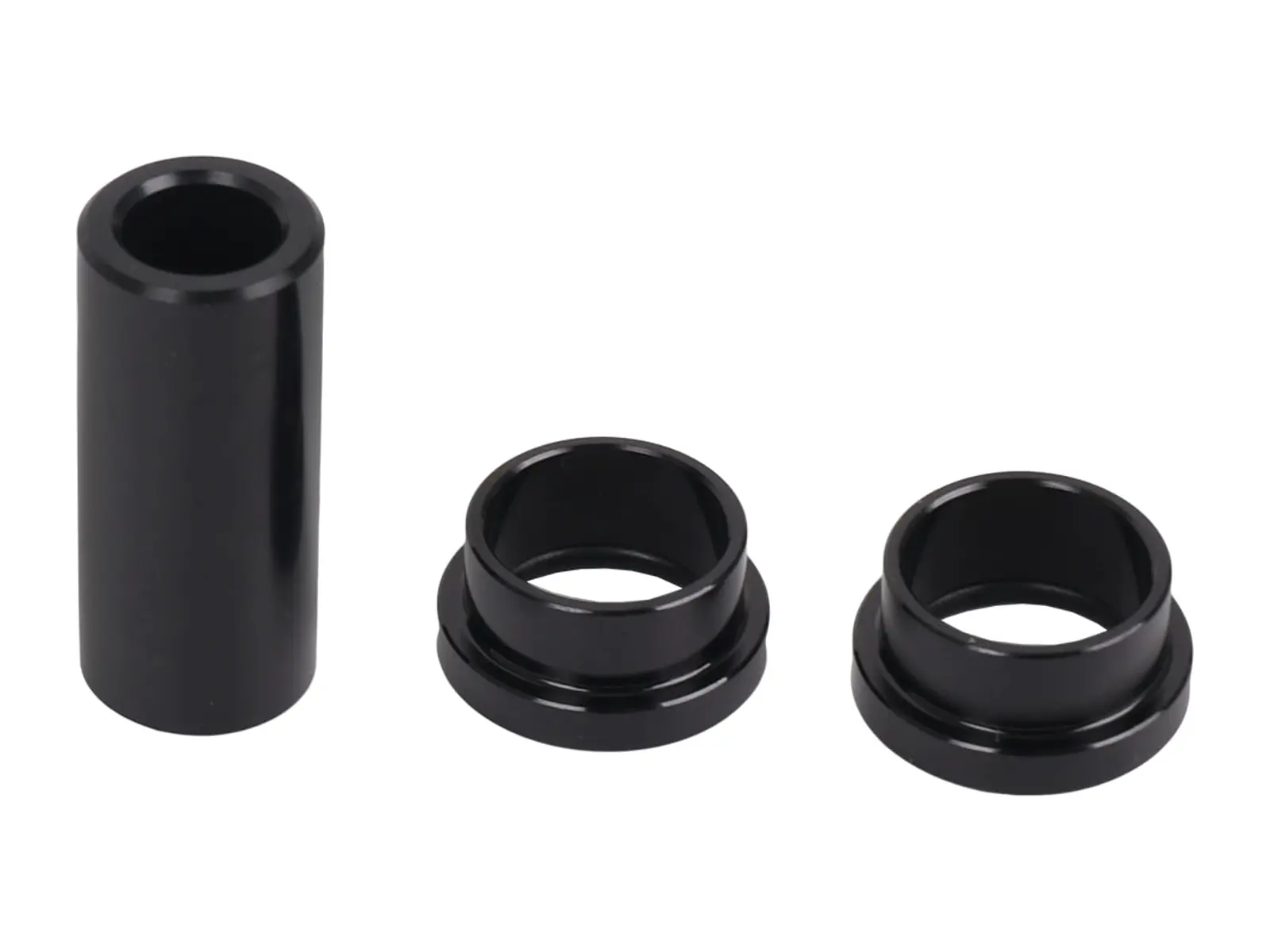

- Contains: one sleeve and two flanged bushings, as on the manufacturer photo
- Part number: Formula AM40033-00 (25 x 10 mm), AM40006-00 (25 x 8 mm), AM40007-00 (30 x 8 mm), AM40010-00 (40 x 8 mm), AM40004-00 (20 x 8 mm), AM40005-00 (22 x 8 mm), AM40032-00 (22 x 10 mm), AM40008-00 (30 x 10 mm), AM40009-00 (35 x 8 mm)
