FOX "Mounting Hardware" Shock Eyelet Bushing Kit

Facts: FOX "Mounting Hardware" Shock Eyelet Bushing Kit

• Fits: FOX rear shocks with a bushing eyelet; pin diameter and mount width have to match the bolt and the shock mount of the frame
• Version: Mount width 20 mm, 6 mm bolt, Mount width 20 mm, 8 mm bolt, Mount width 25 mm, 8 mm bolt, Mount width 25.4 mm, 6 mm bolt, Mount width 25.4 mm, 8 mm bolt, Mount width 19.05 mm, 6 mm bolt, Mount width 19.05 mm, 8 mm bolt, Mount width 20.83 mm, 6 mm bolt, Mount width 21.08 mm, 6 mm bolt, Mount width 21.54 mm, 8 mm bolt, Mount width 21.84 mm, 6 mm bolt, Mount width 21.84 mm, 8 mm bolt, Mount width 22.2 mm, 6 mm bolt, Mount width 22.86 mm, 8 mm bolt, Mount width 23.37 mm, 8 mm bolt, Mount width 23.88 mm, 6 mm bolt, Mount width 23.88 mm, 8 mm bolt, Mount width 24.64 mm, 6 mm bolt, Mount width 24.89 mm, 8 mm bolt, Mount width 25.15 mm, 8 mm bolt, Mount width 25.91 mm, 6 mm bolt, Mount width 25.91 mm, 8 mm bolt, Mount width 26.92 mm, 8 mm bolt, Mount width 27.43 mm, 8 mm bolt, Mount width 27.94 mm, 6 mm bolt, Mount width 28.45 mm, 6 mm bolt, Mount width 28.8 mm, 8 mm bolt, Mount width 29.97 mm, 6 mm bolt, Mount width 29.97 mm, 8 mm bolt, Mount width 30.43 mm, 6 mm bolt, Mount width 31.75 mm, 6 mm bolt, Mount width 31.75 mm, 8 mm bolt, Mount width 32.05 mm, 6 mm bolt, Mount width 32.39 mm, 8 mm bolt, Mount width 33.02 mm, 8 mm bolt, Mount width 33.68 mm, 8 mm bolt, Mount width 33.83 mm, 6 mm bolt, Mount width 33.83 mm, 8 mm bolt, Mount width 33.99 mm, 8 mm bolt, Mount width 35.05 mm, 6 mm bolt, Mount width 35.05 mm, 8 mm bolt, Mount width 35.56 mm, 8 mm bolt, Mount width 36 mm, 8 mm bolt, Mount width 38.61 mm, 6 mm bolt, Mount width 38.61 mm, 8 mm bolt, Mount width 39.88 mm, 6 mm bolt, Mount width 39.88 mm, 8 mm bolt, Mount width 39.88 mm, 8 mm bolt, offset spacers, Einbaubreite 40 mm, 8 mm Schraube, Mount width 41.15 mm, 6 mm bolt, Mount width 41.15 mm, 8 mm bolt, Mount width 41.55 mm, 8 mm bolt, Mount width 42.19 mm, 8 mm bolt, Mount width 43.69 mm, 8 mm bolt, Mount width 44.86 mm, 8 mm bolt, Mount width 45.72 mm, 6 mm bolt, Mount width 45.72 mm, 8 mm bolt, Mount width 47.75 mm, 8 mm bolt, Mount width 49.78 mm, 6 mm bolt, Mount width 49.78 mm, 8 mm bolt or Mount width 49.78 mm, 8 mm bolt, offset spacers
• Material: pin aluminium, spacers Delrin

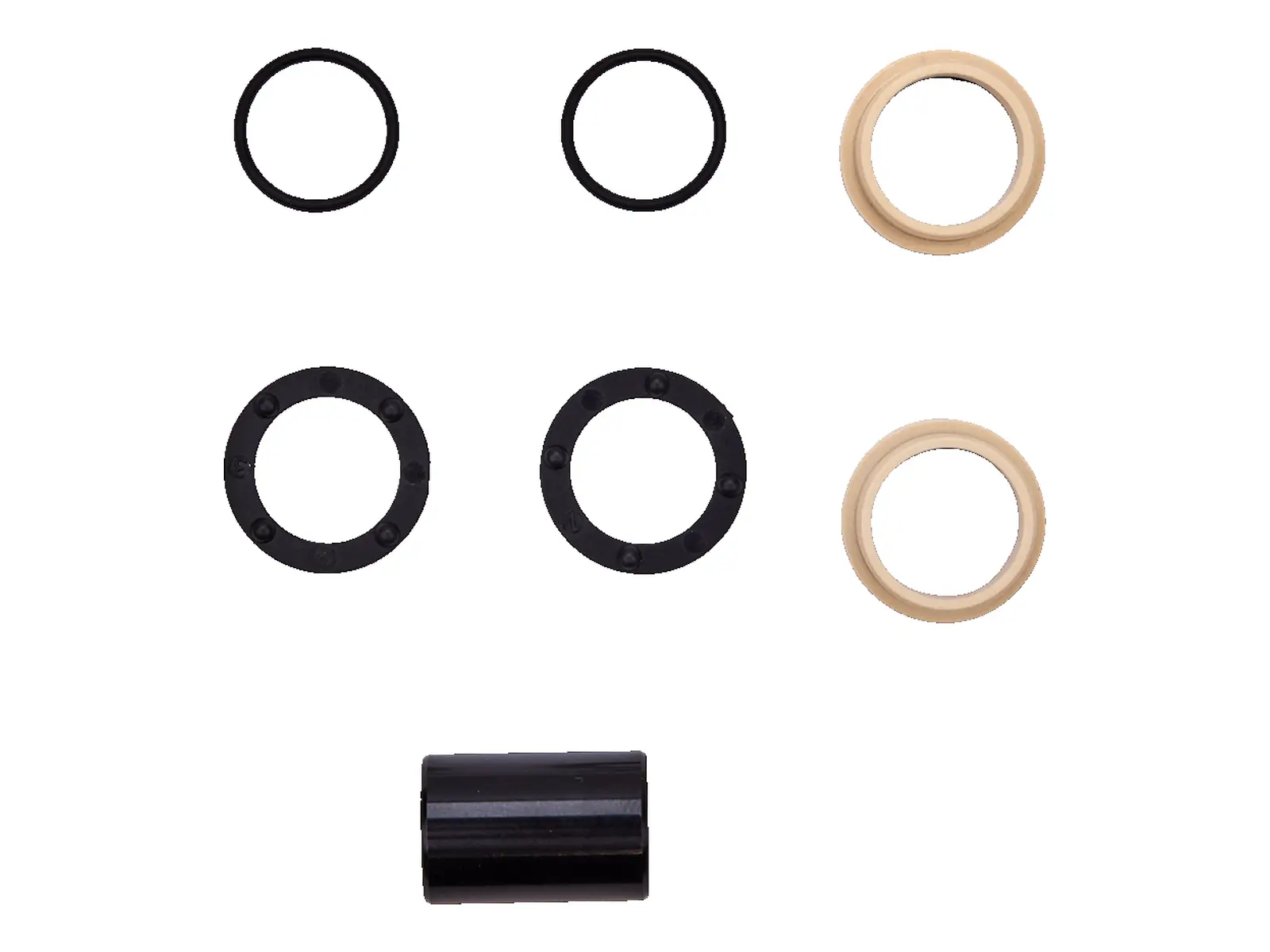

• Contains: hardware for one shock eyelet: 2 flanged bushings, 1 hollow pin, 2 spacers, 2 O-rings
• Part number: FOX 803-03-275 (6 mm x 41.15 mm, pin 214-08-023), 803-03-300 (8 mm x 38.61 mm, pin 214-09-028), 803-03-257 (6 mm x 20.83 mm, pin 214-08-004), 803-03-261 (6 mm x 24.64 mm, pin 214-08-009), 803-03-264 (6 mm x 25.91 mm, pin 214-08-012), 803-03-265 (6 mm x 27.94 mm, pin 214-08-013), 803-03-281 (8 mm x 22.86 mm, pin 214-09-008), 803-03-296 (8 mm x 33.99 mm, pin 214-09-024), 803-03-260 (6 mm x 23.88 mm, pin 214-08-008), 803-03-269 (6 mm x 31.75 mm, pin 214-08-017), 803-03-278 (8 mm x 21.54 mm, pin 214-09-005), 803-03-328 (8 mm x 25 mm, pin 214-09-044), 803-03-270 (6 mm x 32.05 mm, pin 214-08-018), 803-03-276 (6 mm x 49.78 mm, pin 214-08-025), 803-03-326 (8 mm x 20 mm, pin 214-09-043), 803-03-277 (8 mm x 19.05 mm, pin 214-09-004), 803-03-302 (8 mm x 41.15 mm, pin 214-09-031), 803-03-256 (6 mm x 19.05 mm, pin 214-08-003), 803-03-266 (6 mm x 28.45 mm, pin 214-08-014), 803-03-272 (6 mm x 35.05 mm, pin 214-08-020), 803-03-298 (8 mm x 35.56 mm, pin 214-09-026), 803-03-306 (8 mm x 44.86 mm, pin 214-09-035), 803-03-308 (8 mm x 47.75 mm, pin 214-09-037), 803-03-292 (8 mm x 31.75 mm, pin 214-09-019), 803-03-294 (8 mm x 33.02 mm, pin 214-09-021), 803-03-325 (8 mm x 40 mm, pin 214-09-045), 803-03-307 (8 mm x 45.72 mm, pin 214-09-036), 803-03-258 (6 mm x 21.84 mm, pin 214-08-006), 803-03-286 (8 mm x 25.4 mm, pin 214-09-013), 803-03-288 (8 mm x 27.43 mm, pin 214-09-015), 803-03-304 (8 mm x 42.19 mm, pin 214-09-033), 803-03-309 (8 mm x 49.78 mm, pin 214-09-038), 803-03-273 (6 mm x 38.61 mm, pin 214-08-021), 803-03-295 (8 mm x 33.83 mm, pin 214-09-023), 803-03-313 (8 mm x 36 mm, pin 214-09-041), 803-03-333 (6 mm x 21.08 mm, pin 214-08-005), 803-03-274 (6 mm x 39.88 mm, pin 214-08-022), 803-03-285 (8 mm x 25.15 mm, pin 214-09-012), 803-03-312 (8 mm x 25.91 mm, pin 214-09-040), 803-03-289 (8 mm x 27.94 mm, pin 214-09-016), 803-03-267 (6 mm x 29.97 mm, pin 214-08-015), 803-03-279 (8 mm x 21.84 mm, pin 214-09-006), 803-03-290 (8 mm x 28.8 mm, pin 214-09-017), 803-03-331 (8 mm x 33.68 mm, pin 214-09-022), 803-03-299 (8 mm x 37.59 mm, pin 214-09-027), 803-03-305 (8 mm x 43.69 mm, pin 214-09-034), 803-03-337 (8 mm x 49.78 mm, offset spacers), 803-03-332 (6 mm x 45.72 mm, pin 214-08-024), 803-03-284 (8 mm x 24.89 mm, pin 214-09-011), 803-03-287 (8 mm x 26.92 mm, pin 214-09-014), 803-03-303 (8 mm x 41.55 mm, pin 214-09-032), 803-03-259 (6 mm x 22.2 mm, pin 214-08-007), 803-03-263 (6 mm x 25.4 mm, pin 214-08-011), 803-03-268 (6 mm x 30.43 mm, pin 214-08-016), 803-03-271 (6 mm x 33.83 mm, pin 214-08-019), 803-03-293 (8 mm x 32.39 mm, pin 214-09-020), 803-03-301 (8 mm x 39.88 mm, pin 214-09-030), 803-03-336 (8 mm x 39.88 mm, offset spacers), 803-03-283 (8 mm x 23.88 mm, pin 214-09-010), 803-03-291 (8 mm x 29.97 mm, pin 214-09-018), 803-03-297 (8 mm x 35.05 mm, pin 214-09-025), 803-03-327 (6 mm x 20 mm, pin 214-08-026), 803-03-282 (8 mm x 23.37 mm, pin 214-09-009)
• Extras: the second shock mount needs its own kit
