Insight "Euro BSA" BMX Race Bottom Bracket - Square Taper
- Weight : 0.33kg / 0.73lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45537
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-euro-bsa-bmx-race-bottom-bracket-square-taper-p-45537
Printed: 10/29/2026
Printed: 10/29/2026

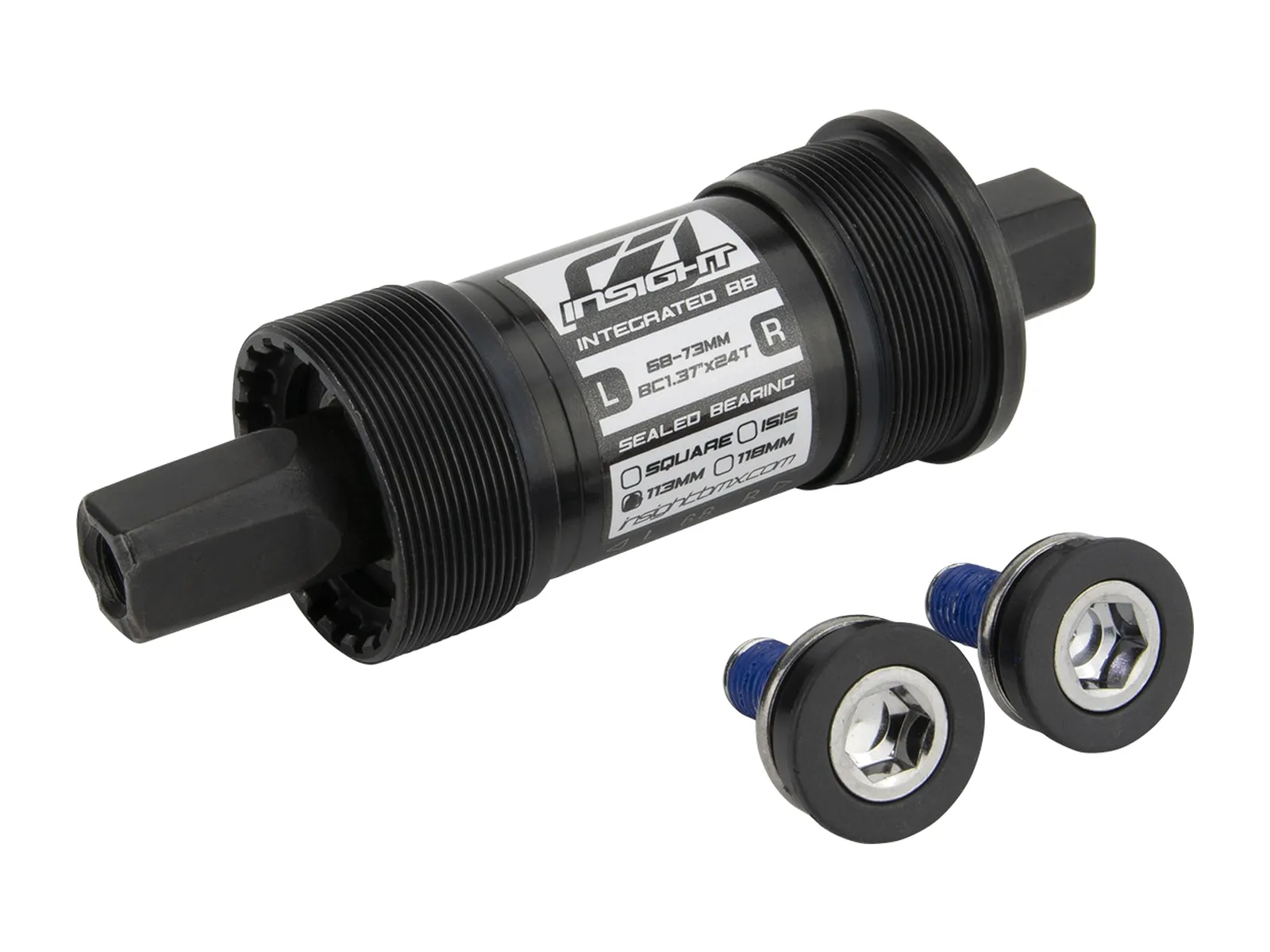

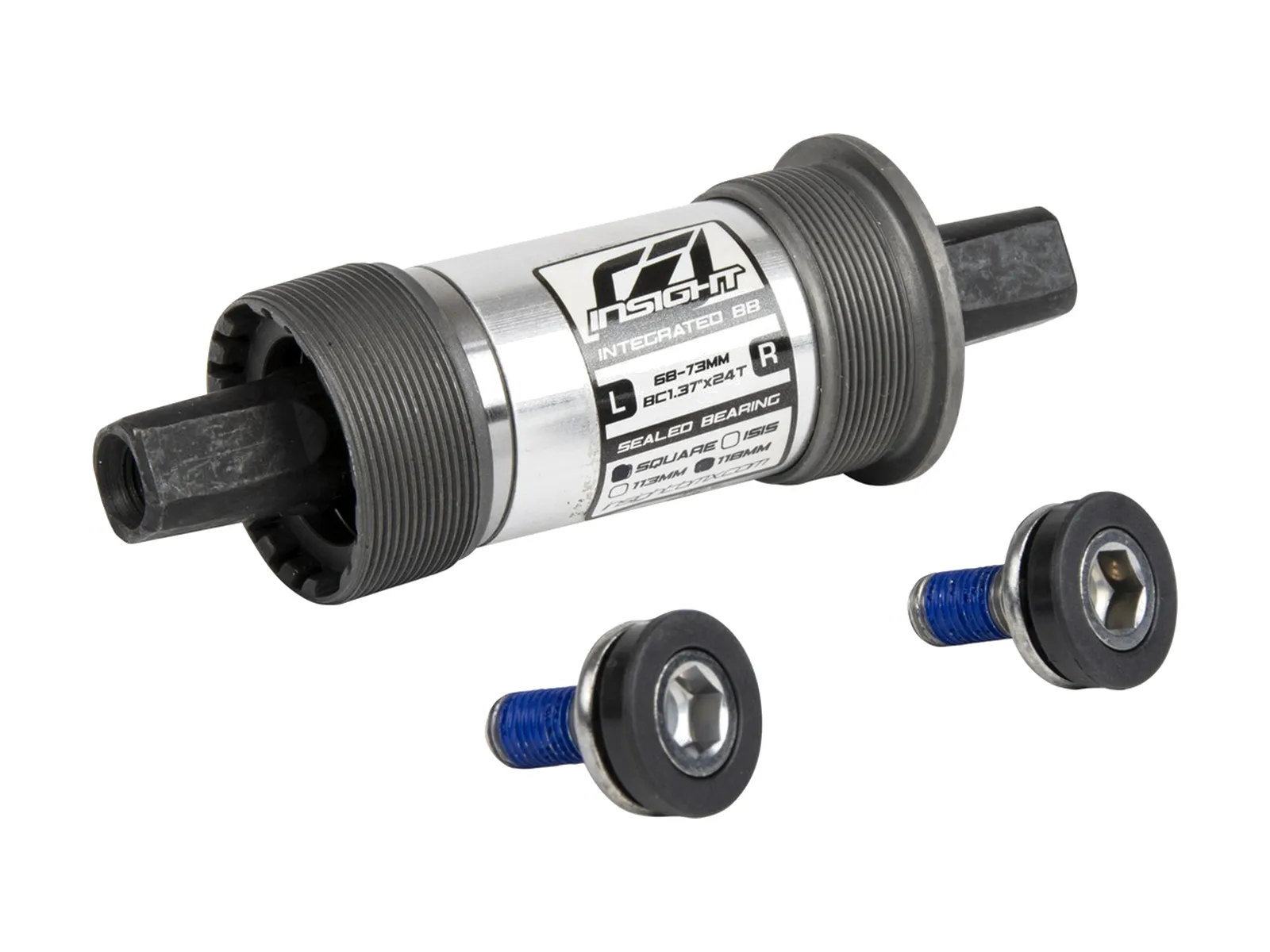

The Insight "Euro BSA" BMX Race Bottom Bracket - Square Taper is a cartridge bottom bracket for young riders whose crank sits on a JIS standard square taper spindle. The cups are forged from aluminium and hold large sealed industrial bearings that spin smoothly without play. The spindle is made of chromoly.
It only fits frames with an internally threaded Euro BSA/BSC shell, 68mm wide and 34.5mm outside diameter. Choose the spindle length as an option, 113mm weighs 327g, 118mm weighs 334g. Two spindle bolts are included.
Facts: Insight "Euro BSA" BMX Race Bottom Bracket - Square Taper
- Style: BSA (Euro, cartridge)
- Thread: BSA/BSC
- Shell width: 68mm
- Outside diameter: 34.5mm
- Axle Diameter: Square taper (JIS)
- Axle length: 113mm or 118mm
- Bearings: 2 x sealed bearings
- Material: cups aluminium, forged, spindle chromoly
- Contains: 1 cartridge bottom bracket, 2 spindle bolts M8 x 1.0
- Extras: for JIS square taper cranks only, weight 327g (113mm), 334g (118mm)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
