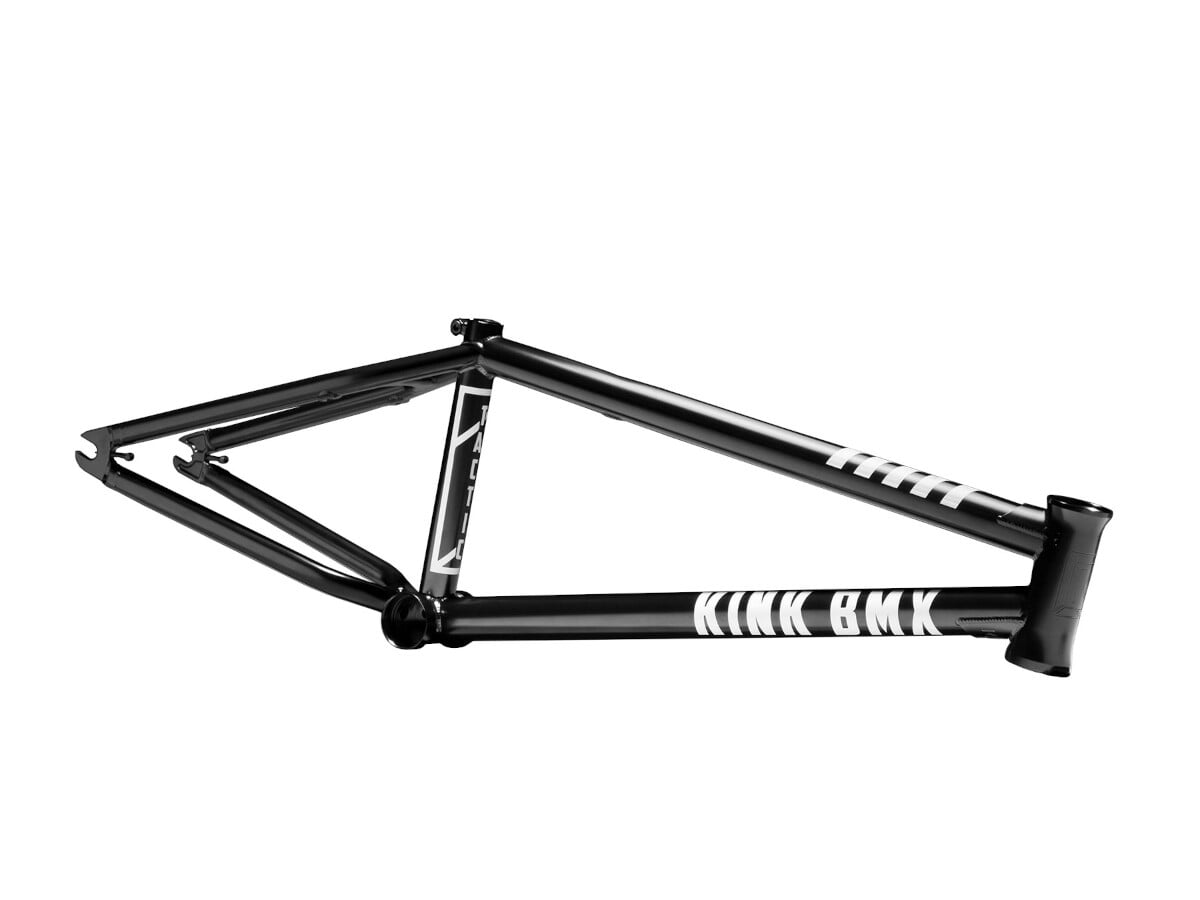

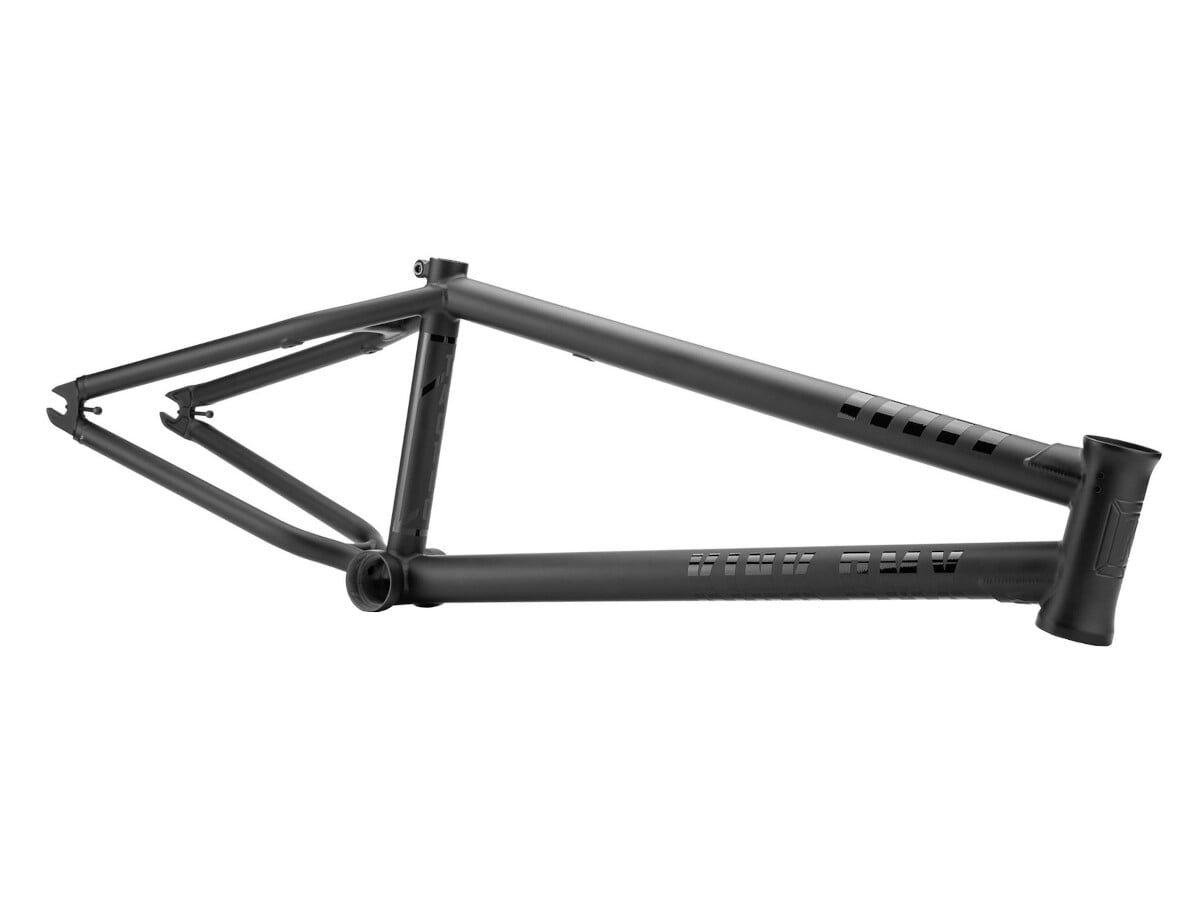

Kink Bikes "Tactic" BMX Frame
- Weight (in kg): 2.16
- Weight (in lbs): 4.76
- Packaging Unit: 1 Piece
- Product ID (PID): 23492
The Kink Bikes "Tactic" BMX Frame offers an average chainstay with a length of 13" (slammed), paired with a moderately steep 75° head tube angle. That makes this model an ideal choice as an all-round BMX frame with modern geometry and specs, with a slight focus on street riding. Of course the Kink Bikes "Tactic" BMX Frame is made from the highest quality, heat-treated 100% Sanko 4130 CrMo steel and also offers high-quality investment cast dropouts, an integrated seat clamp and screwable U-brake sockets.
Facts: Kink Bikes "Tactic" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.75", 21.0" or 21.25"
Chainstay Length (CS): 13" (33cm) - 13.55" (34.42cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 8.5" (21.59cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Wide rear end for fat tires, Investment cast seatstay bridge and dropouts
- Model Year: 2022
