Praxis Works "BSA" MTB Bottom Bracket
-
Weight : 0.1kg / 0.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 40336
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

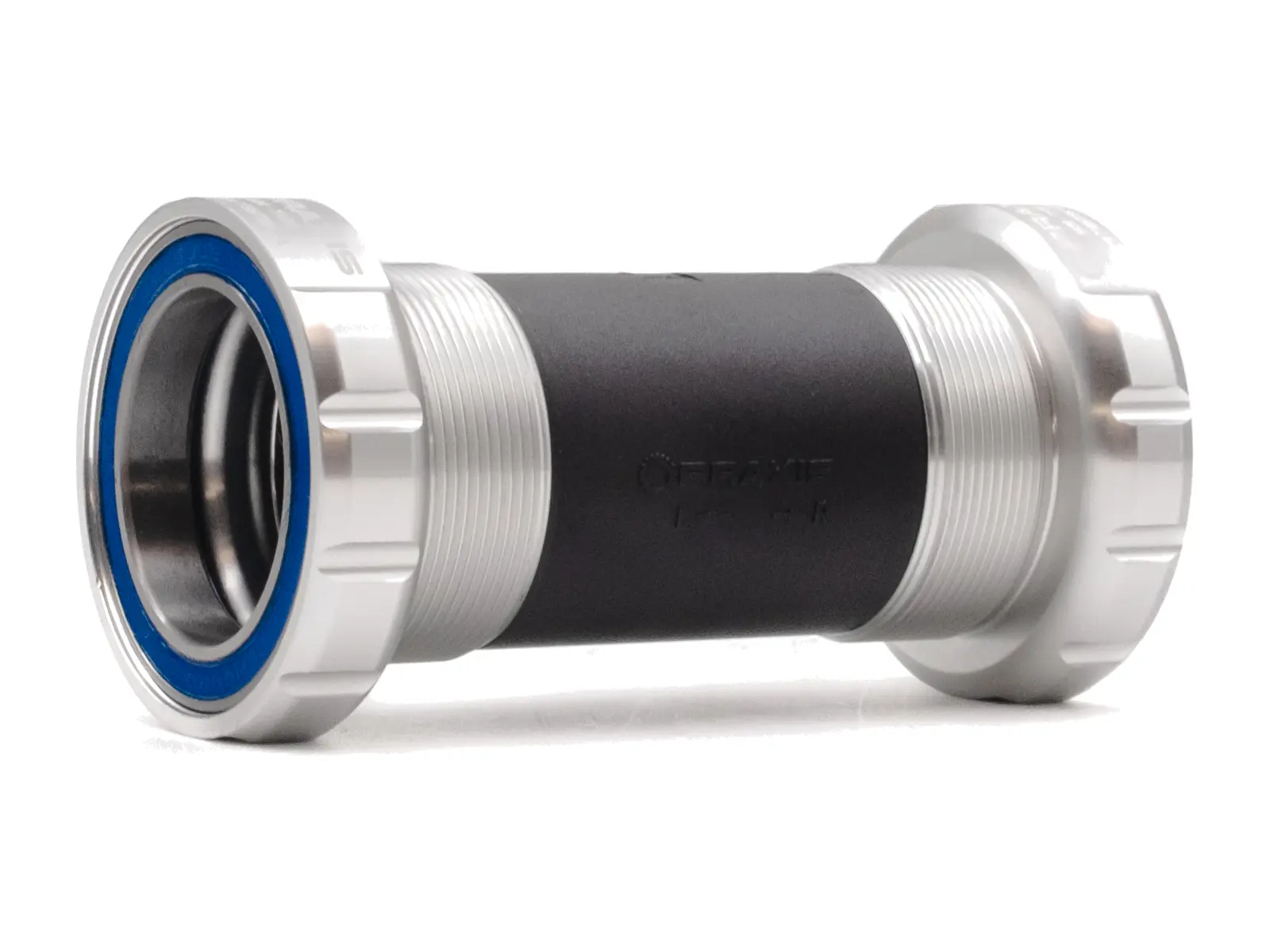

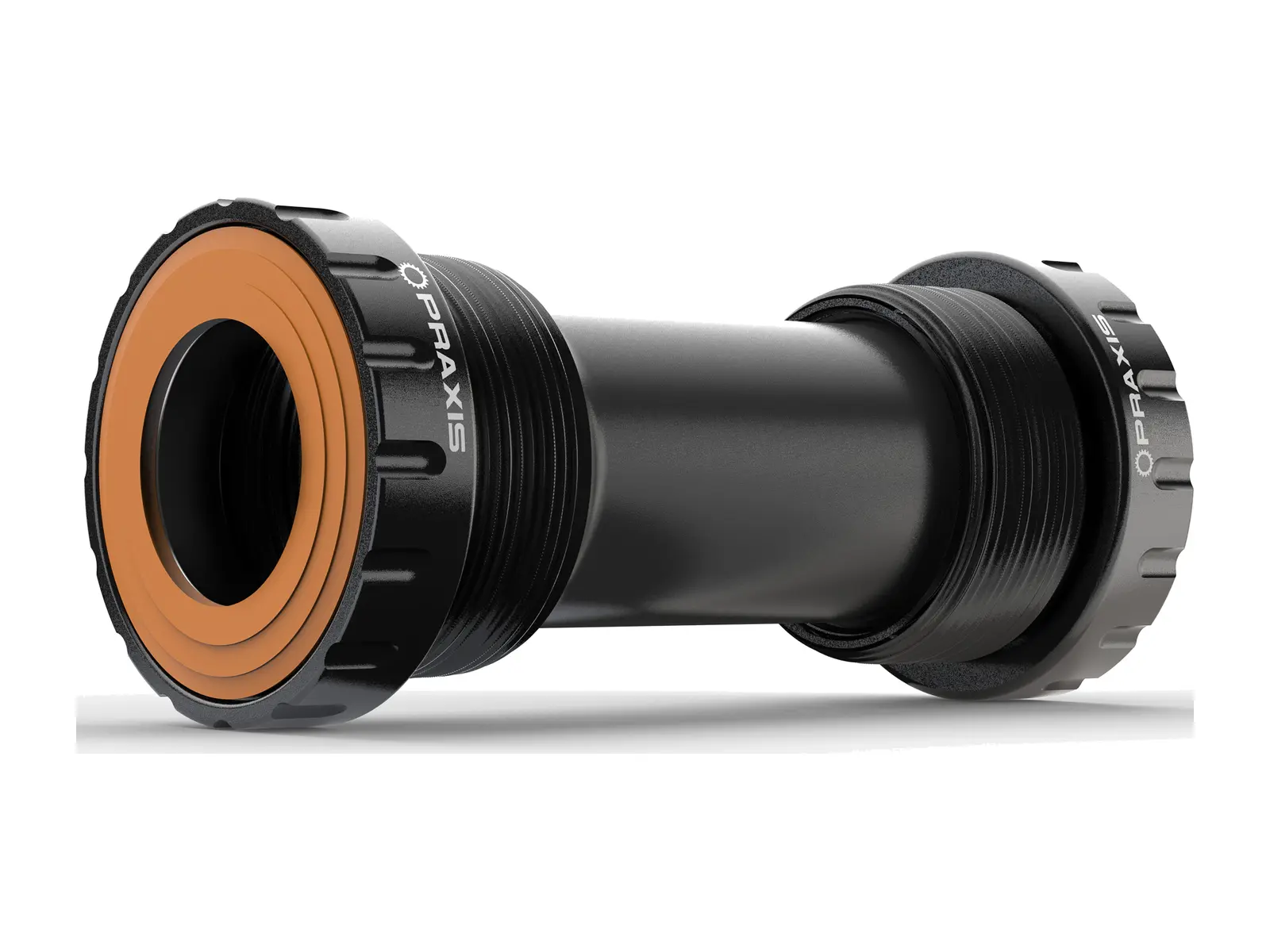

The Praxis Works "BSA" MTB Bottom Bracket is the threaded bottom bracket from Praxis Works for BSA (English threaded) shells 68 or 73mm wide. The cups are forged and machined from heat-treated aluminium and hold external cartridge bearings. Your crank decides which version you need: Praxis M30, M30 Thru for 30mm spindles of other brands, M24 for SRAM GXP, Shimano Hollowtech II or SRAM DUB. The M30 version is also offered with ceramic bearings and in silver.
Facts: Praxis Works "BSA" MTB Bottom Bracket
- Material: cups aluminium, forged, machined and heat-treated
- Style: BSA threaded (English), external bearings
- Axle Diameter: 24/22mm, 24mm, 29mm or 30mm
- Shell Width: 68mm and 73mm (MTB), the DUB version also 83mm (DH)
- Bearings: steel cartridge bearings, M30 optionally ceramic (grade 5 / ABEC 5)
- Scope of Delivery: 1 bottom bracket
- Extras:

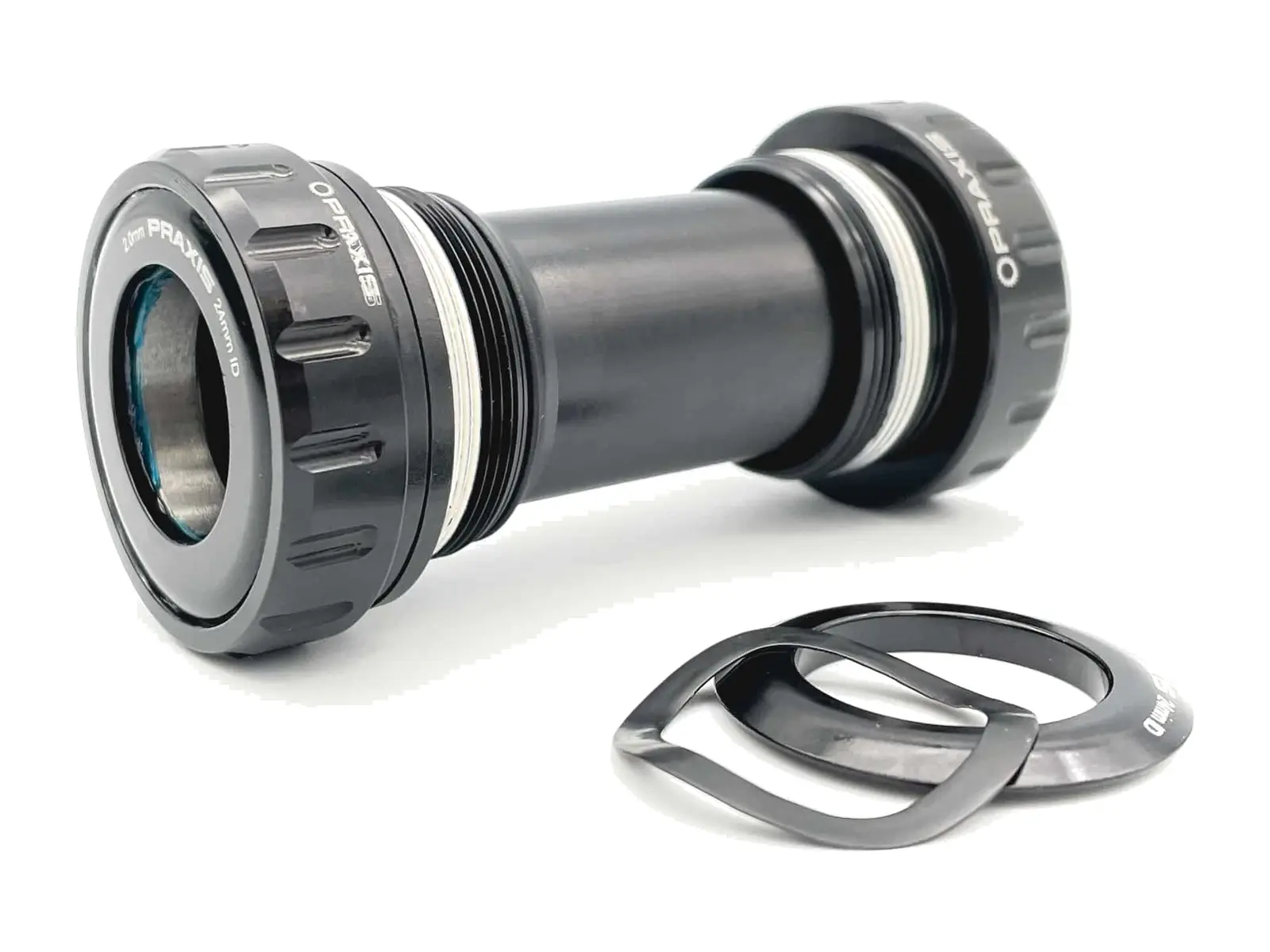

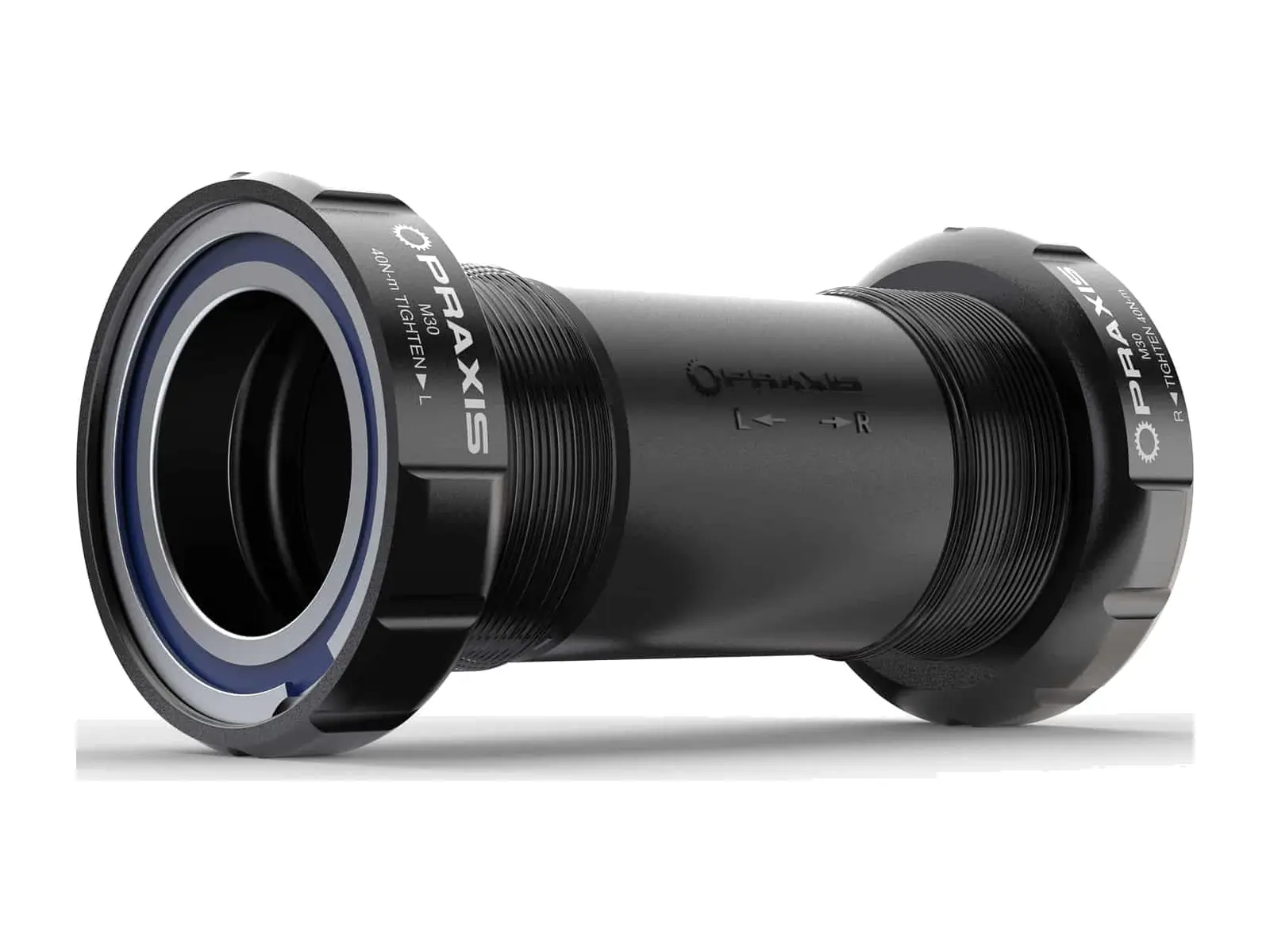

- Praxis M30: only for Praxis M30 cranks (Cadet, Girder, DH9, Zane), bearings 30mm drive side, 28mm non-drive side, preload by a drive-side wave washer

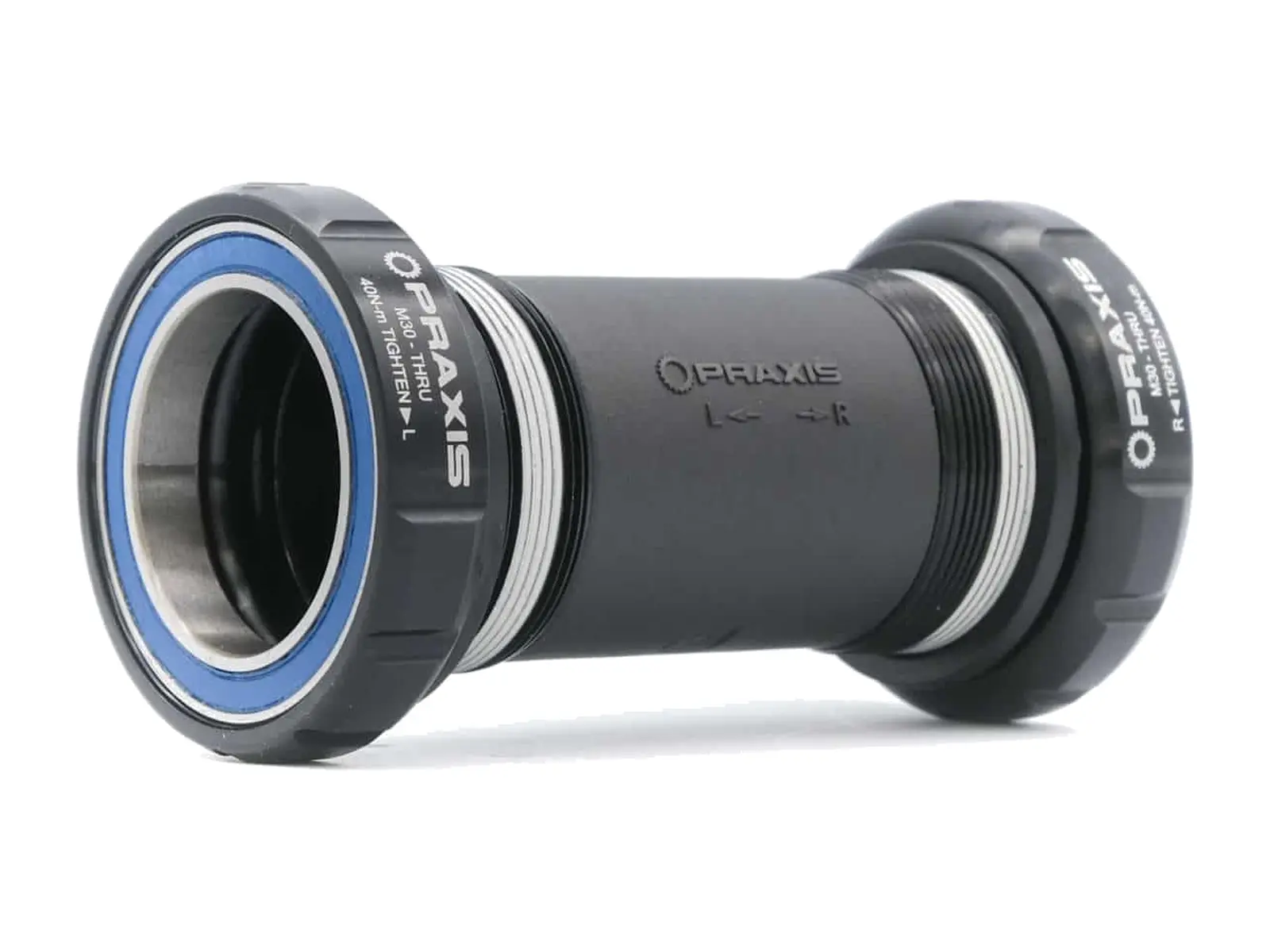

- M30 Thru: for cranks with a straight 30mm spindle (Praxis Lyft, SRAM 30mm, Race Face Cinch 30, Rotor, Cane Creek eeWings), bearings 30mm/30mm, spindle length 108mm or longer (MTB)
- M24: for Praxis M24 and SRAM GXP steel spindles (24mm drive side, 22mm non-drive side)
- Shimano: for Shimano Hollowtech II cranks, 24mm/24mm

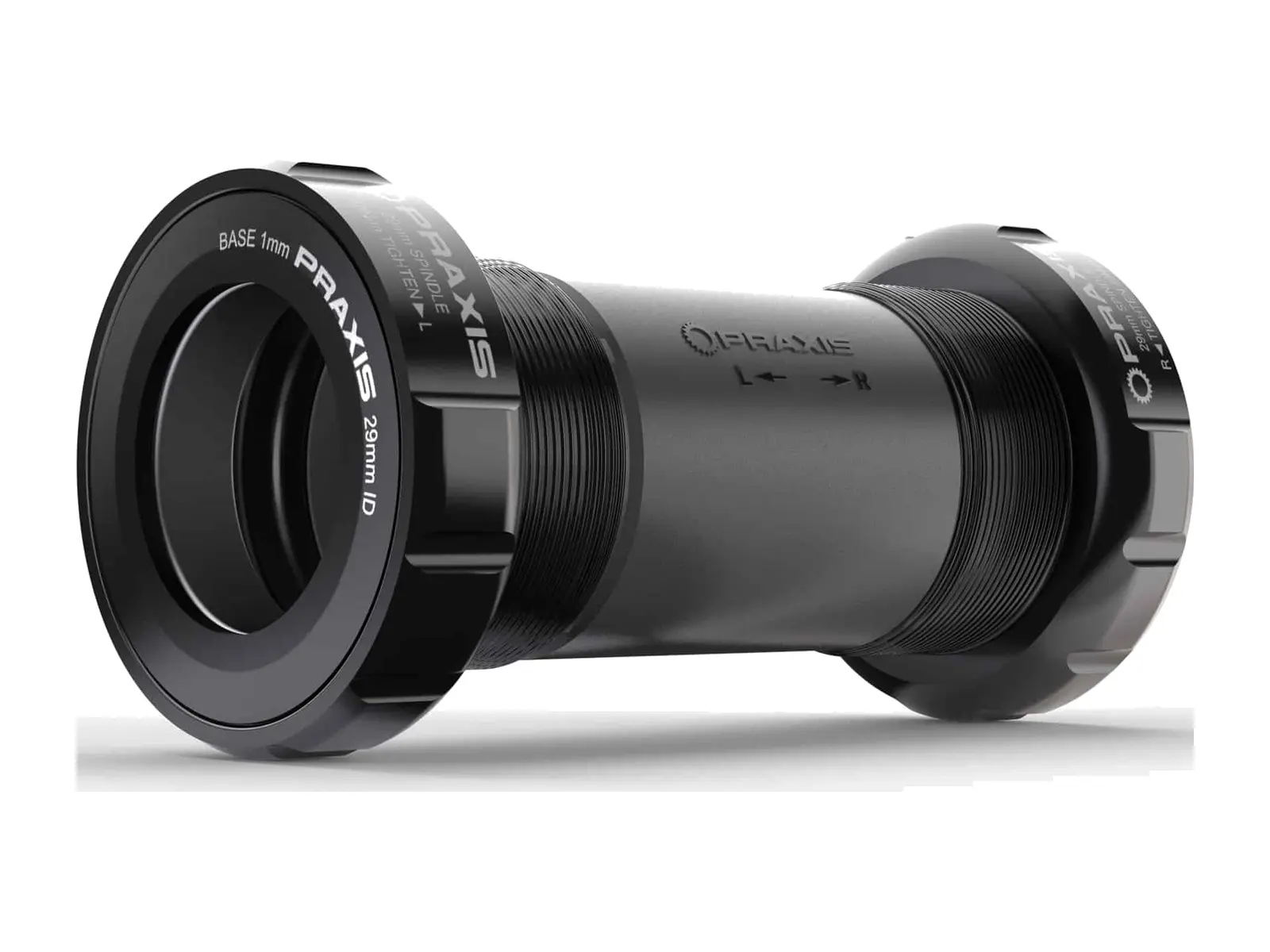

- SRAM DUB: for SRAM DUB cranks with a 29mm spindle
- M30, M30 Thru and DUB install with the Praxis M30 socket tool or M30 wrench, M24 and Shimano with a standard 44mm, 16 notch bottom bracket tool
- weight approx. 100g (M30), 95g (Shimano, DUB), manufacturer
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
