Premium "1948" BMX Crank

129.37 EUR

Color | lenght
  • Please Select
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight (in kg): 0.72
  • Weight (in lbs): 1.59
  • Packaging Unit: 1 Set
  • Product ID (PID): 9535

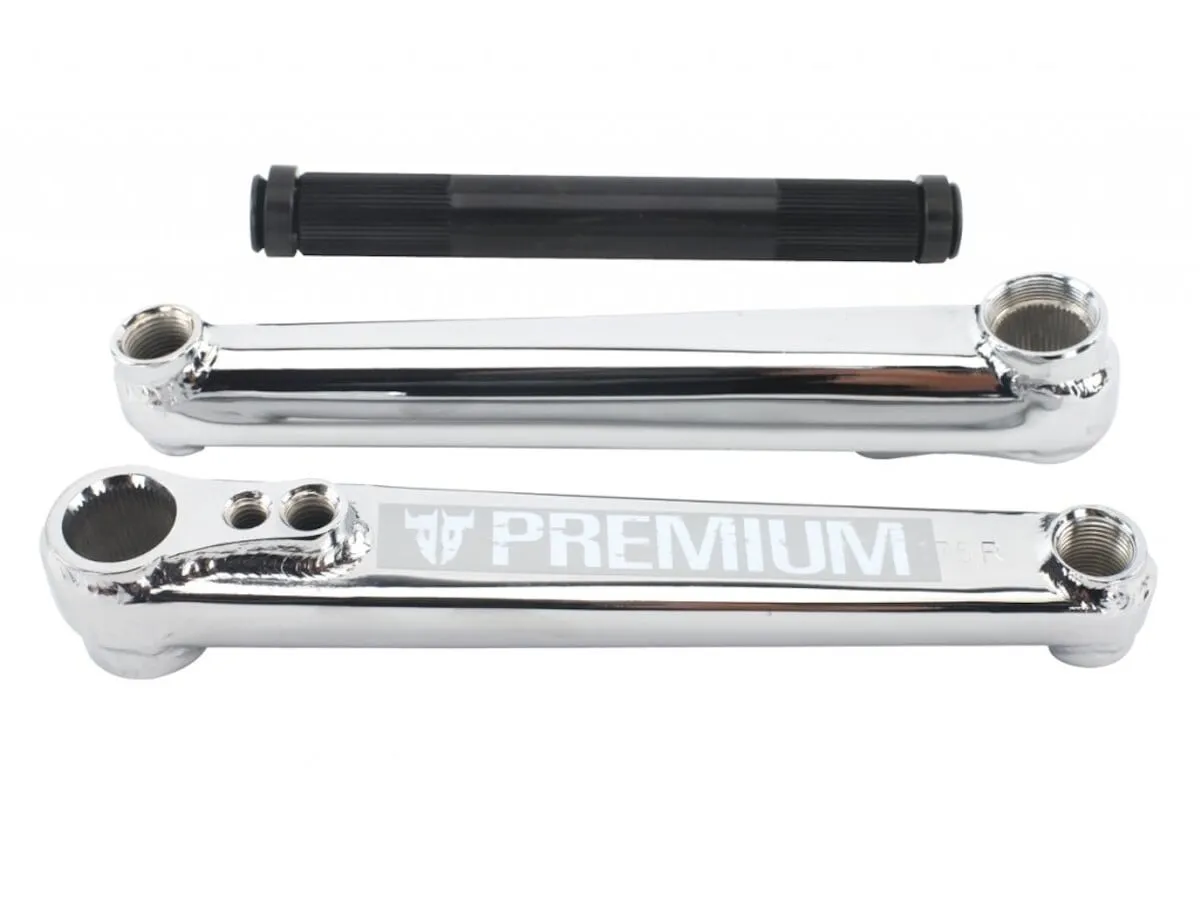

The Premium "1948" BMX Crank is a stable and classic 3-pc. crank made of 100% heat treated 4130 CrMo with 175mm long crank arms and a 48 spline hollow spindle with a diameter of 19mm. The crank arms of this Premium "1948" BMX Crank have a flattened backside and the areas of the axle and the pedal recording are fully welded around to ensure maximum stability. Sprocket holes for spline drive, regular, but also small micro drive sprockets on both crank arms offer you here a very stable but also RHD/LHD compatible 3-pc. crank Set.

Facts: Premium "1948" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated
  • Crank-Type: 3-piece
  • Crank Arm Length: 175mm
  • Spindle Diameter: 19mm
  • Spindle-Type: 48-Spline, hollow axle
  • possible Sprocket Mount by:
    Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 2x bolts (15x1mm, 22mm Axle) with 6mm
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard), 1x bolt (8x1.25mm)(Micro-Drive)
  • Recommended for: Street, Park or Trails
