Pride Racing "BB86 LTX" BMX Race Bottom Bracket - 24mm
-
Weight : 0.08kg / 0.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 31094

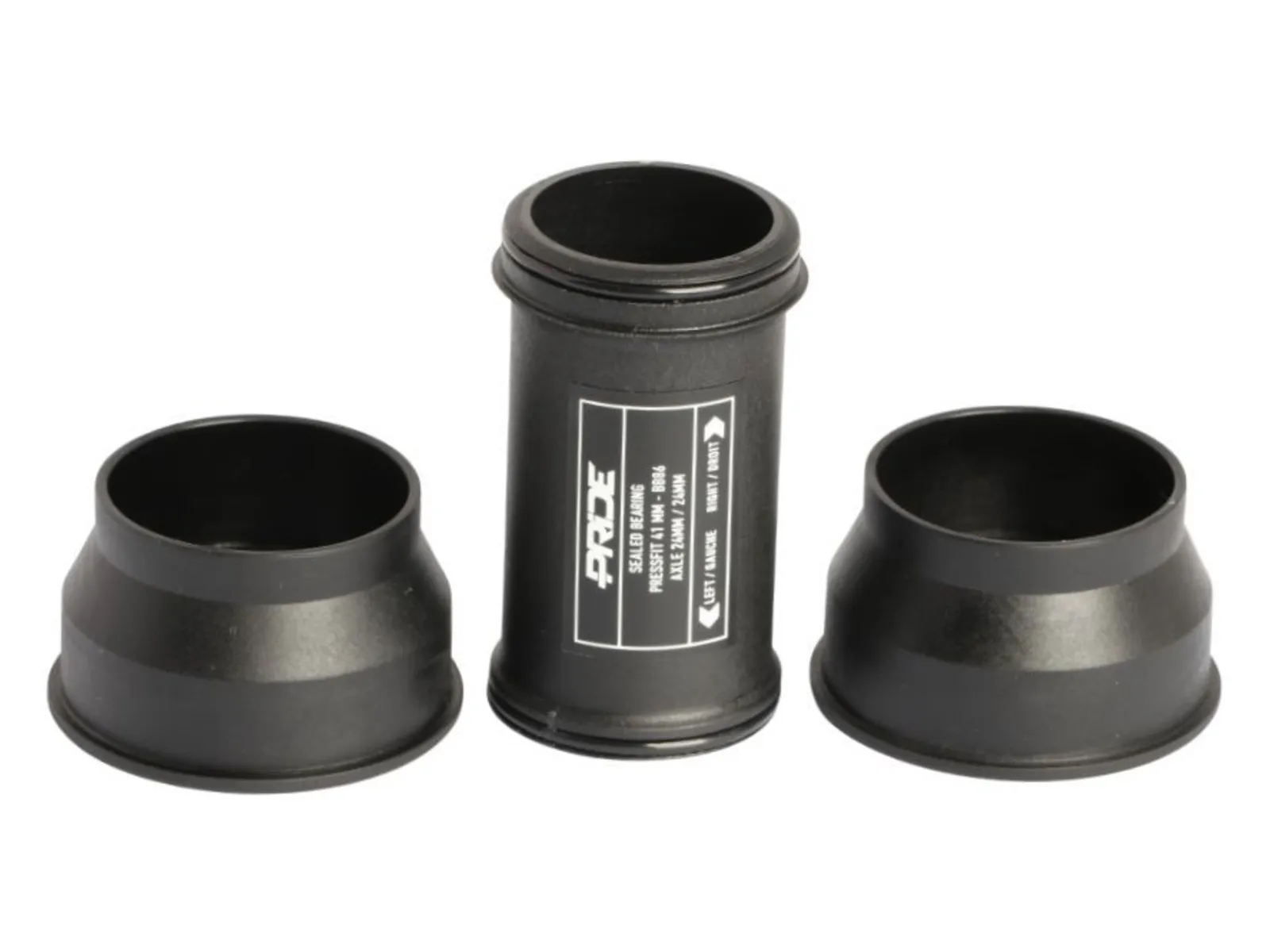

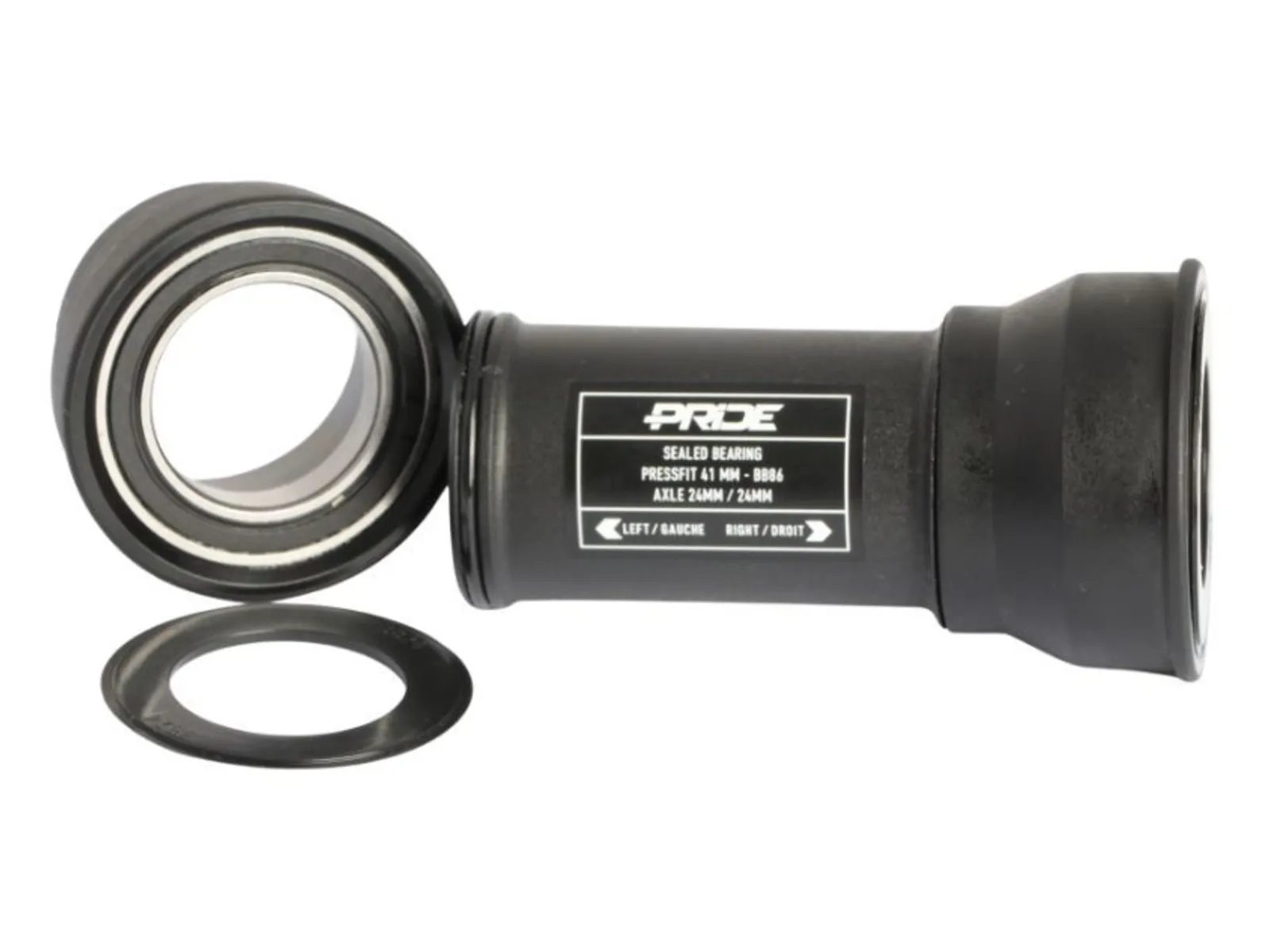

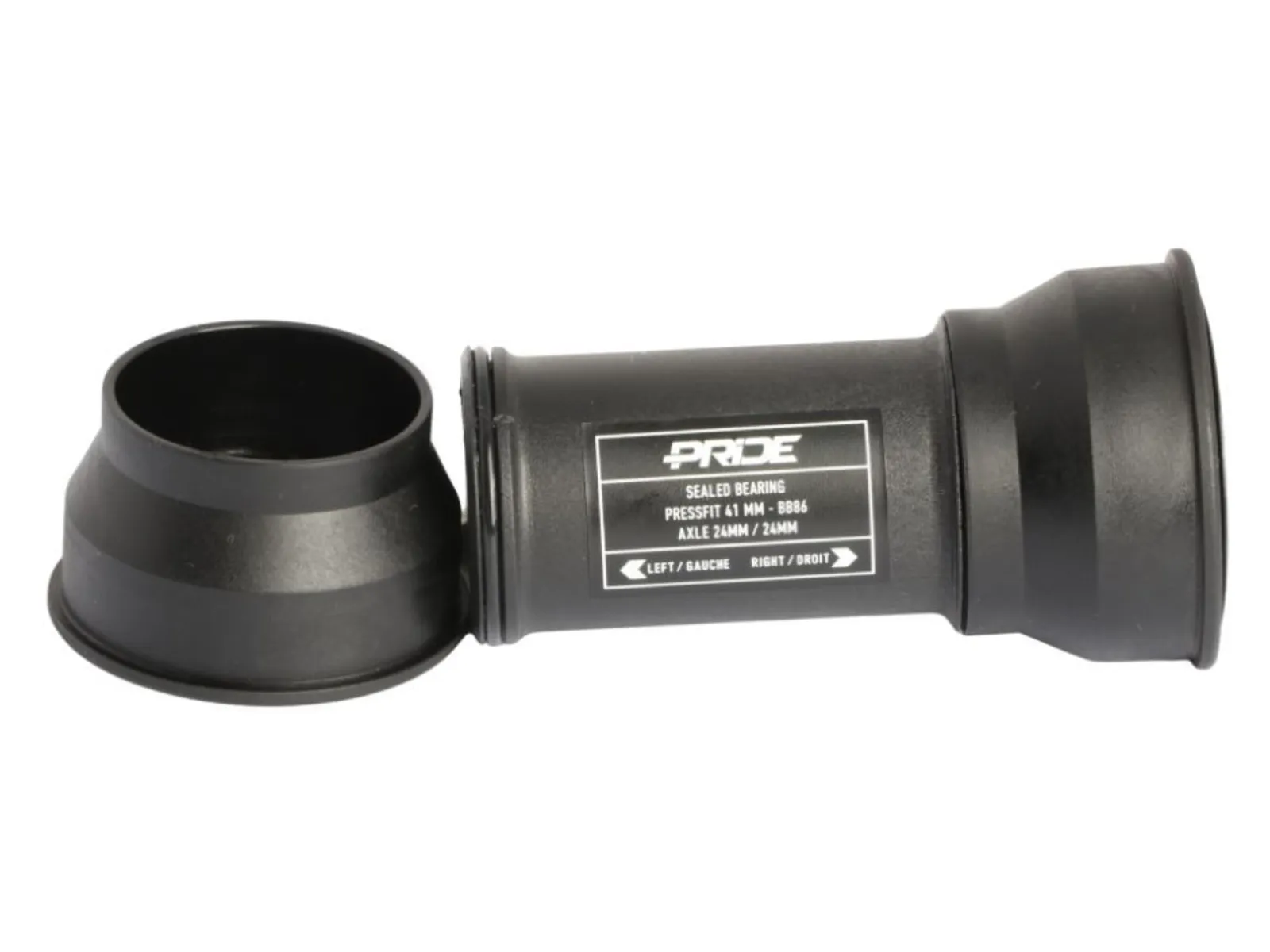

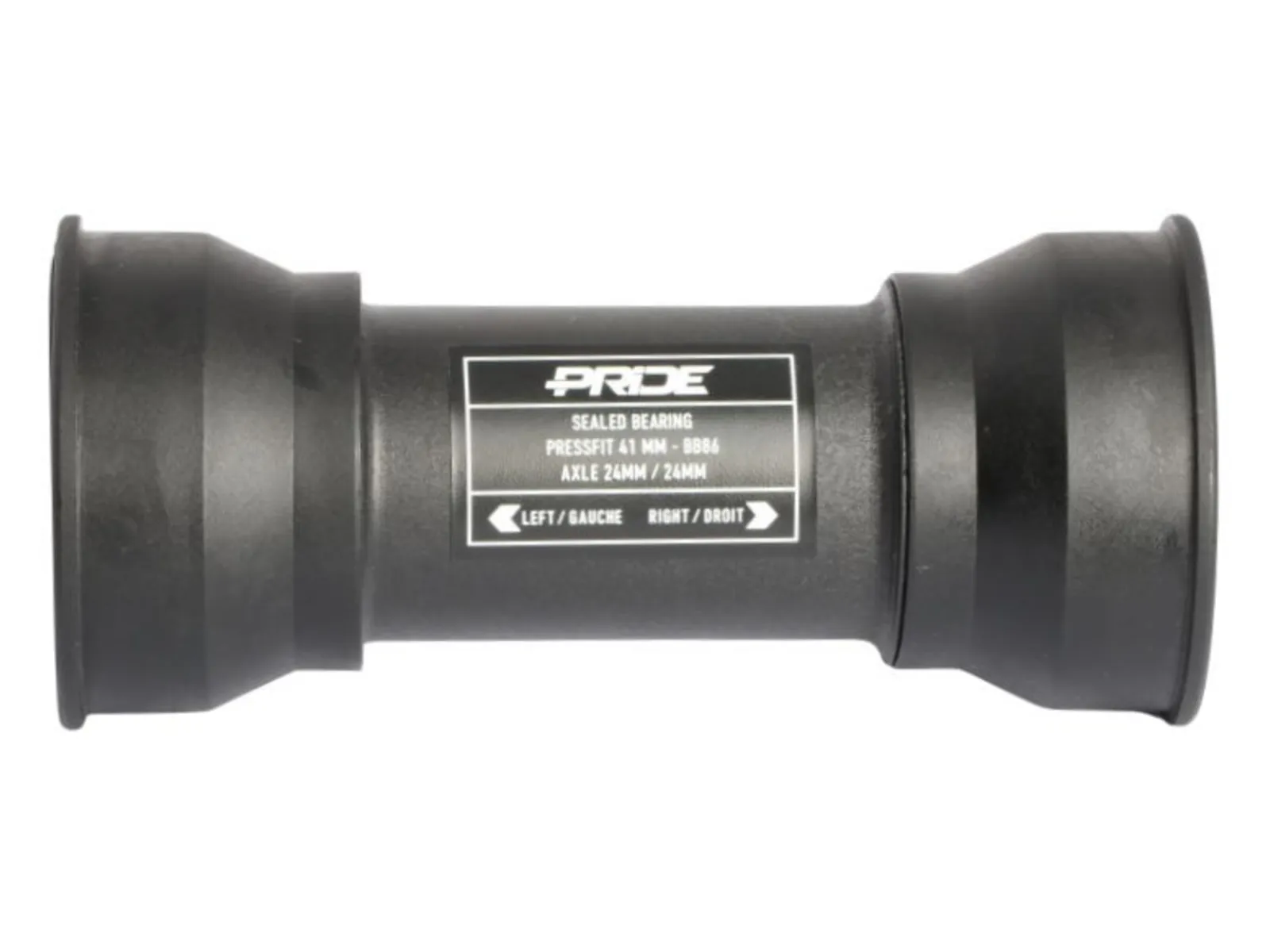

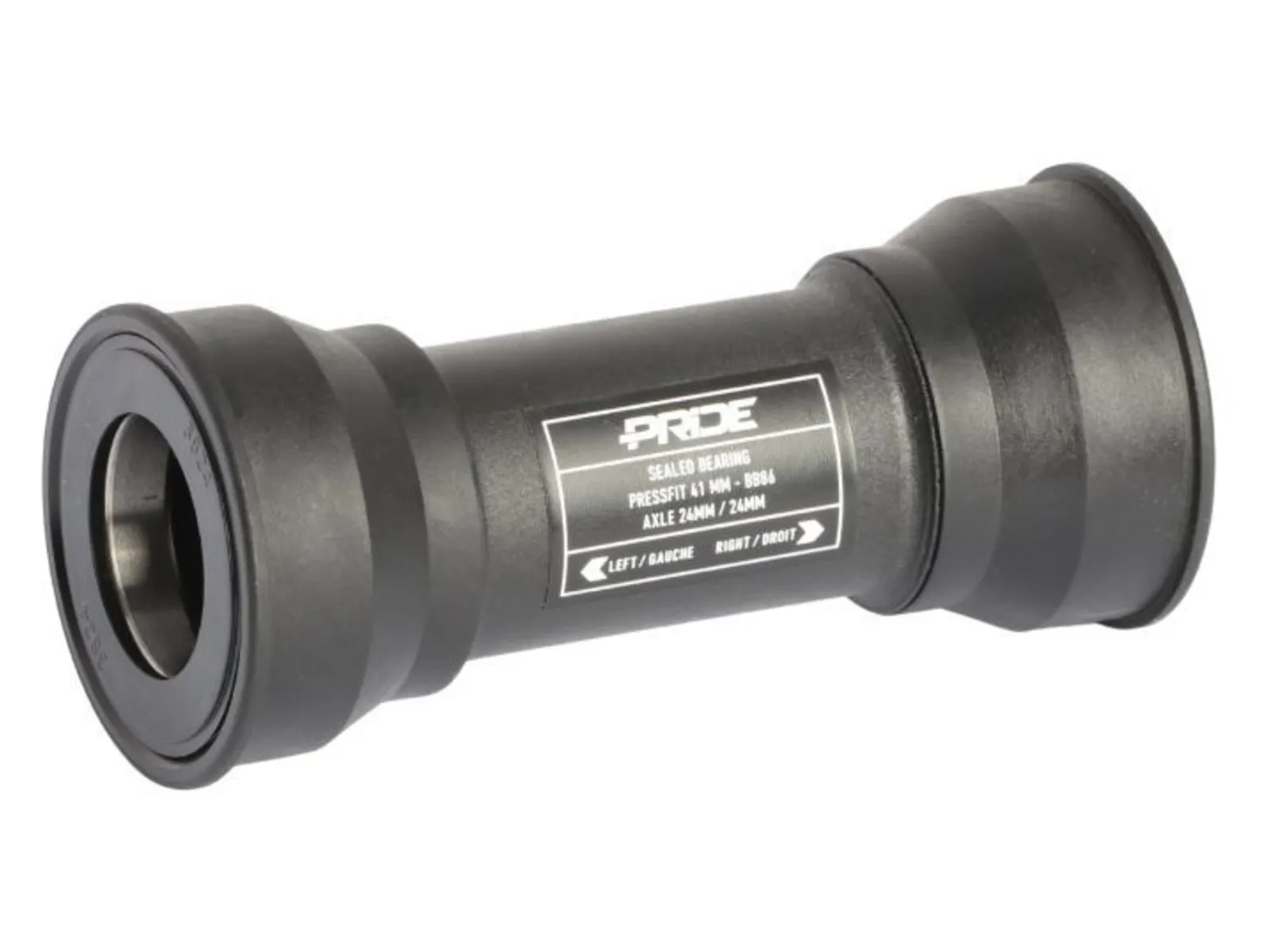

The Pride Racing "BB86 LTX" BMX Race Bottom Bracket - 24mm is a BB86 PressFit bottom bracket by Pride Racing, featuring composite cups and sealed steel bearings (6805, 30×40×7mm) for smooth and durable pedaling performance. It is compatible with 24mm spindles and frames with an inner diameter of 41mm and an installation width of 86mm, making it a reliable fit for common BMX race frames using the BB86 standard. With the Pride Racing "BB86 LTX" BMX Race Bottom Bracket - 24mm you get a lightweight (83g) and low-maintenance bottom bracket that delivers consistent rotation and creak-free riding even under intensive use.
Facts: Pride Racing "BB86 LTX" BMX Race Bottom Bracket - 24mm
- Version: #8#
- Outer Diameter: 41.1 mm (Mid BB) | 37.1 mm (Spanish BB) | 51.5mm (US BB) | 34.8mm (Euro BB)
- Axle Diameter: 24mm
- Bearings: 2 x Sealed Bearing | Loose Ball
- Spacer Cones: Aluminium | Steel, 2 x large cover cones (flat: for chainring side / tall: for non-chainring side), 6 x small spacers
- Spacer Sleeve: Aluminium | Steel, Mid: 50mm, 44mm, 43mm and 5mm | Spanish: 54mm and 48mm
- Extras: BB86 PressFit, Composite Cups, Steel Bearings 6805 (30x40x7mm), Width: 86mm
