S&M Bikes "ATF" BMX Frame
-
Weight : 2.51kg / 5.53lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29056

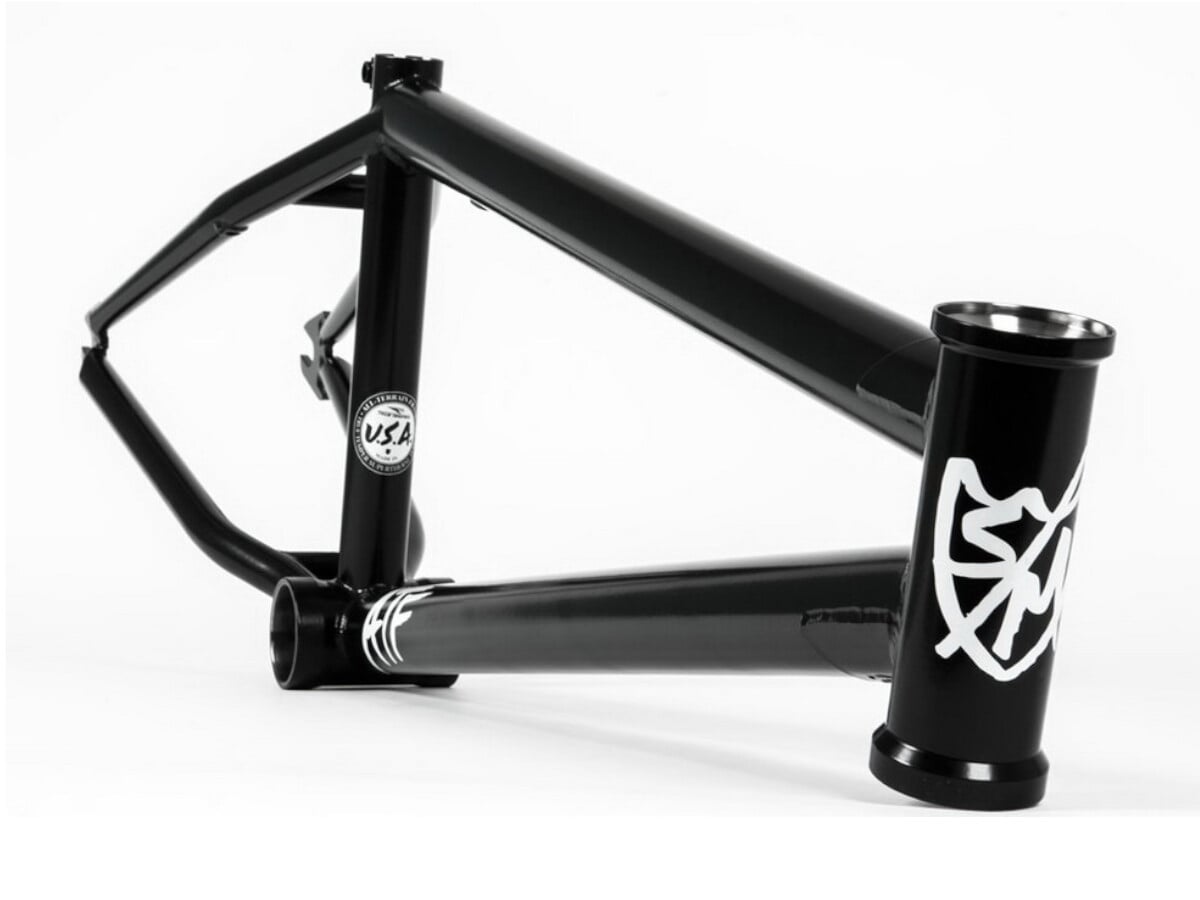

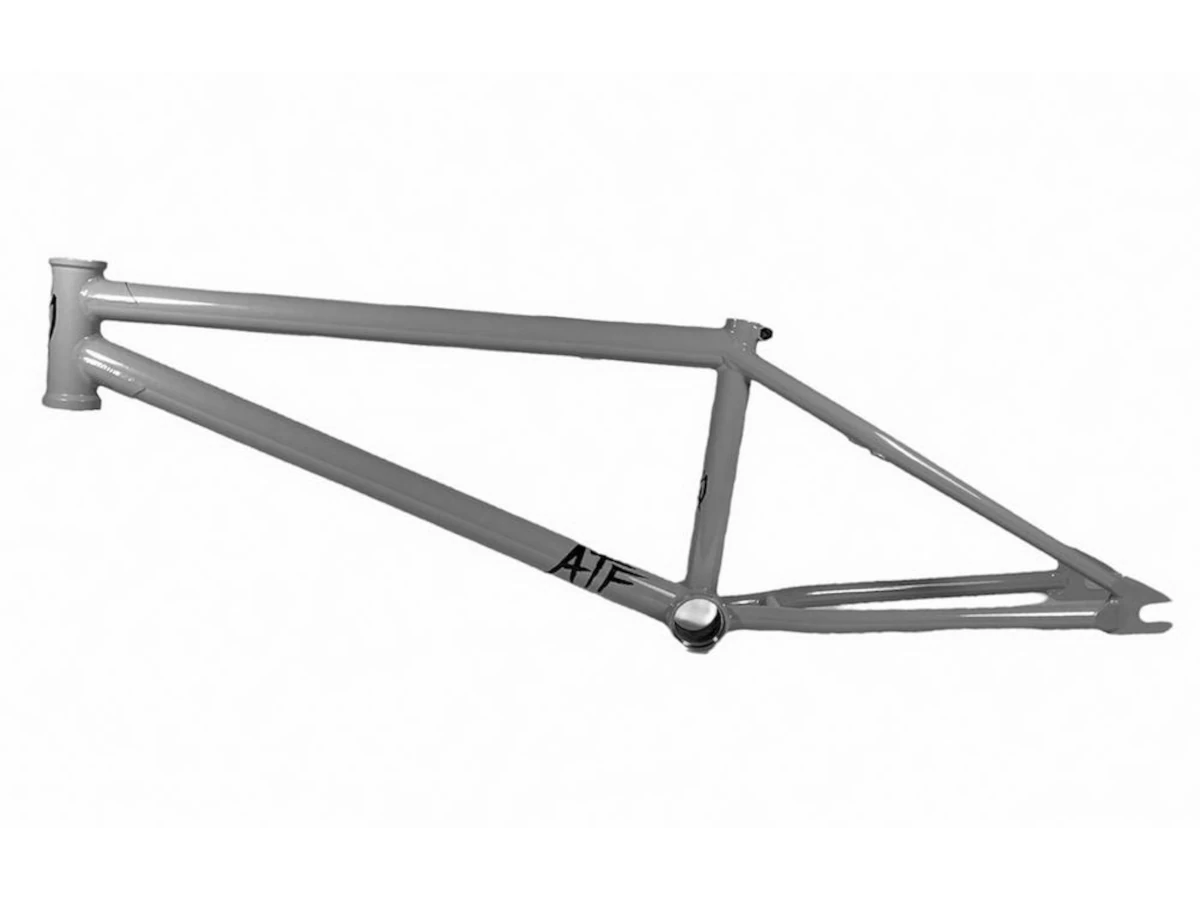

The S&M Bikes "ATF" BMX Frame forms the basis for many of S&M Bikes' Pro Signature models and is also ridden by a large portion of the company's employees. The S&M Bikes "ATF" BMX Frame features a robust construction and is slightly heavier than comparable models, which gives it additional stability.
Facts: S&M Bikes "ATF" BMX Frame
- Wheel Size: 20.5"
- Material: 100% 4130 CrMo, top and down tube gussets, butted tubes, tapered rear stays, integrated headset, Butted True Temper Super Therm tubing
- Geometry:
Top Tube Length (TT): 20.5"
Chainstay Length (CS): 13.40" - 13.875"
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7"
Standover Height (SO): 8.5" - Seat Clamp: Integrated
- Seat Post Diameter: 1" (25.4mm)
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm axle slots
- Brake Mounts: Removable
- Brake Mounts Included: No
- Rotor Compatible: No
- Features: Wide rear end for fat 2.4" tires
