Wolf Tooth "Drop-Stop" MTB Chainring - Race Face Cinch Direct Mount
- Weight : 0.06kg / 0.13lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36487
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/wolf-tooth-drop-stop-mtb-chainring-race-face-cinch-direct-mount-p-36487
Printed: 11/02/2026
Printed: 11/02/2026

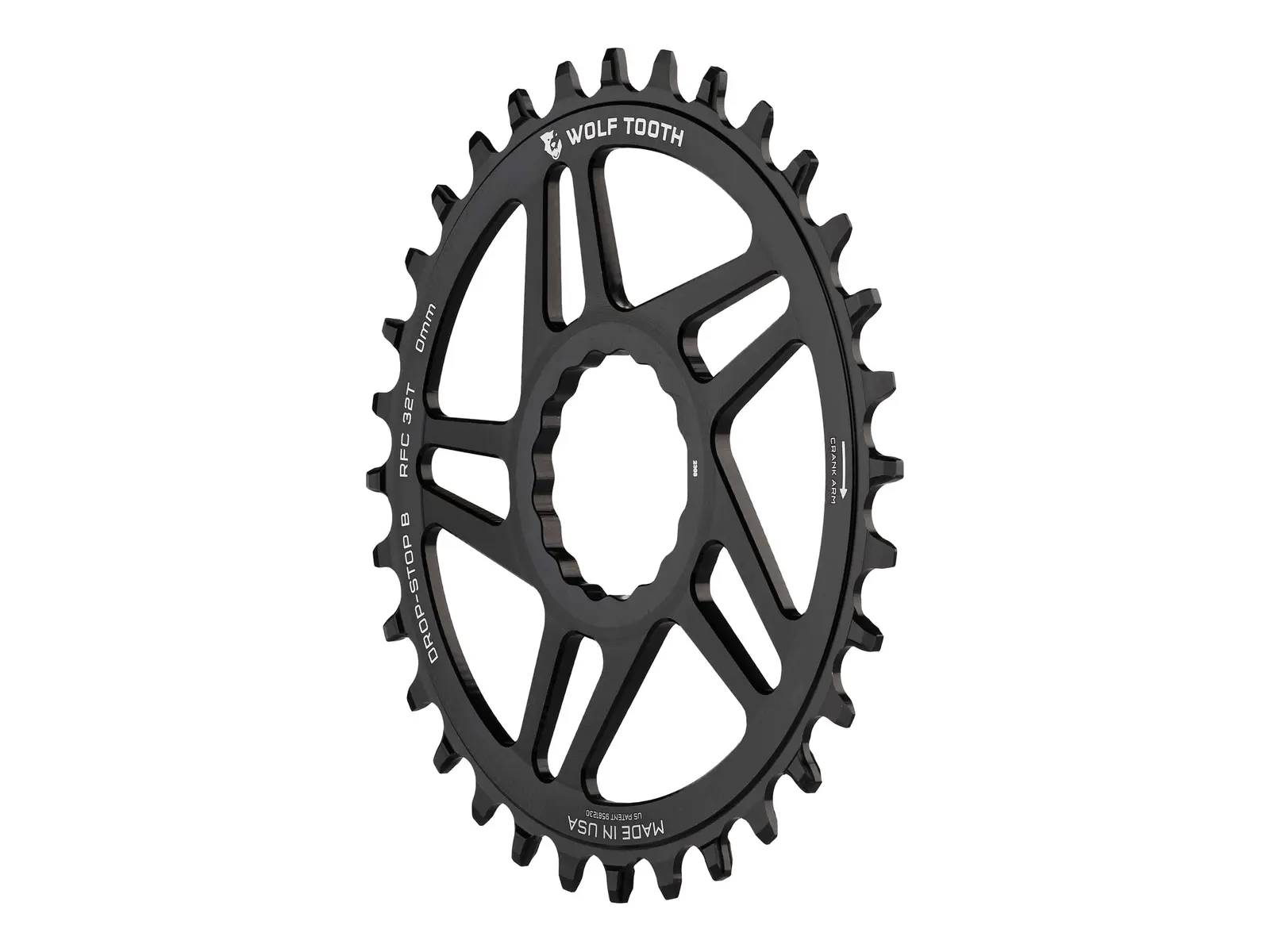

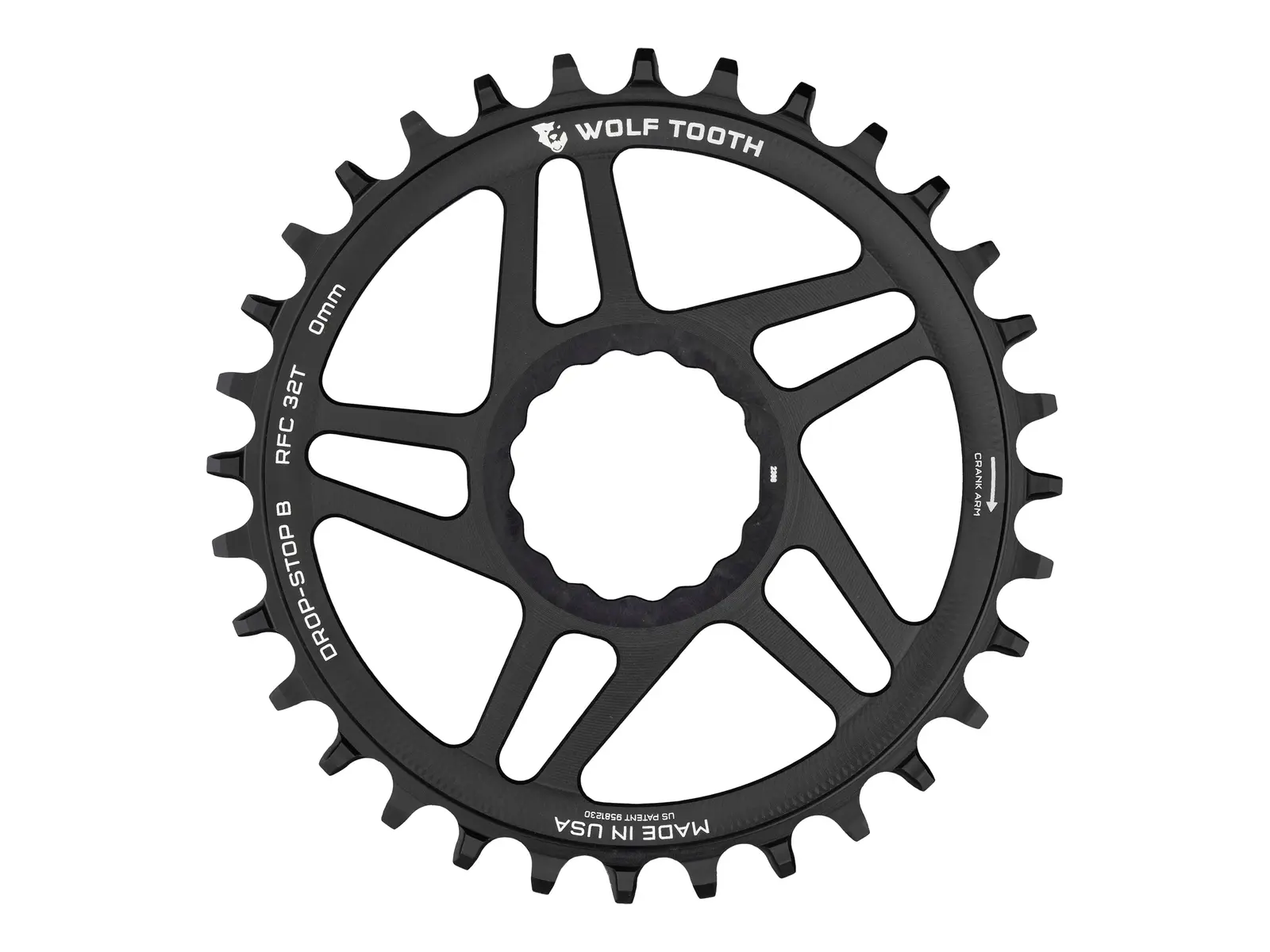

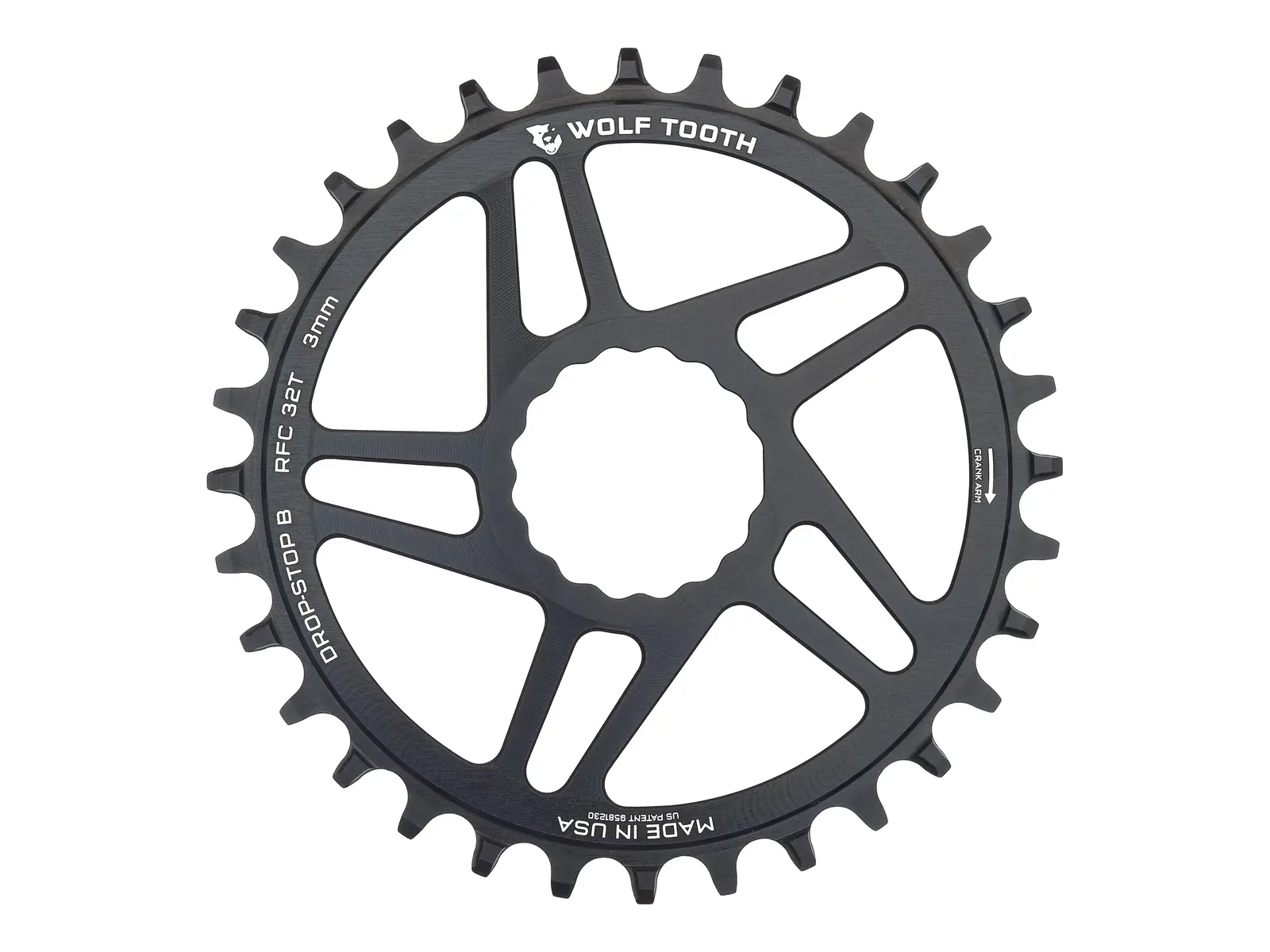

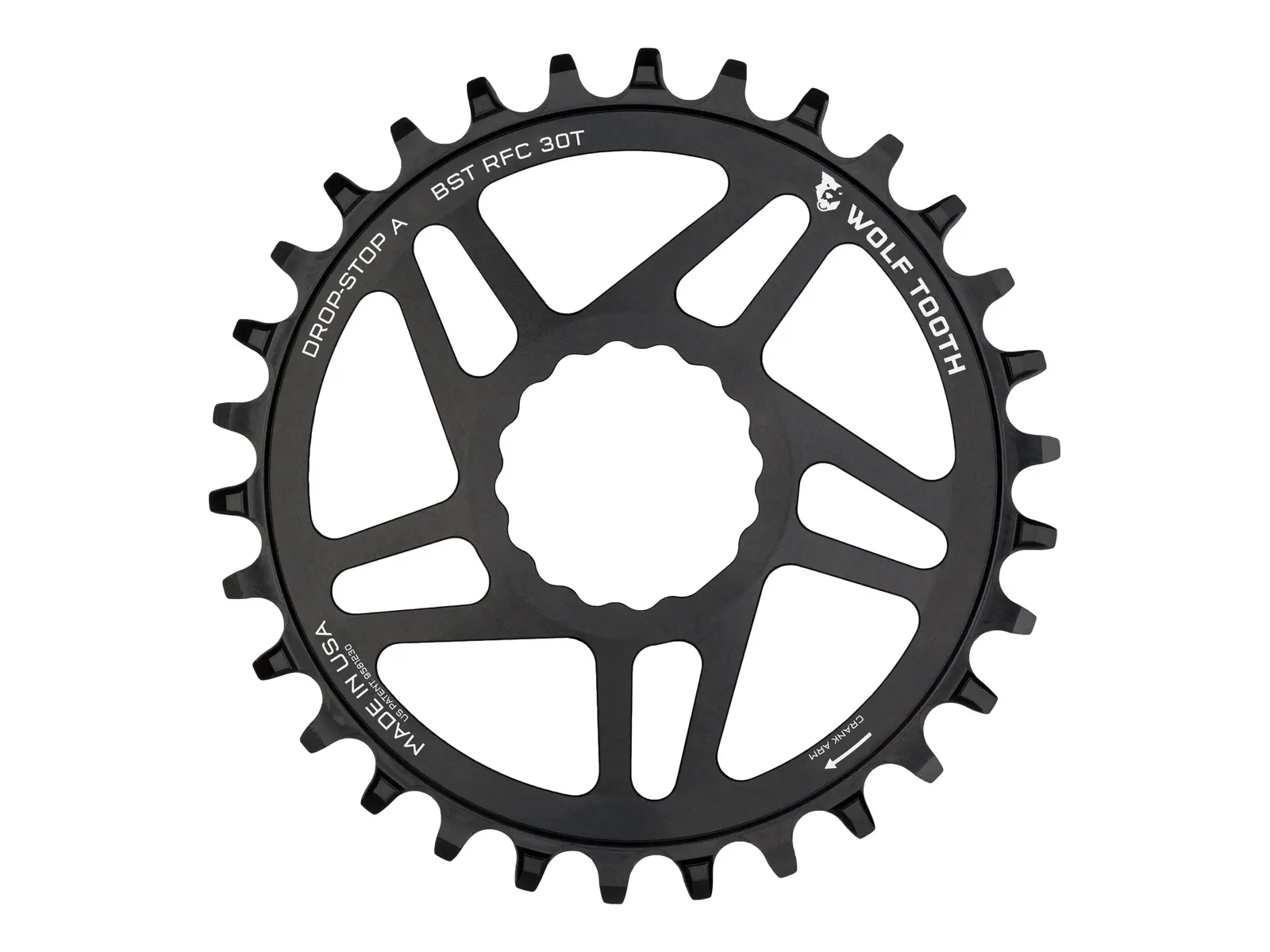

Wolf Tooth "Drop-Stop" MTB Chainring - Race Face Cinch Direct Mount is a 1x chainring with Wolf Tooth's patented Drop-Stop tooth profile: wide and narrow teeth alternate, the wide teeth guide the wide chain links and keep the chain on the ring without a chain guide, the narrow ones let mud and dirt pass. The ring is machined in Minnesota from 7075-T6 aluminium. The Race Face Cinch version fits every Cinch crank from Turbine to Next SL. Three offsets for standard, Boost and T-Type chainline, Drop-Stop B for SRAM and all 9 to 11 speed chains, Drop-Stop A as the previous profile.
Facts: Wolf Tooth "Drop-Stop" MTB Chainring - Race Face Cinch Direct Mount
- Style: 1x chainring, Boost 52mm chainline (3mm offset), Drop-Stop A, Boost 52mm chainline (3mm offset), Drop-Stop B, Boost 52mm chainline (3mm offset), Drop-Stop ST, Boost 55mm chainline (0mm offset, SRAM T-Type), Drop-Stop B or Standard 49mm chainline (6mm offset), Drop-Stop A
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T, 28T, 30T, 32T or 36T
- Chainring Mount: CINCH Direct Mount
- Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
- Contains: 1 chainring
- Extras:
- for every Race Face Cinch crank (Turbine, Next SL, Sixc, Aeffect, Atlas)
- standard 6mm offset = 49mm chainline (142mm rear end); Boost 3mm offset = 52mm chainline (148mm) and Super Boost 151mm spindle; 0mm offset = 55mm chainline for SRAM T-Type on Cinch cranks with a 136/137mm Boost spindle
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 28T 54g, 30T 58g, 32T 63g, 34T 69g, 36T 75g
- made in USA
