Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 3-Bolt Direct Mount

from 89.95 EUR

Taxfree excl. shipping

Color | Style | Teeth

Straight to the checkout with PayPal. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.07kg / 0.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 36484
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

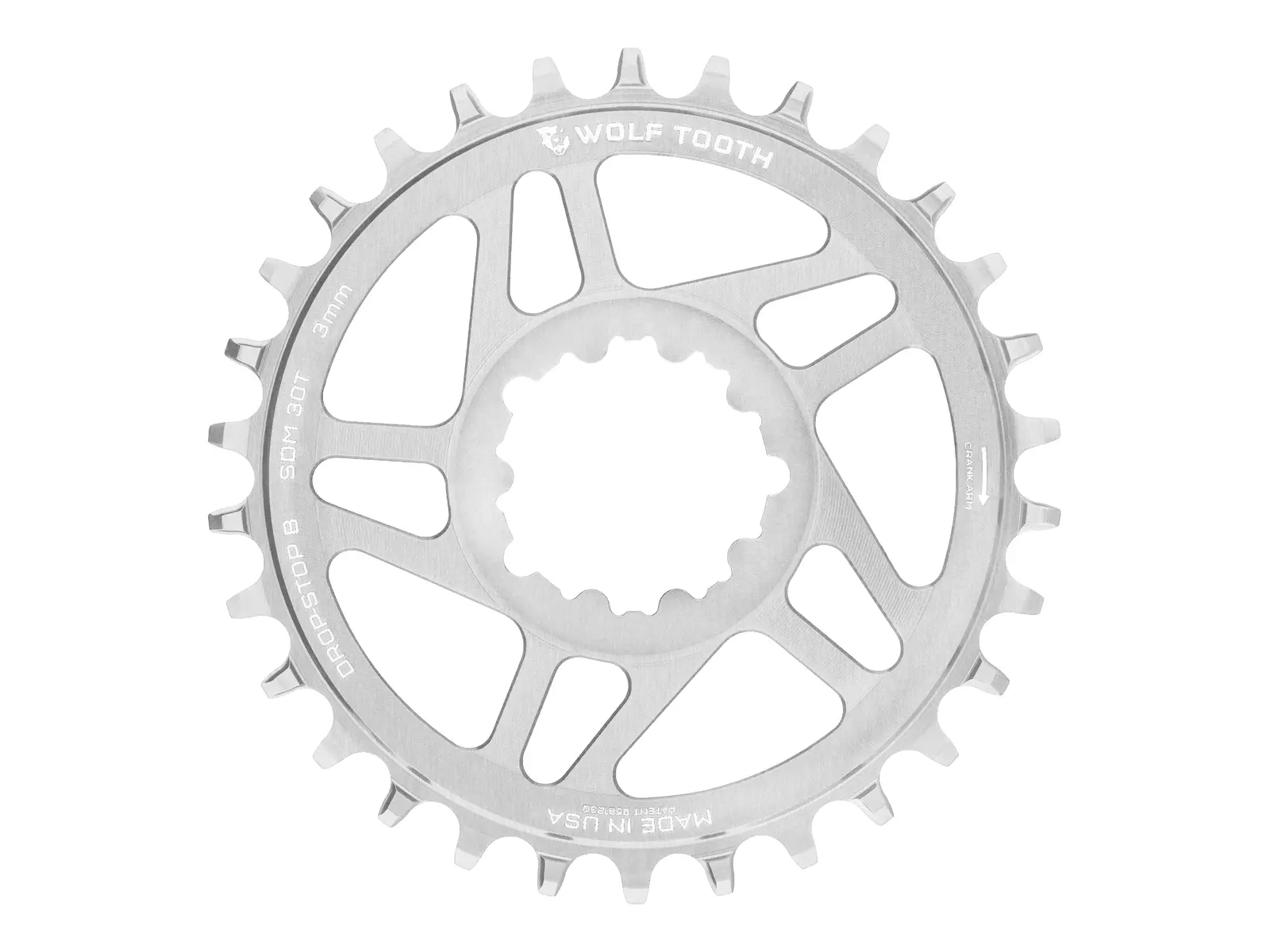

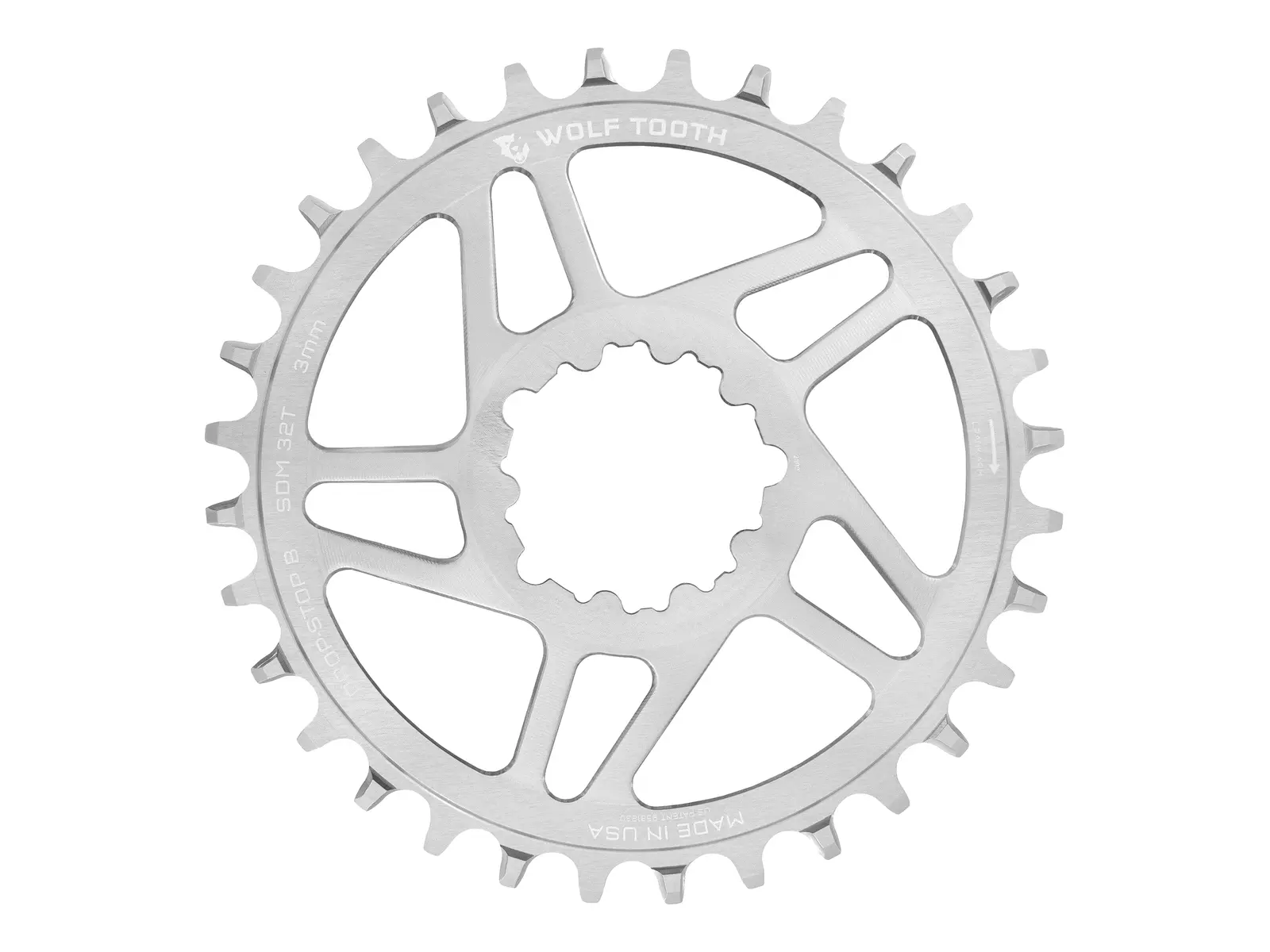

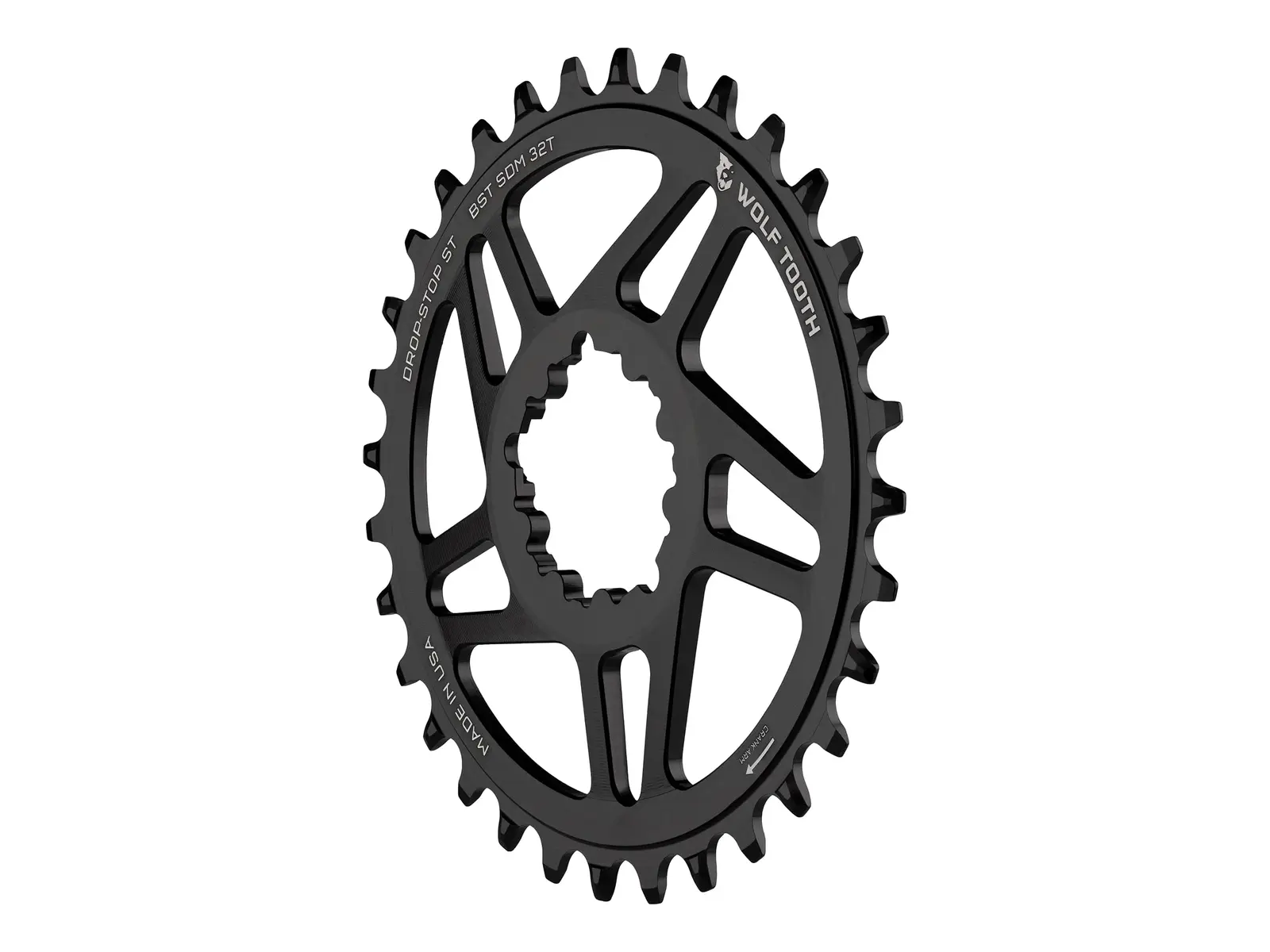

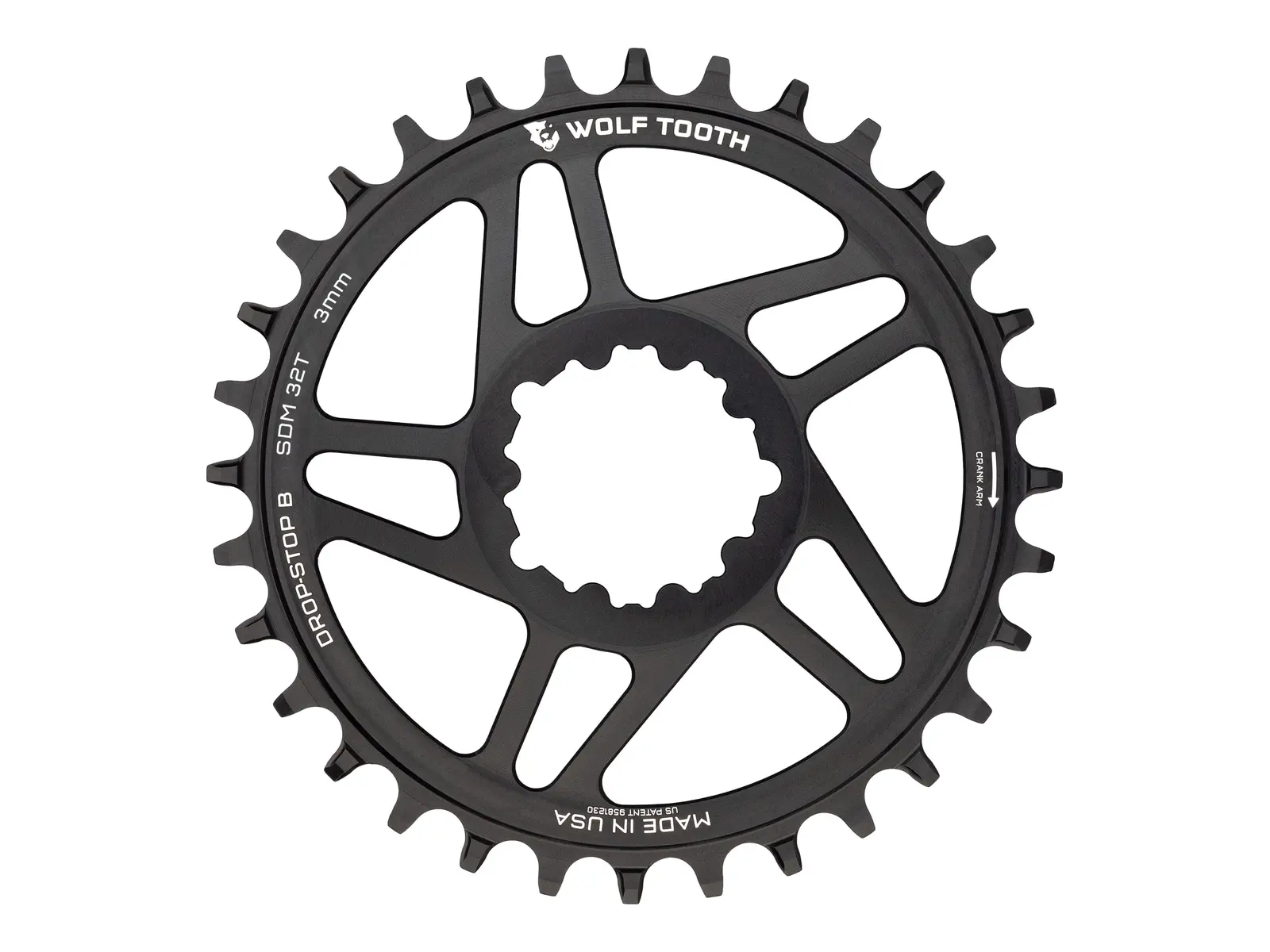

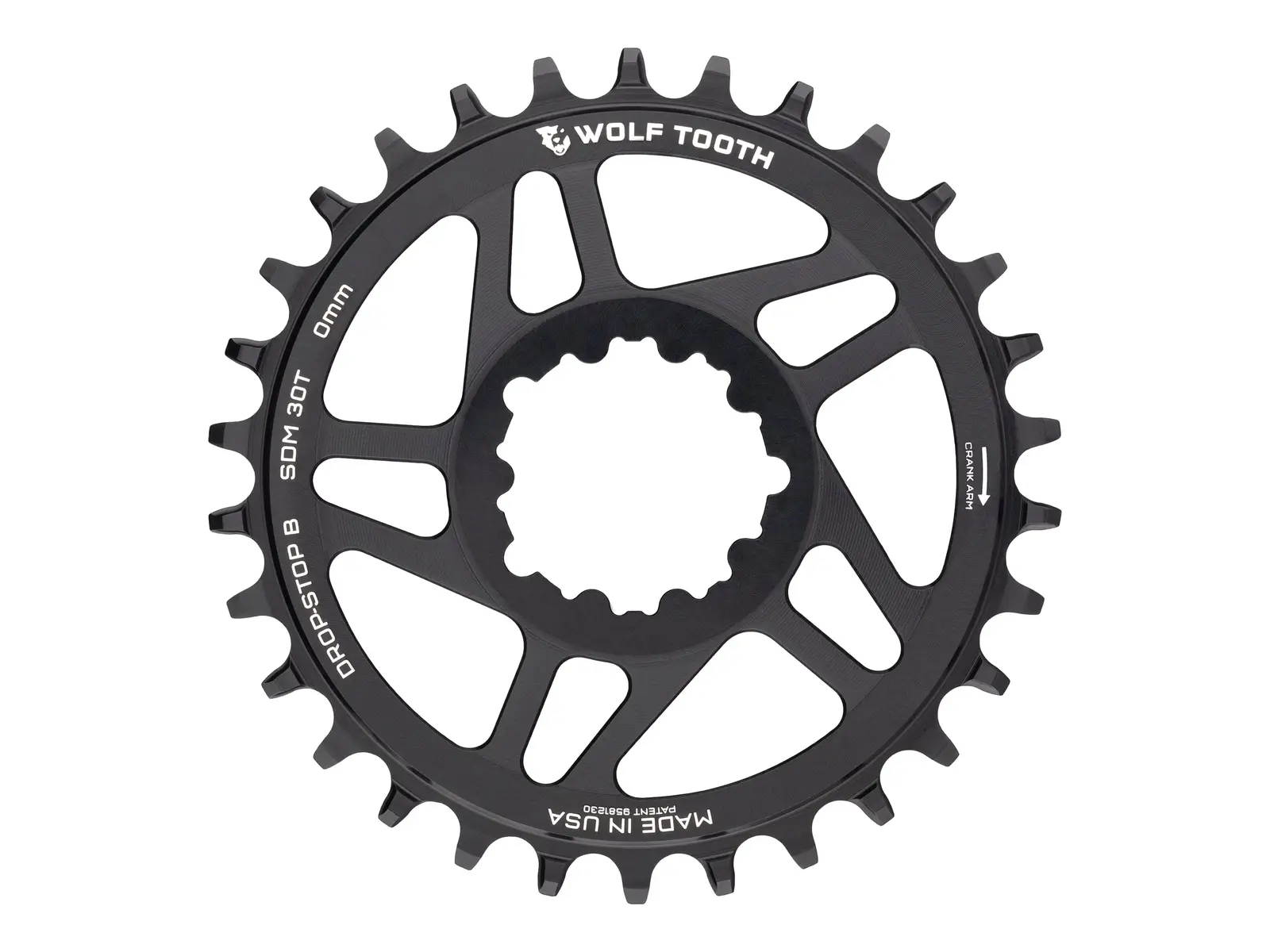

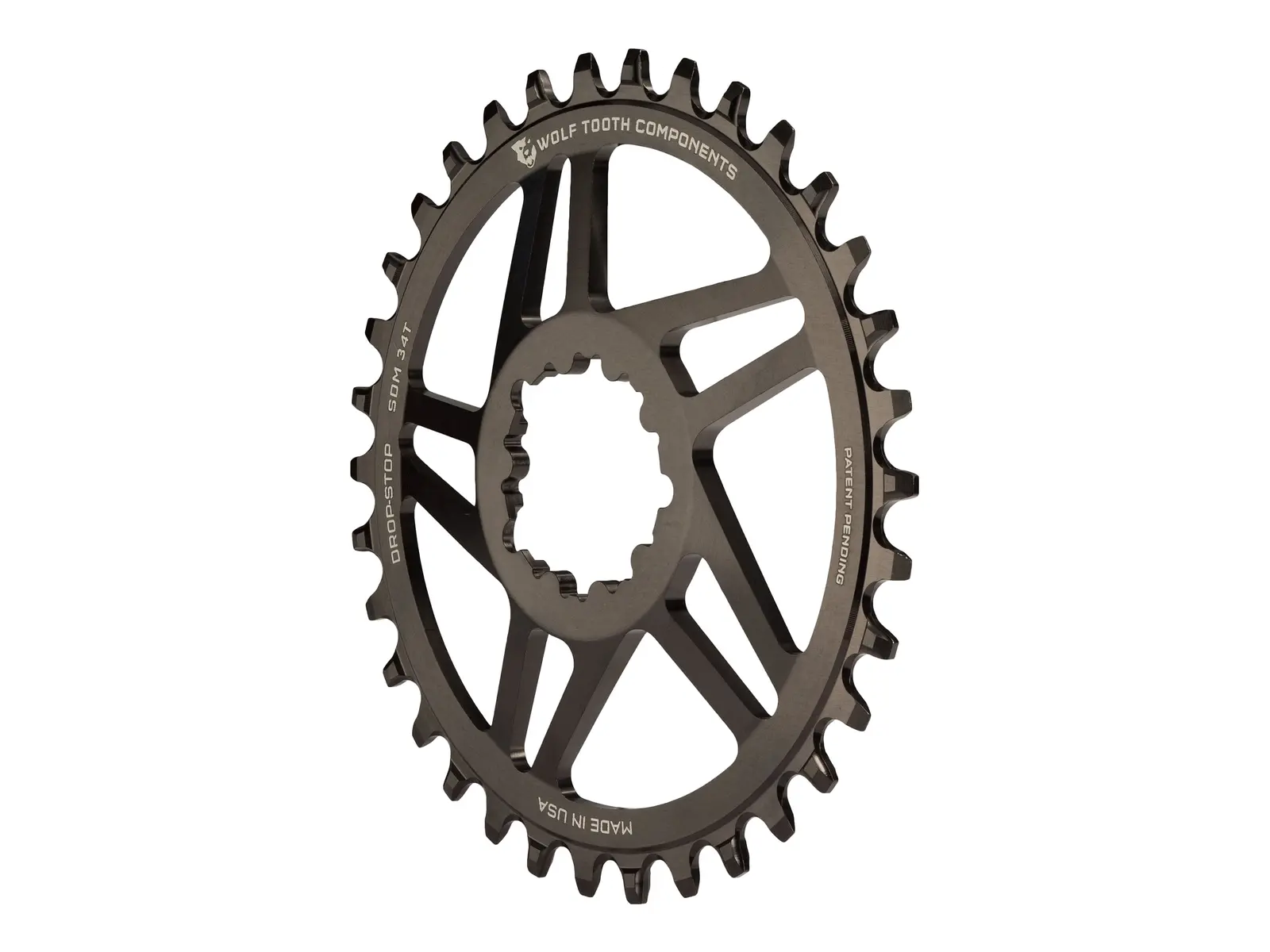

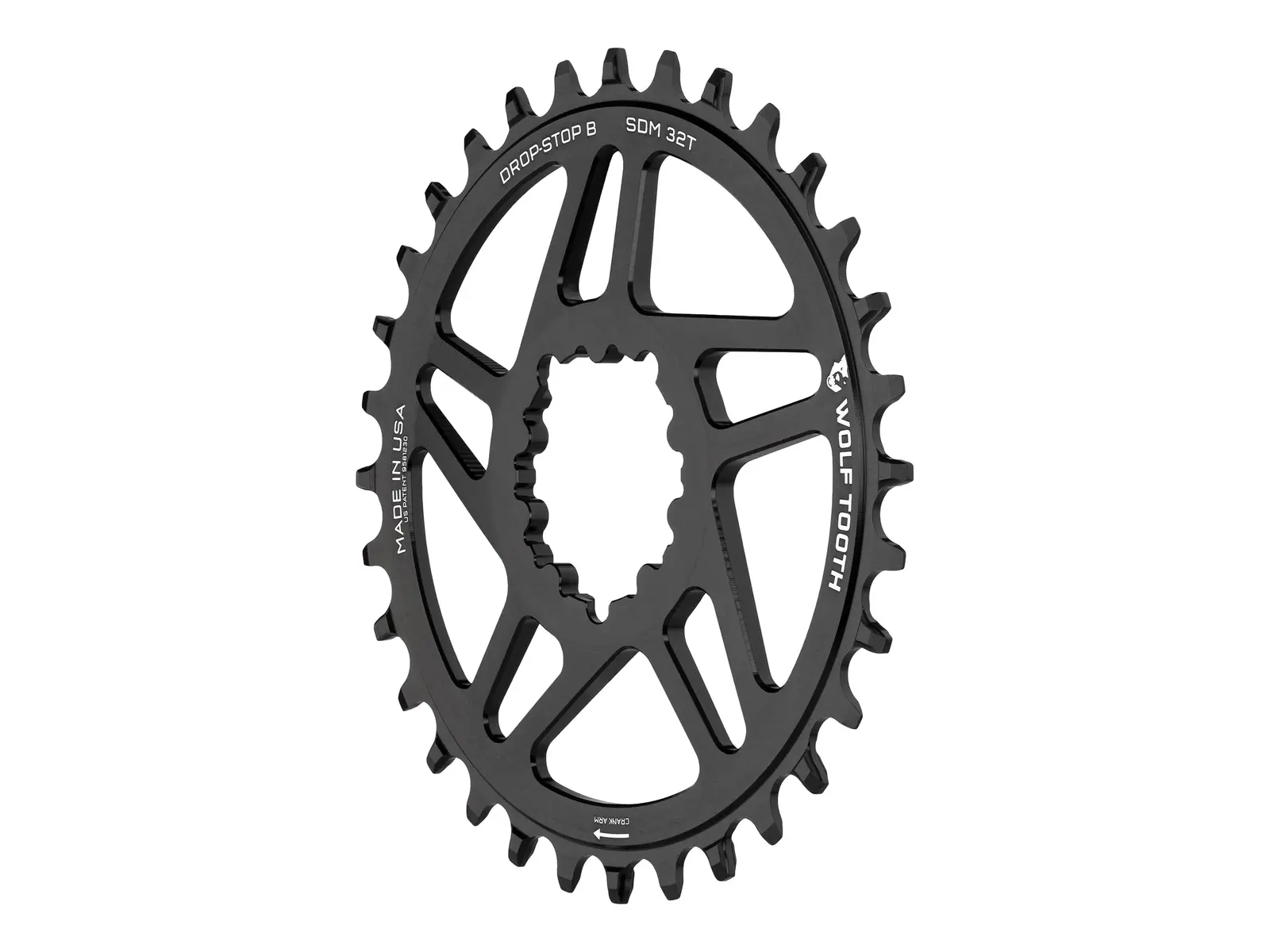

Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 3-Bolt Direct Mount is a 1x chainring with Wolf Tooth's patented Drop-Stop tooth profile: wide and narrow teeth alternate, the wide teeth guide the wide chain links and keep the chain on the ring without a chain guide, the narrow ones let mud and dirt pass. The ring is machined in Minnesota from 7075-T6 aluminium. The SRAM 3-bolt direct mount version replaces spider and chainring with one piece and mounts with the three original bolts. There are three offsets depending on crank and rear end, and depending on your chain the Drop-Stop B profile (SRAM Eagle, T-Type, 9 to 11 speed) or Drop-Stop ST (Shimano 12 speed Hyperglide+).

Facts: Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 3-Bolt Direct Mount

Style: 1x chainring, Boost 52mm chainline (3mm offset), Drop-Stop B, Boost 52mm chainline (3mm offset), Drop-Stop ST, Standard 49mm chainline (0mm offset, BB30 short spindle), Drop-Stop B or Standard 49mm chainline (6mm offset), Drop-Stop A
Material: 7075-T6 aluminium, CNC machined
Teeth: 34T, 26T, 28T, 30T, 32T or 36T
Chainring Mount: Direct Mount (SRAM 3-Bolt)
Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
Contains: 1 chainring
Extras:
- replaces spider and chainring on SRAM cranks with the 3-bolt direct mount interface (XX1, X01, X1, GX, NX, DUB), also Cane Creek eeWings; NOT for SRAM 8-bolt direct mount
- Boost 3mm offset = 52mm chainline (148mm rear end, Super Boost with T-Type too); standard 6mm offset = 49mm chainline for GXP and long spindle BB30 (135/142mm rear end); 0mm offset = 49mm chainline on short spindle BB30
- mounts with the crank's original three bolts (T25)
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 26T 52g, 28T 59g, 30T 65g, 32T 70g, 34T 75g, 36T 81g
- made in USA
