Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 8-Bolt Direct Mount
- Weight : 0.07kg / 0.15lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36485
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/wolf-tooth-drop-stop-mtb-chainring-sram-8-bolt-direct-mount-p-36485
Printed: 11/02/2026
Printed: 11/02/2026

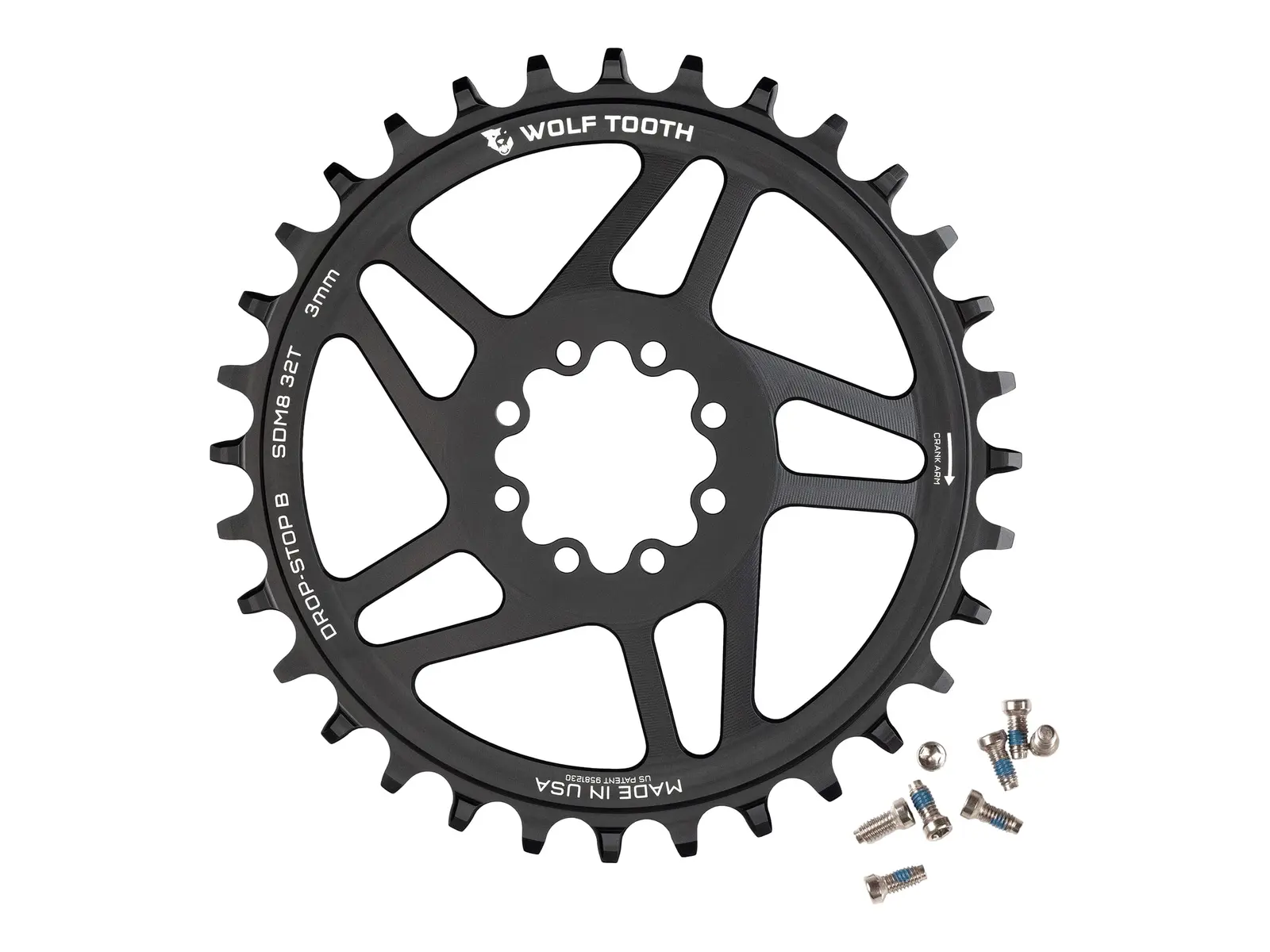

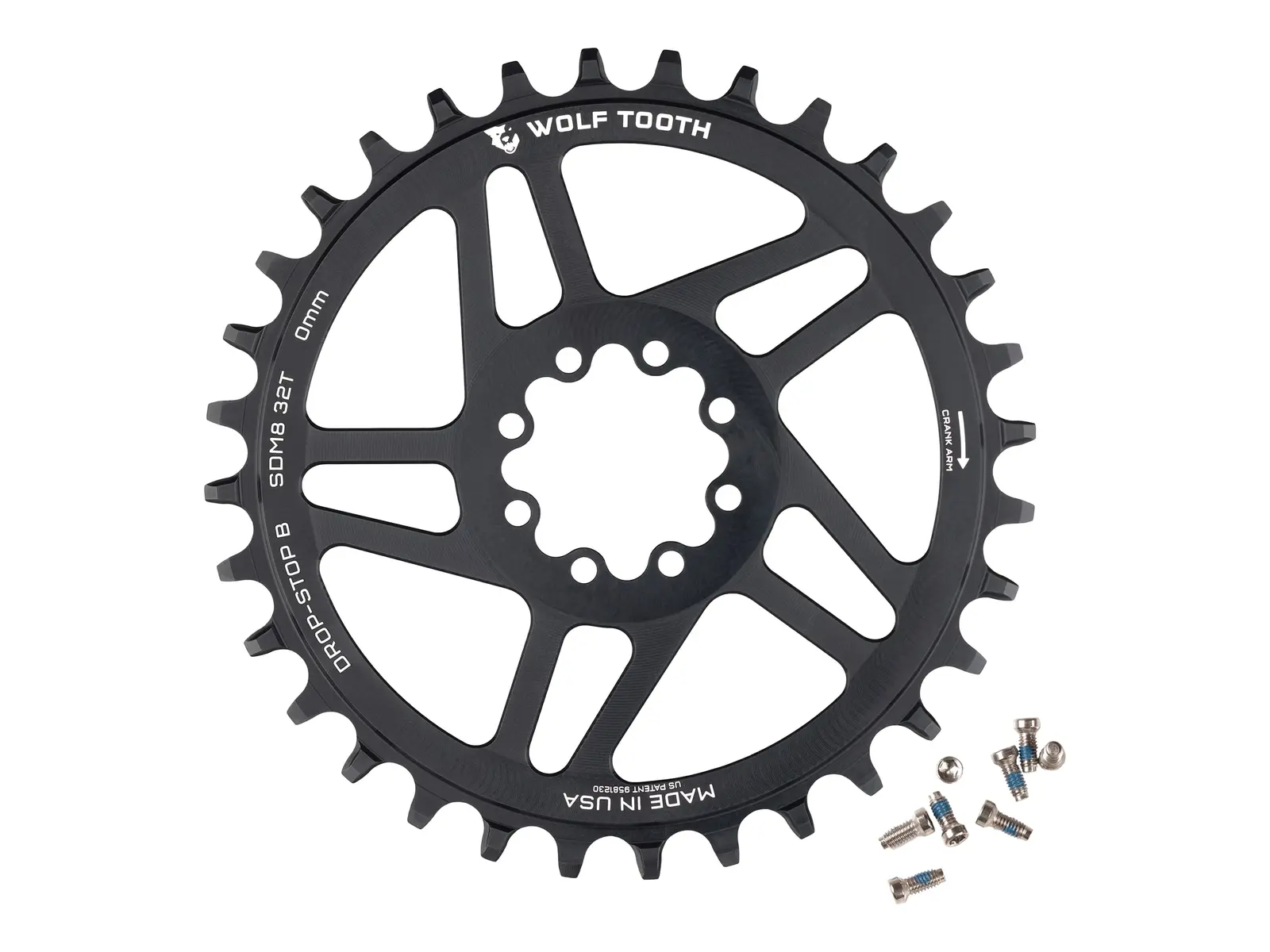

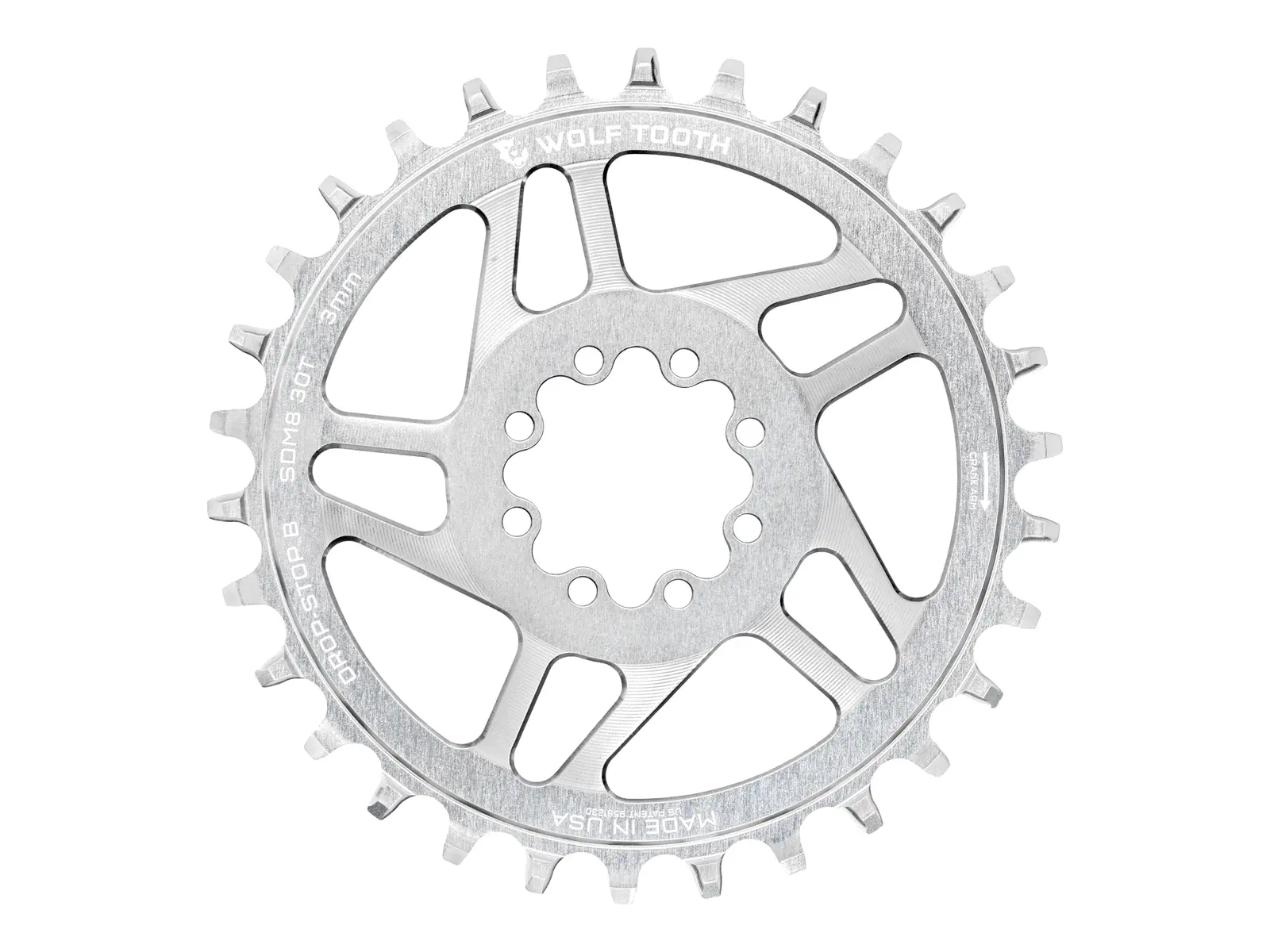

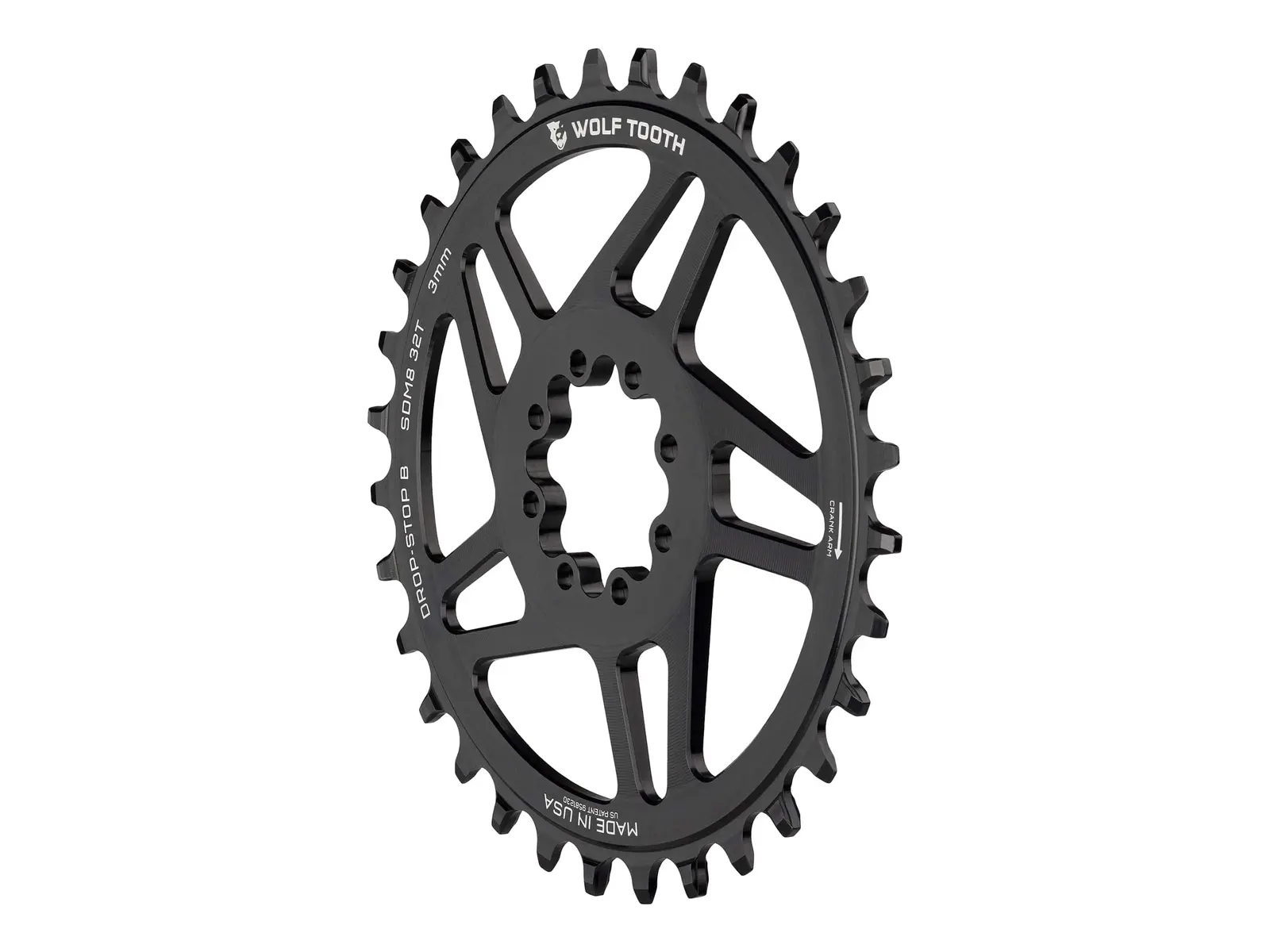

Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 8-Bolt Direct Mount is a 1x chainring with Wolf Tooth's patented Drop-Stop tooth profile: wide and narrow teeth alternate, the wide teeth guide the wide chain links and keep the chain on the ring without a chain guide, the narrow ones let mud and dirt pass. The ring is machined in Minnesota from 7075-T6 aluminium. The SRAM 8-bolt direct mount version is optimised for SRAM T-Type Transmission and the T-Type chain and fits every crank with the 8-bolt standard, the eight T20 bolts are included. Drop-Stop B for SRAM chains, Drop-Stop ST for Shimano 12 speed Hyperglide+.
Facts: Wolf Tooth "Drop-Stop" MTB Chainring - SRAM 8-Bolt Direct Mount
- Style: 1x chainring, 0mm offset (55mm chainline on DUB), Drop-Stop B, 6mm offset, Drop-Stop B, 3mm offset (55mm chainline on DUB Wide, 52mm on DUB), Drop-Stop B or 3mm offset (55mm chainline on DUB Wide, 52mm on DUB), Drop-Stop ST
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T, 28T, 30T, 32T or 36T
- Chainring Mount: Direct Mount (SRAM 8-Loch)
- Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
- Contains: 1 chainring, 8 T20 bolts
- Extras:
- for SRAM cranks with the 8-bolt direct mount (T-Type Transmission AXS, Transmission 70 and 90, DUB Wide), 2025 Cane Creek eeWings (8-bolt) and other cranks using the 8-bolt standard
- 3mm offset: 55mm chainline on DUB Wide MTB cranks (T-Type), 52mm on DUB cranks; 0mm offset: 55mm chainline on DUB cranks (e.g. XX1 SL); 6mm offset (Drop-Stop ST 34T and 36T, Drop-Stop B 36T): chainline not stated by the manufacturer, Boost 52mm according to the supplier
- eight T20 stainless steel bolts included, torque 4Nm
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 30T 65g, 32T 69g, 34T 73g, 36T 77g
- made in USA
