Wolf Tooth "PowerTrac Elliptical" MTB Chainring - SRAM 8-Bolt Direct Mount
-
Weight : 0.07kg / 0.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36498
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

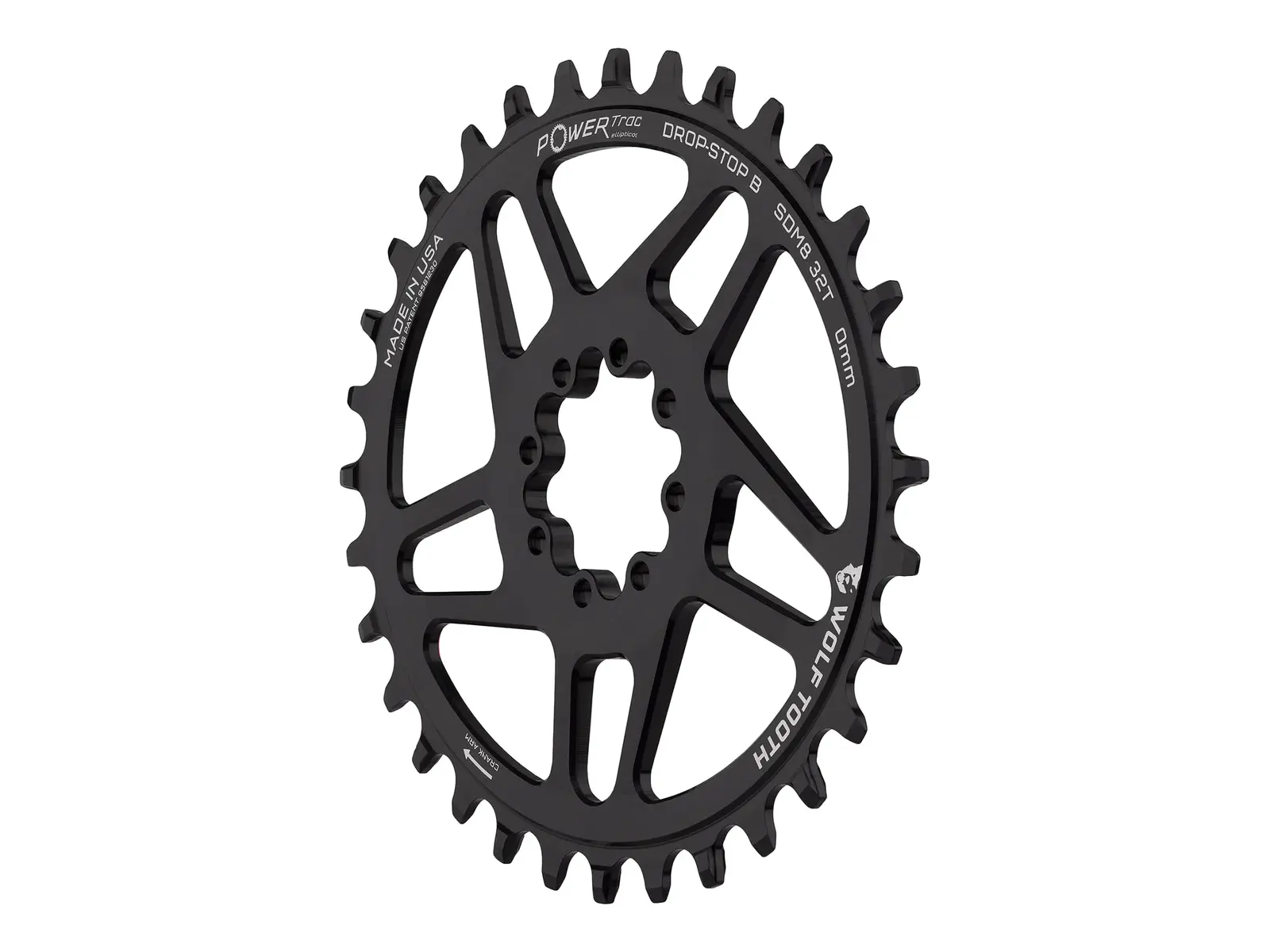

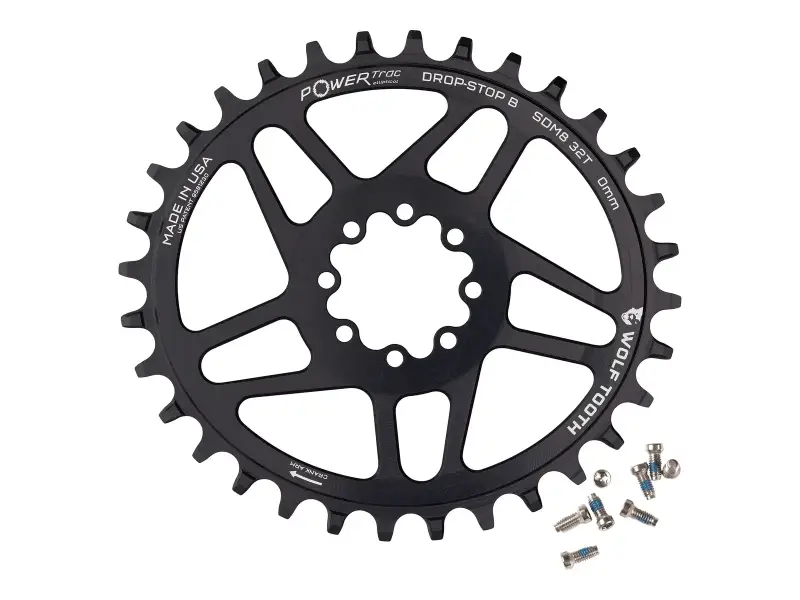

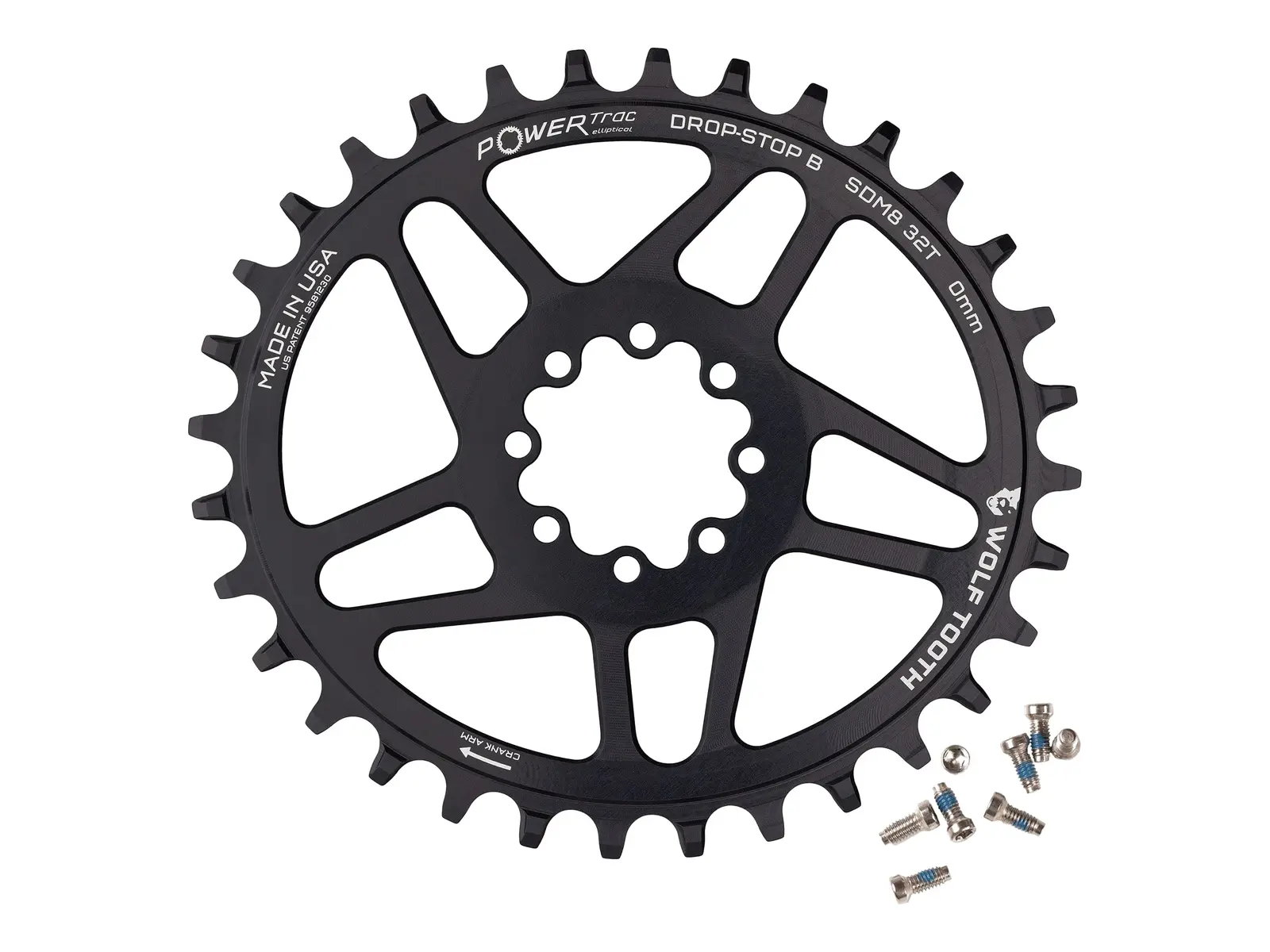

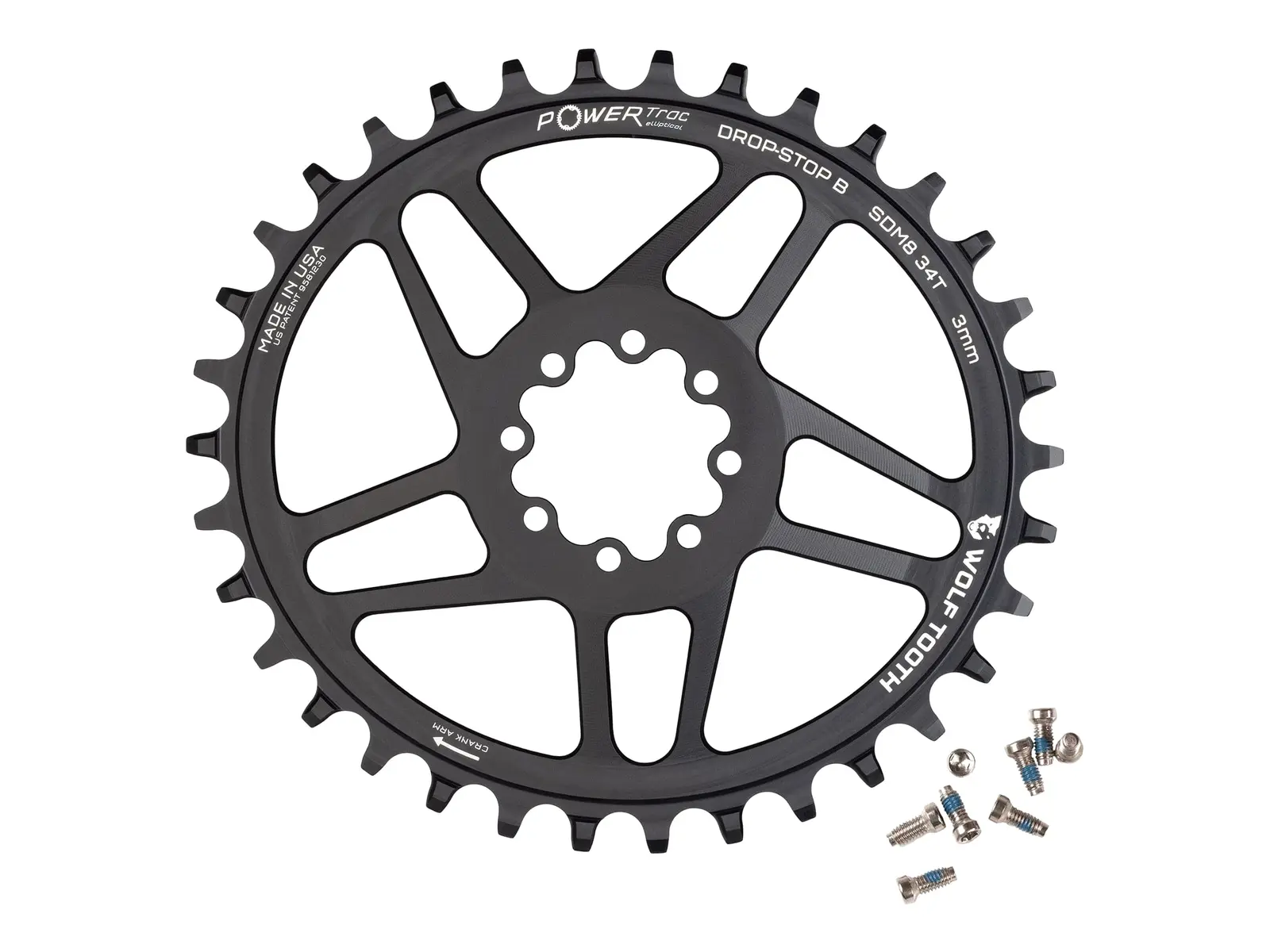

Wolf Tooth "PowerTrac Elliptical" MTB Chainring - SRAM 8-Bolt Direct Mount is the oval version of the Wolf Tooth chainring: 10 percent ovality, the biggest gear 112 degrees after top dead centre, right where your leg has the most power. The patented Drop-Stop profile keeps the chain without a guide, the ring is machined in Minnesota from 7075-T6 aluminium. The largest diameter equals a round ring with two more teeth. This version is made for SRAM 8-bolt direct mount cranks and T-Type Transmission, the eight T20 bolts are included.
Facts: Wolf Tooth "PowerTrac Elliptical" MTB Chainring - SRAM 8-Bolt Direct Mount
- Style: 1x chainring, oval (PowerTrac), 0mm offset (55mm chainline on DUB), Drop-Stop B, 3mm offset (55mm chainline on DUB Wide, 52mm on DUB), Drop-Stop B or 3mm offset (55mm chainline on DUB Wide, 52mm on DUB), Drop-Stop ST
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T or 32T
- Chainring Mount: Direct Mount (SRAM 8-Loch)
- Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
- Contains: 1 chainring, 8 T20 bolts
- Extras:
- oval (PowerTrac), 10 percent ovality, timing 112 degrees after top dead centre; largest diameter like a round ring with 2 more teeth, check chainstay clearance
- for SRAM cranks with the 8-bolt direct mount (T-Type Transmission AXS, Transmission 70 and 90, DUB Wide), 2025 Cane Creek eeWings and other 8-bolt cranks
- 3mm offset: 55mm chainline on DUB Wide, 52mm on DUB; 0mm offset: 55mm chainline on DUB
- eight T20 stainless steel bolts included, torque 4Nm
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 32T 66g, 34T 69g
- made in USA
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
