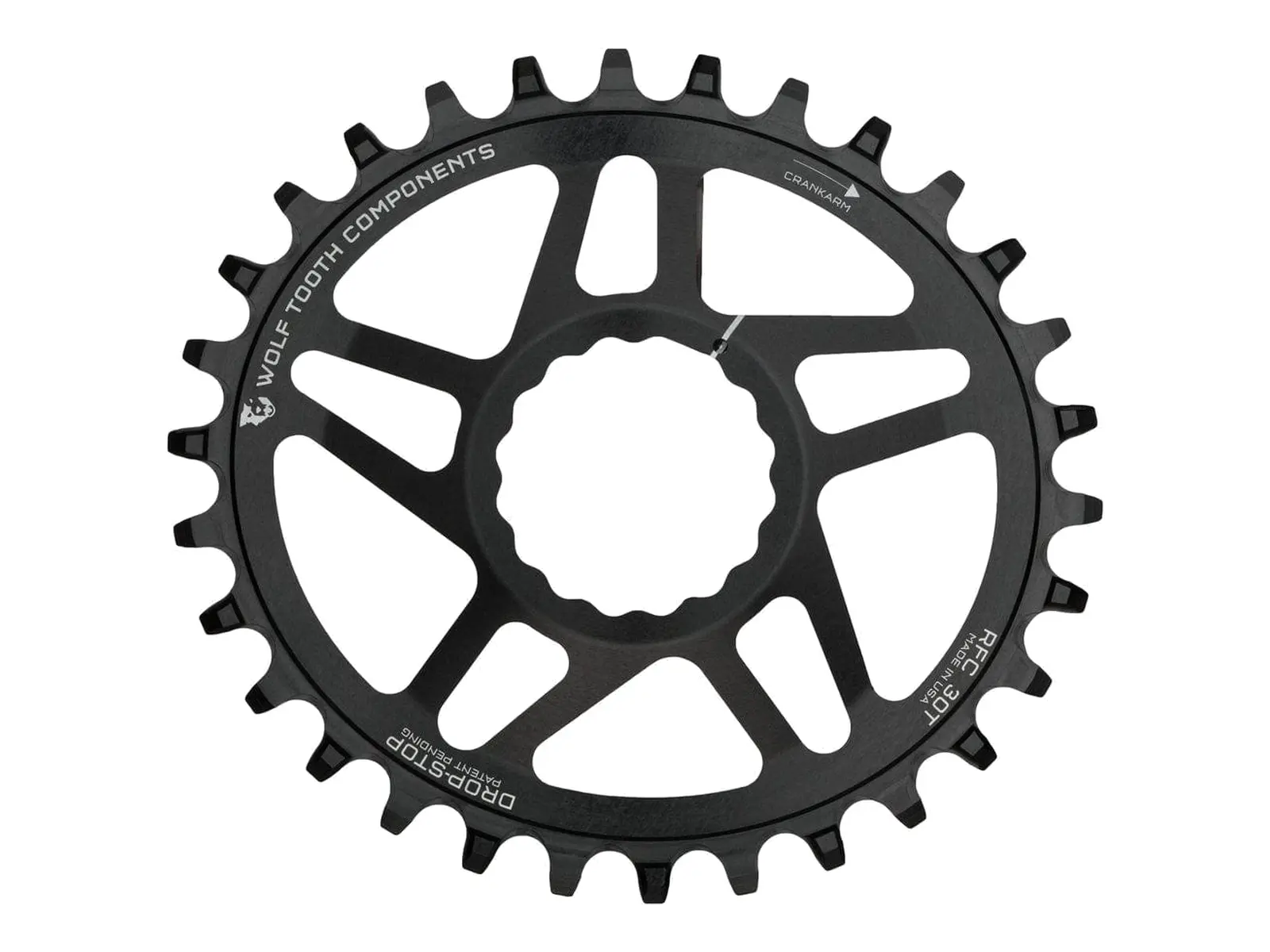

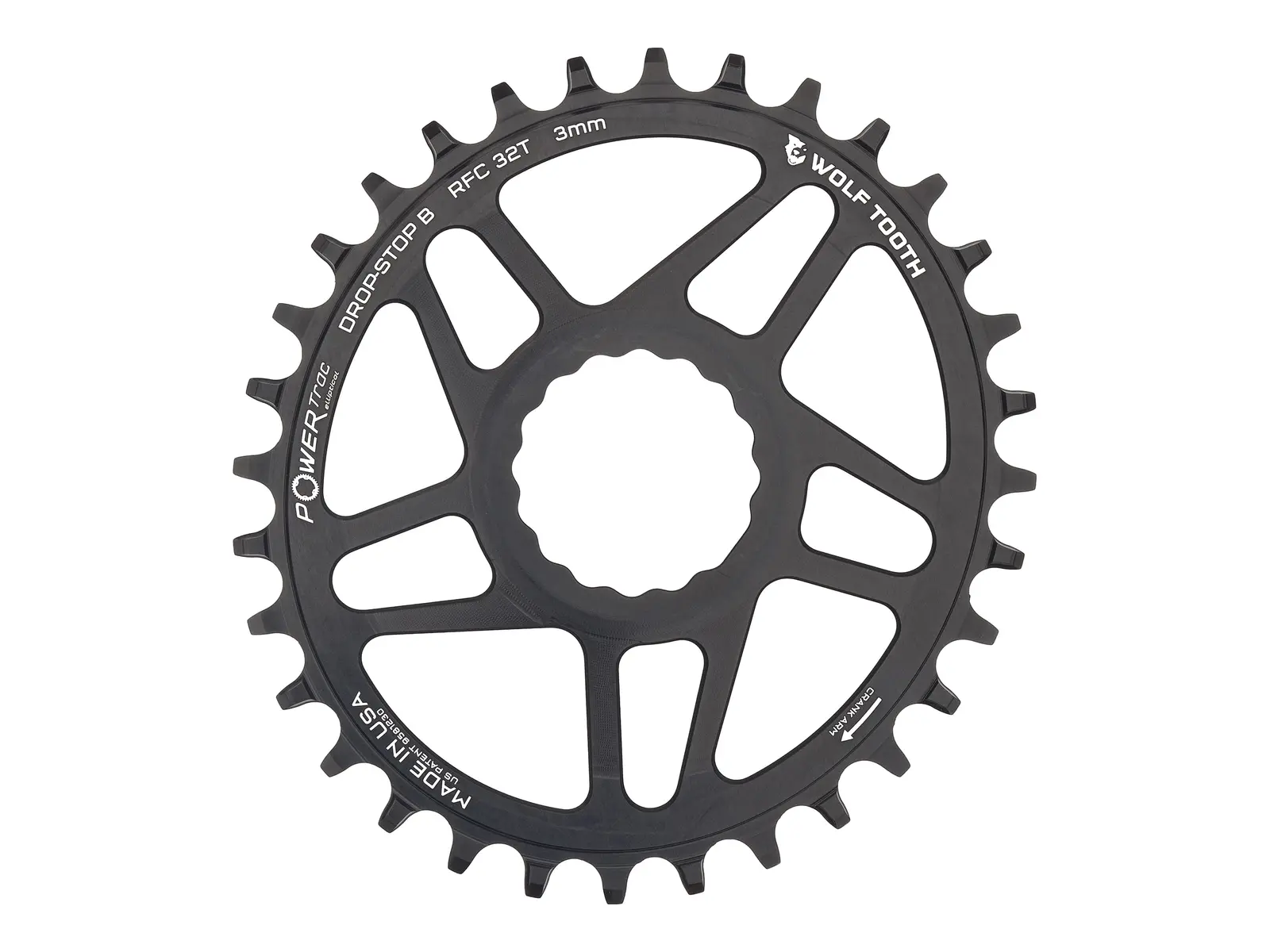

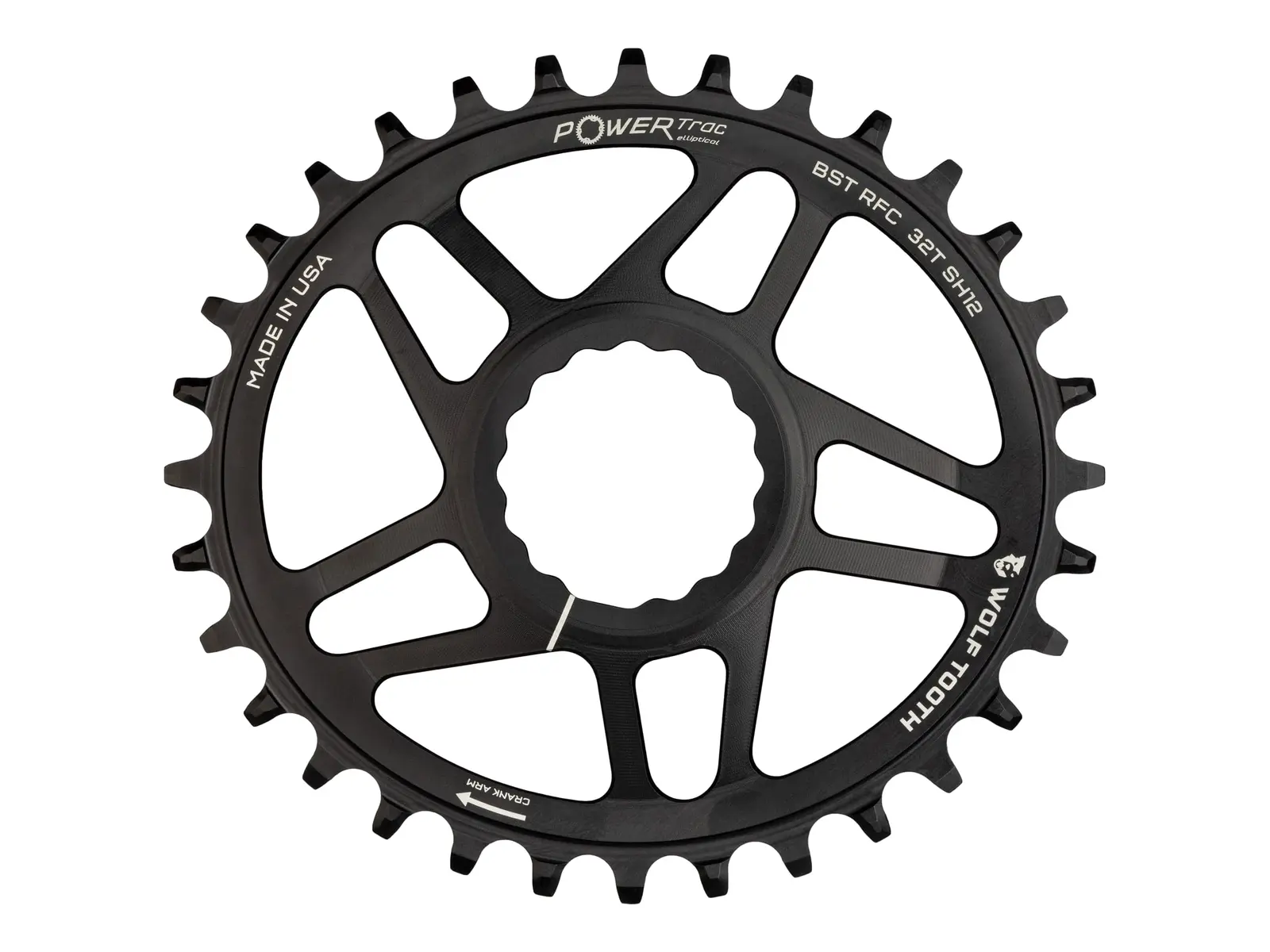

Wolf Tooth "PowerTrac Elliptical" MTB Chainring - Race Face Cinch Direct Mount
-
Weight : 0.07kg / 0.15lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36500
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
Wolf Tooth "PowerTrac Elliptical" MTB Chainring - Race Face Cinch Direct Mount is the oval version of the Wolf Tooth chainring: 10 percent ovality, the biggest gear 112 degrees after top dead centre, right where your leg has the most power. The patented Drop-Stop profile keeps the chain without a guide, the ring is machined in Minnesota from 7075-T6 aluminium. The largest diameter equals a round ring with two more teeth. This version fits every Race Face Cinch crank, with standard or Boost offset.
Facts: Wolf Tooth "PowerTrac Elliptical" MTB Chainring - Race Face Cinch Direct Mount
- Style: 1x chainring, oval (PowerTrac), Boost 52mm chainline (3mm offset), Drop-Stop A, Boost 52mm chainline (3mm offset), Drop-Stop B or Standard 49mm chainline (6mm offset), Drop-Stop A
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T or 32T
- Chainring Mount: CINCH Direct Mount
- Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
- Contains: 1 chainring
- Extras:
- oval (PowerTrac), 10 percent ovality, timing 112 degrees after top dead centre; largest diameter like a round ring with 2 more teeth, check chainstay clearance
- for every Race Face Cinch crank (Turbine, Next SL, Sixc, Aeffect)
- standard 6mm offset = 49mm chainline (142mm rear end); Boost 3mm offset = 52mm chainline (148mm) and Super Boost 151mm spindle
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 32T 63g, 34T 69g
- made in USA
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
