Zink Bikes "Vacay Large" MTB Frame (without Rear Shock)
-
Weight : 3.7kg / 8.16lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29472
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

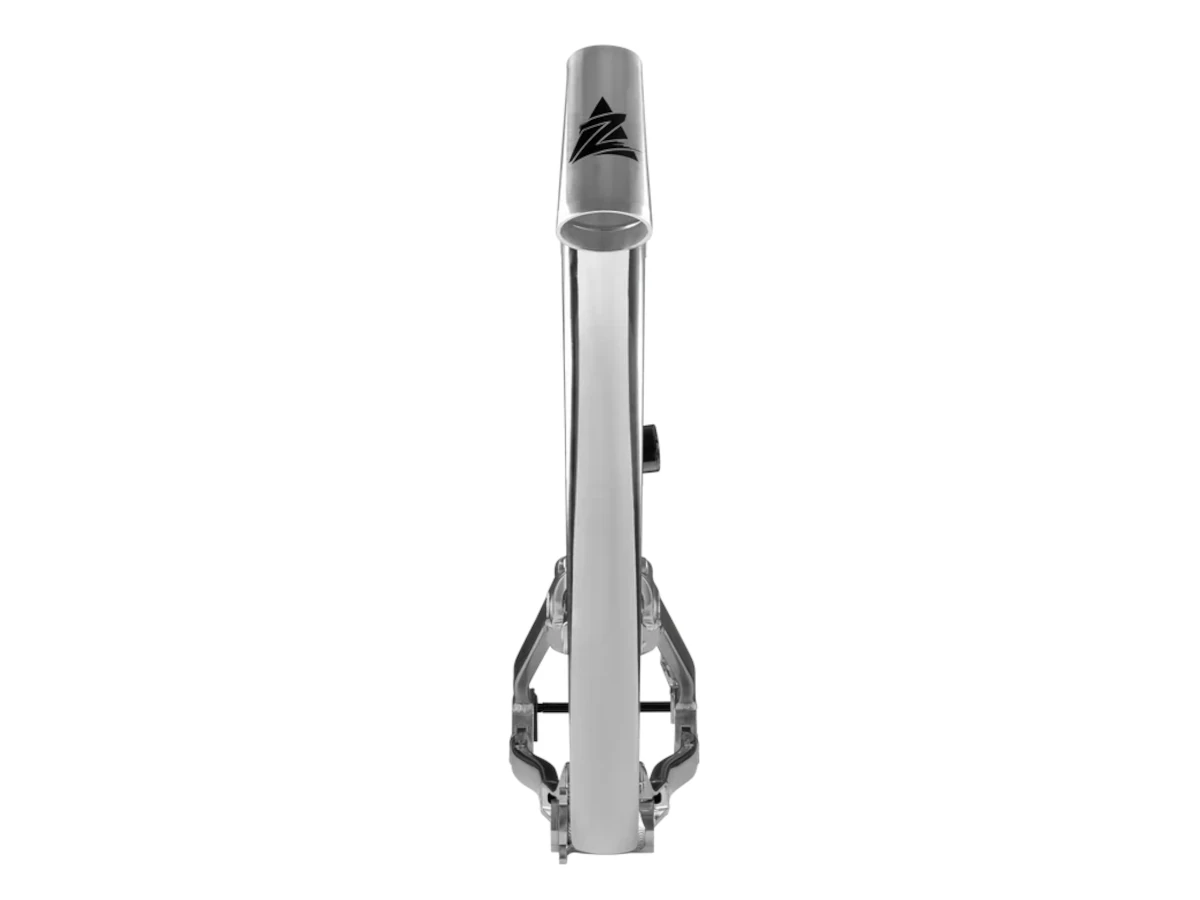

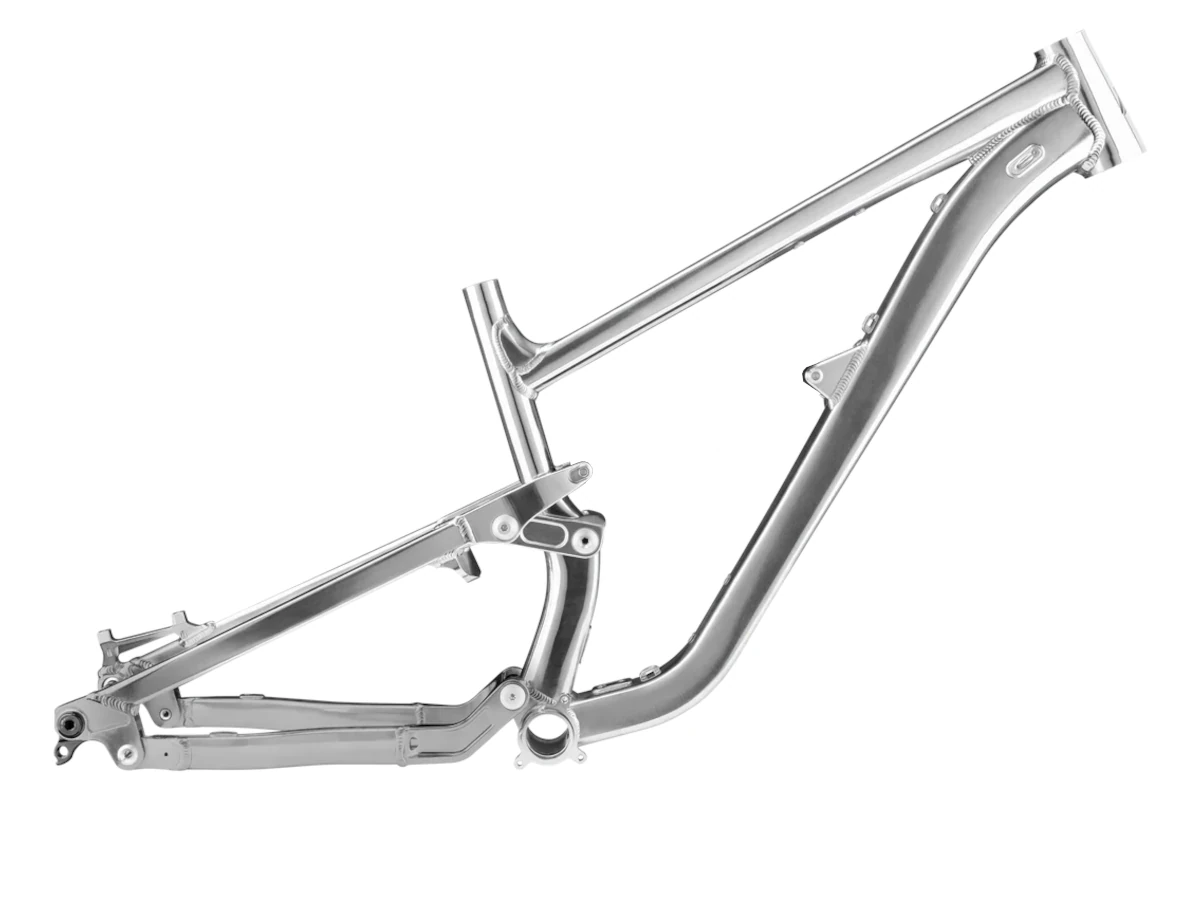

Zink Bikes "Vacay Large" MTB Frame (without Rear Shock)
is designed for riders with a height over 1.83m. It features a progressive suspension platform with so-called Lift Technology, which supports riding stability and makes maneuvers like lifting the front wheel, jumps, or side-hits easier.
The short chainstay geometry ensures agile handling. Using three flip-chip positions, the seat tube angle and the head tube angle can be adjusted by more than one degree, allowing the Zink Bikes "Vacay Large" MTB Frame (without Rear Shock) to be individually customized for the intended application.
Features include a Universal Derailleur Hanger (UDH), a threaded bottom bracket, as well as options for internal or external cable routing, which simplifies maintenance. The frame was designed by Cam Zink.
Important: The shock is not included and must be purchased separately!
The short chainstay geometry ensures agile handling. Using three flip-chip positions, the seat tube angle and the head tube angle can be adjusted by more than one degree, allowing the Zink Bikes "Vacay Large" MTB Frame (without Rear Shock) to be individually customized for the intended application.
Features include a Universal Derailleur Hanger (UDH), a threaded bottom bracket, as well as options for internal or external cable routing, which simplifies maintenance. The frame was designed by Cam Zink.
Important: The shock is not included and must be purchased separately!
Facts: Zink Bikes "Vacay Large" MTB Frame (without Rear Shock)
- Recommended rider height: over 1.83m (6.0")
- Front wheel size: 29" or 27.5"
- Rear wheel size: 27.5"
- Geometry (Low Flip-Chip position with 160mm travel and 29” / 27.5” wheels):
- Reach: 485mm
- Chainstay: 420mm
- Head tube height: 132mm
- Head angle: 63.9°
- Seat tube angle (SA): 77.8°
- Bottom bracket height: 37mm
- Wheelbase: 1286mm
- Stack: 657mm - Geometry (High Flip-Chip position with 160mm travel and 29” / 27.5” wheels):
- Reach: 497mm
- Chainstay: 420mm
- Head tube height: 132mm
- Head angle: 65°
- Seat tube angle: 79°
- Bottom bracket height: 23mm
- Wheelbase: 1267mm
- Stack: 648mm - Seat clamp: integrated (34.9mm diameter)
- Seatpost (dropper):
- Diameter: 31.6mm
- Minimum insertion depth: 210mm
- Seat tube insertion depth: 330mm - Bottom bracket: Threaded BB (73mm BSA thread) – photos show press-fit BB
- Dropouts: Boost 148x12
- UHD equipped: Yes
- Brake type: Disc brake (180 post mount rear brake mounting)
- Brake mount: Post Mount 180mm
- Brake mount included: Yes
- Headset: compatible with ZS 44/56 headset (not included)
- Rear shock (not included):
- Compatible with: Push Elvensix Rear Shock; Push SV 8 Rear Shock; RockShox Vivid Ultimate; RockShox Super Deluxe Ultimate
- Shock size: 230mm x 65mm
- Shock bushing: 22mm x 8mm / 40mm x 8mm - Features:
- Lift technology for improved ride performance
- Flip-Chip for geometry adjustment
- Internal and external cable routing options
- Fidlock-compatible bottle mount (base included)
- Designed by Cam Zink - Model year: 2024
