BOX Components "Box One M30" BMX Race Crankset
- Weight : 0.5kg / 1.10lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43069
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

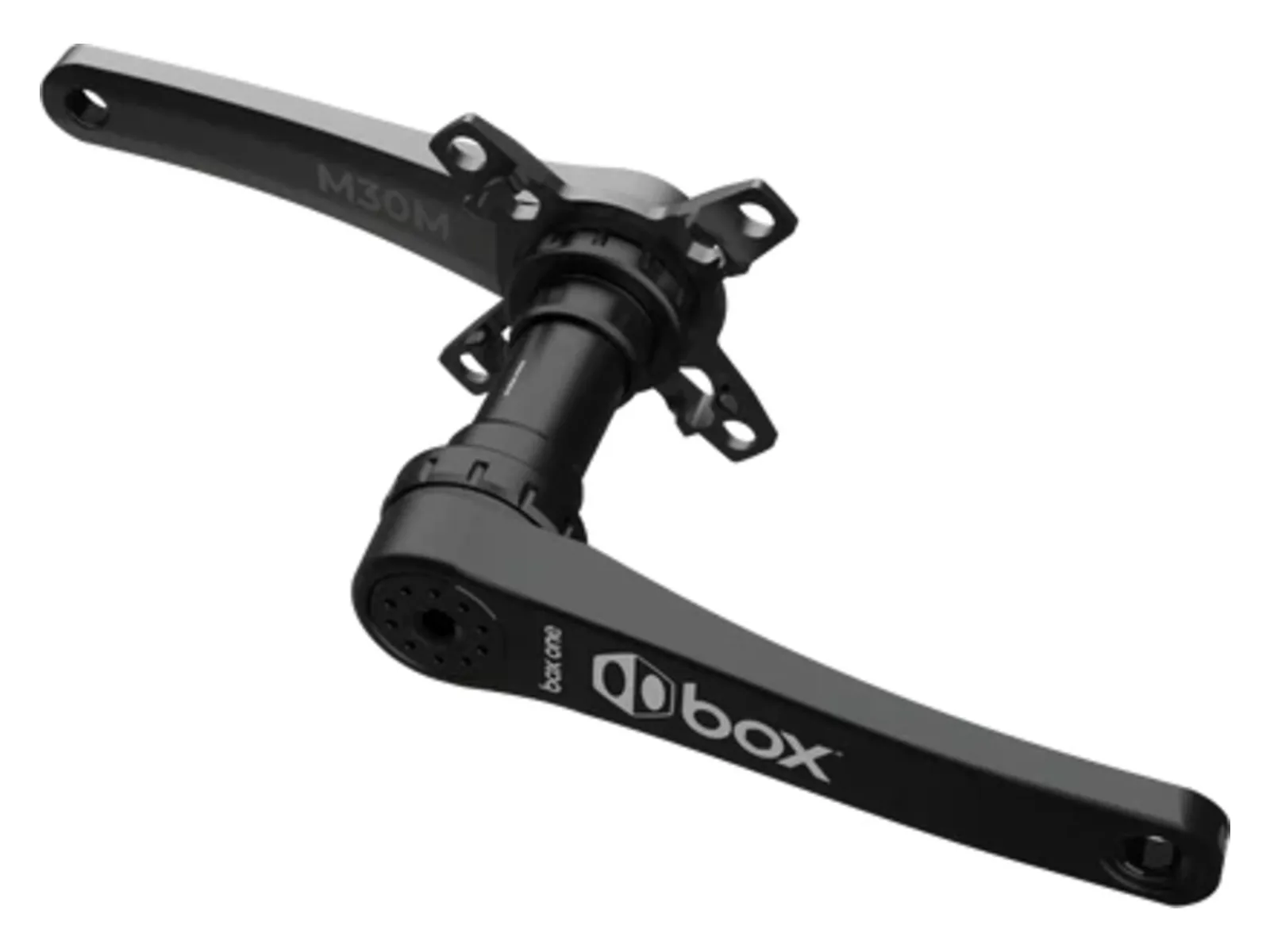

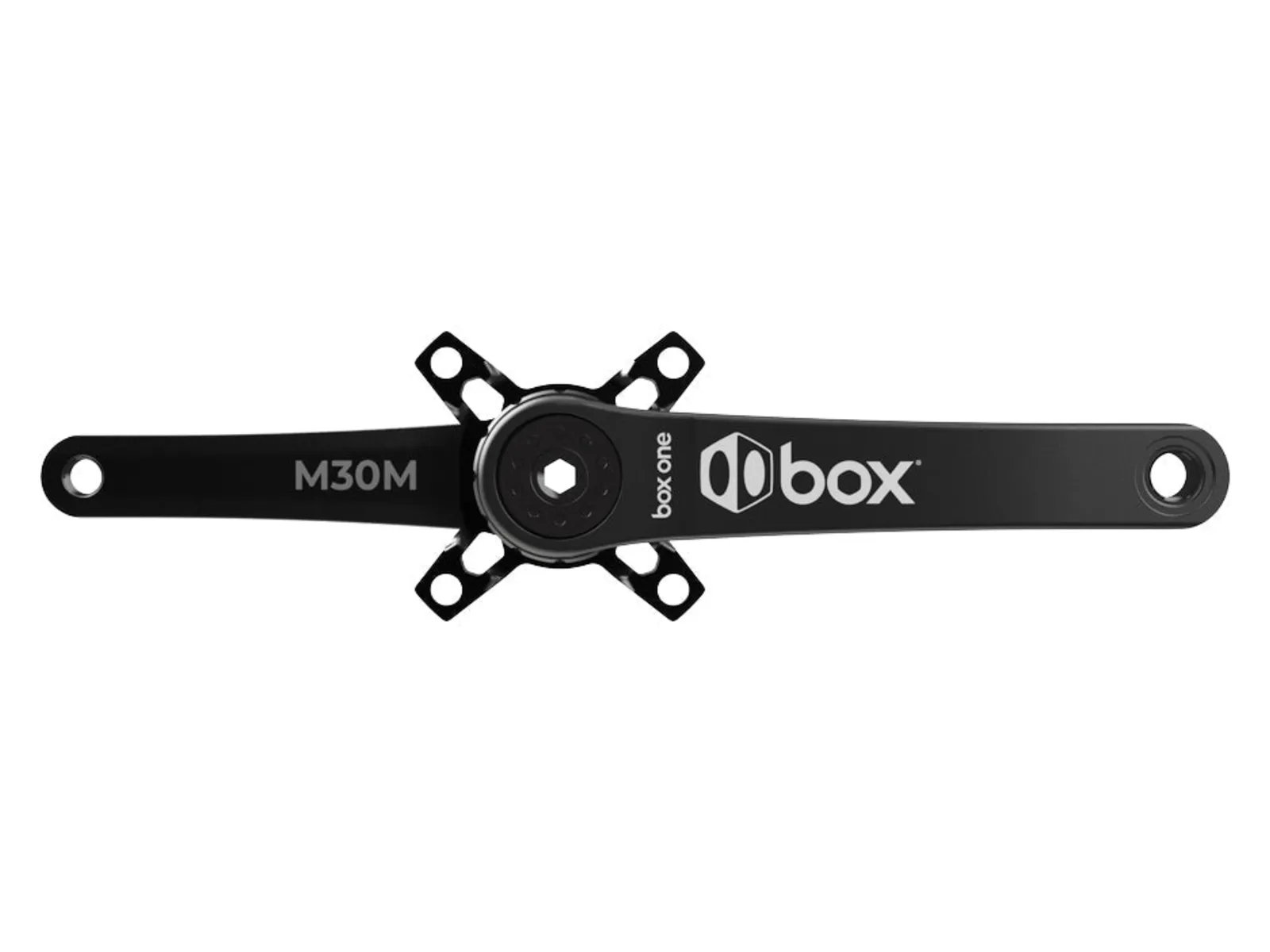

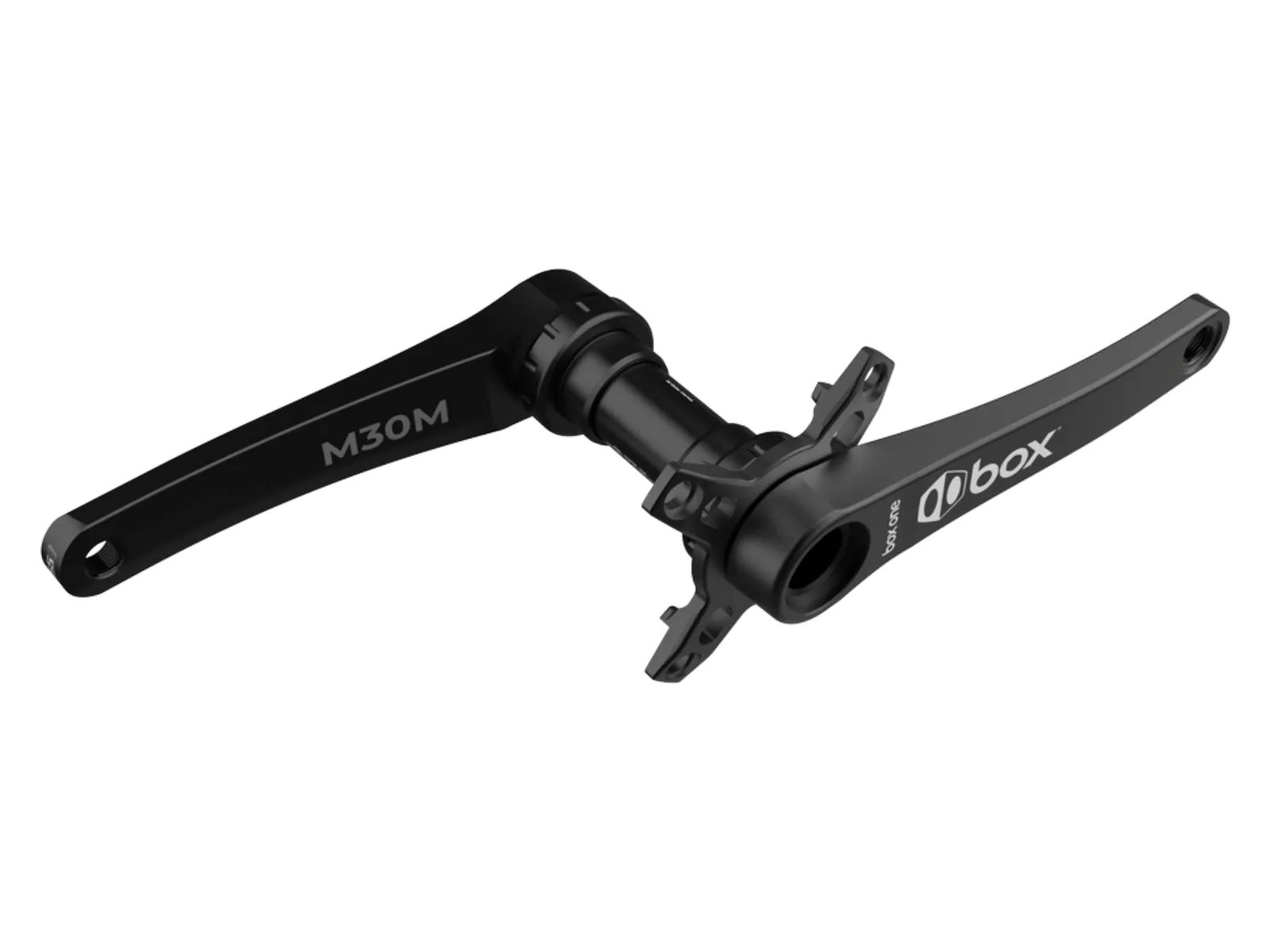

The BOX Components "Box One M30" BMX Race Crankset is the little sister of the M35: a hollow-forged 7075-T6 aluminum crankset with a 30mm alloy spindle, designed for smaller riders, for whom a 30mm spindle is as stiff as 35mm is for a heavy pro. The arms are shorter and slimmer, and BOX removed unneeded material from the spider. The BSA 30mm bottom bracket is included, and the cranks are held by a self-extracting crank bolt.
Facts: BOX Components "Box One M30" BMX Race Crankset
- Material Crank Arms: 7075-T6 aluminum, hollow-forged and CNC machined
- Material Crank Spindle: 7075-T6 aluminum, CNC turned, 30mm
- Crank-Type: 2-piece
- Crank Arm Length: 145mm
- Spindle Diameter: 30mm
- possible Sprocket Mount by: bolt drive: 4-bolt spider, 104mm BCD
- Spindle Bolt: self-extracting crank bolt system
- Extras: for smaller riders, chainline 44.5mm, Q factor 153mm, anodized with laser-etched graphics, weight: 498g (145mm, without bottom bracket, may vary by +/- 10%)
- Recommended for: Race
- Content: crankset with 30mm spindle, BSA 30mm bottom bracket (1.37)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
