e*thirteen "Helix Core" MTB Crank Set

124.95 EUR

Color | Length

Please Select
- - black | 165mm
  - black | 170mm
  - black | 175mm

Straight to the checkout with PayPal. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.59kg / 1.30lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Set
Product ID (PID): 36524
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

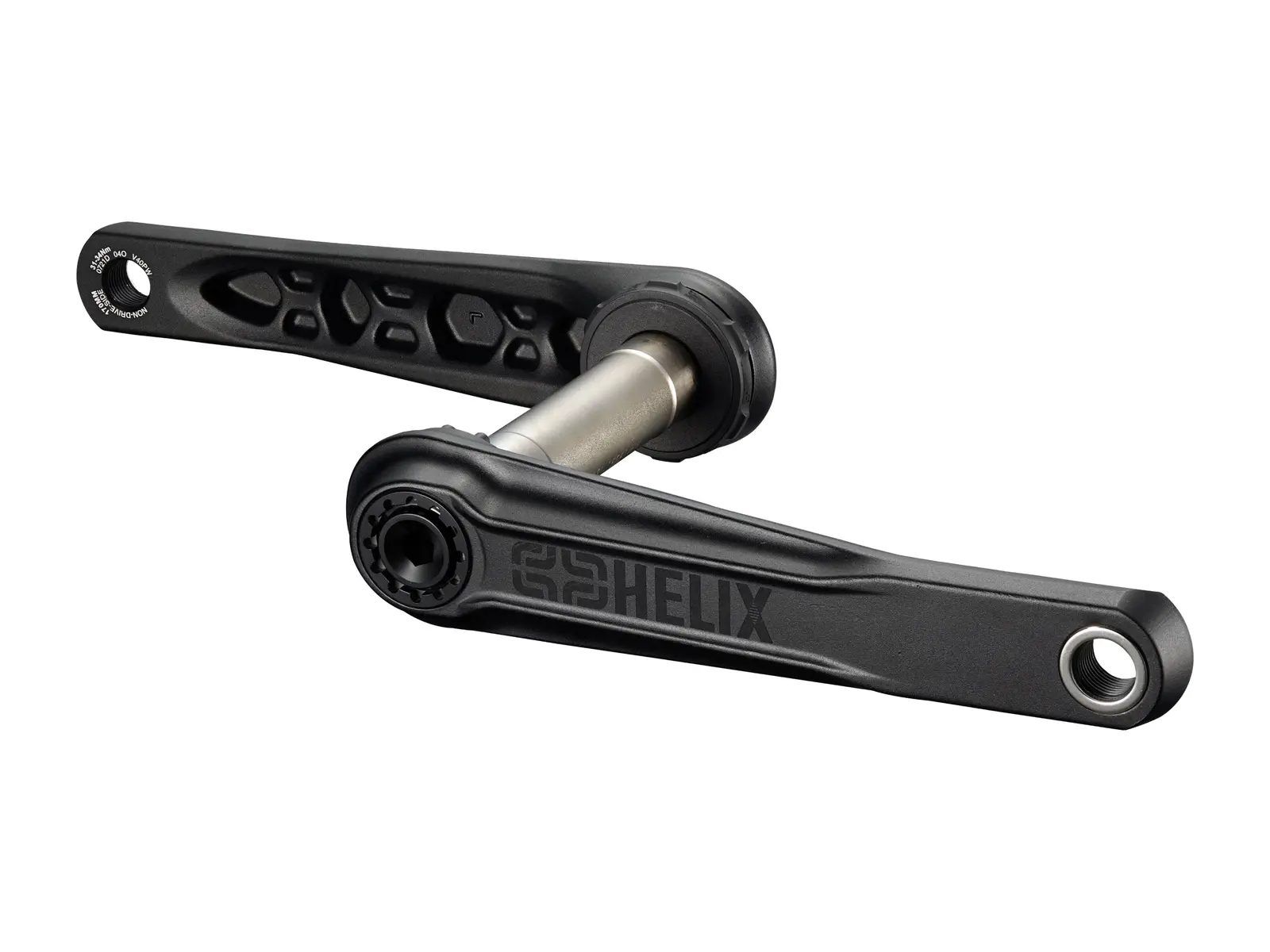

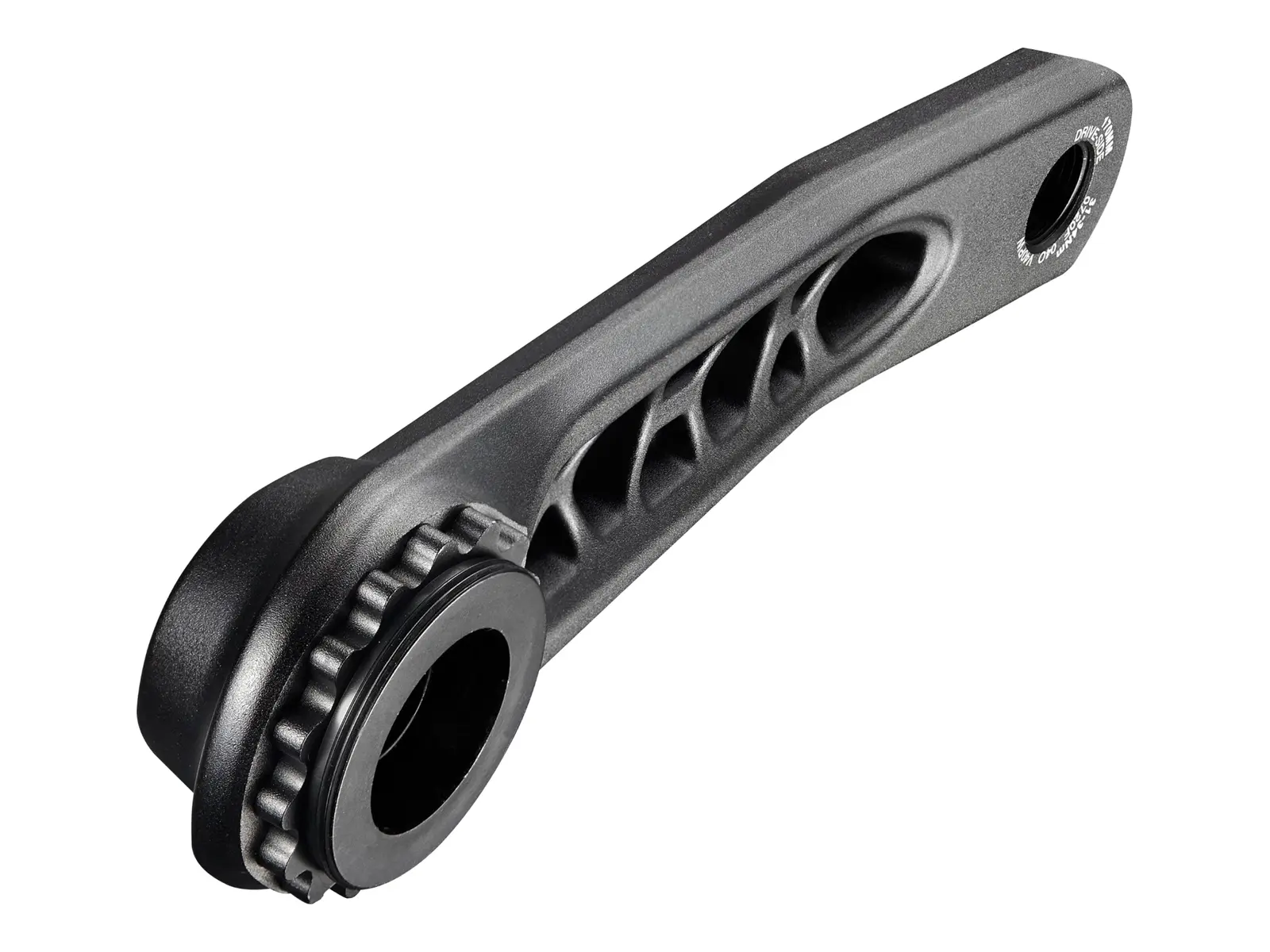

The e*thirteen "Helix Core" MTB Crank Set is the e*thirteen alloy crank for trail and enduro: forged 6066-T6 aluminium arms with CNC cuts on a 24mm heat-treated chromoly spindle for 68/73mm bottom bracket shells. The spindle sits on the non-drive side, which makes the chain guide and drivetrain easier to reach, and spacers set the chainline to non-Boost, Boost or Super Boost. The chainring goes straight onto the spindle via the Quick Connect interface, Helix Race, Helix Plus and Helix steel rings fit. e*thirteen "Helix Core" MTB Crank Set comes without chainring and without bottom bracket.

Facts: e*thirteen "Helix Core" MTB Crank Set

Material Crank Arms: 6066-T6 aluminium, forged, CNC machined
Material Crank Spindle: chromoly, heat treated, 24mm
Crank-Type: 2-piece
Crank Arm Length: 165mm, 170mm or 175mm
Spindle Diameter: 24mm
Spindle-Type: P3 Connect (polygon)
Chainring Mount: Direct Mount (e*thirteen)
Scope of Delivery: 1 crank set (crank arms, spindle, APS preload ring, lockring, BB/lockring tool, sticker)
Extras:
- for 68/73mm (BSA) bottom bracket shells
- spindle on the non-drive side, chainline set by spacers to non-Boost, Boost or Super Boost (52/55mm)
- 8mm self extractor
- chainring and bottom bracket not included, matching rings: Helix Race, Helix Plus, Helix steel direct mount
- weight 588g (170mm), 608g (175mm)
