e*thirteen "Helix Race GR" MTB Crank Set
-
Weight : 0.6kg / 1.32lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 36526
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

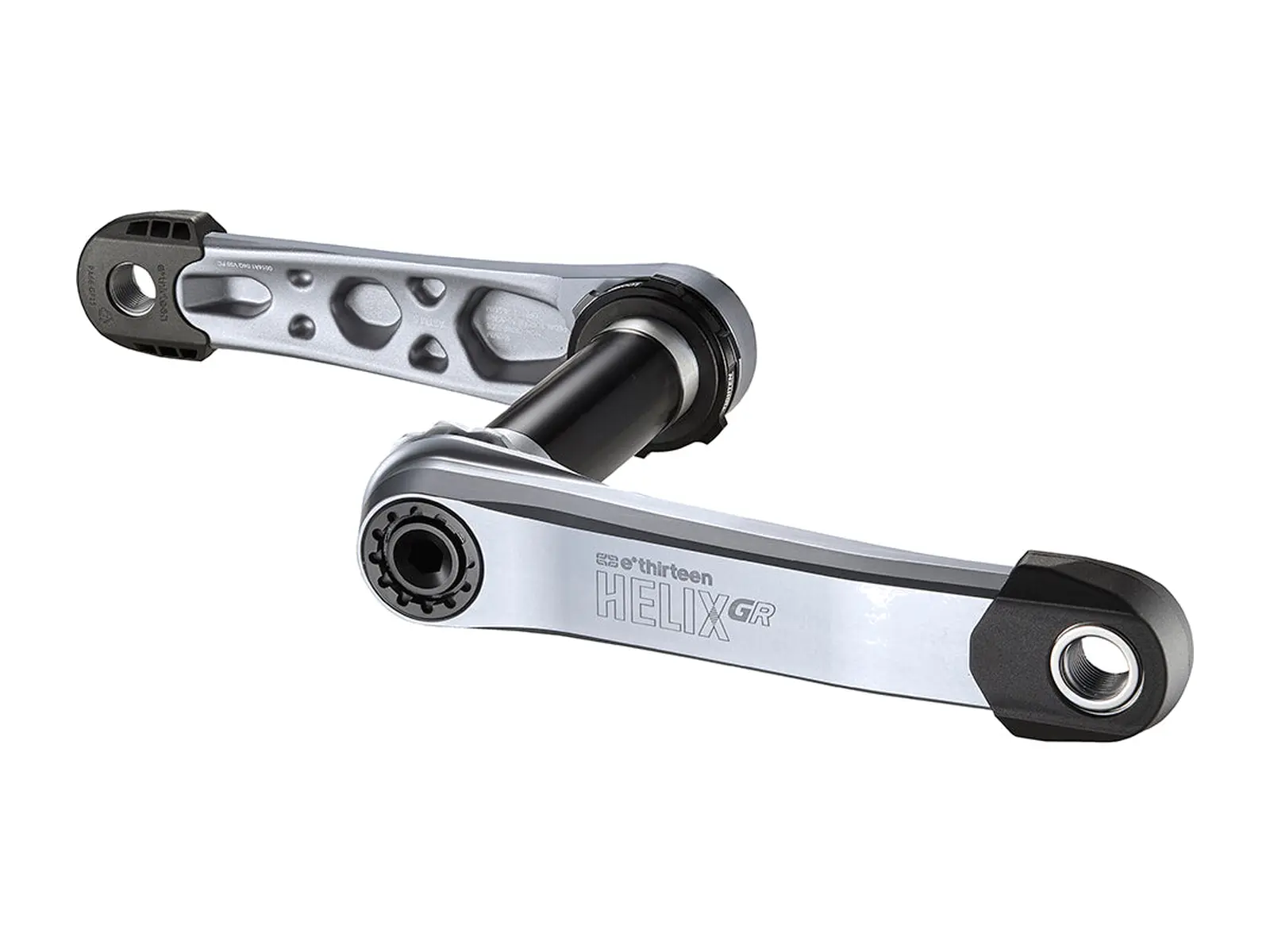

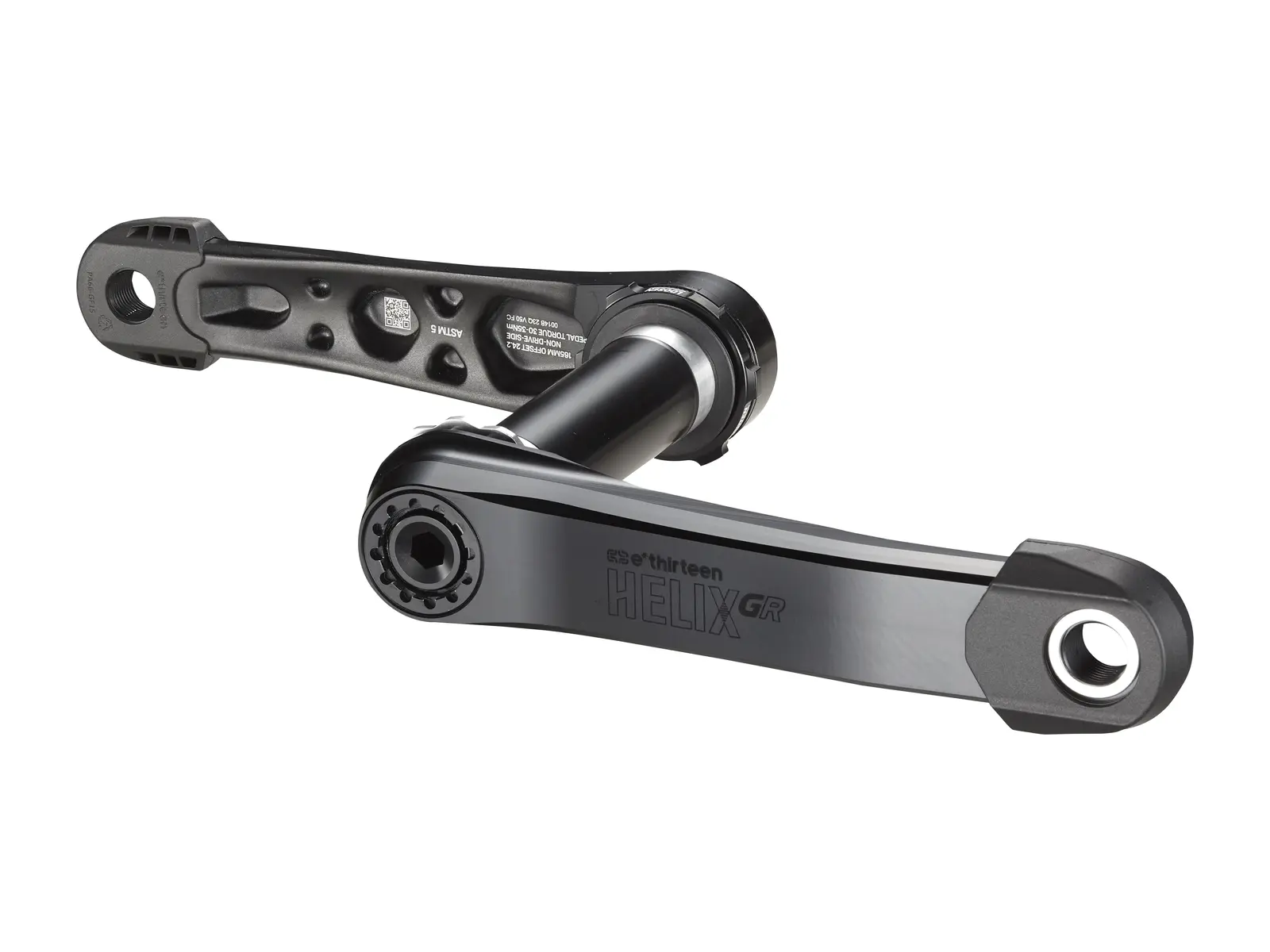

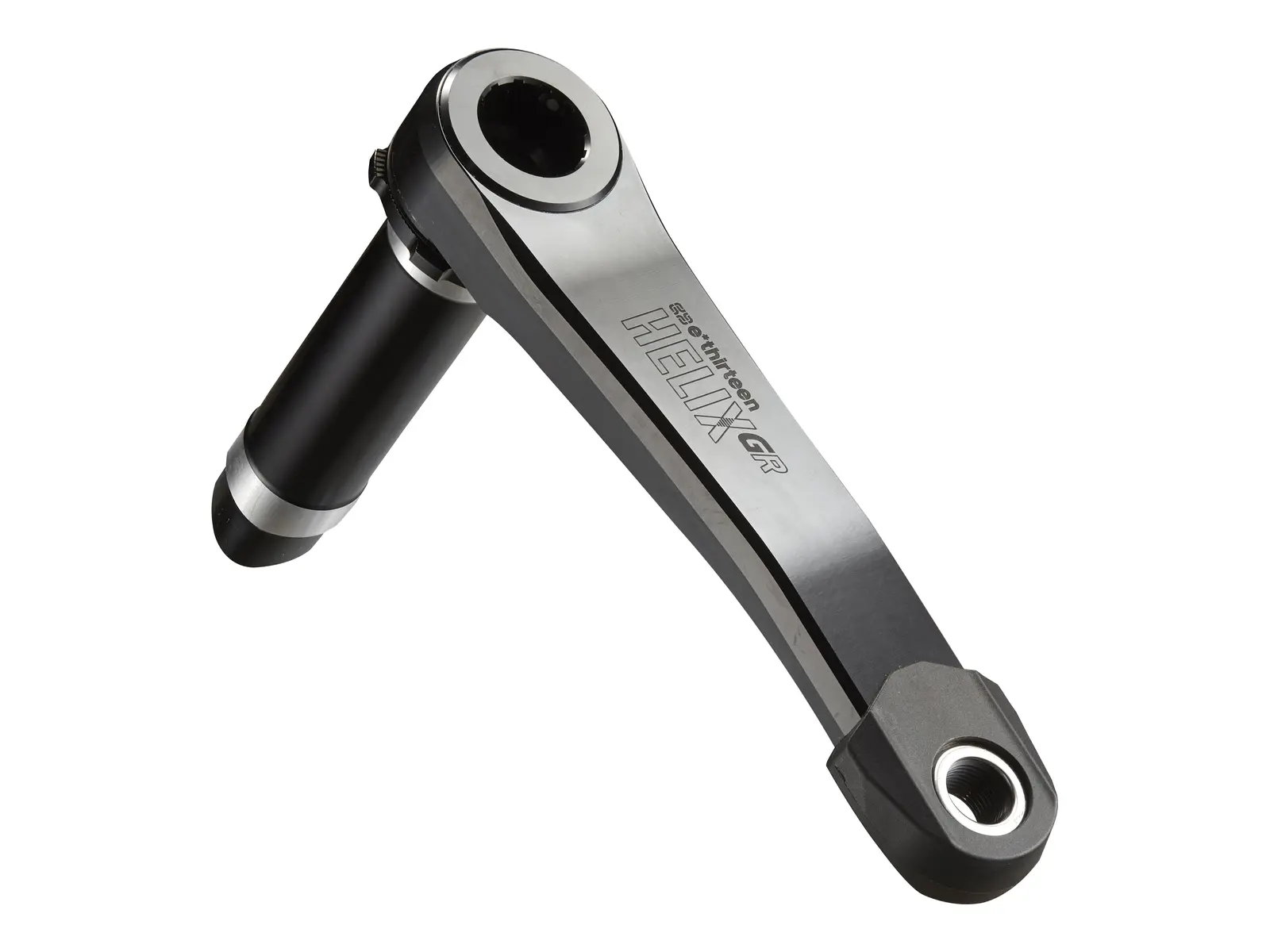

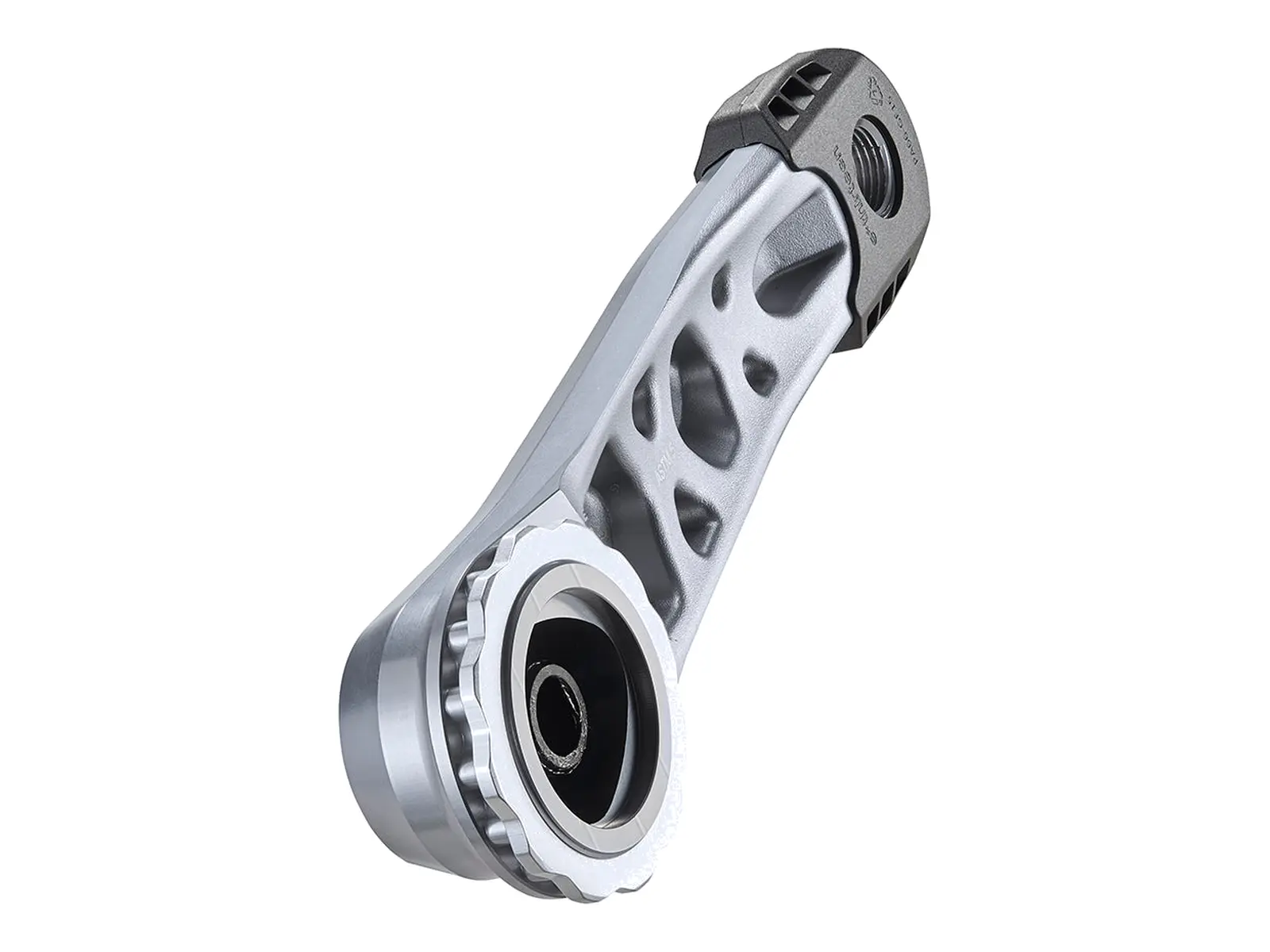

The e*thirteen "Helix Race GR" MTB Crank Set is the e*thirteen gravity crank, developed with the brand's World Cup riders for downhill, bike park, enduro and freeride. The forged and CNC machined 6066-T6 aluminium arms exceed the ASTM 5 standard, the 30mm alloy spindle comes for 73mm and for 83mm bottom bracket shells, both with the Quick Connect chainring interface. The 83mm version needs the Helix Race GR chainring (56.5mm chainline), the 73mm version runs the standard Helix rings (55mm). Crank boots, APS preload ring and tool are included, chainring and bottom bracket are not.
Facts: e*thirteen "Helix Race GR" MTB Crank Set
- Material Crank Arms: 6066-T6 aluminium, forged, CNC machined
- Material Crank Spindle: aluminium, 30mm
- Crank-Type: 2-piece
- Crank Arm Length: 160mm or 165mm
- Spindle Diameter: 30mm
- Spindle-Type: P3 Connect (polygon)
- Spindle: Spindle 73mm (68/73mm BB shell) or Spindle 83mm (83mm BB shell)
- Chainring Mount: Direct Mount (e*thirteen)
- Scope of Delivery: 1 crank set (crank arms, spindle, crank boots, APS preload ring, BB/lockring tool)
- Extras:
- for 68/73mm (73mm spindle) or 83mm (83mm spindle) bottom bracket shells
- 83mm spindle: Helix Race GR chainring, 56.5mm chainline. 73mm spindle: Helix Race, Helix Plus or Helix steel chainring, 55mm chainline. SL and UL rings do not fit
- exceeds ASTM 5 (downhill, bike park, enduro, freeride)
- self extractor, APS preload ring, moulded crank boots
- chainring and bottom bracket not included
- weight 584g (160mm, 73 spindle), 599g (165mm, 73 spindle), 590g (160mm, 83 spindle), 607g (165mm, 83 spindle)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
