e*thirteen "Helix Race" MTB Crank Set
-
Weight : 0.57kg / 1.26lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 36525
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

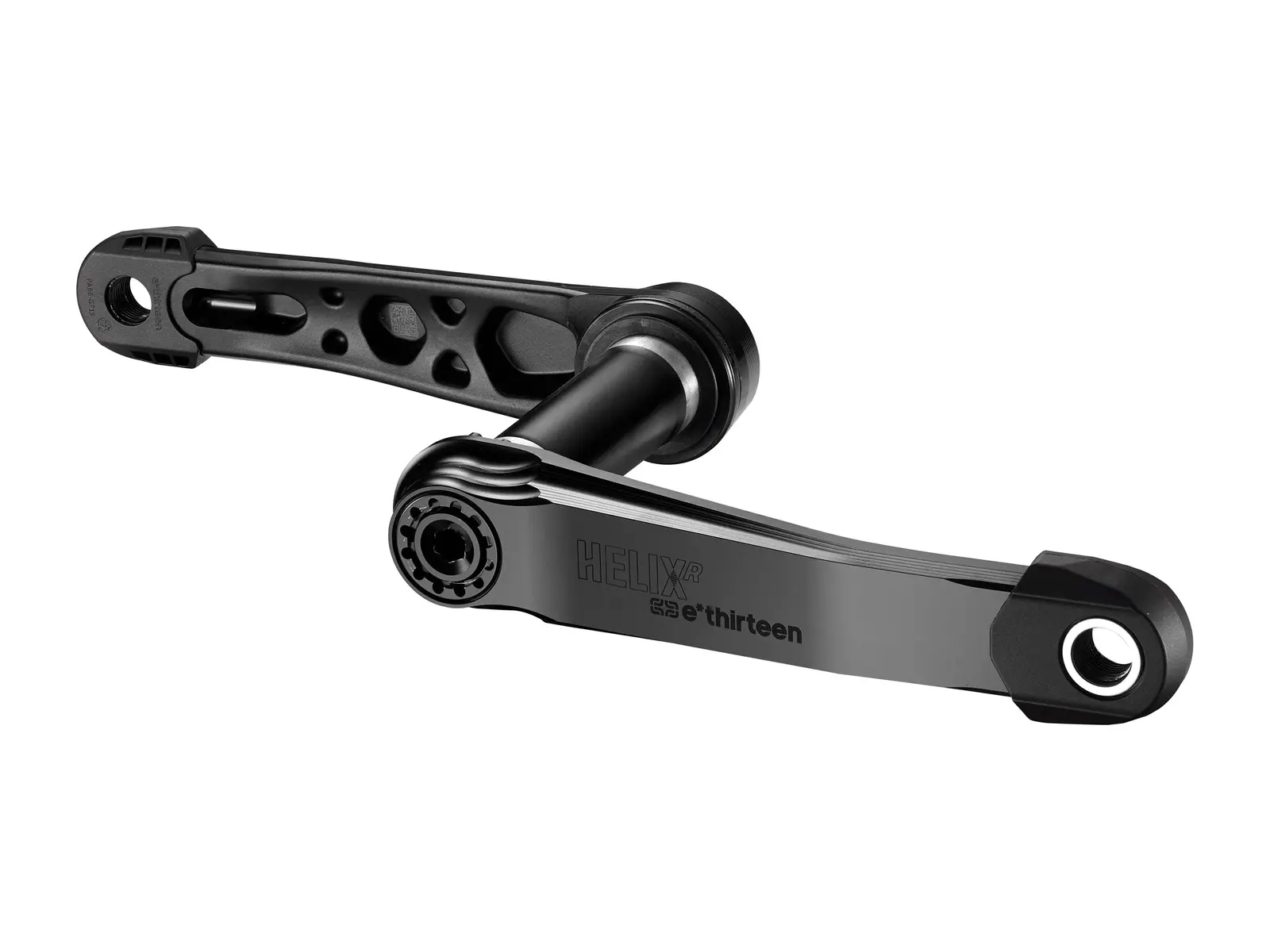

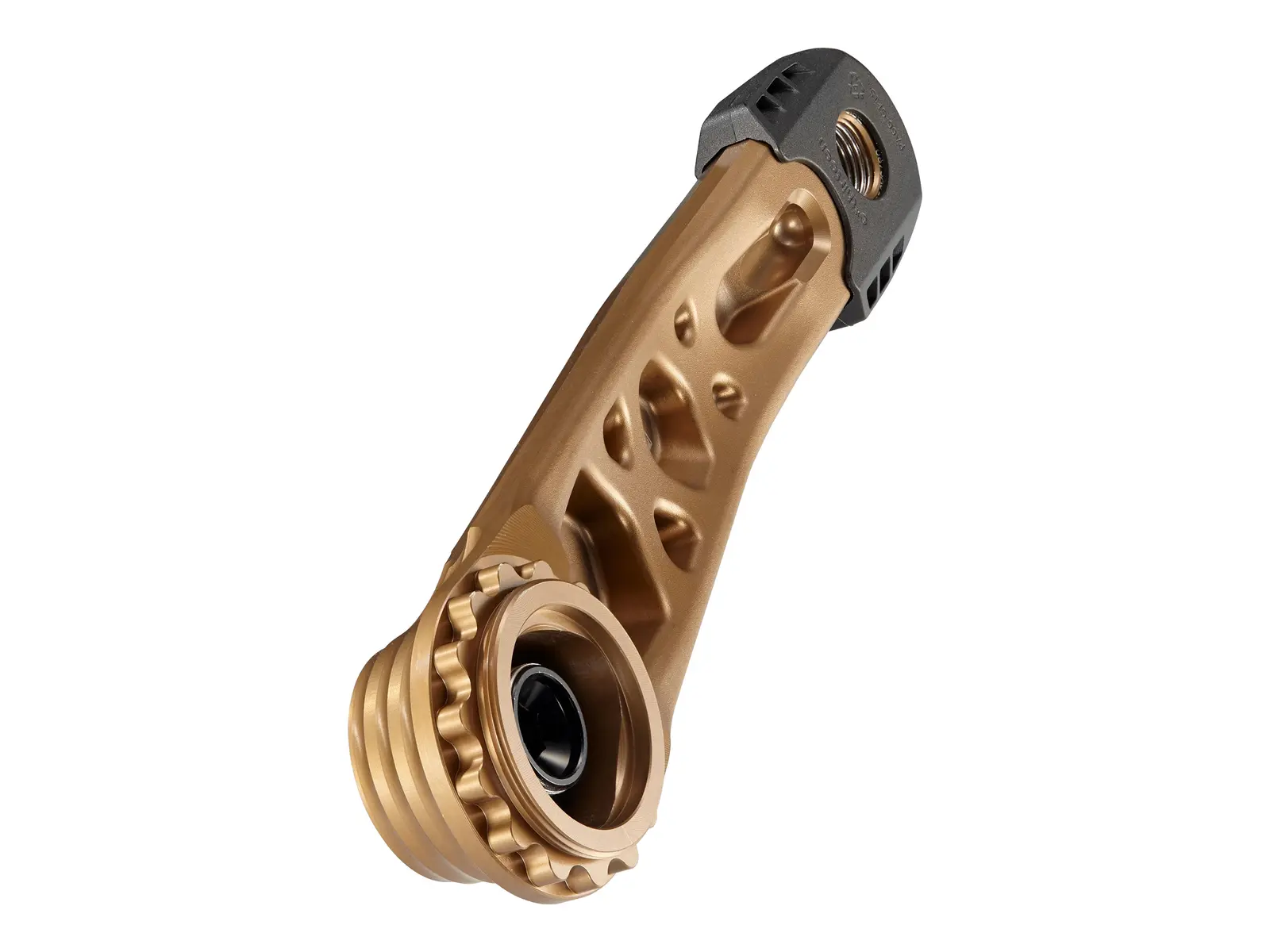

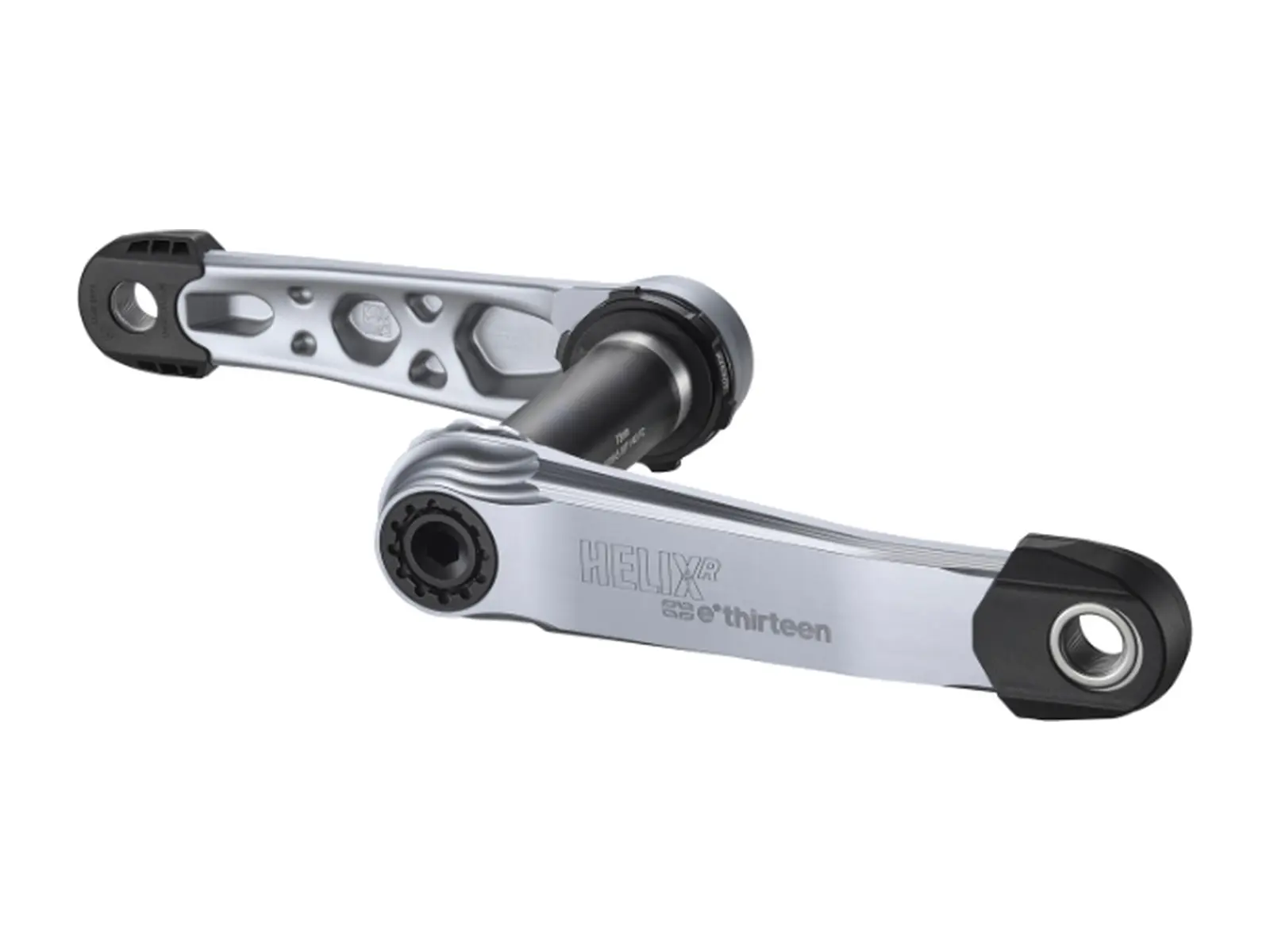

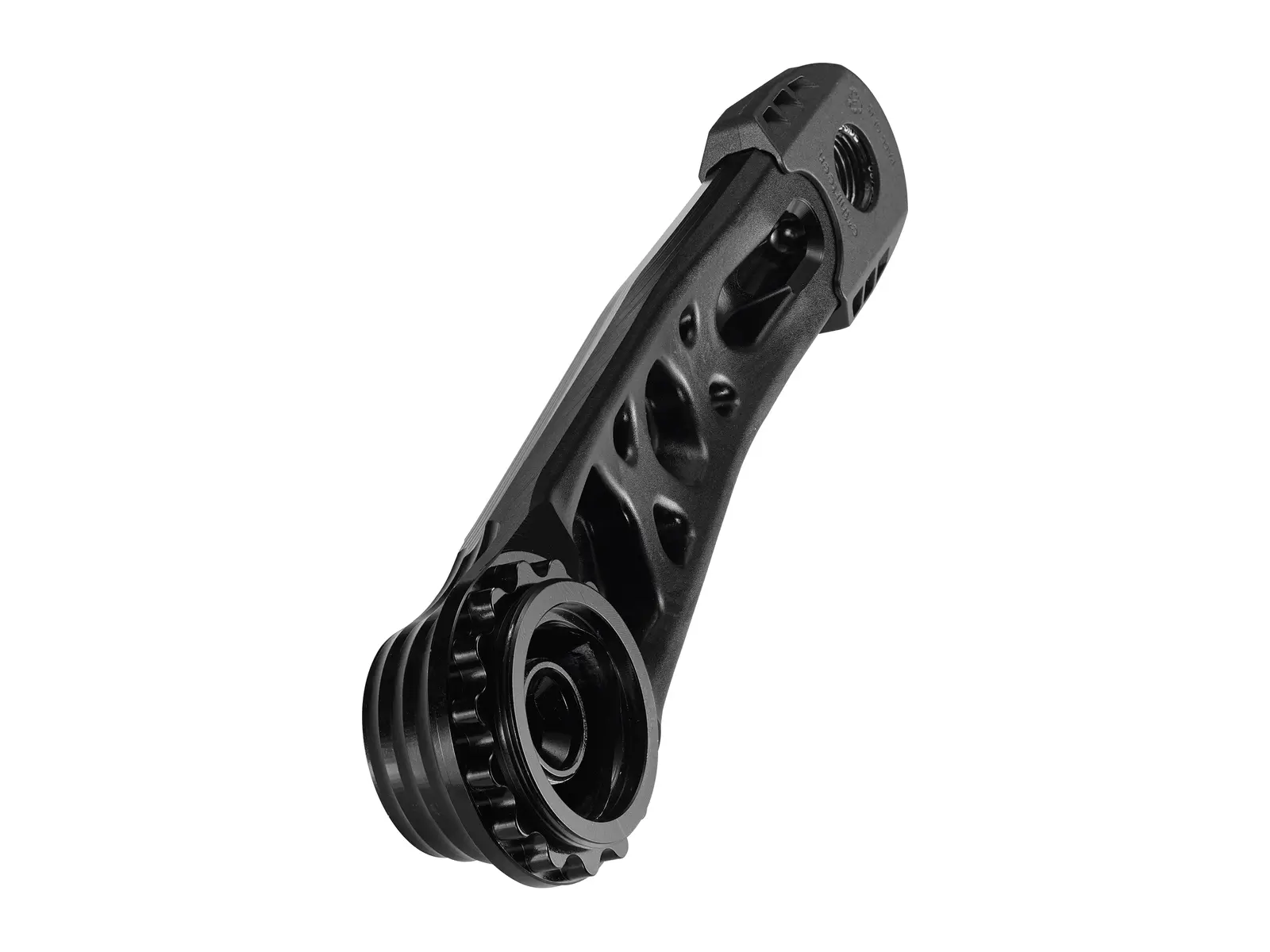

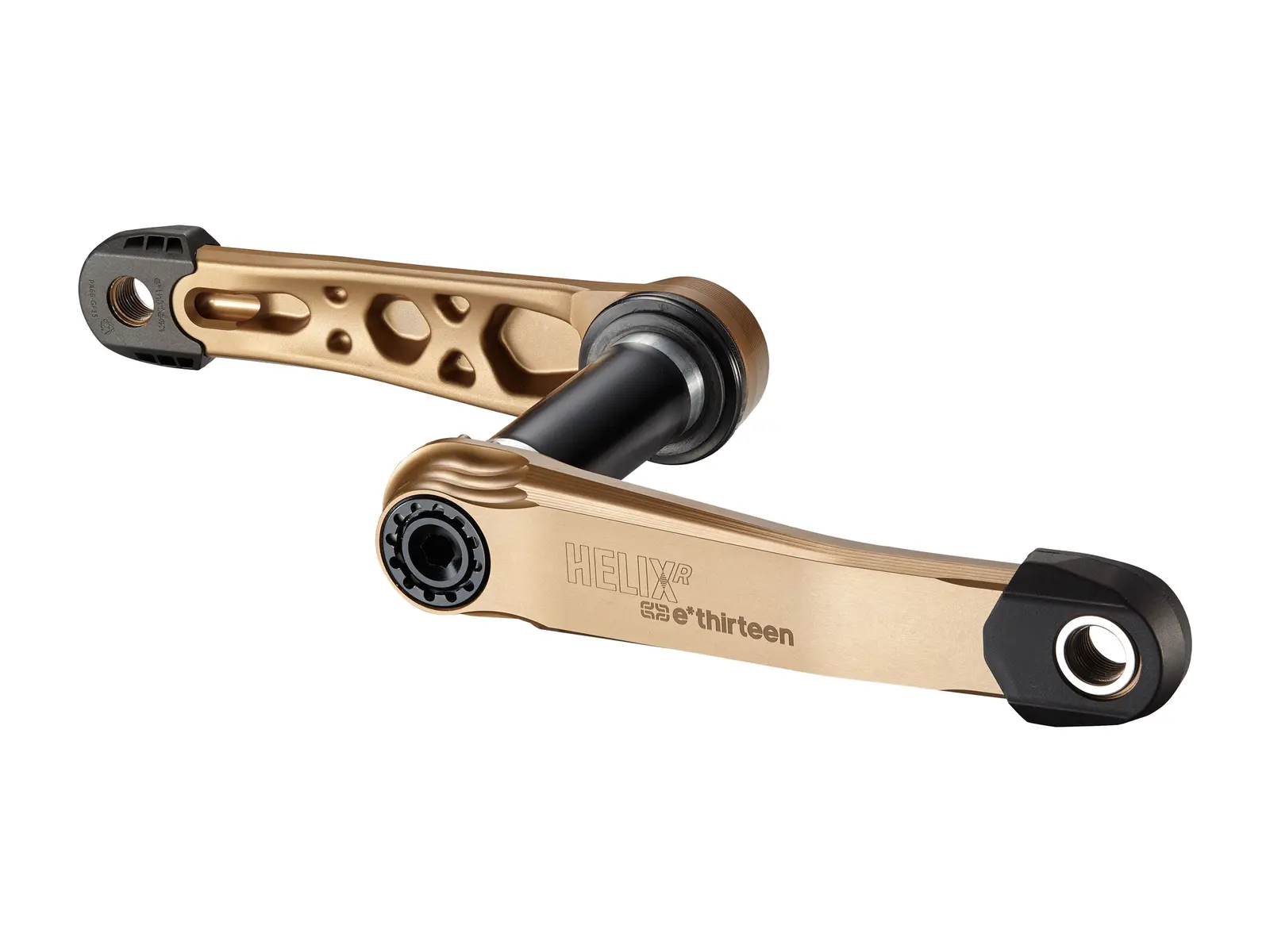

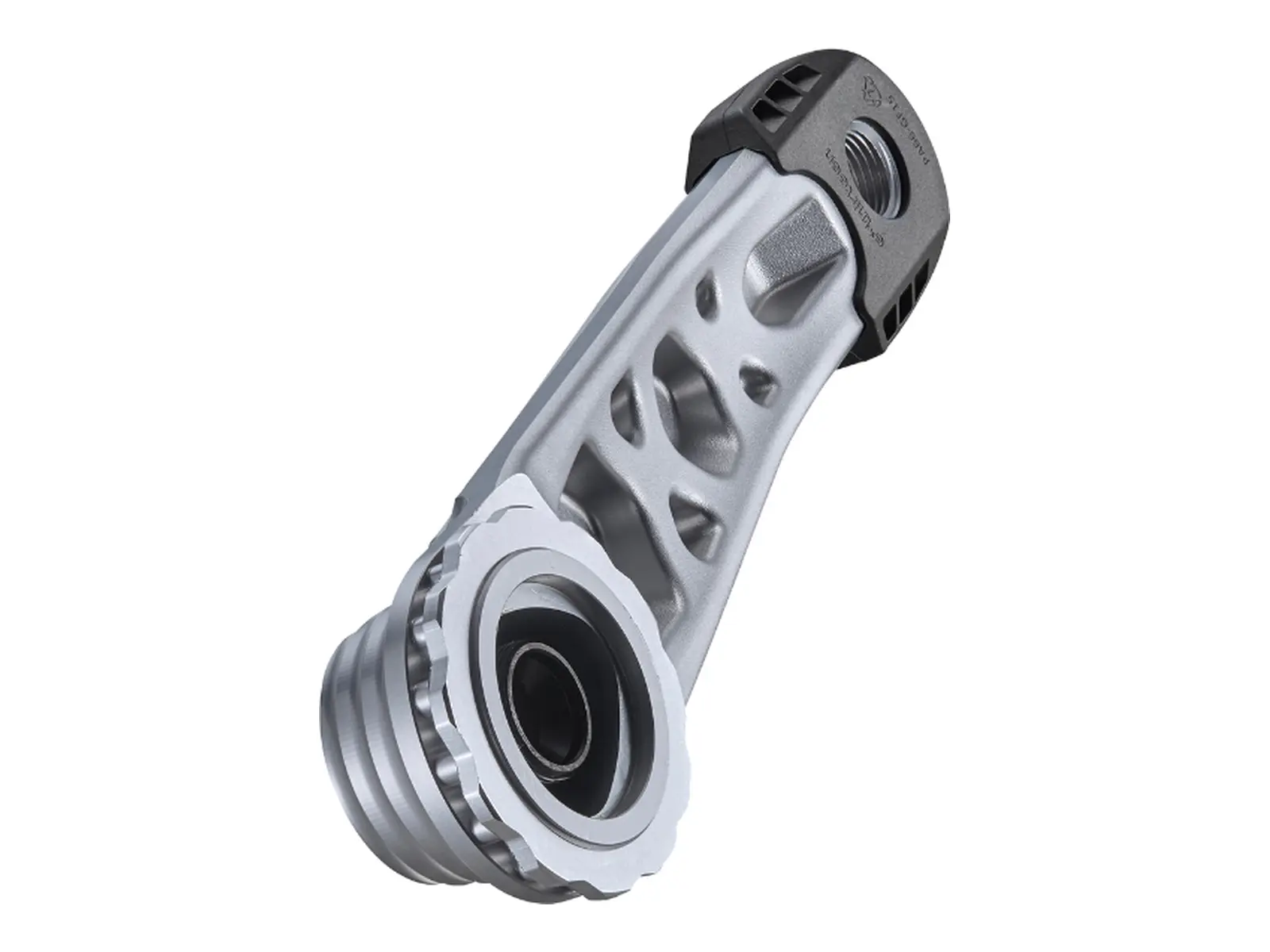

The e*thirteen "Helix Race" MTB Crank Set is the top alloy crank from e*thirteen with the weight of an XC crank and enduro strength. The arms are forged from 6066-T6 aluminium and CNC machined on almost every face, the 30mm spindle in 7050-T7 aluminium adds stiffness at low weight. With the Helix Race and Helix Plus flip-flop rings on the Quick Connect interface it runs Boost (52mm) or Super Boost (55mm), SL and UL rings do not fit. The APS preload ring and the crank boots are included, chainring and bottom bracket are not.
Facts: e*thirteen "Helix Race" MTB Crank Set
- Material Crank Arms: 6066-T6 aluminium, forged, CNC machined
- Material Crank Spindle: 7050-T7 aluminium, 30mm
- Crank-Type: 2-piece
- Crank Arm Length: 160mm, 165mm, 170mm or 175mm
- Spindle Diameter: 30mm
- Spindle-Type: P3 Connect (polygon)
- Chainring Mount: Direct Mount (e*thirteen)
- Scope of Delivery: 1 crank set (crank arms, spindle, crank boots, APS preload ring, BB/lockring tool)
- Extras:
- for 68/73mm bottom bracket shells, with bottom brackets for 30mm spindles (BB92 and BB30 too)
- 52mm (Boost) or 55mm (Super Boost) chainline depending on which way the flip-flop ring is fitted, SL and UL rings do not fit
- self extractor, APS preload ring
- chainring and bottom bracket not included, matching rings: Helix Race, Helix Plus, Helix steel direct mount
- weight 547g (160mm), 556g (165mm), 566g (170mm), 574g (175mm)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
