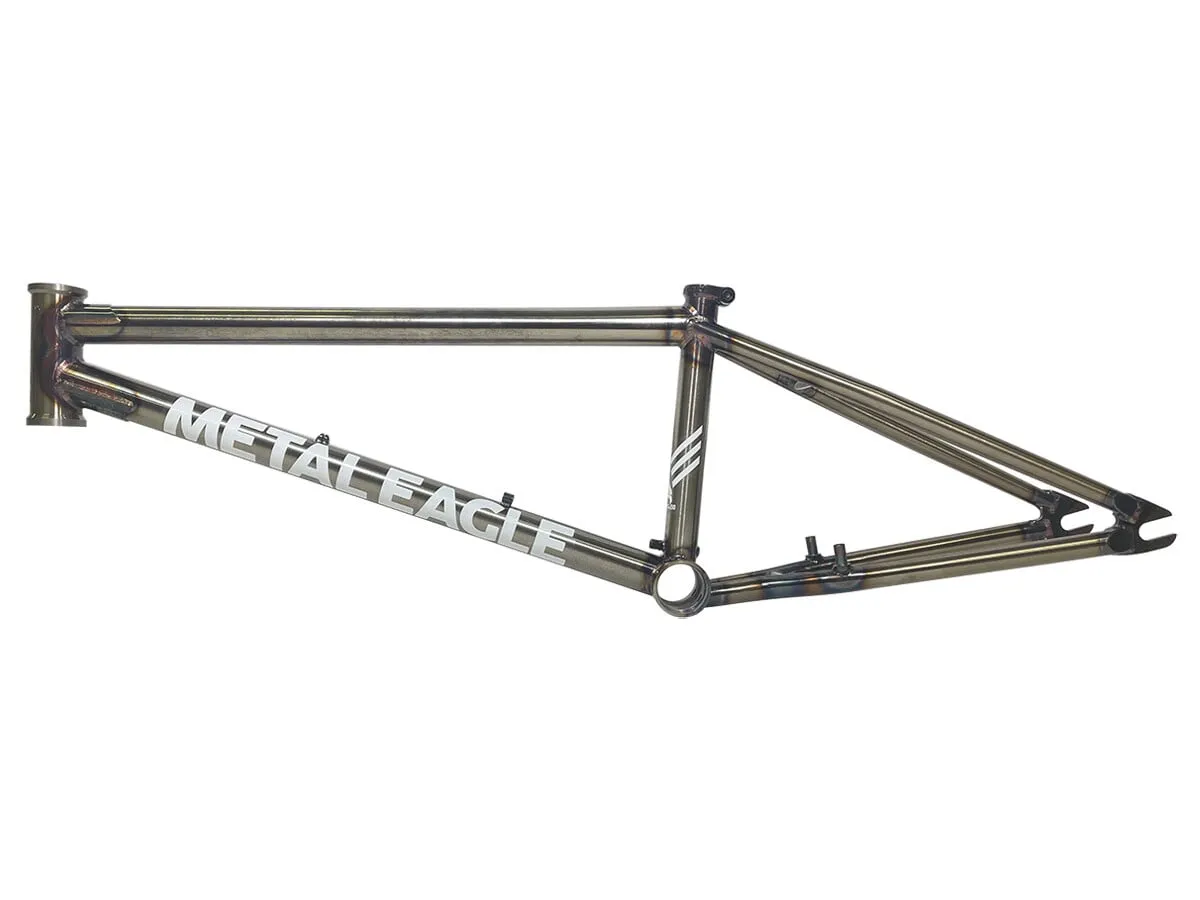

Fit Bike Co. "Metal Eagle" BMX Rahmen - Raw (Cory Nastazio)
-
Weight : 2.15kg / 4.74lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25840
The
Fit Bike Co. "Metal Eagle" BMX Rahmen - Raw (Cory Nastazio)
is the signature frame of Cory Nastazio and was designed and manufactured for modern and technical pro level trail riding and is made in USA. The
Fit Bike Co. "Metal Eagle" BMX Rahmen - Raw (Cory Nastazio)
consists of the highest quality, partly heat-treated 100% 4130 CrMo, in addition, the 74.5° steep head tube paired with the long 14.4" rear triangle and a 9" high standover ensure stable driving behavior.
Note: The brake sockets were welded onto the frame.
Facts: Fit Bike Co. "Metal Eagle" BMX Rahmen - Raw (Cory Nastazio)
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 21.25"
Chainstay Length (CS): 14.5" (36.83cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 14 mm, heat treated
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (welded)
- Brakemounts included with delivery: Weled on frame
- Gyro compatible: No
- Features: wide rear end for fat 2.4" tires, Made in Santa Ana, California
- Model Year: 2023
