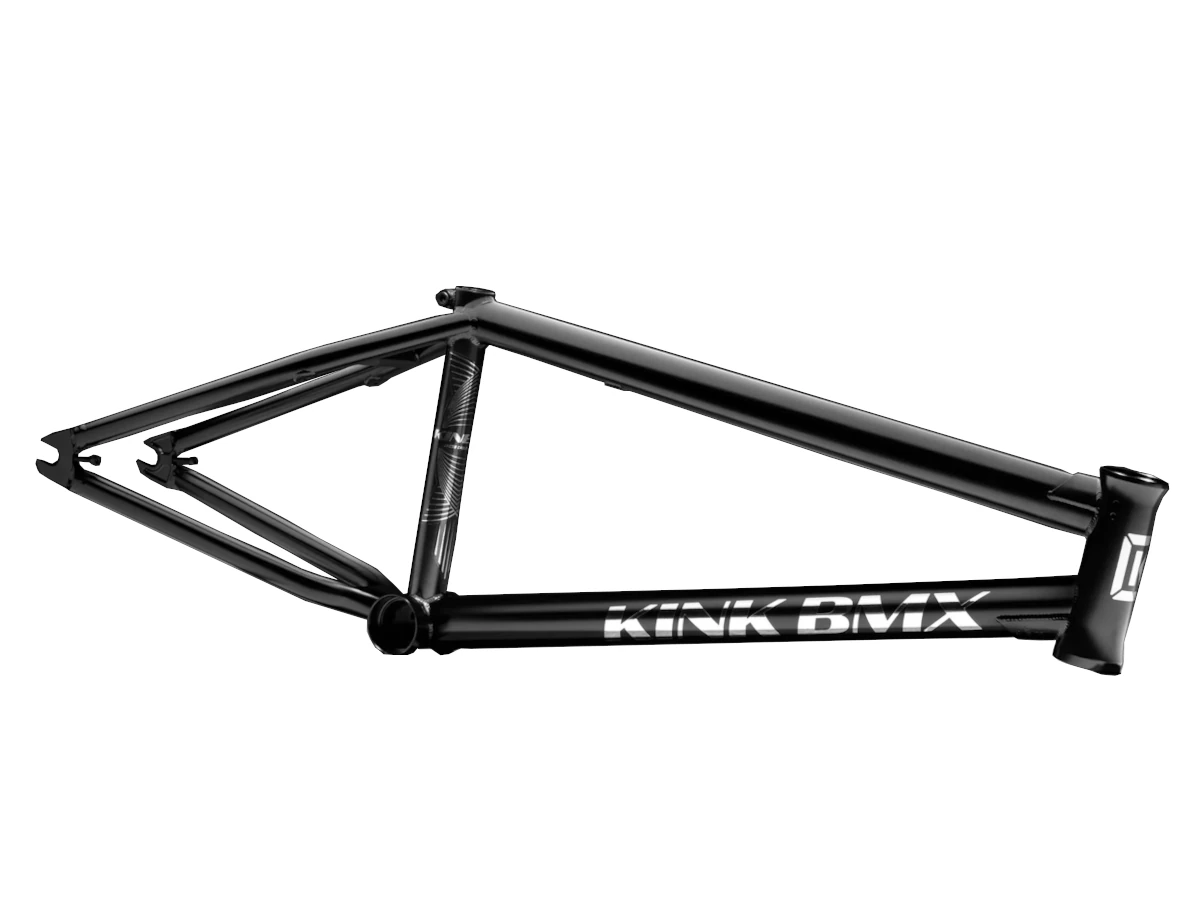

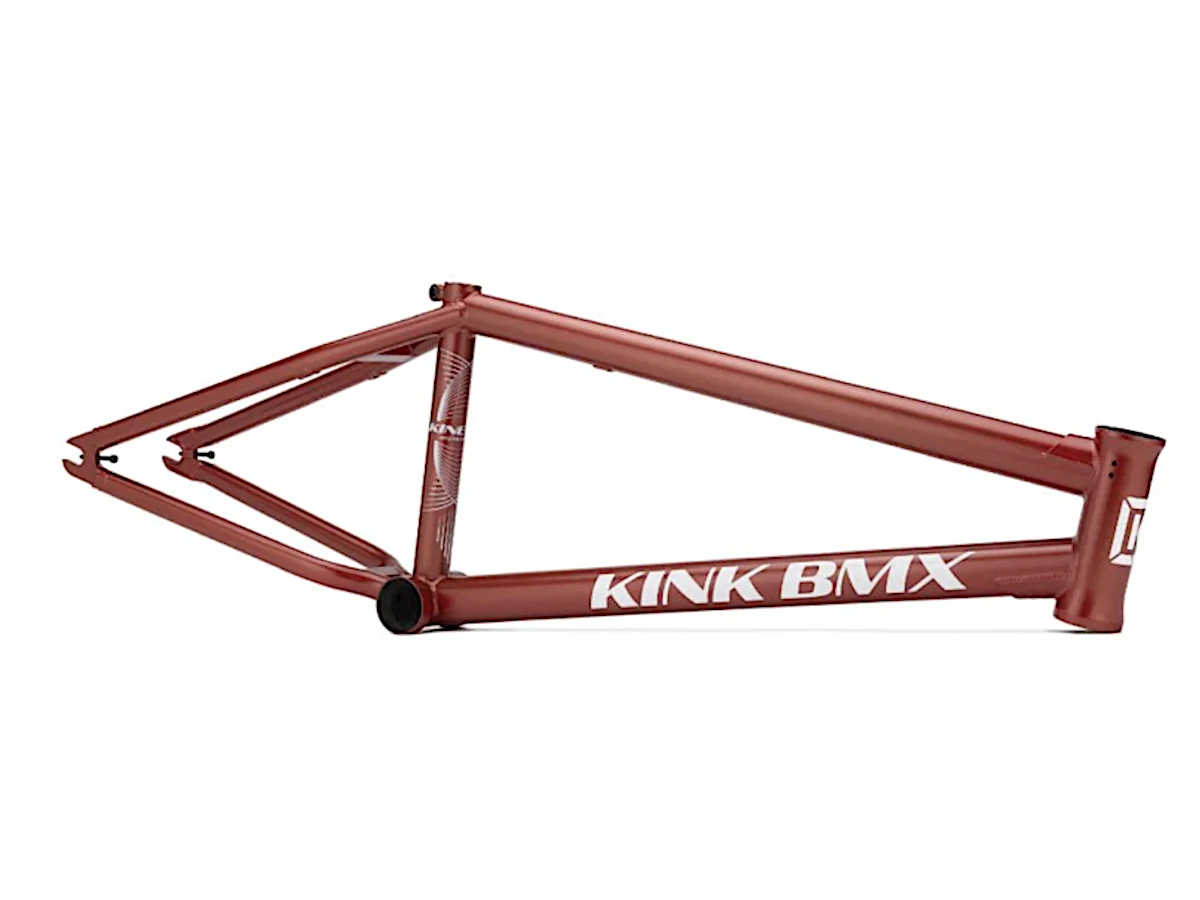

Kink Bikes "Kinetic" BMX Frame

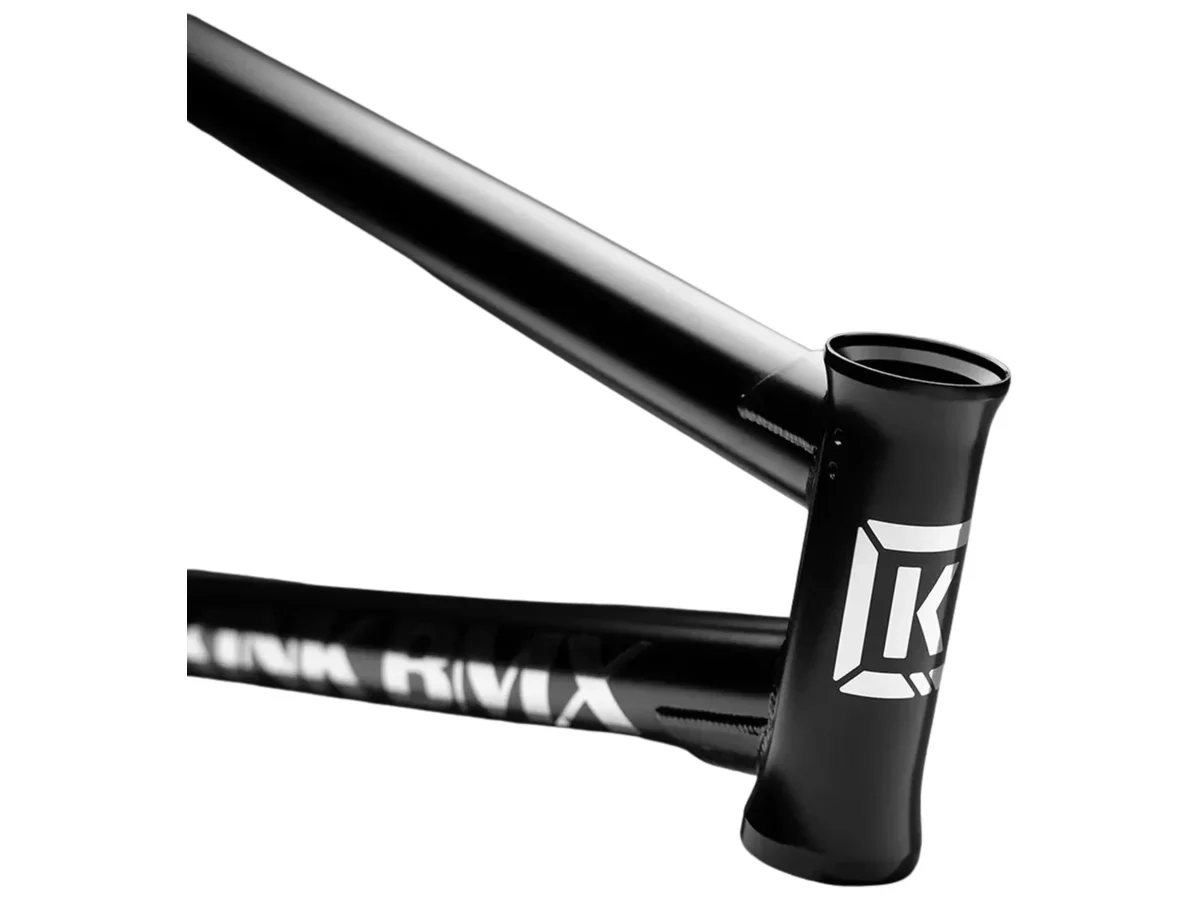

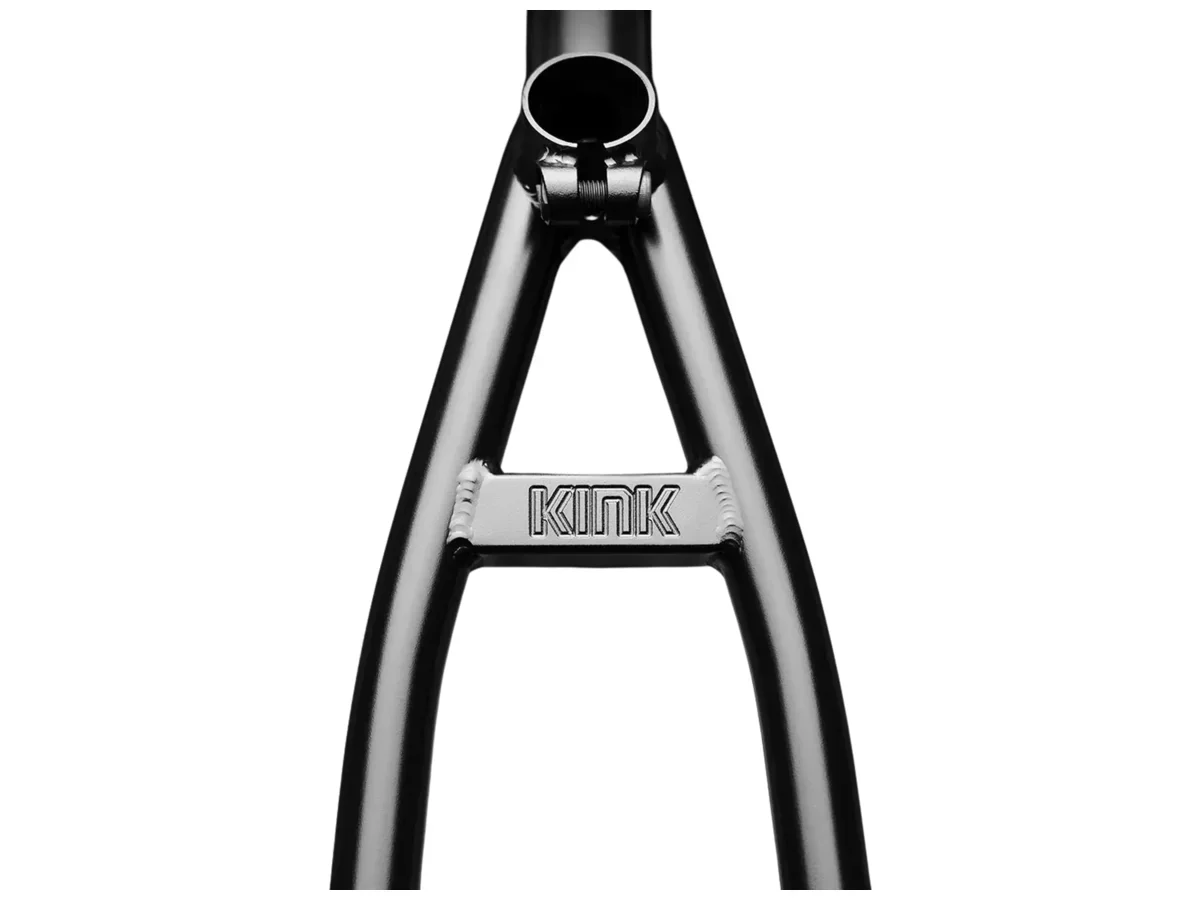

Inspired by his dynamic riding style, the Kink Bikes "Kinetic" BMX Frame is designed to the exact specifications of pro BMX rider Jacob Cable. It features all of his preferred geometry, making it ideal for technical street riding. The frame's responsive 75.5-degree headtube angle is perfect for locking into nose manuals, while the 13-inch chainstay provides a balance of a short, nimble feel and stability. The custom square-formed bridges add a unique aesthetic while increasing the stiffness of the rear triangle. For extra strength and a sleek look, the oval top and downtubes are supported with gussets. To top it all off, the frame comes standard with an integrated seat post clamp and integrated chain tensioners. The removable brake lugs allow you to install brakes if you wish (mount kit sold separately).

Facts: Kink Bikes "Kinetic" BMX Frame

• Wheel Size: 20"
• Material: 100% 4130 CrMo, Top Tube and Down Tube Gussets, butted tubing, tapered chainstays, integrated headset
• Geometry:
  - Top Tube length (TT): 20.5", 20.75", 21.0" or 21.25"
  - Chainstay length (CS): 13" (Slammed)
  - Headtube length: 5"
  - Headtube angle (HA): 75.5°
  - Seattube angle (SA): 71°
  - Bottom Bracket height: 11.7"
  - Standover height (SO): 9"
• Seat clamp: integrated
• Seat post diameter: 25.4mm
• Bottom Bracket: Mid BB

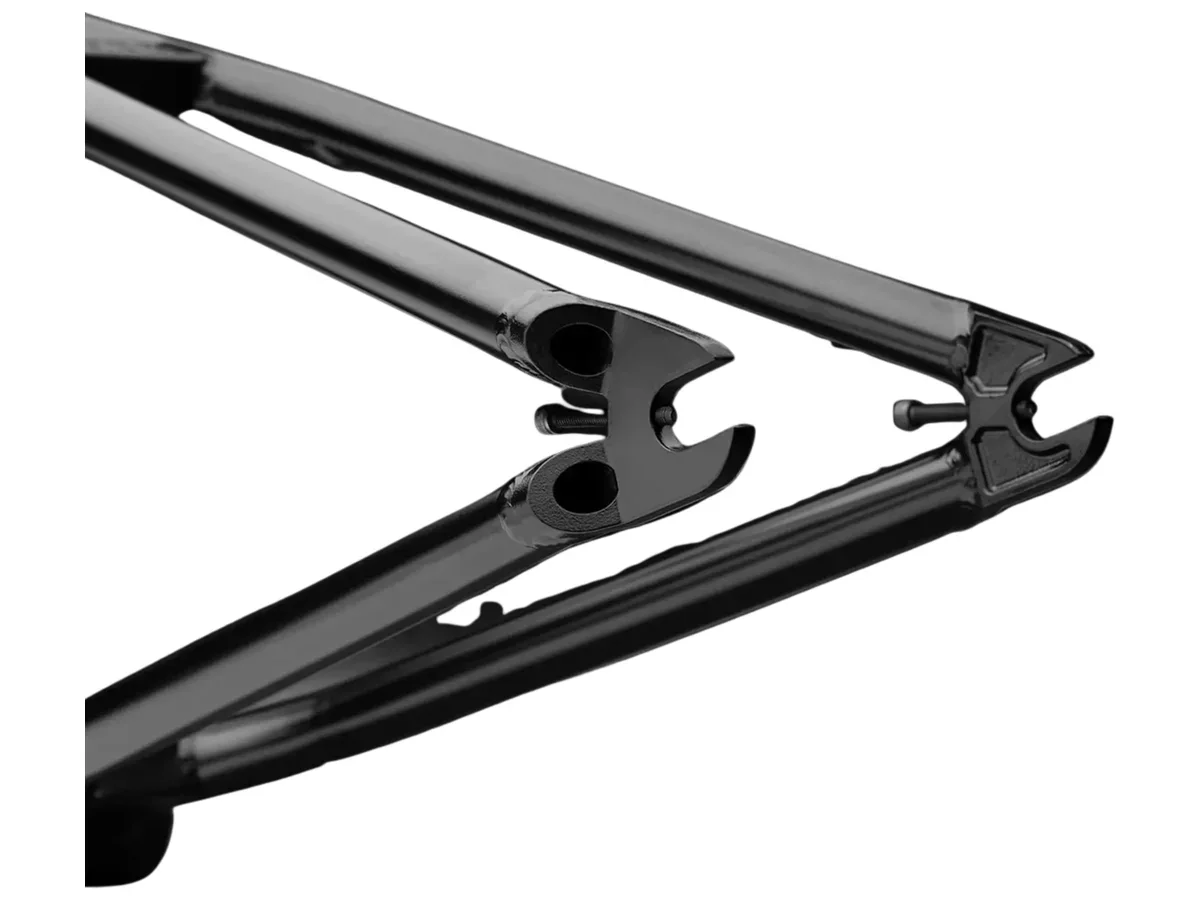

• Dropouts: Investment Cast, 6.5mm thick, 14mm axle slot
• Chain tensioners: integrated
• Brake type: U-Brake
• Brake mounts: with (screwable, M6)
• Brake mounts included: No
• Rotor compatible: Yes
• Features: Jacob Cable Signature Frame, wide rear end for thick 2.5" tires
