Mankind Bike Co. "Sunchaser" BMX Frame - Ed Black
-
Weight : 2.1kg / 4.63lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 18498

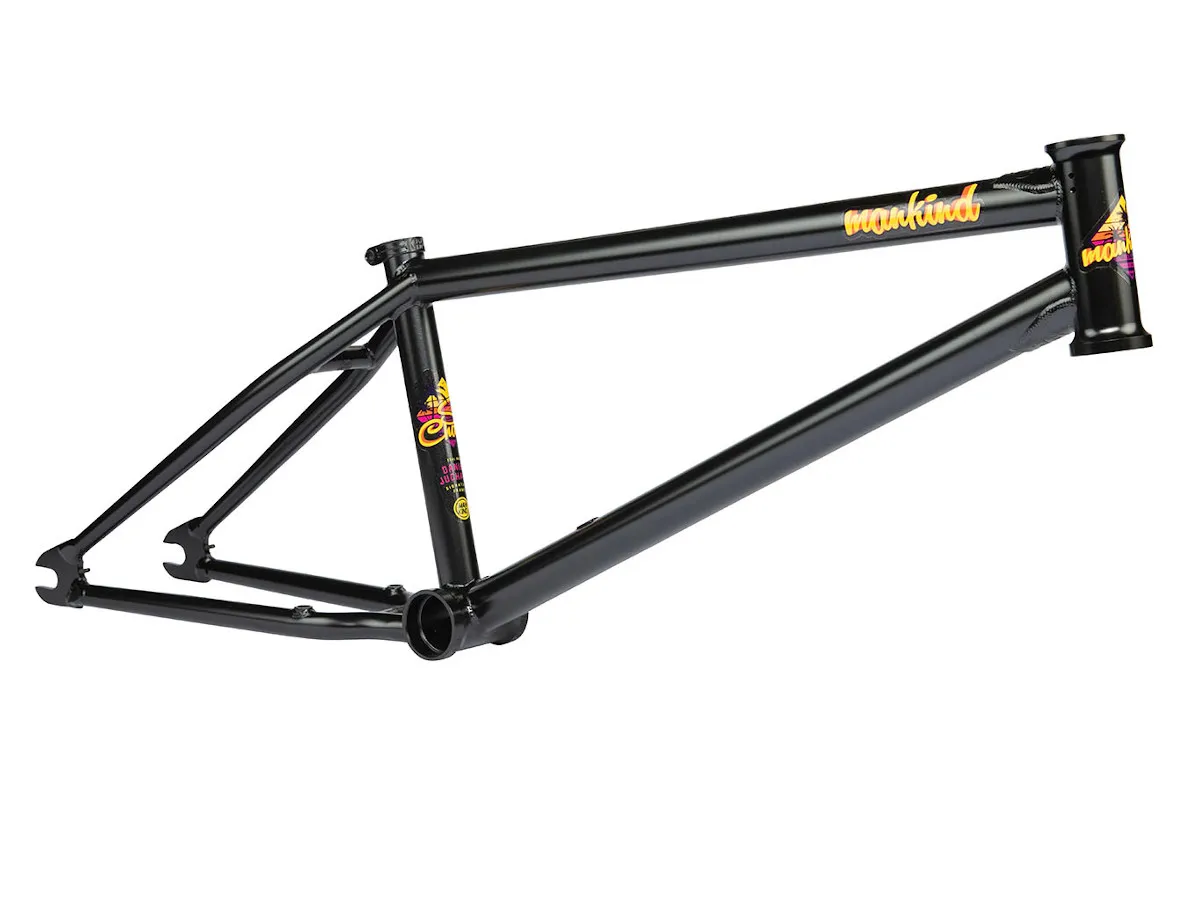

The Mankind Bike Co. "Sunchaser" BMX Frame - Ed Black is the signature frame of Daniel Juchatz and is designed to be a park and trails frame with an ideal geometry and features for this type of riding style. Moderate stand over height, integrated chain tensioners on 6mm dropouts, TT & DT gussets and longer chain stays with 13.5"(slammed) to give you all you need to have a solid trails and park machine.
Facts: Mankind Bike Co. "Sunchaser" BMX Frame - Ed Black
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset, integrated seatclamp, integrated chain tensioners
- Geometry:
Top Tube Length (TT): 20.5"
Chainstay Length (CS): 13.5" (34.29cm) - 13.9" (35.31cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Wide rear end for fat 2.4" tires
- Model Year: 2020
