Praxis Works "T47 E.B." MTB Bottom Bracket
-
Weight : 0.1kg / 0.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 40339
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

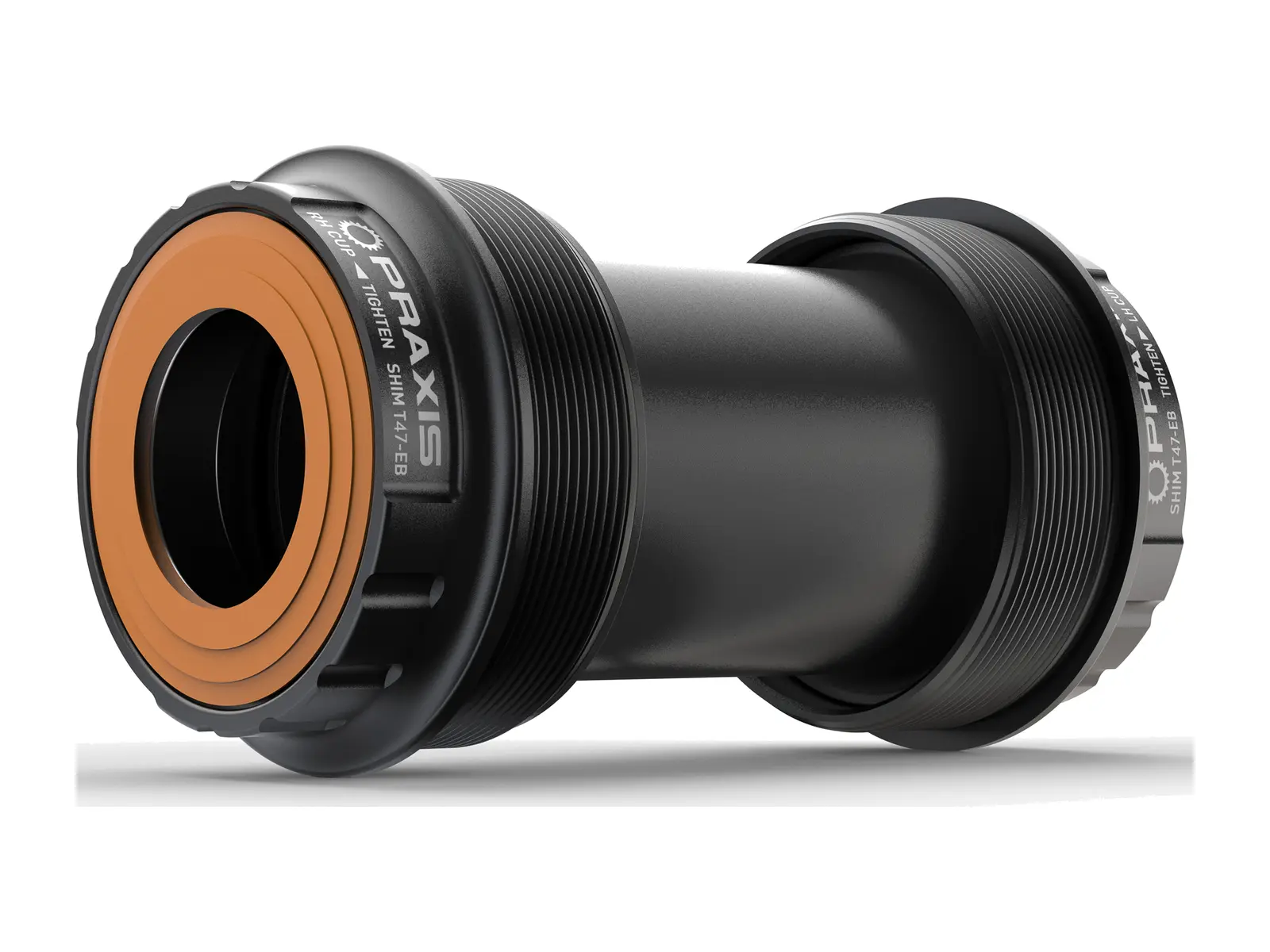

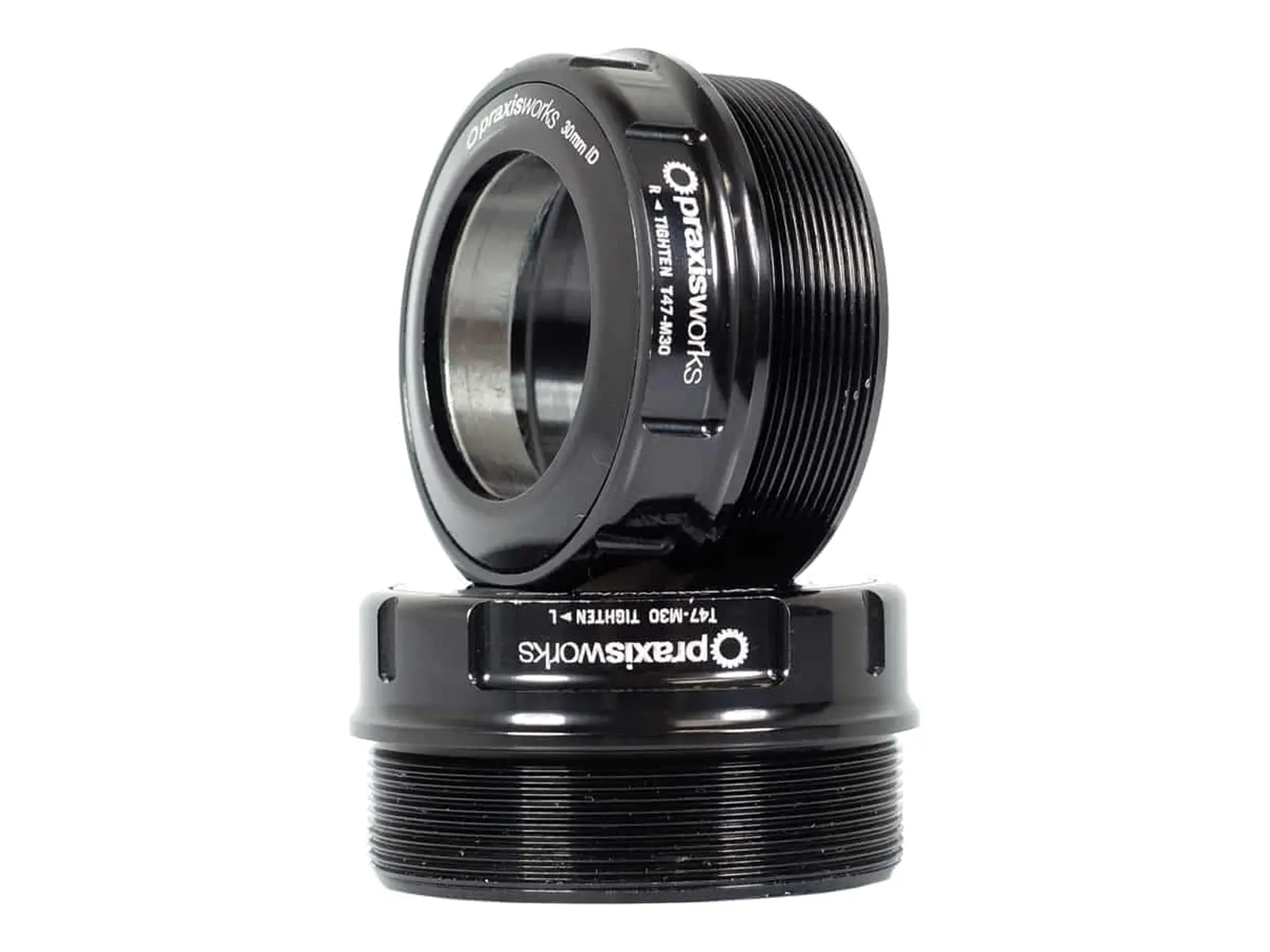

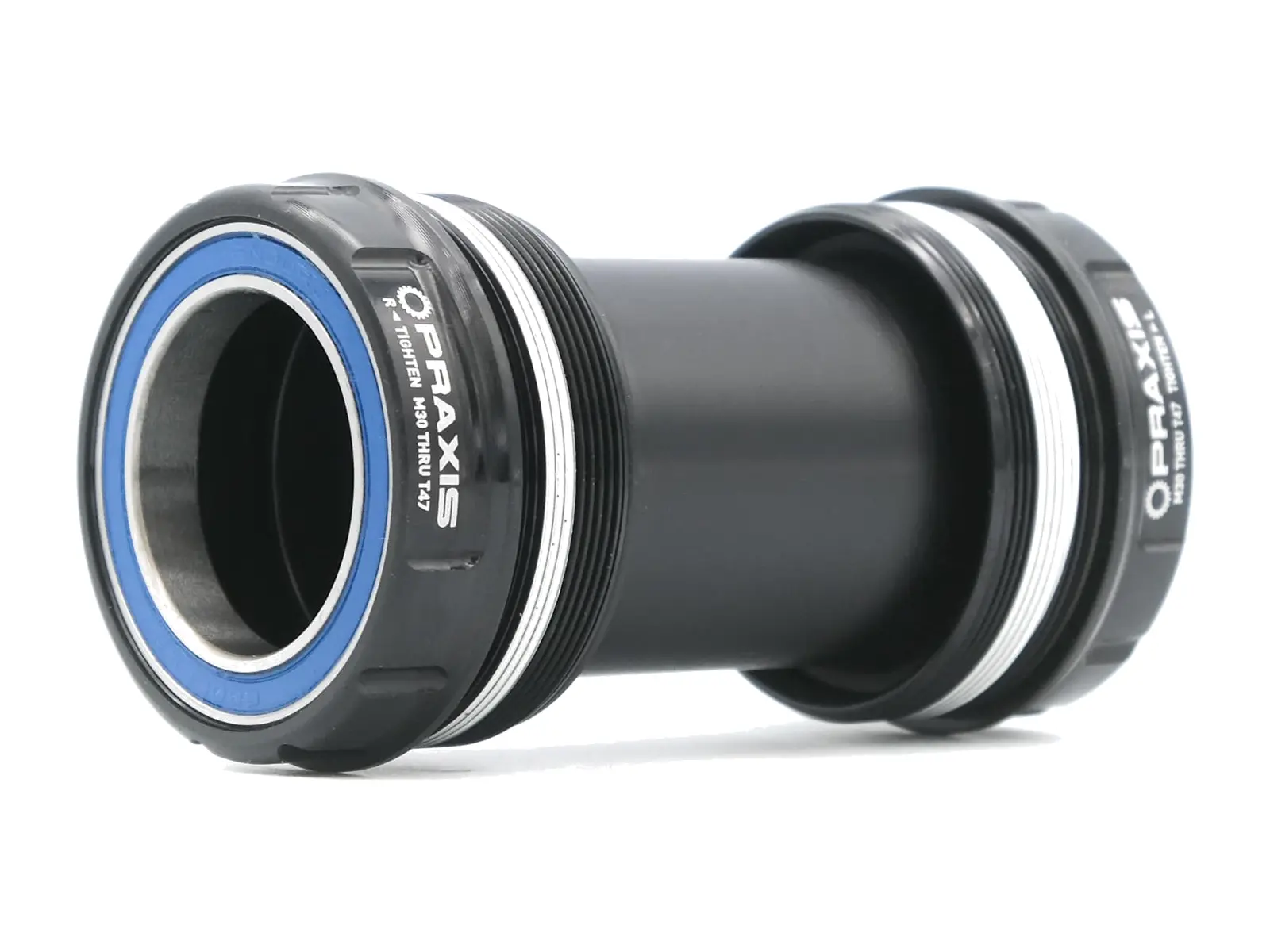

The Praxis Works "T47 E.B." MTB Bottom Bracket is the threaded bottom bracket from Praxis Works for T47 shells with external bearings, 73mm wide on mountain bikes. The cups are forged and machined from heat-treated aluminium. Your crank decides the version: Praxis M30, M30 Thru for 30mm spindles of other brands or Shimano Hollowtech II. M30 and M30 Thru are also offered with ceramic bearings.
Facts: Praxis Works "T47 E.B." MTB Bottom Bracket
- Material: cups aluminium, forged, machined and heat-treated
- Style: T47 threaded, external bearings (E.B.)
- Outside diameter: 47mm thread
- Axle Diameter: 24mm or 30mm
- Shell Width: 73mm (MTB), 68mm (gravel), M30 does not support 68mm MTB frames
- Bearings: steel cartridge bearings, M30 and M30 Thru optionally ceramic (grade 5 / ABEC 5), Shimano Enduro 2437
- Scope of Delivery: 1 bottom bracket
- Extras:
- Praxis M30: only for Praxis M30 cranks (Cadet, Girder, DH9, Zane), bearings 30mm/28mm
- M30 Thru: for cranks with a straight 30mm spindle (Praxis Lyft, SRAM 30mm, Race Face Cinch 30, Rotor, Cane Creek eeWings), spindle length 108mm or longer (MTB)
- Shimano: for Shimano Hollowtech II cranks, 24mm/24mm
- M30 and M30 Thru install with the Praxis M30 socket tool or M30 wrench, Shimano with a 44mm, 16 notch bottom bracket tool
- weight approx. 100g (M30, M30 Thru), 104g (Shimano), manufacturer
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
