S&M Bikes "Mad Dog 990" BMX Frame
-
Weight : 2.22kg / 4.89lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 32294
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

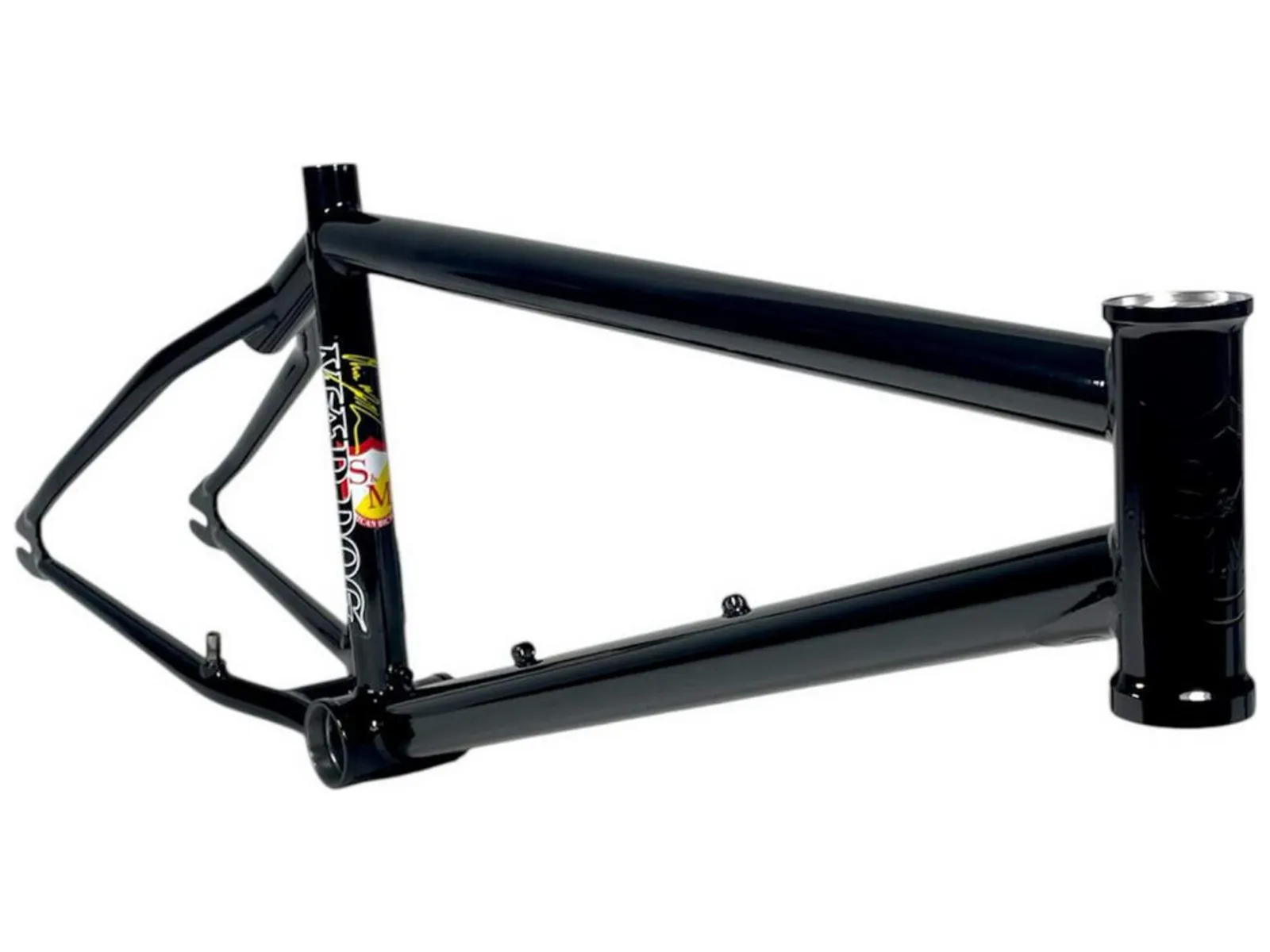

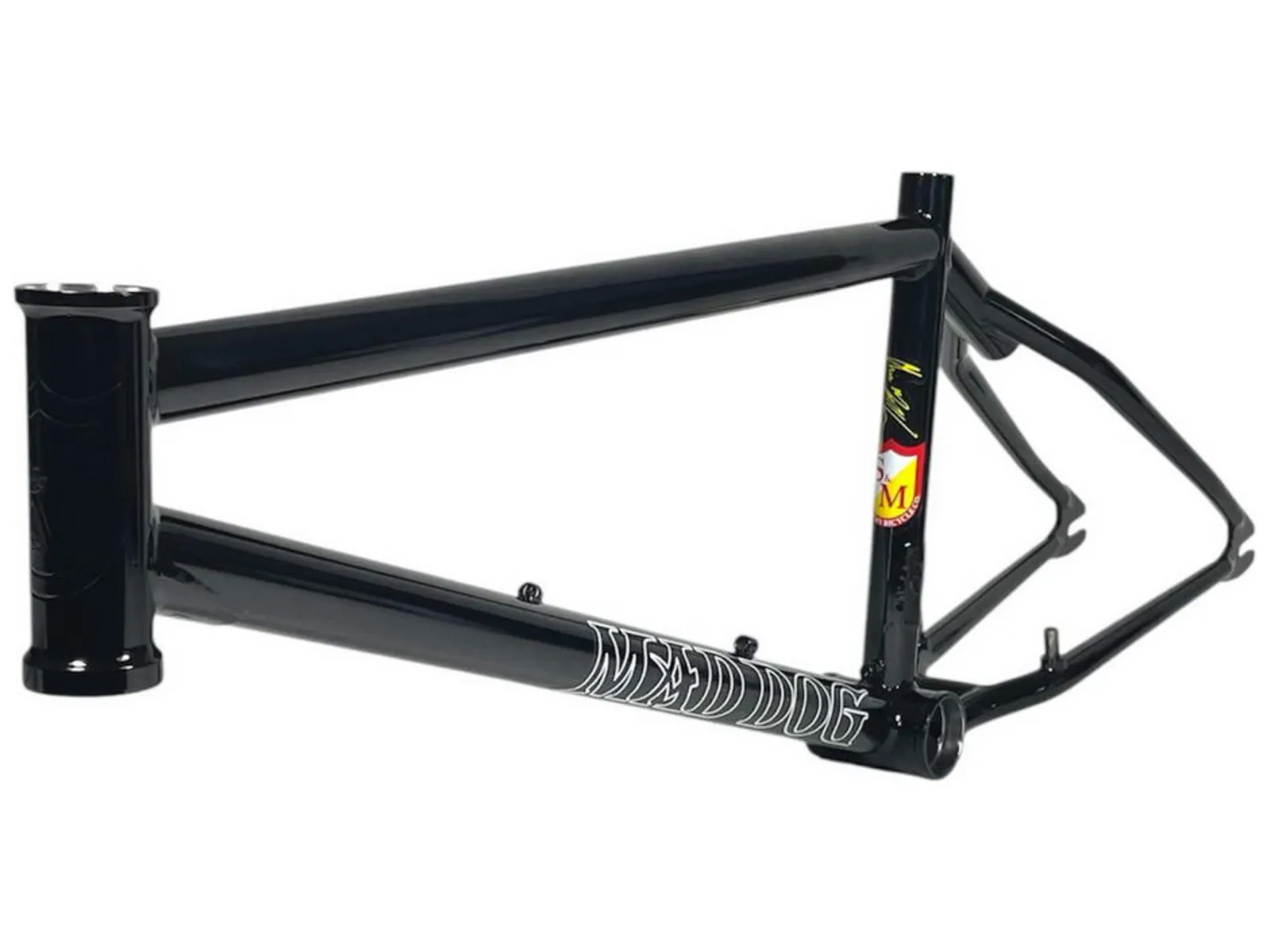

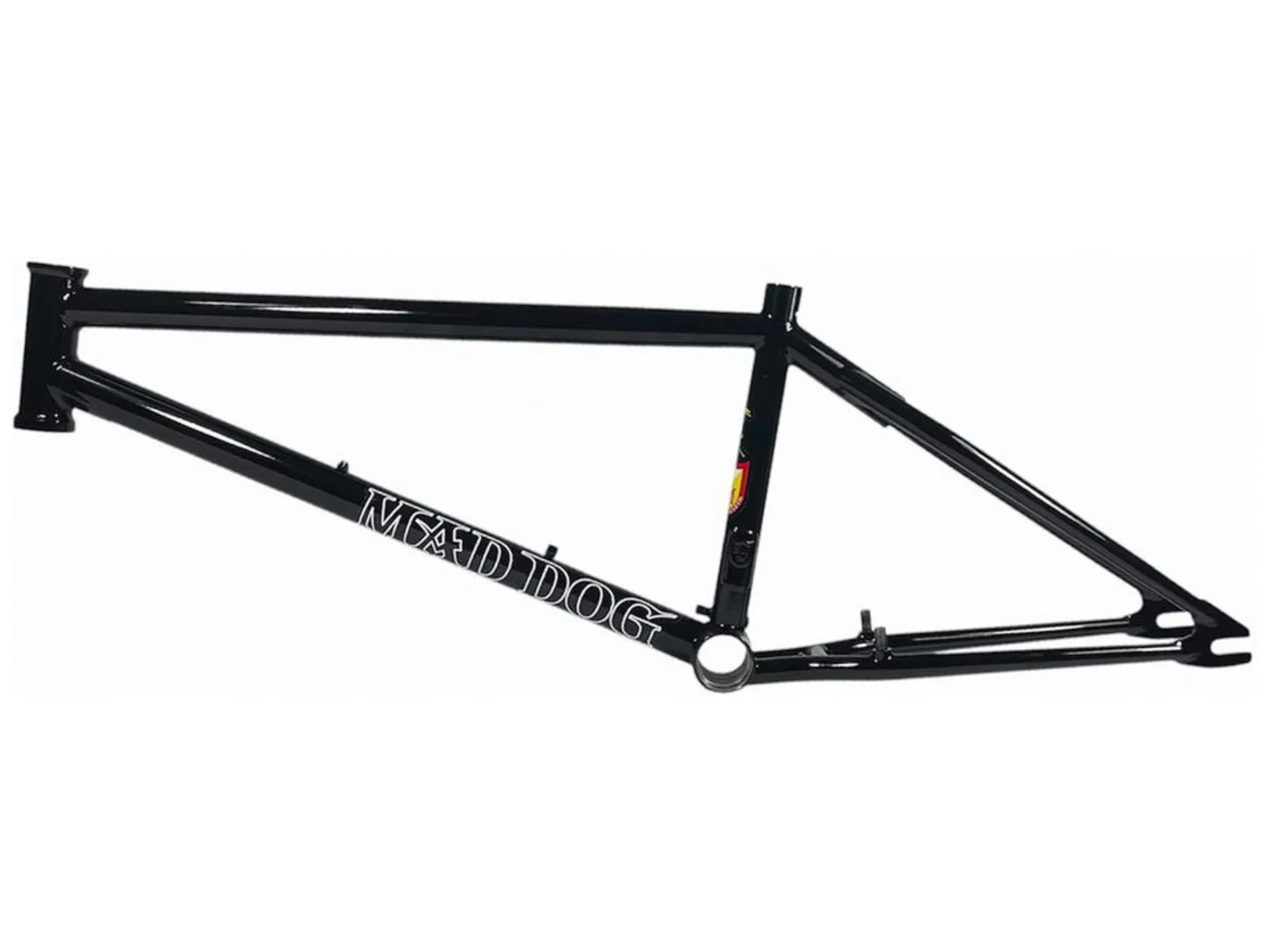

The S&M Bikes "Mad Dog 990" BMX Frame is the frame Chris "Mad Dog" Moeller built for himself thirty-six years after the original. It brings back the 990 U-brake mounts on the chainstays, stays light at 2.22kg and puts a full 10" of standover between you and the top tube. It is made for people who jump high and land hard.
Facts: S&M Bikes "Mad Dog 990" BMX Frame
- Wheel Size: 20"
- Material: 4130 CrMo
- Geometry:
- Top Tube Length (TT): 21.75"
- Chainstay Length (CS): 13.9"
- Head Tube Length: 5"
- Head Tube Angle (HA): 74.25°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.6"
- Standover Height (SO): 10" - Seat Tube: 1" / 25.4mm, slotted for a 28.6mm seat clamp
- Bottom Bracket: mid BB
- Dropouts: 3/8"
- Brake Type: U-brake

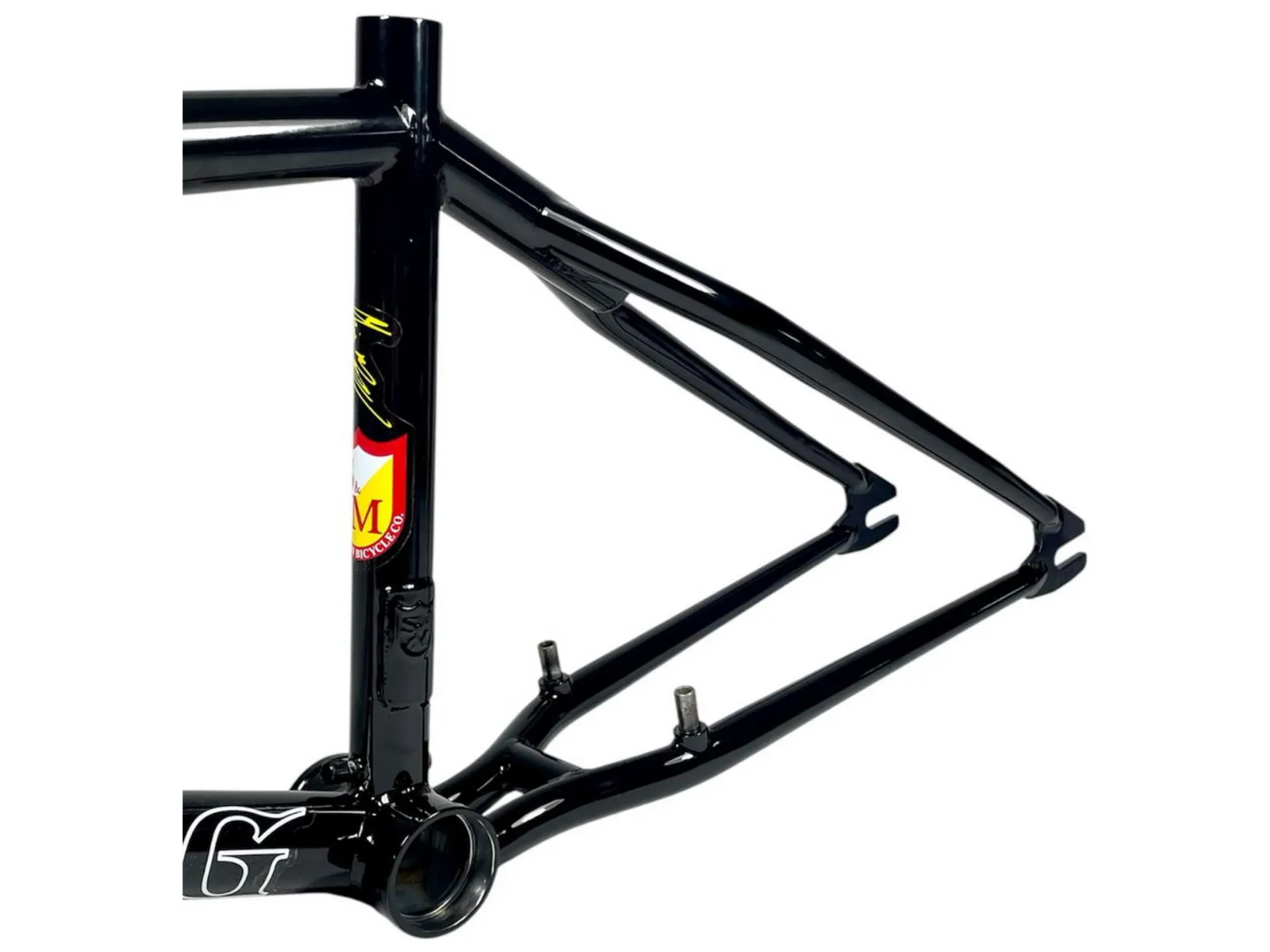

- Brakemounts: on the chainstays (990)
- Headset: integrated, campy style
