Stay Strong "5 Pts" BMX Race Sprocket
-
Weight : 0.08kg / 0.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 31398

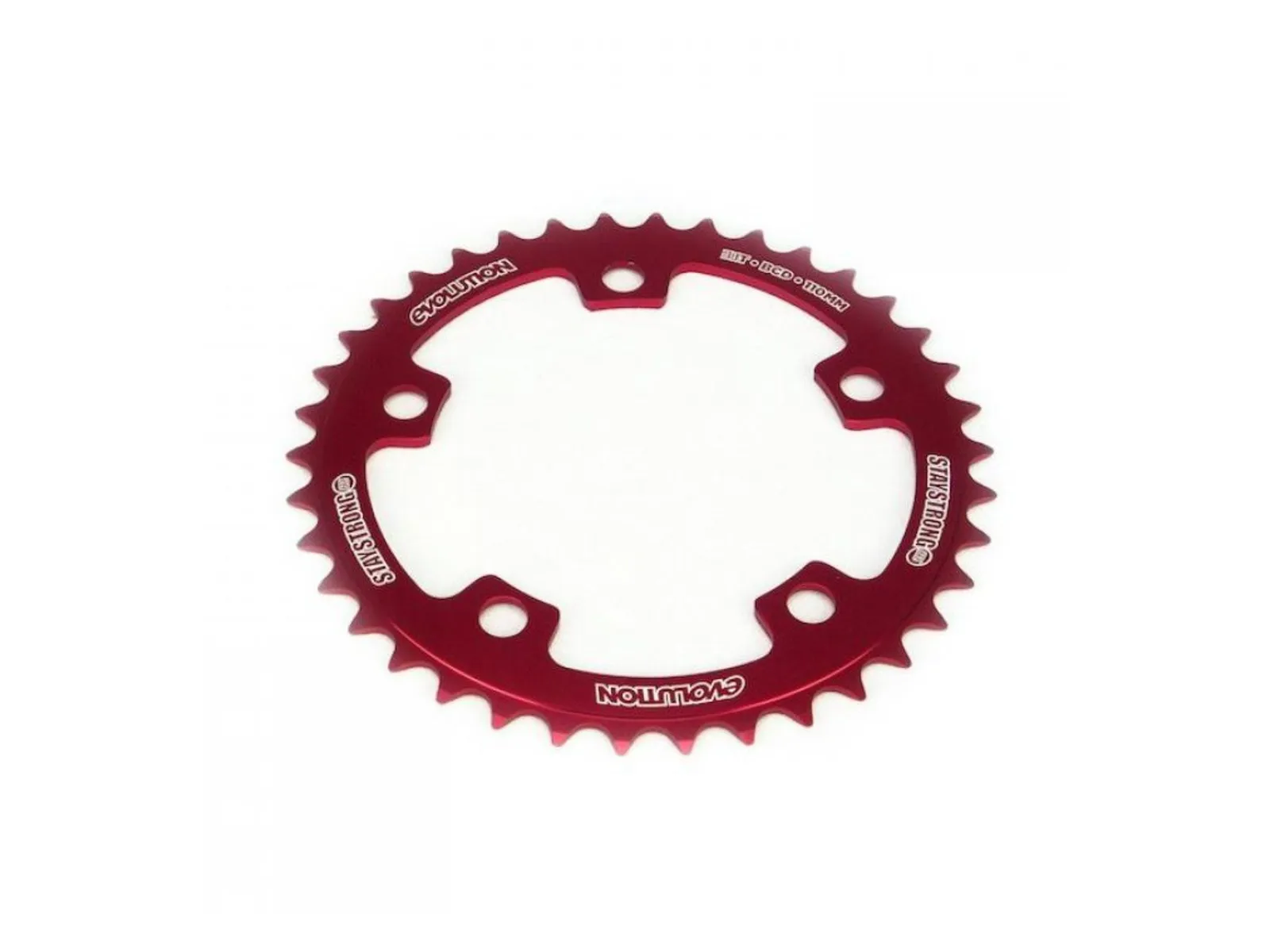

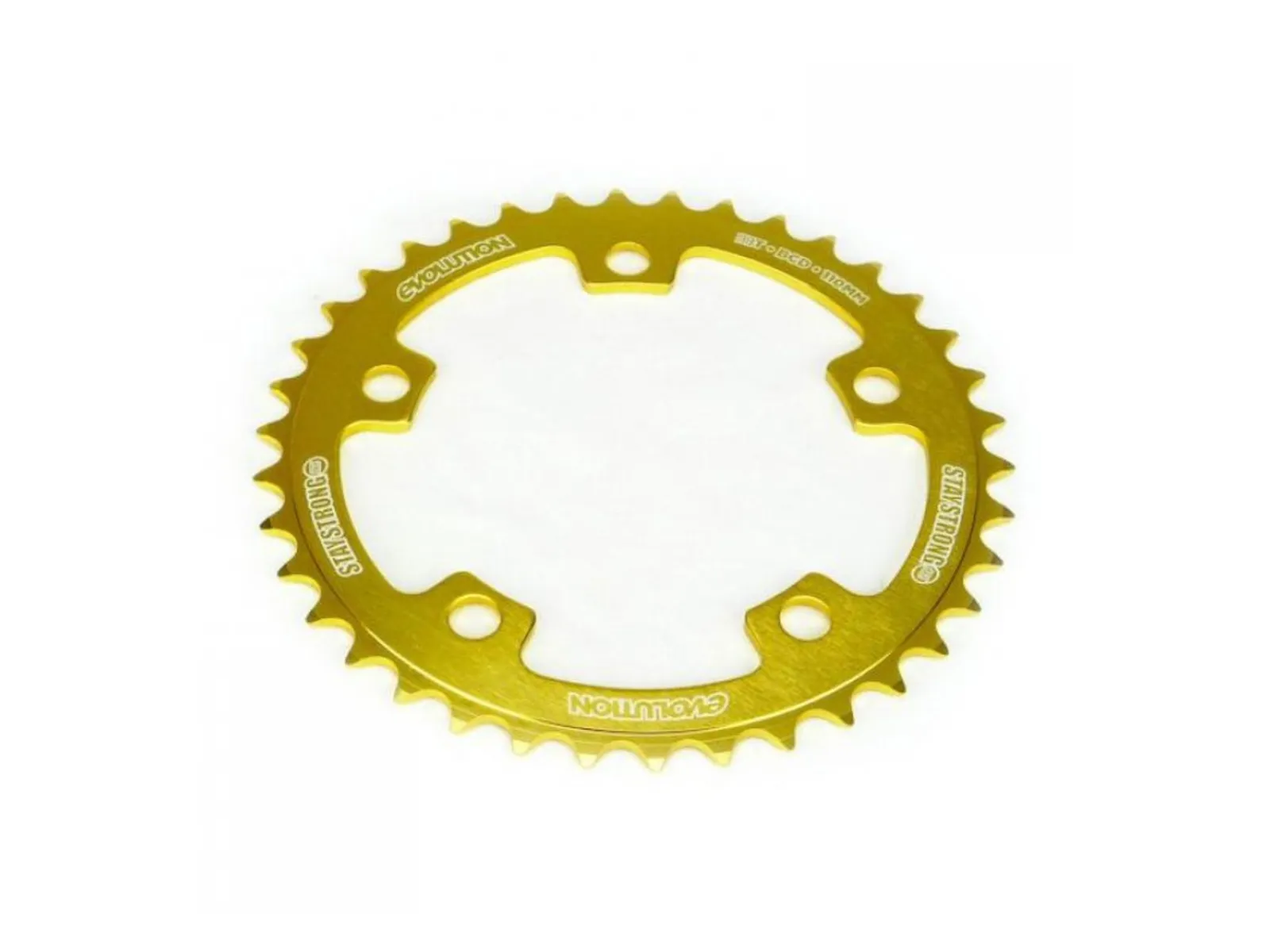

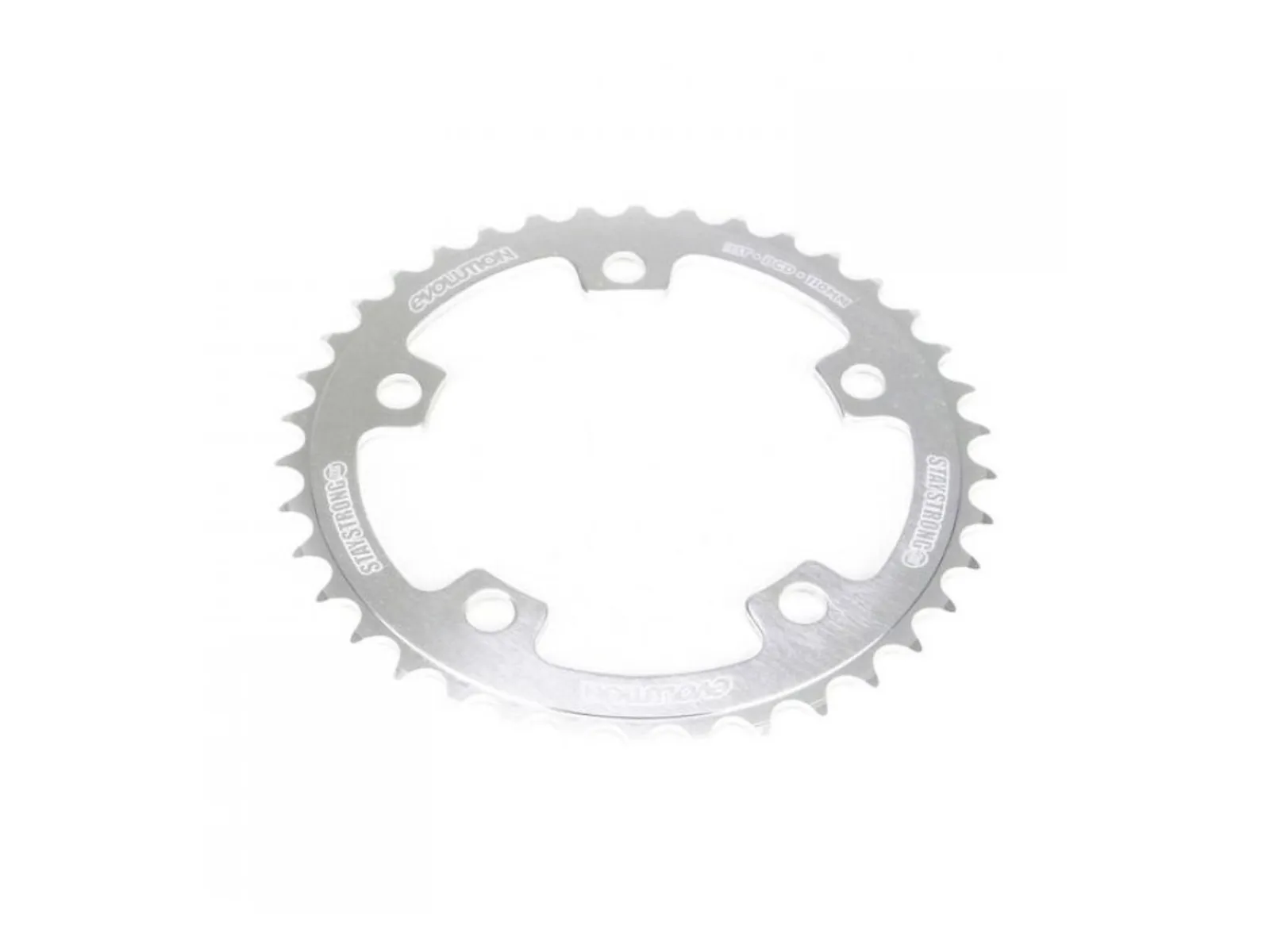

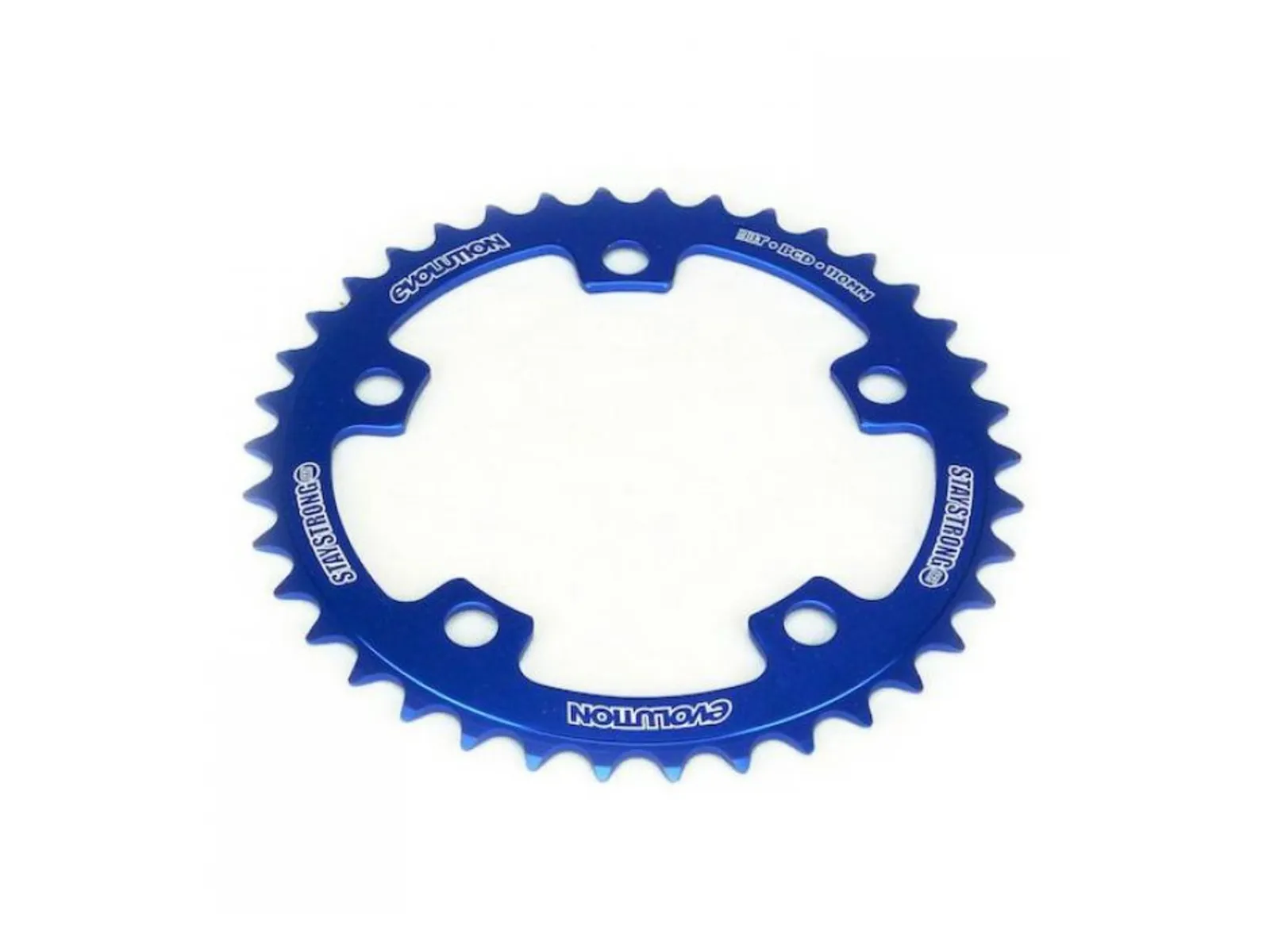

The Stay Strong "5 Pts" BMX Race Sprocket is a CNC-machined aluminium sprocket with a 5-bolt mount (130 BCD) that fits 19mm, 22mm and 24mm crank axles thanks to its integrated CrMo Spline Drive insert, making it compatible with both Spline Drive and standard setups. The offset milling ensures reliable chain retention, while compatibility with Microdrive and regular chainring bolts gives you full flexibility when building your setup. With the Stay Strong "5 Pts" BMX Race Sprocket, you get a high-quality, versatile sprocket built for BMX racing.
Facts: Stay Strong "5 Pts" BMX Race Sprocket
- Type: Chainring bolt mount / Spline Drive
- Material: 4130 CrMo, heat-treated, 7075-T6 / 6061-T6 aluminium, CNC machined, with CrMo Spline Drive insert, with hole for chainring bolts
- Sizes: 39T, 40T, 41T or 42T
- Axle Diameter: Fits 19mm, 22mm and 24mm crank axles [with 48 splines], including adapter ring
- Thickness: 8mm, 7mm, 6mm, 5mm
- Teeth: 1/8", 3/32", offset milling for improved chain retention
- Extras: Spline Drive sprocket, hole for Microdrive chainring bolt (smaller than 23T) / regular chainring bolt mount (23T and larger), 5-bolt design (130 BCD)
