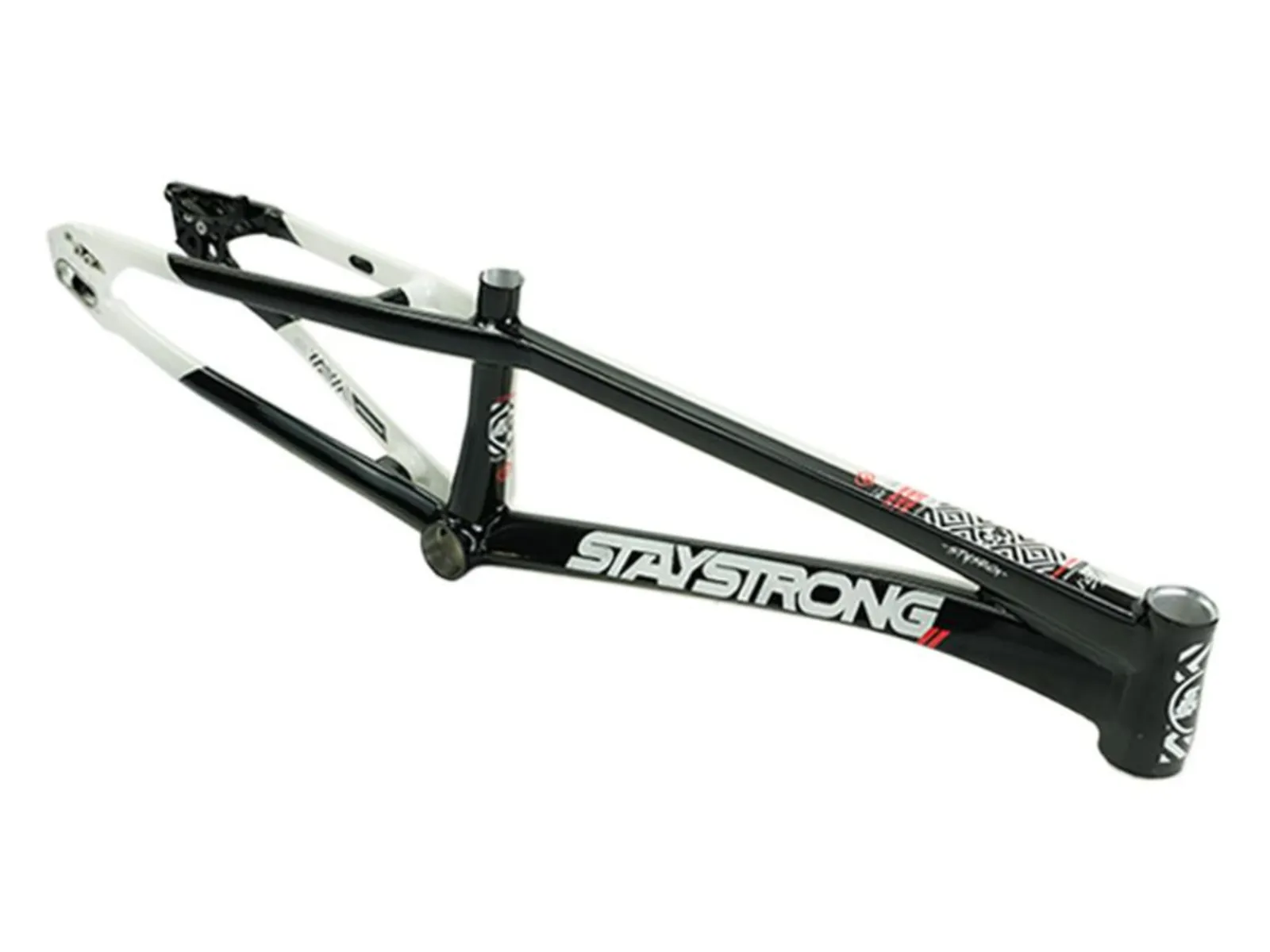

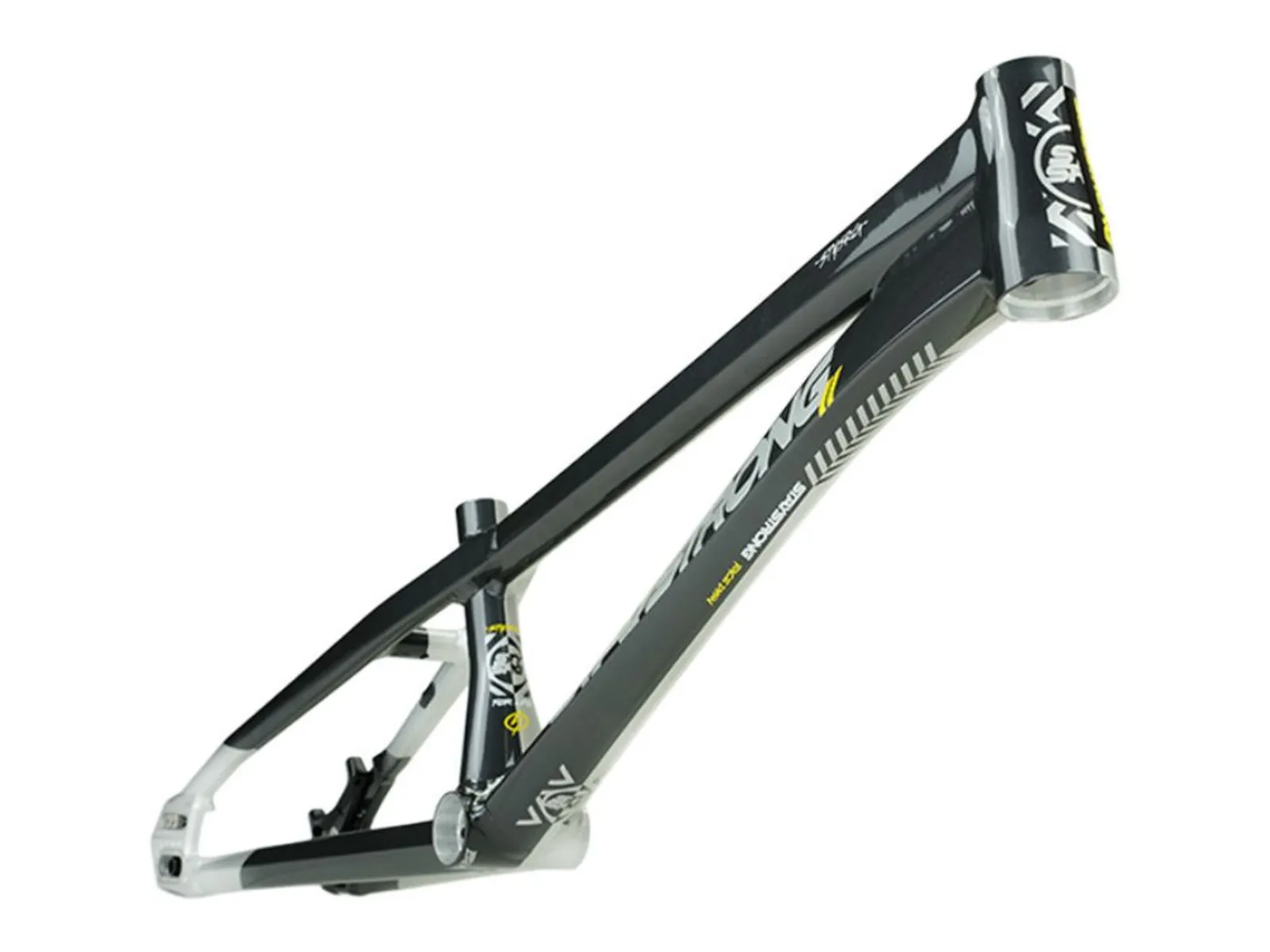

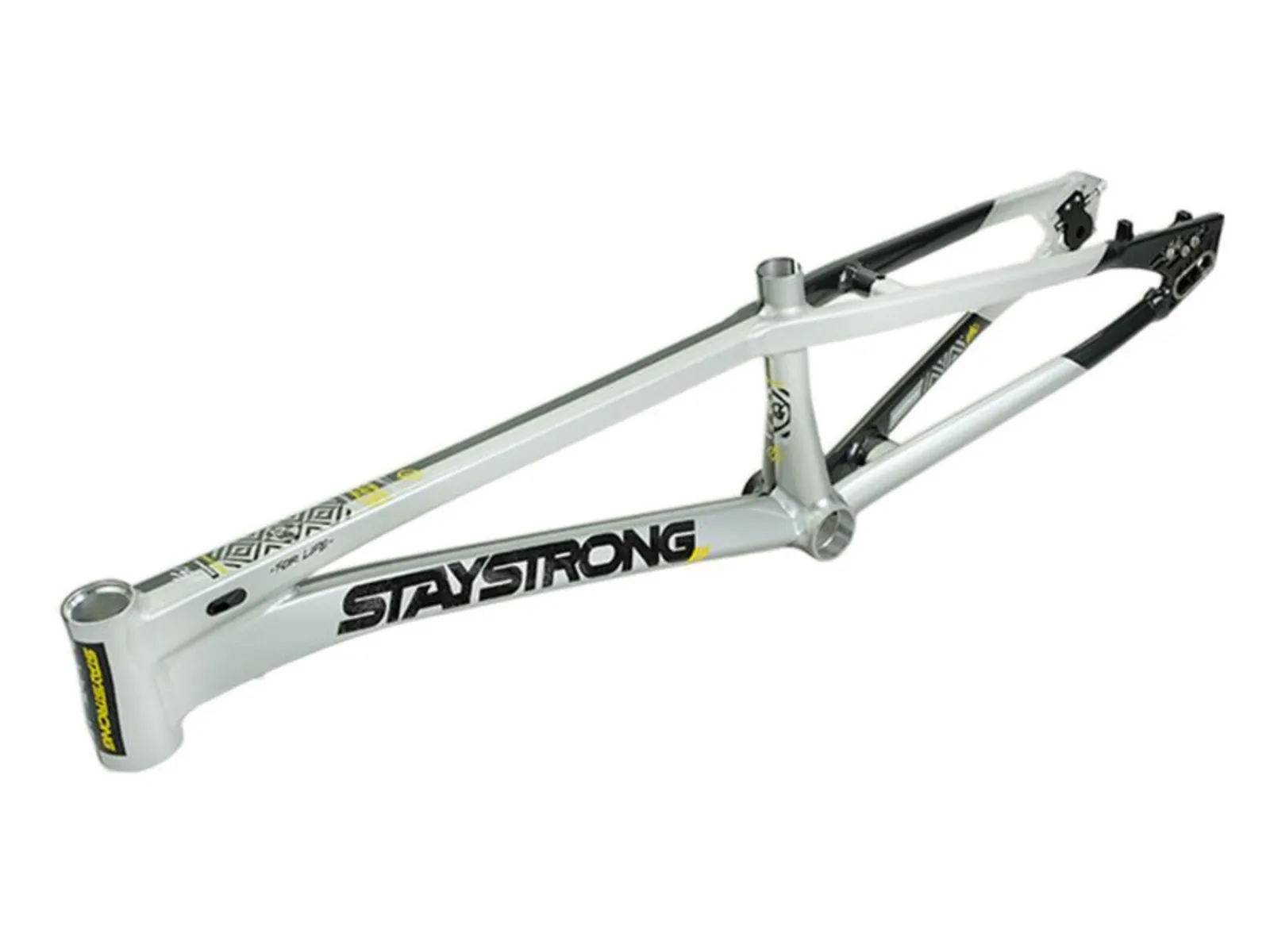

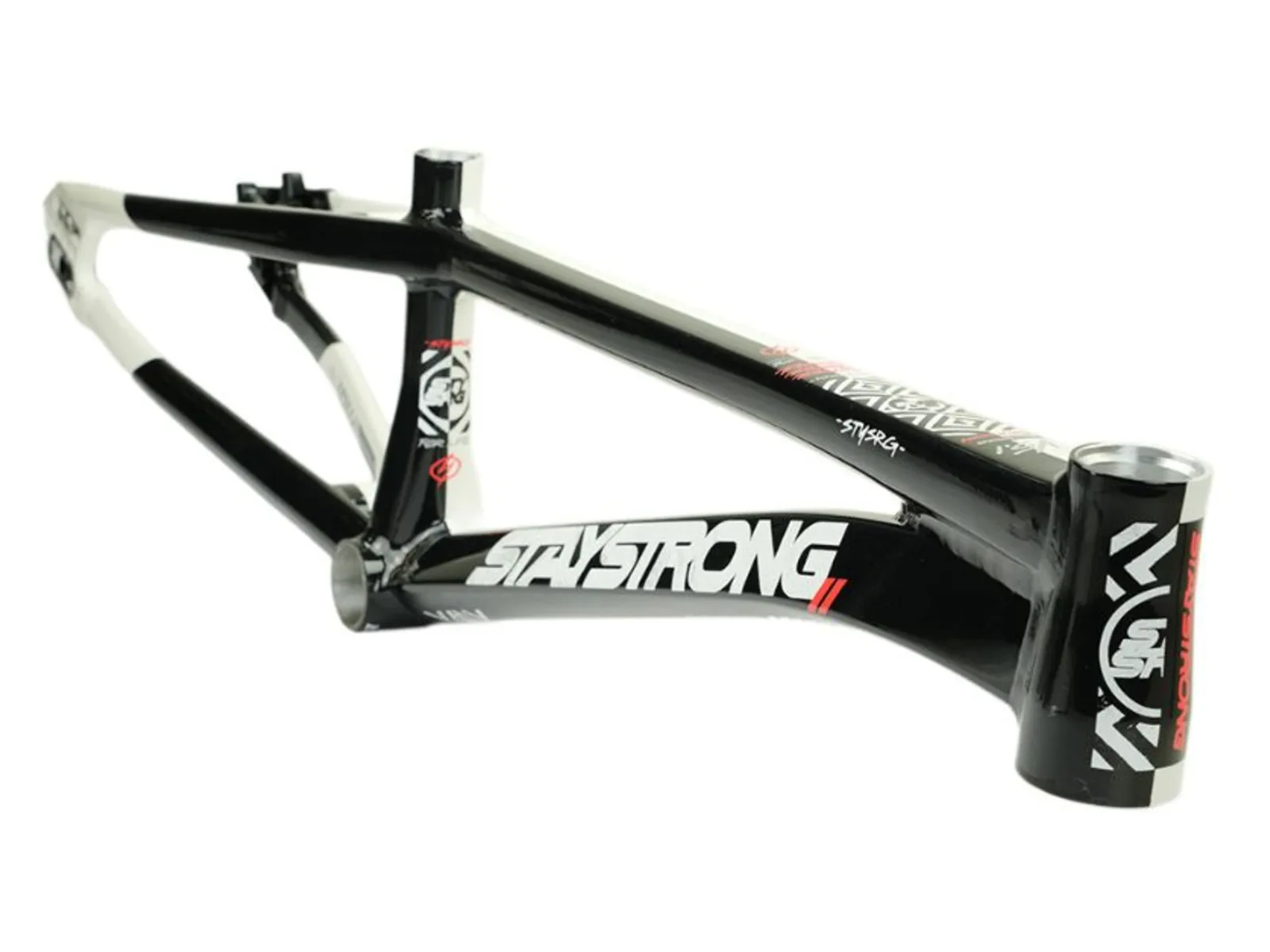

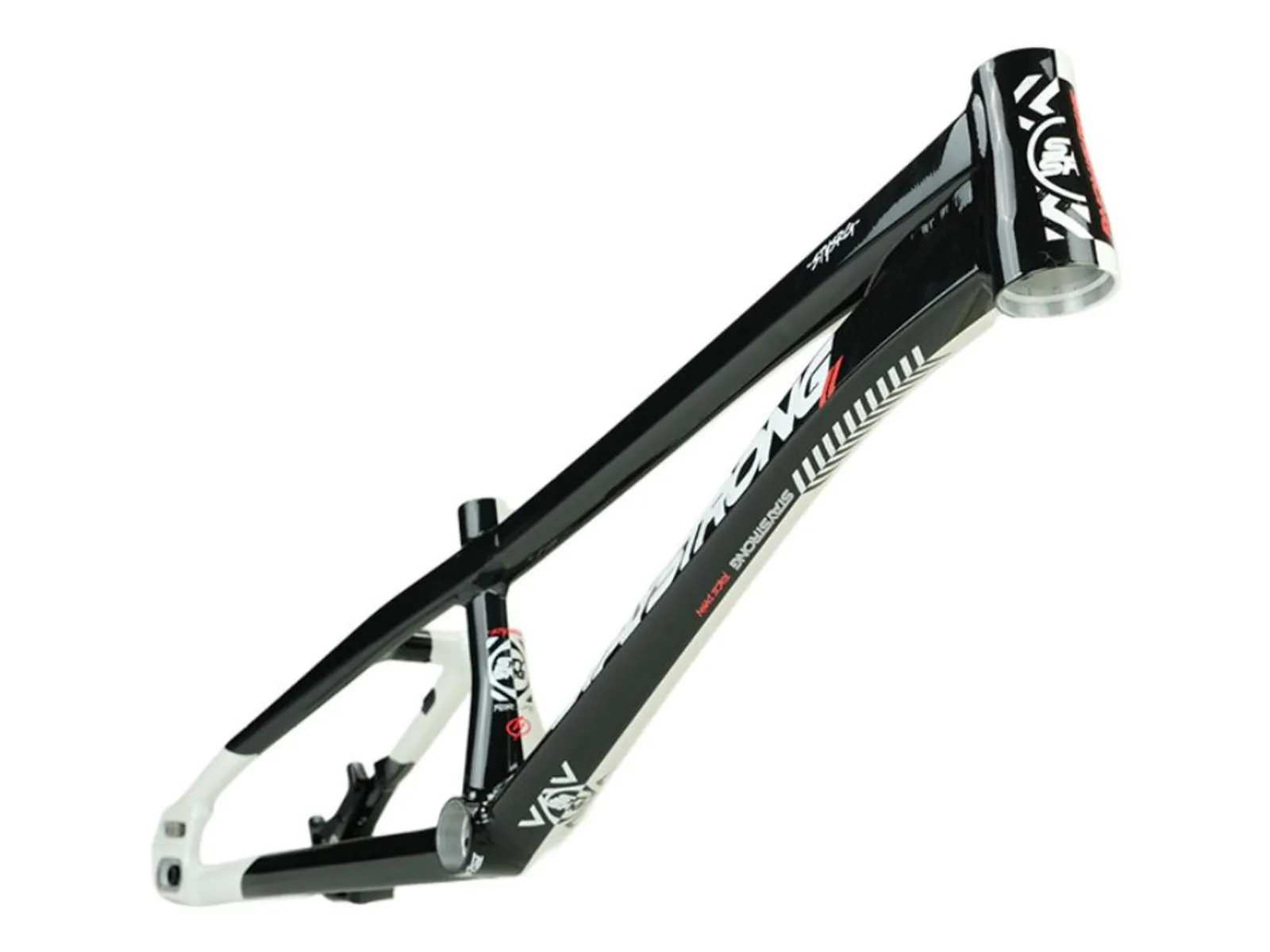

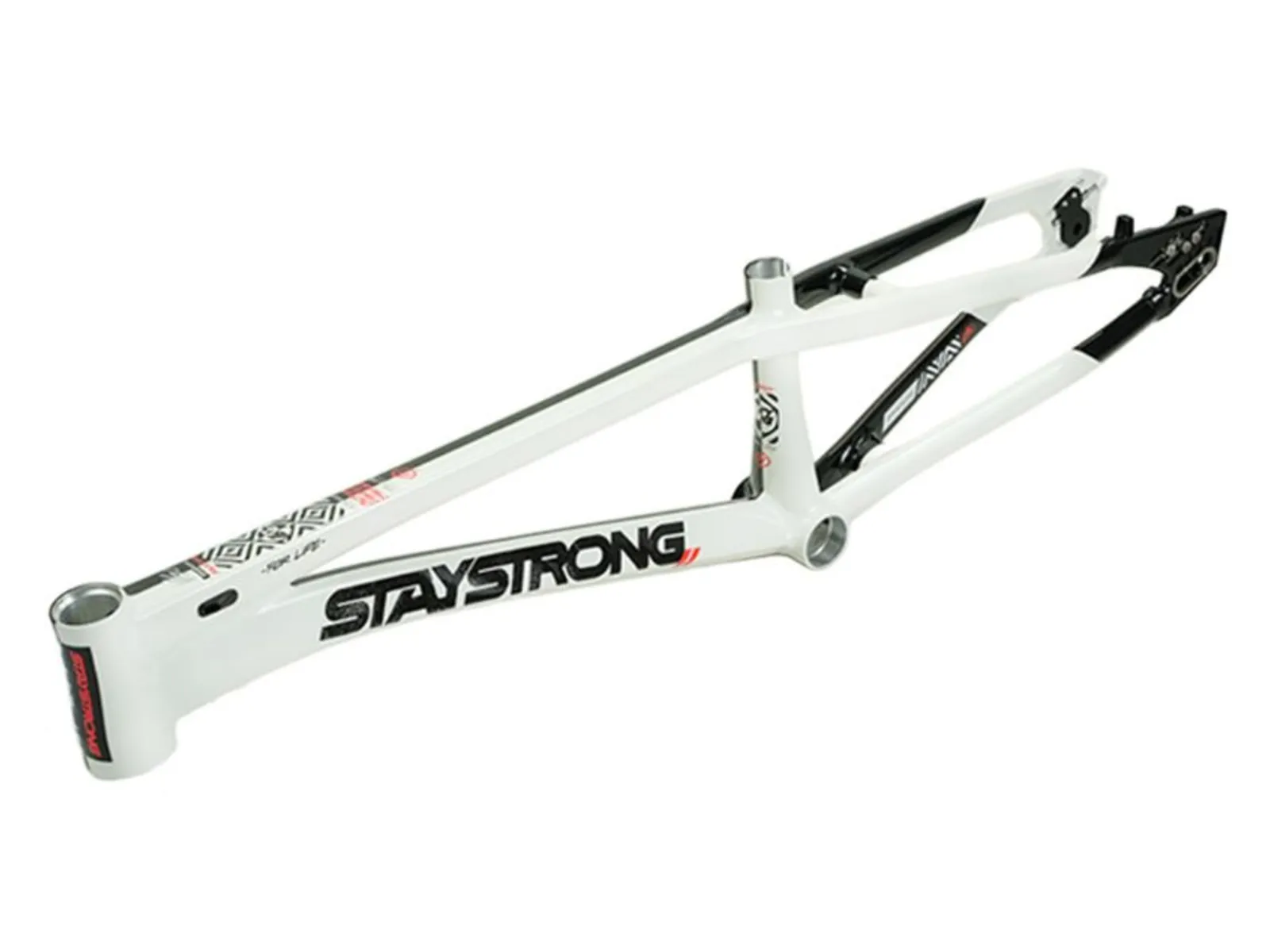

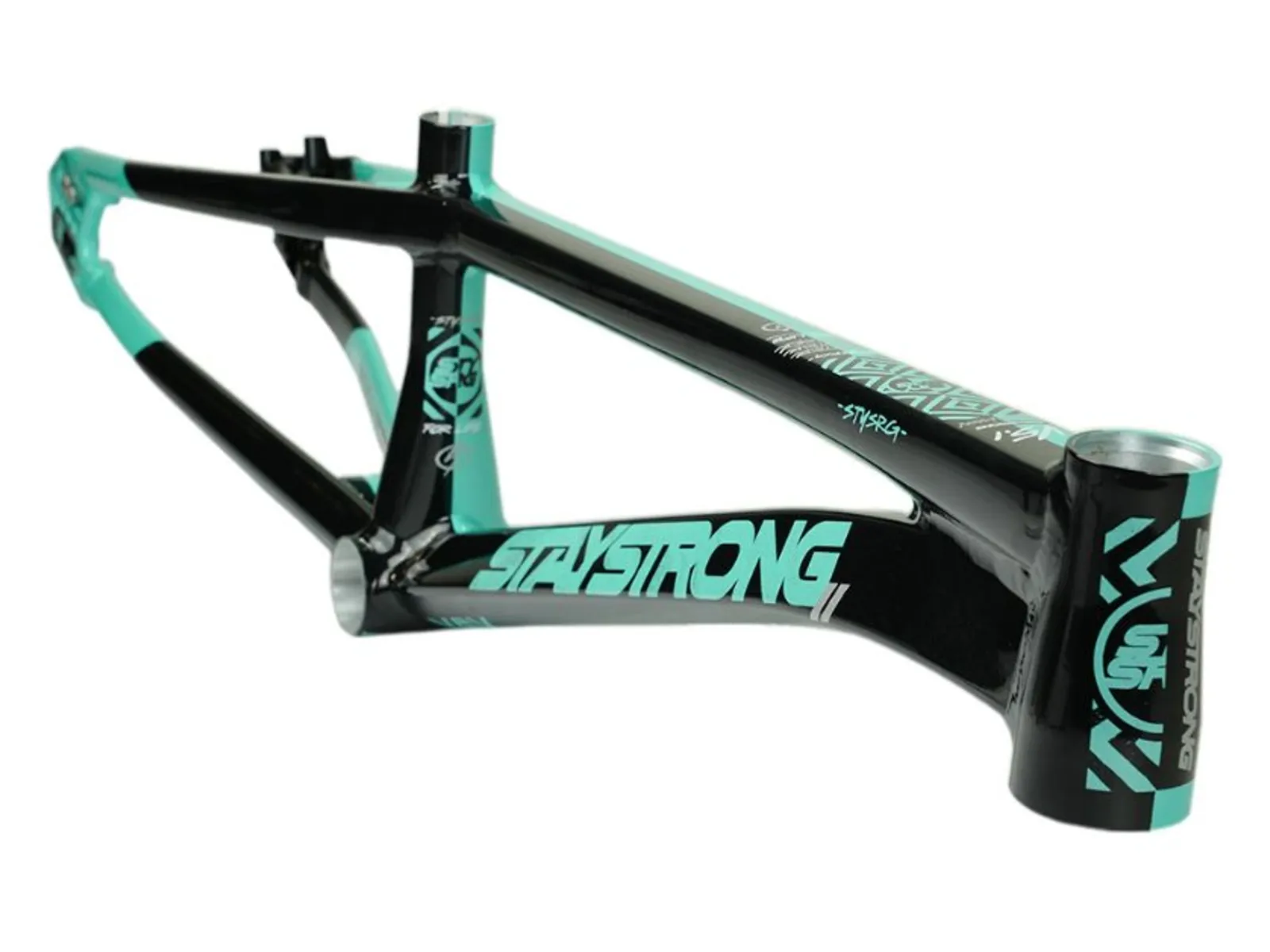

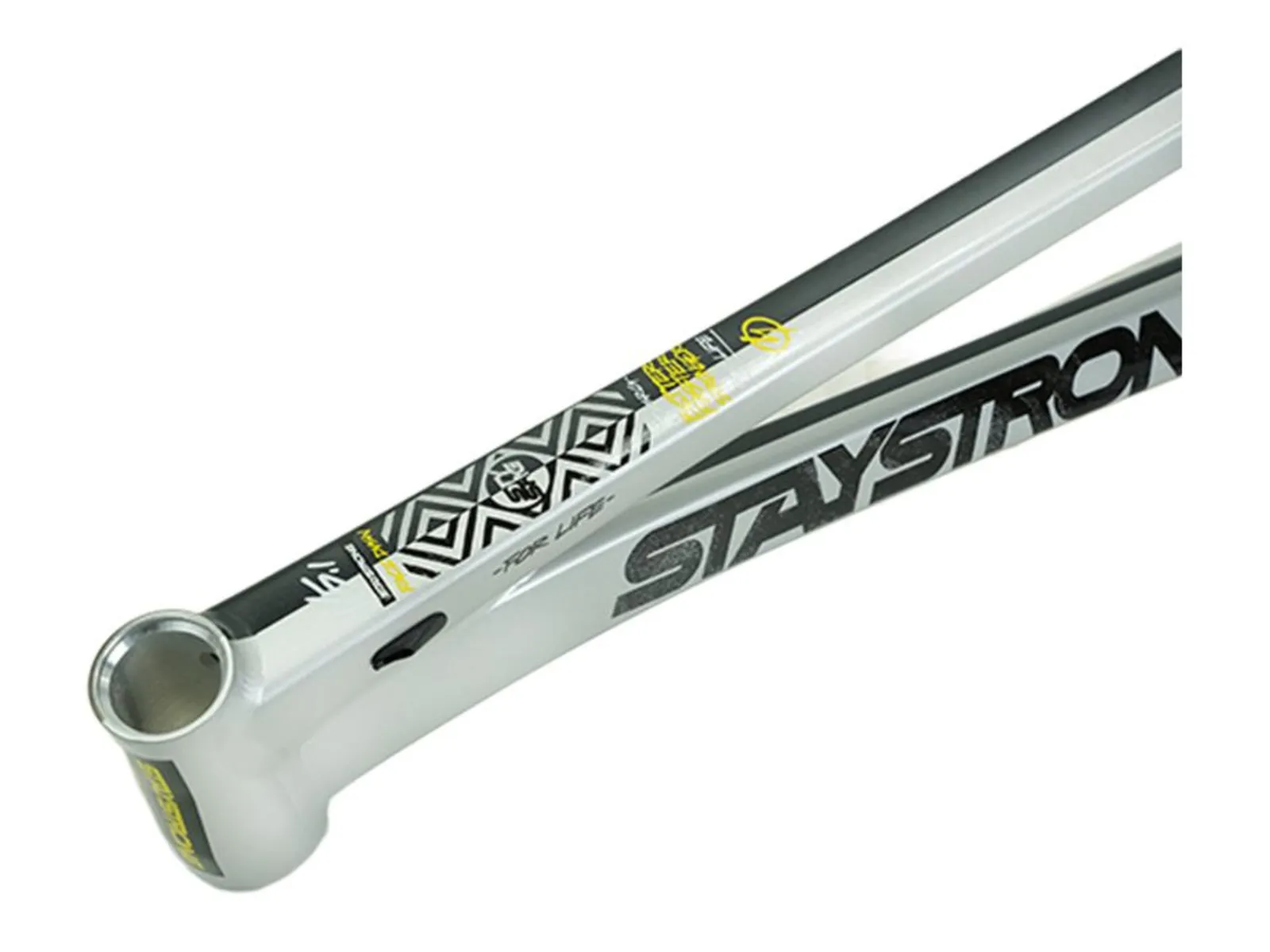

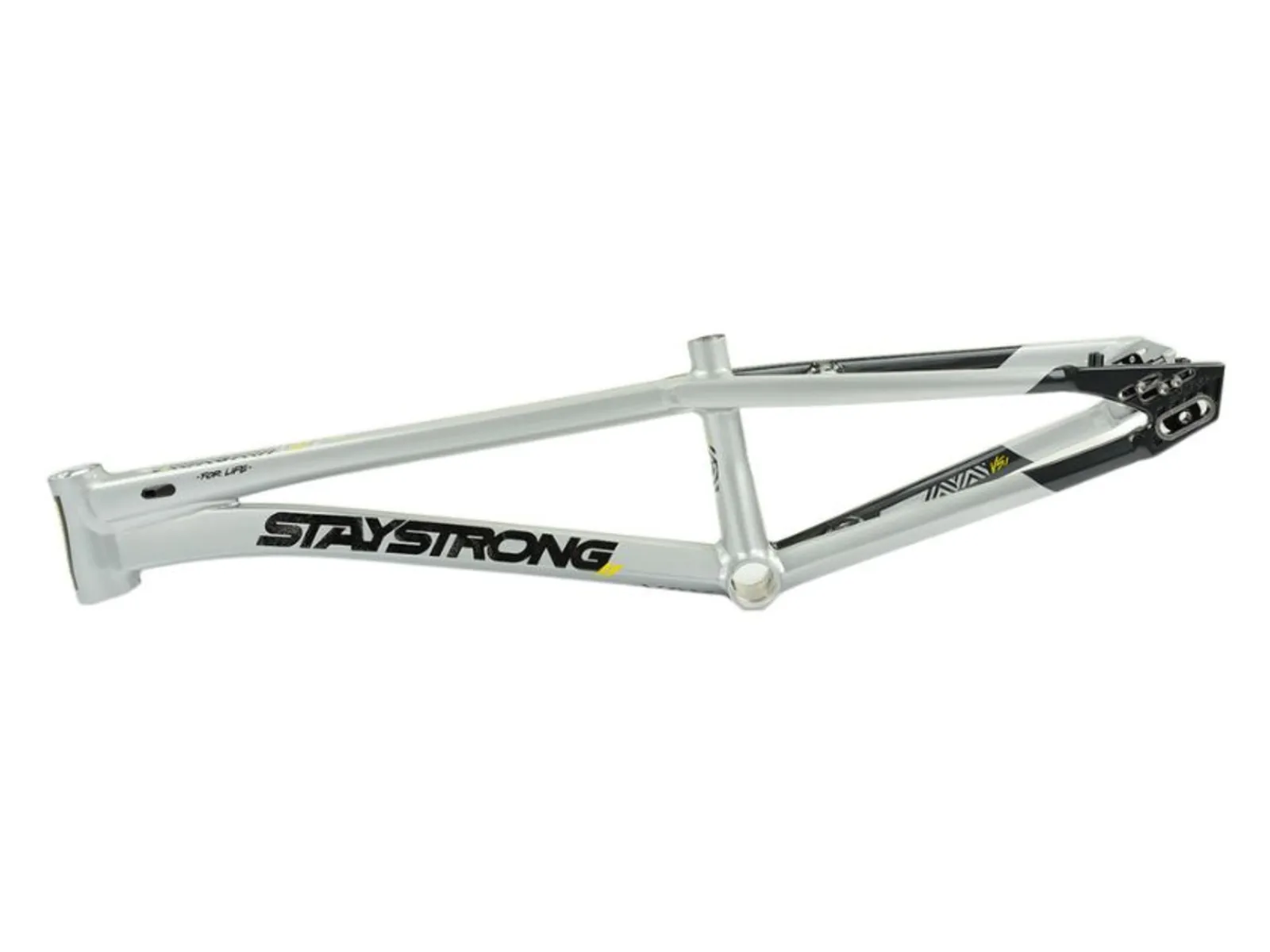

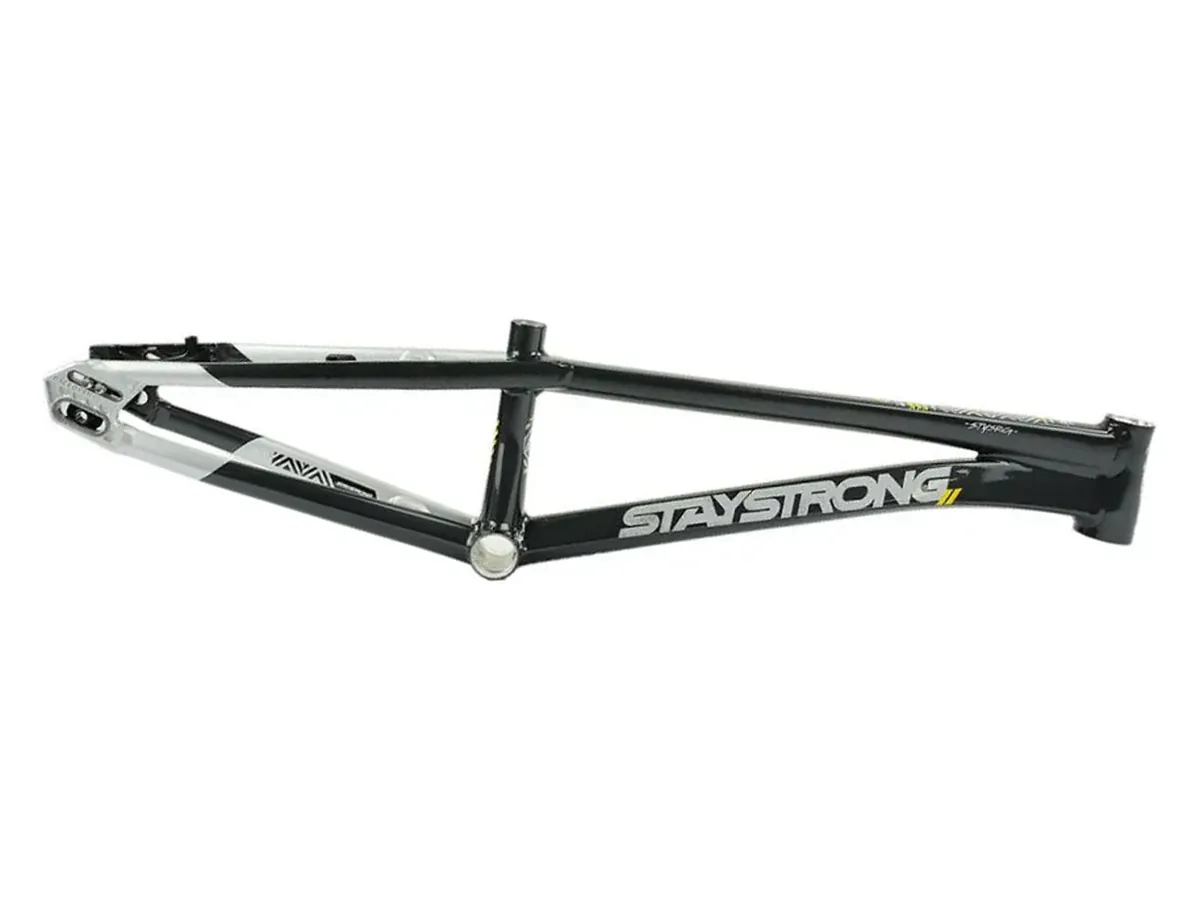

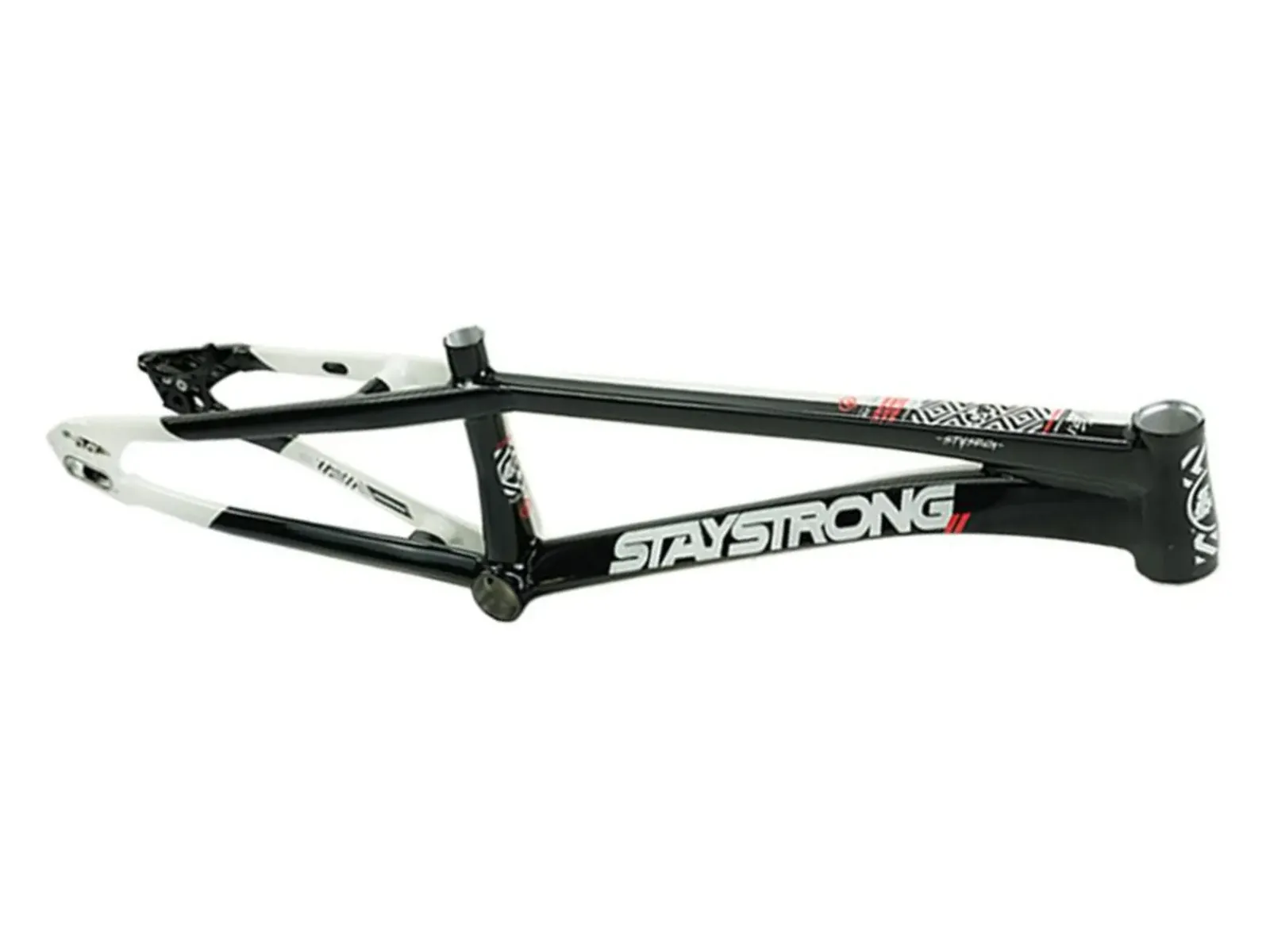

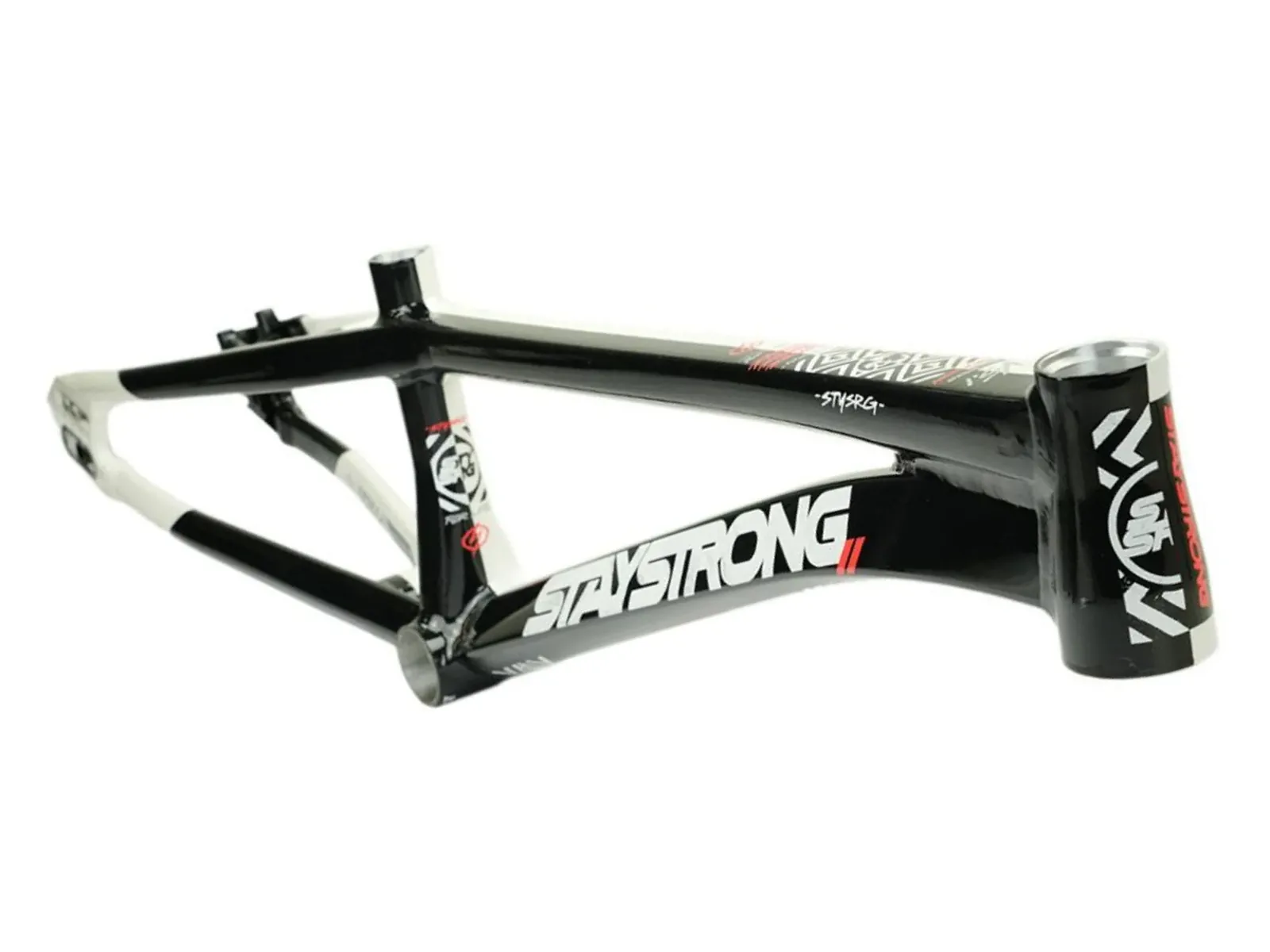

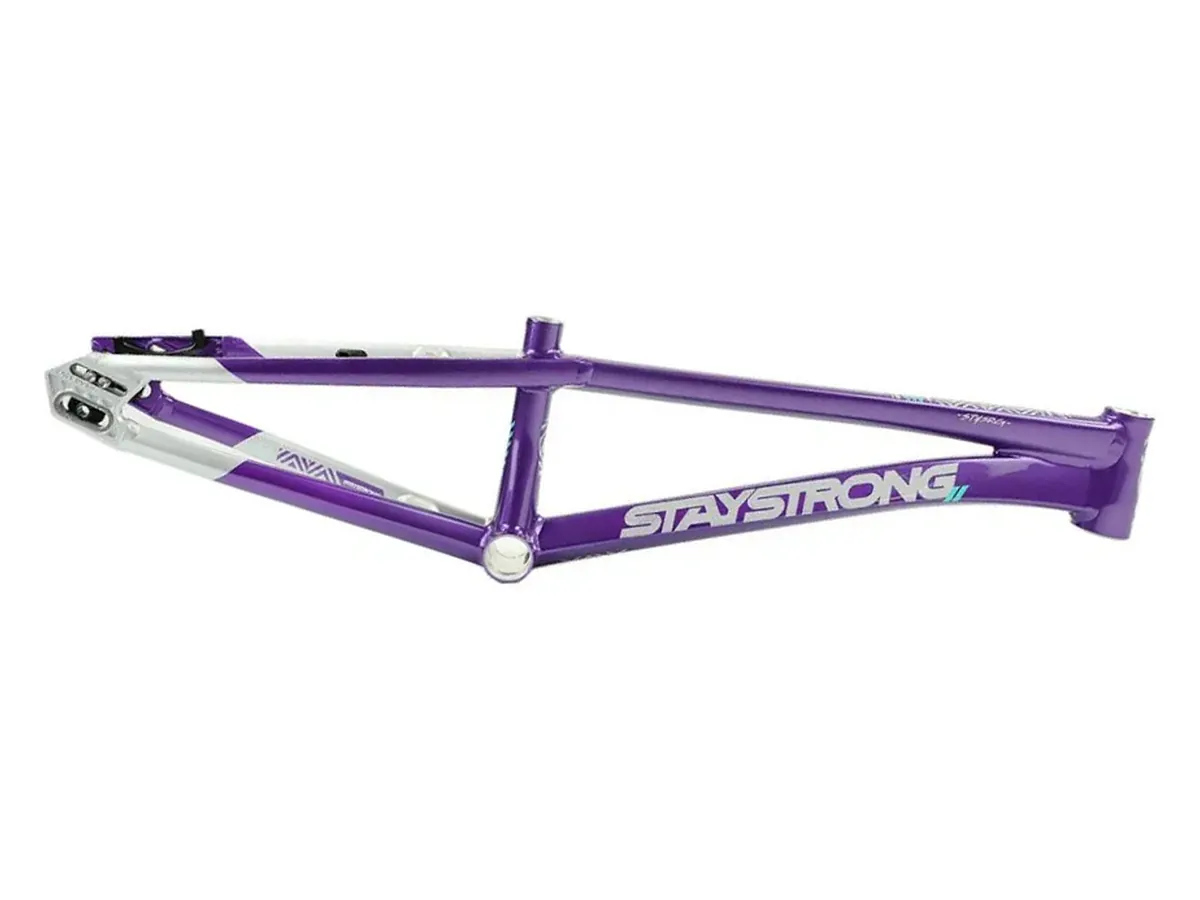

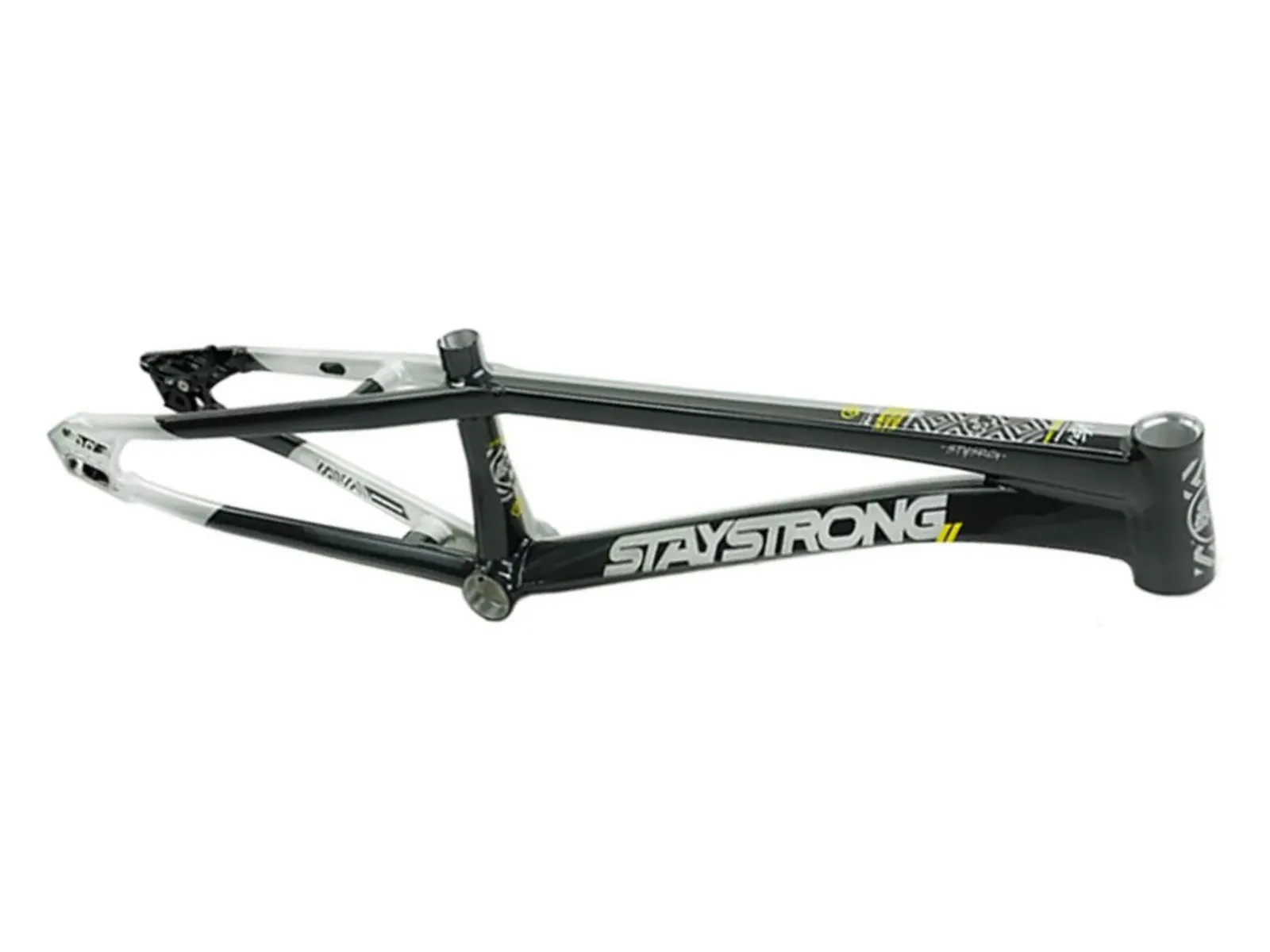

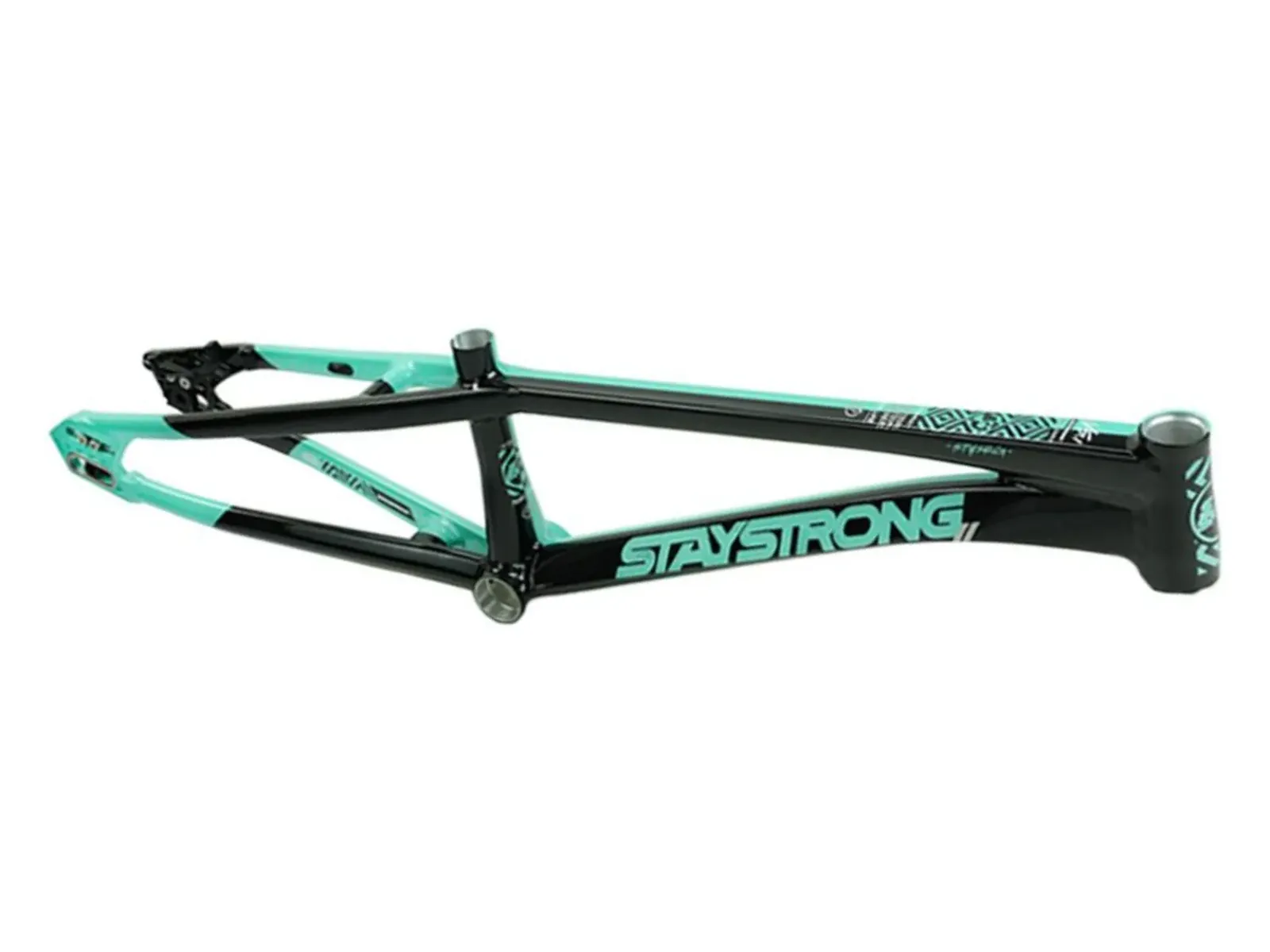

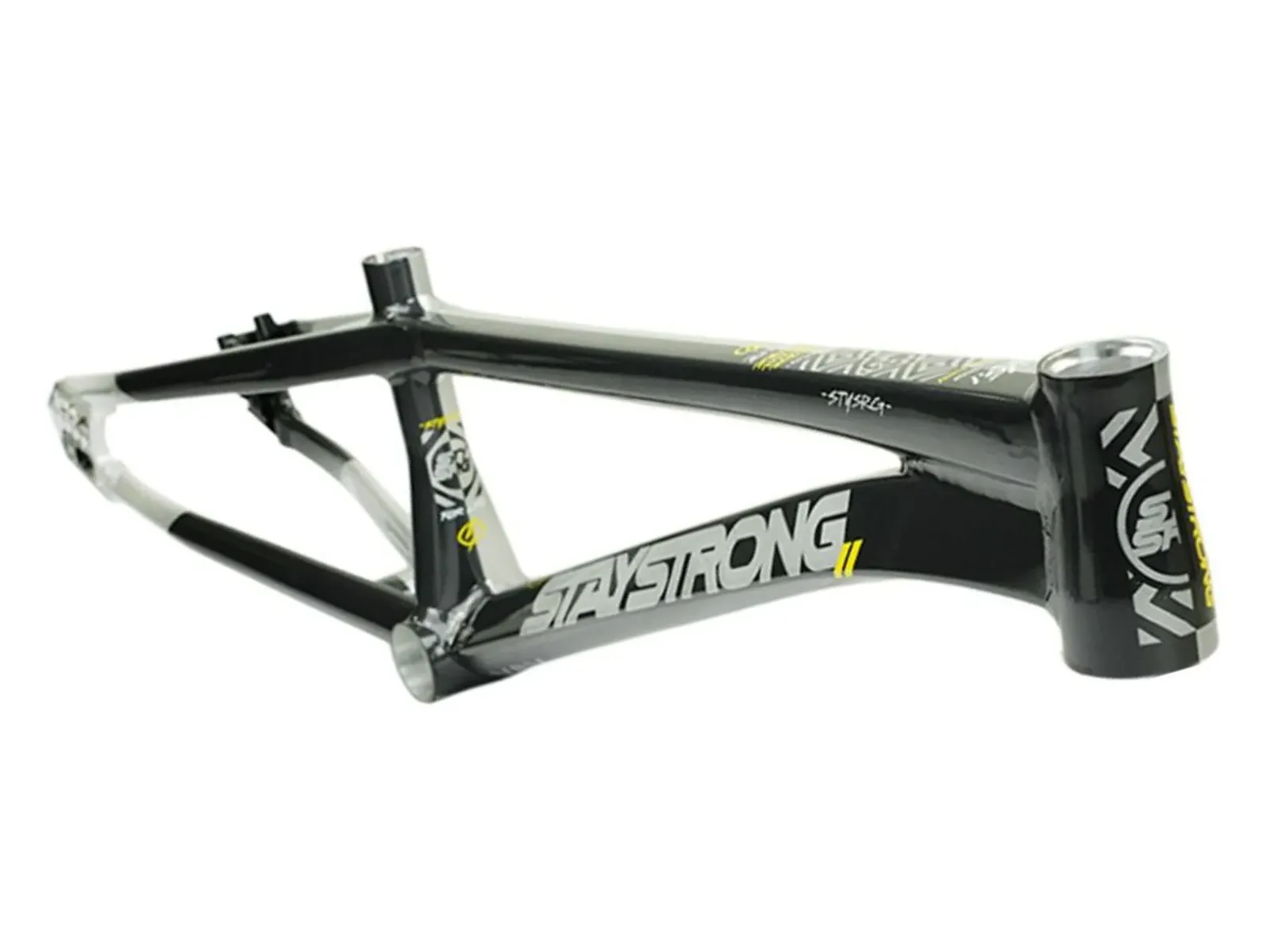

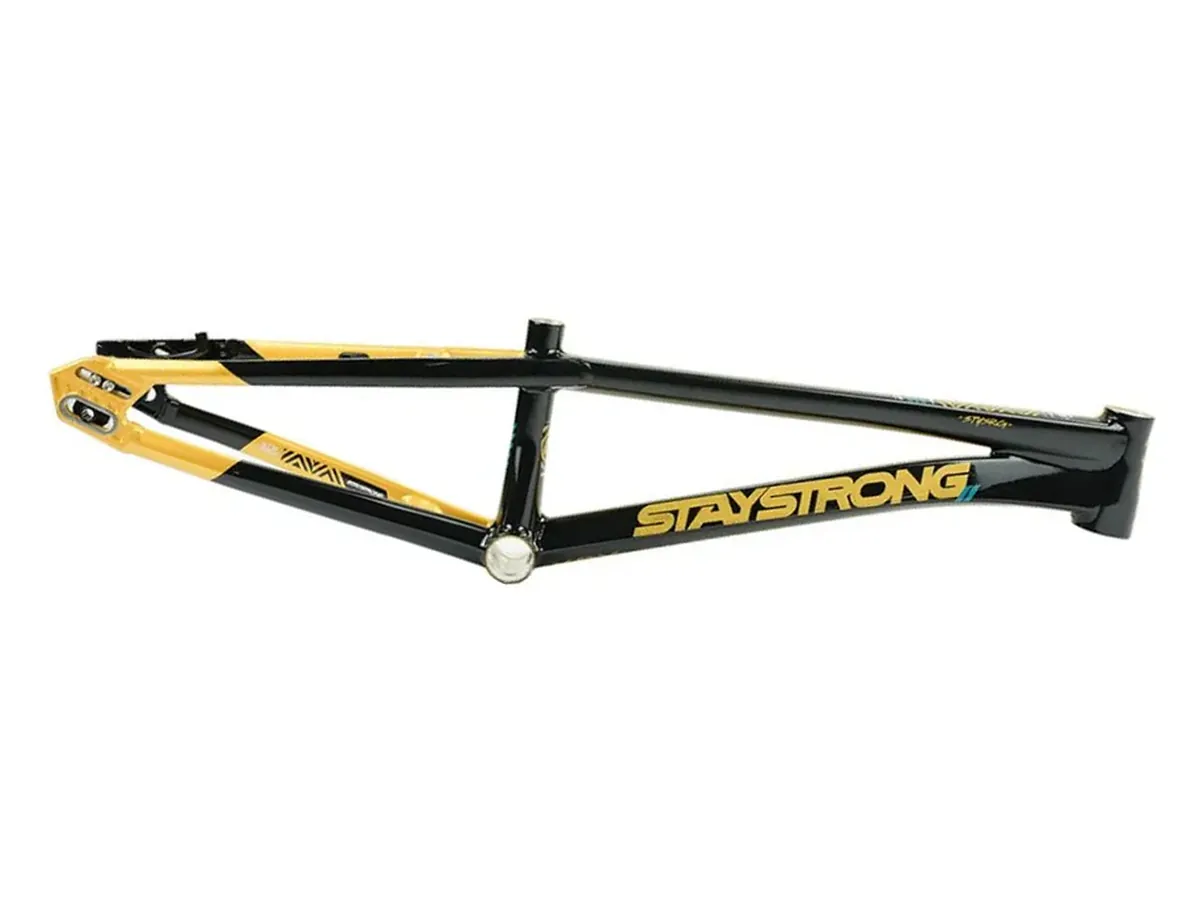

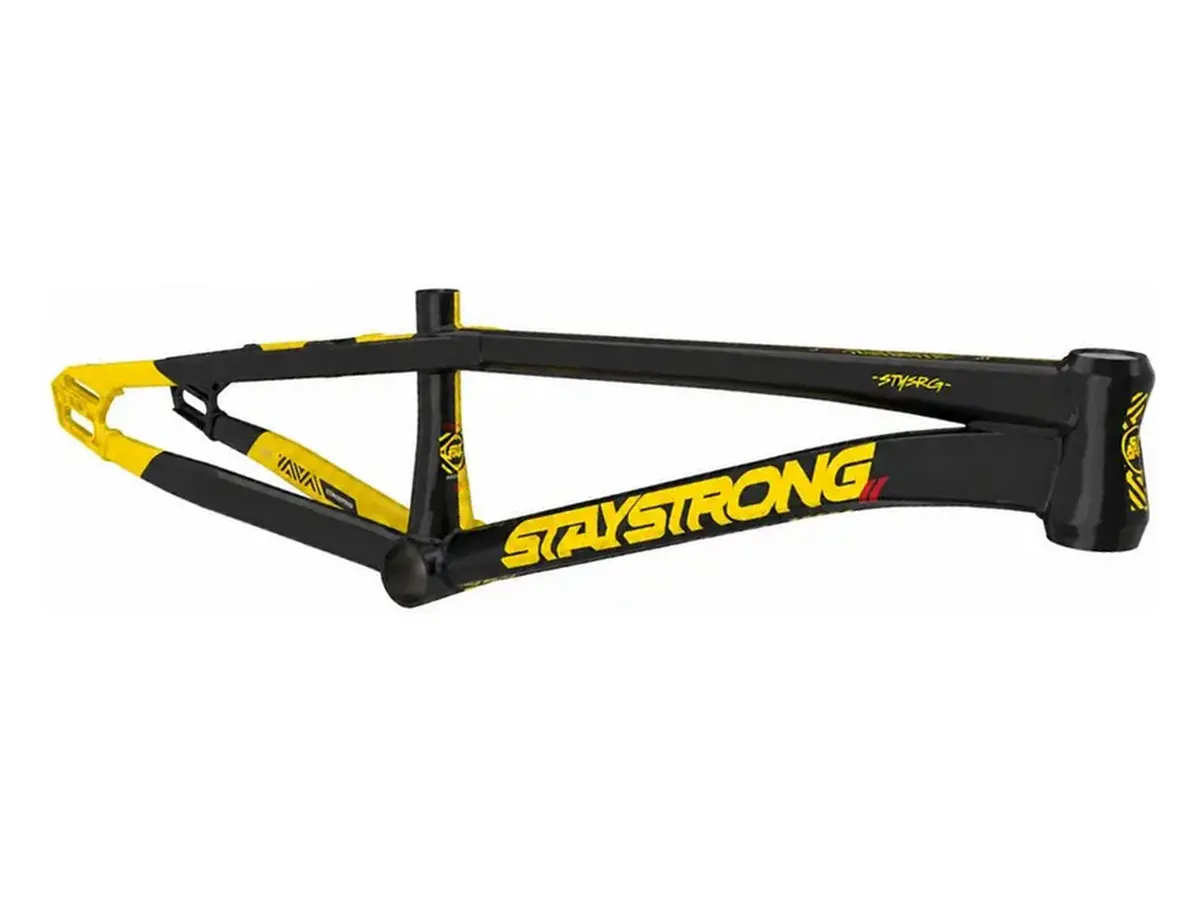

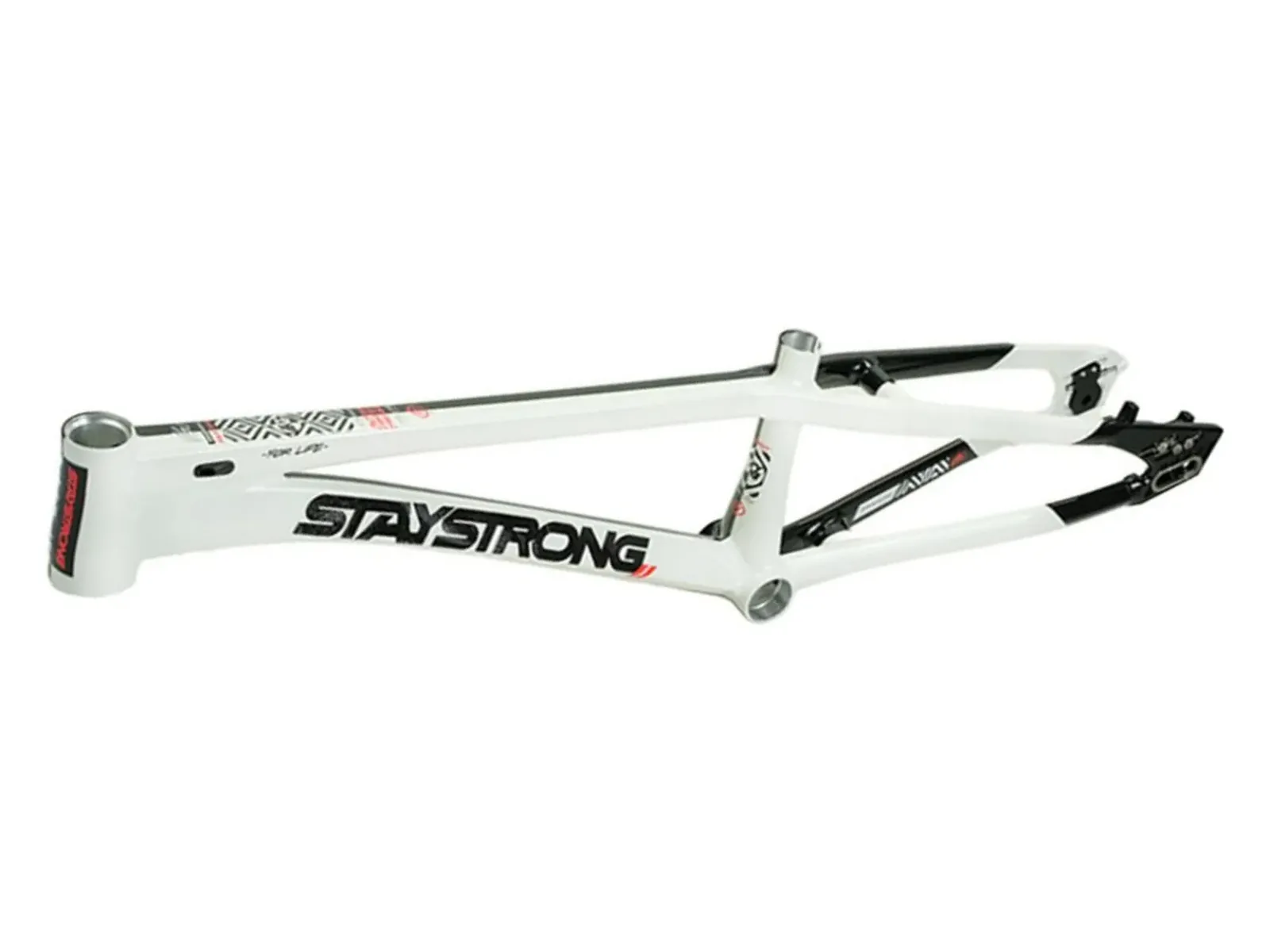

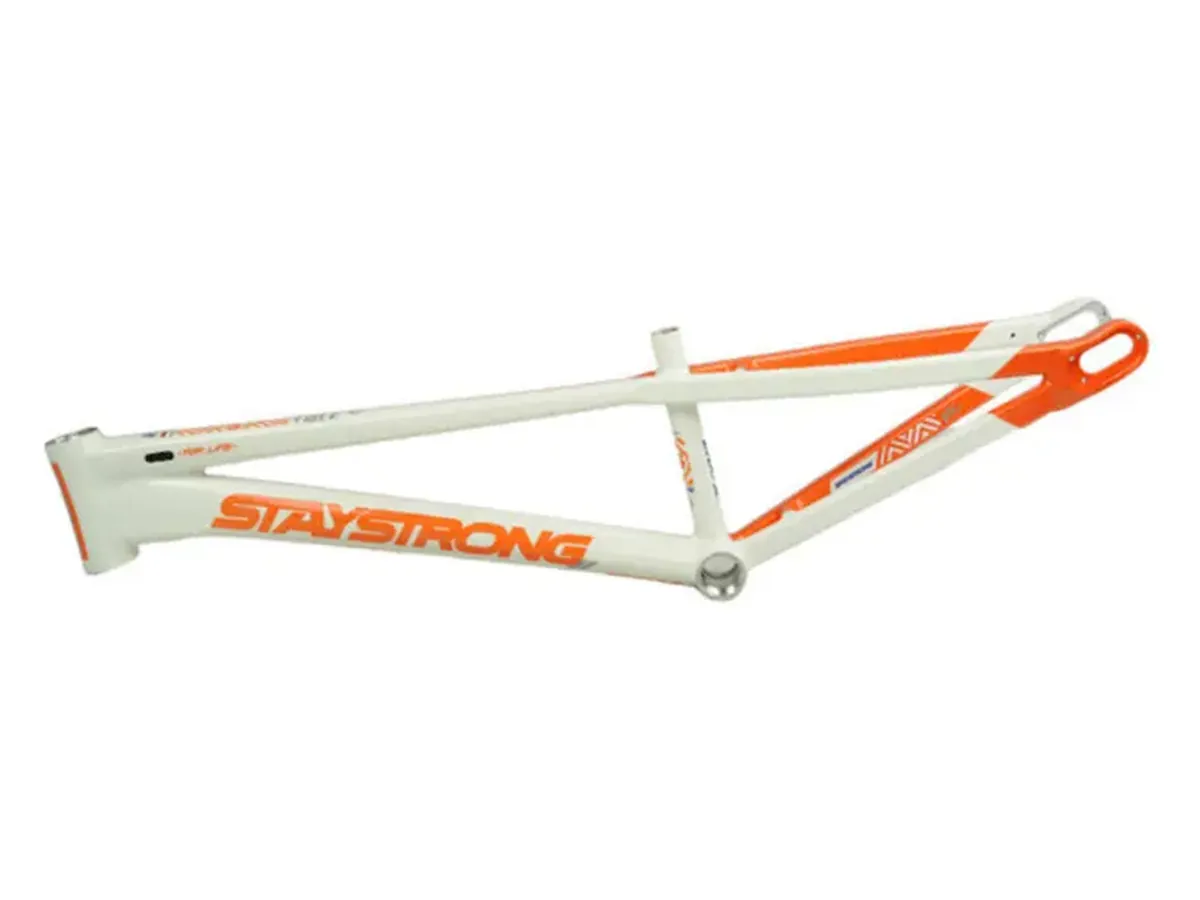

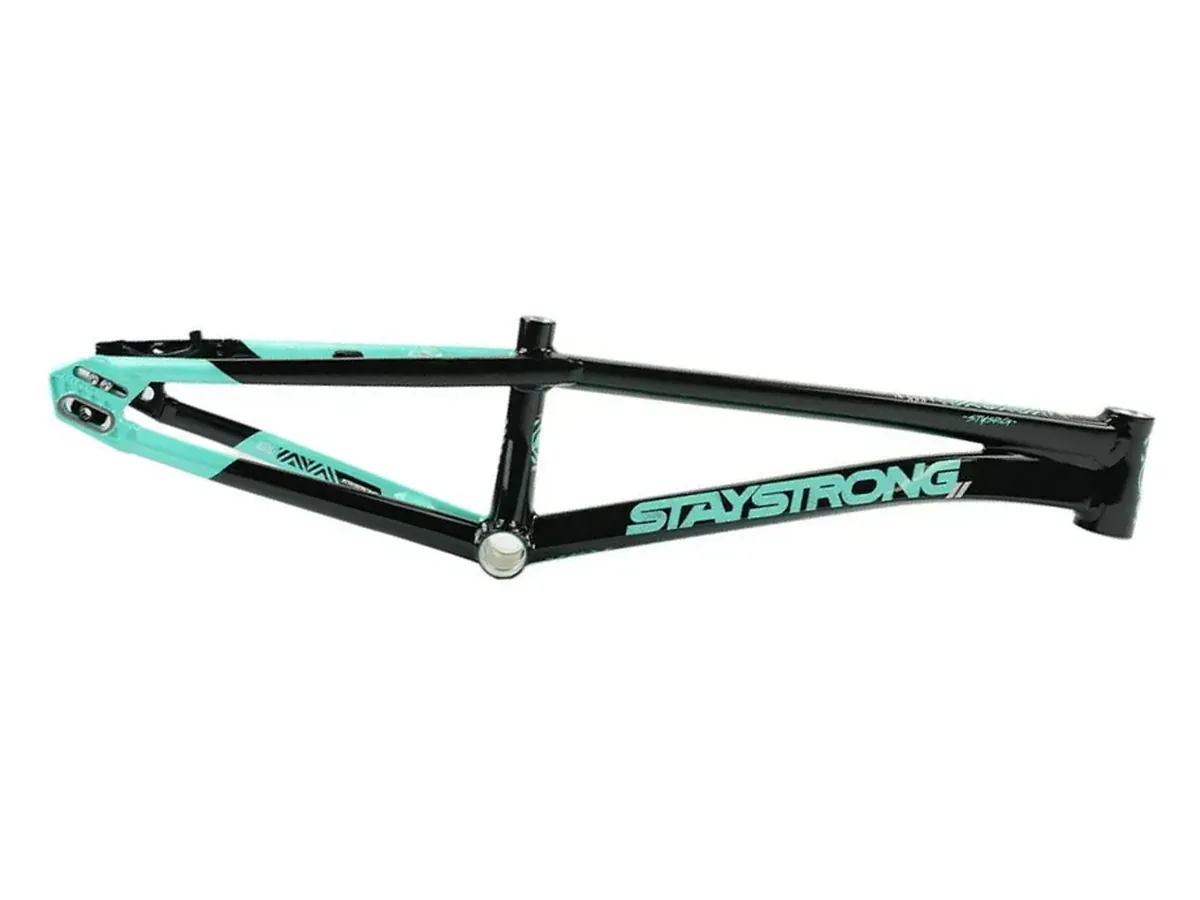

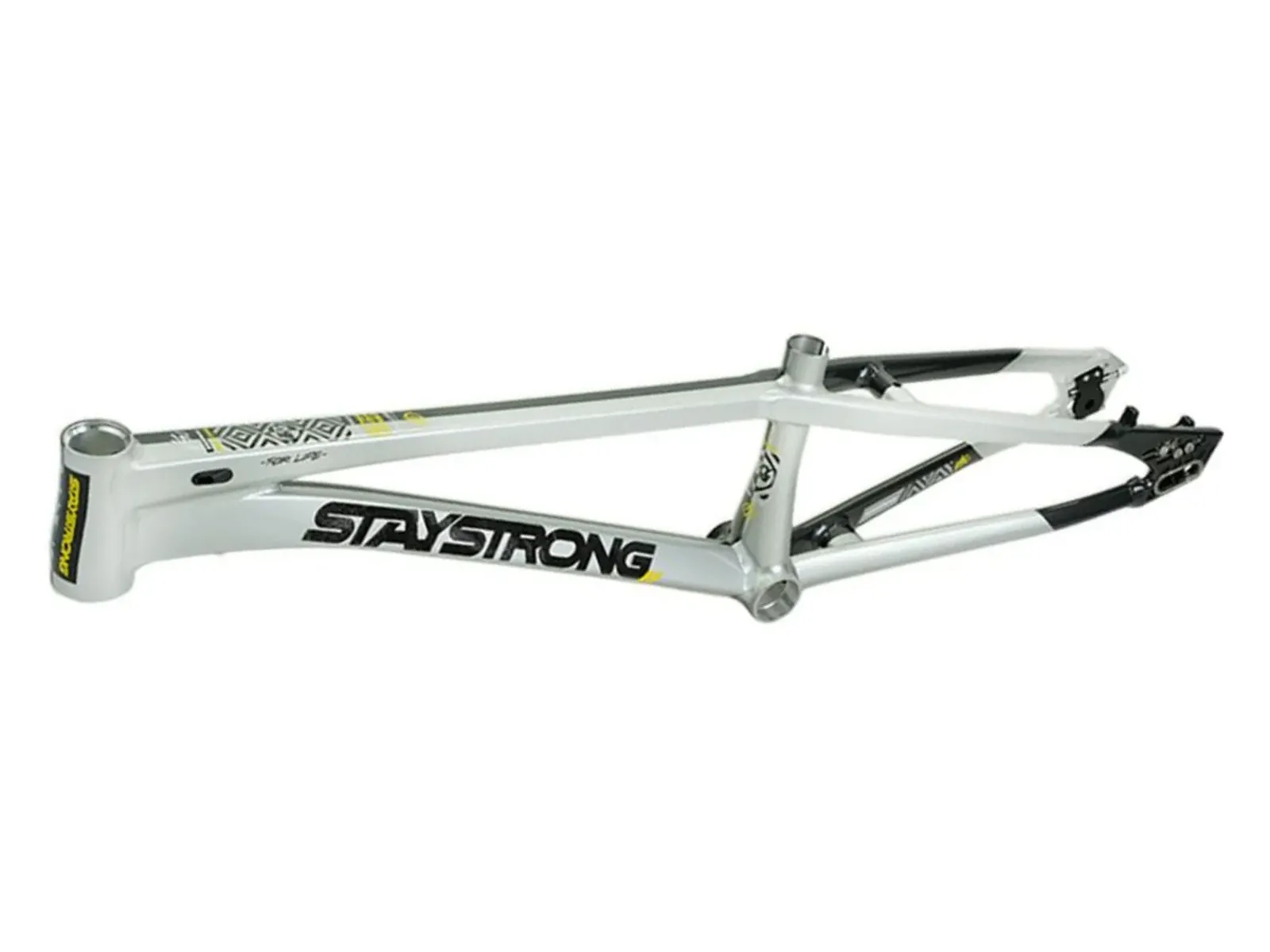

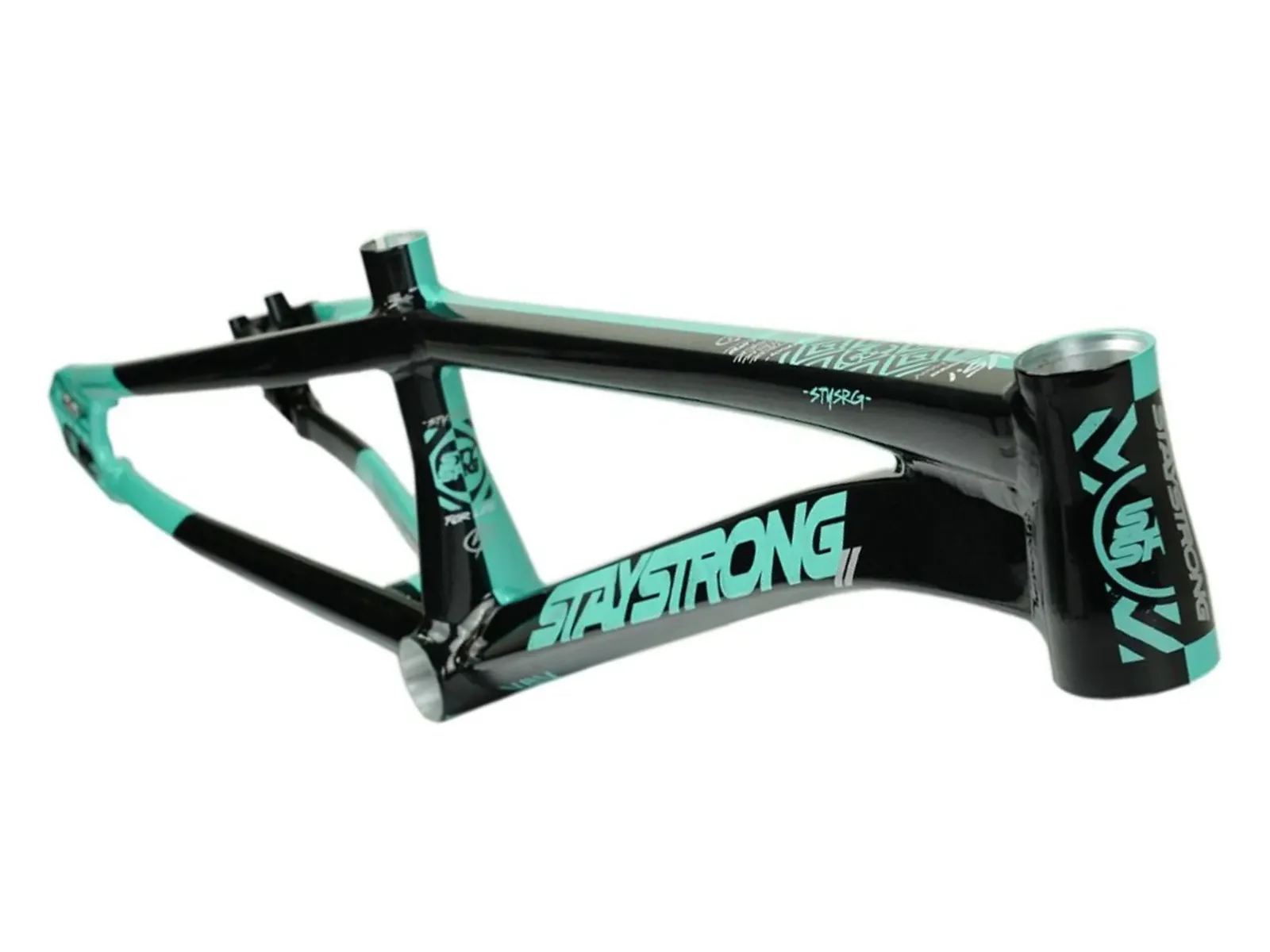

Stay Strong "For Life V5.1 Cruiser" 2026 BMX Race Frame
-
Weight : 1.95kg / 4.3lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 31393

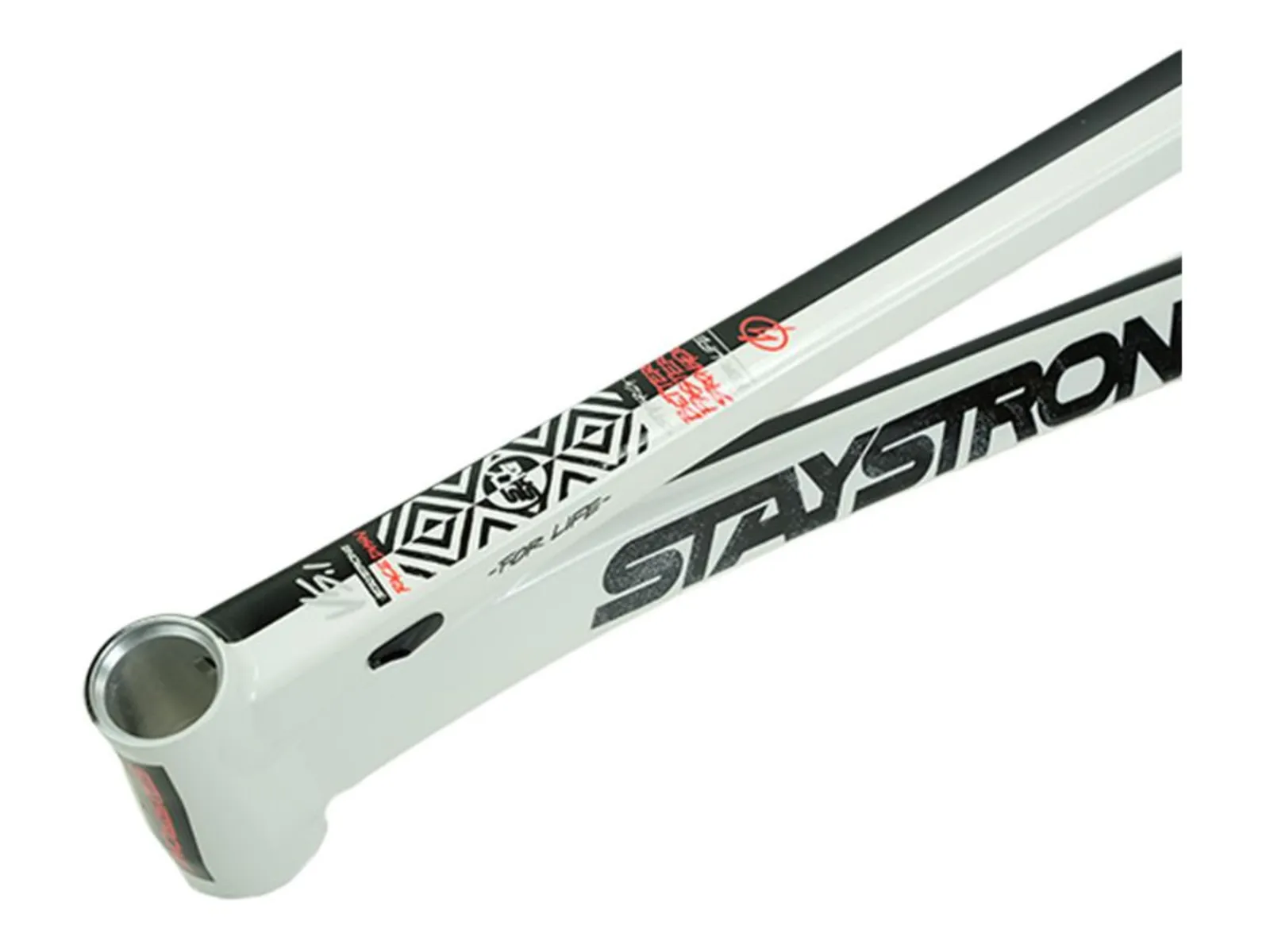

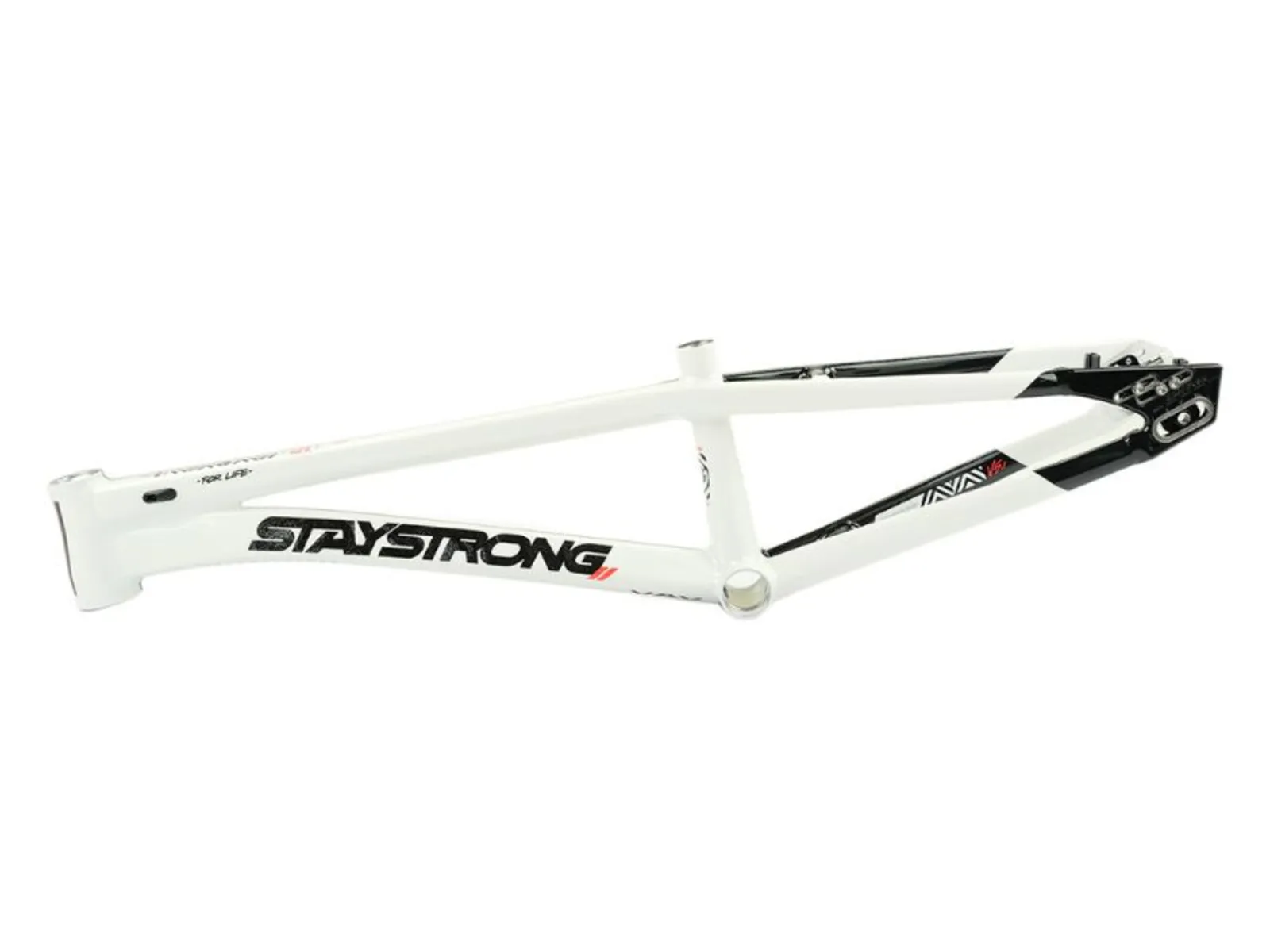

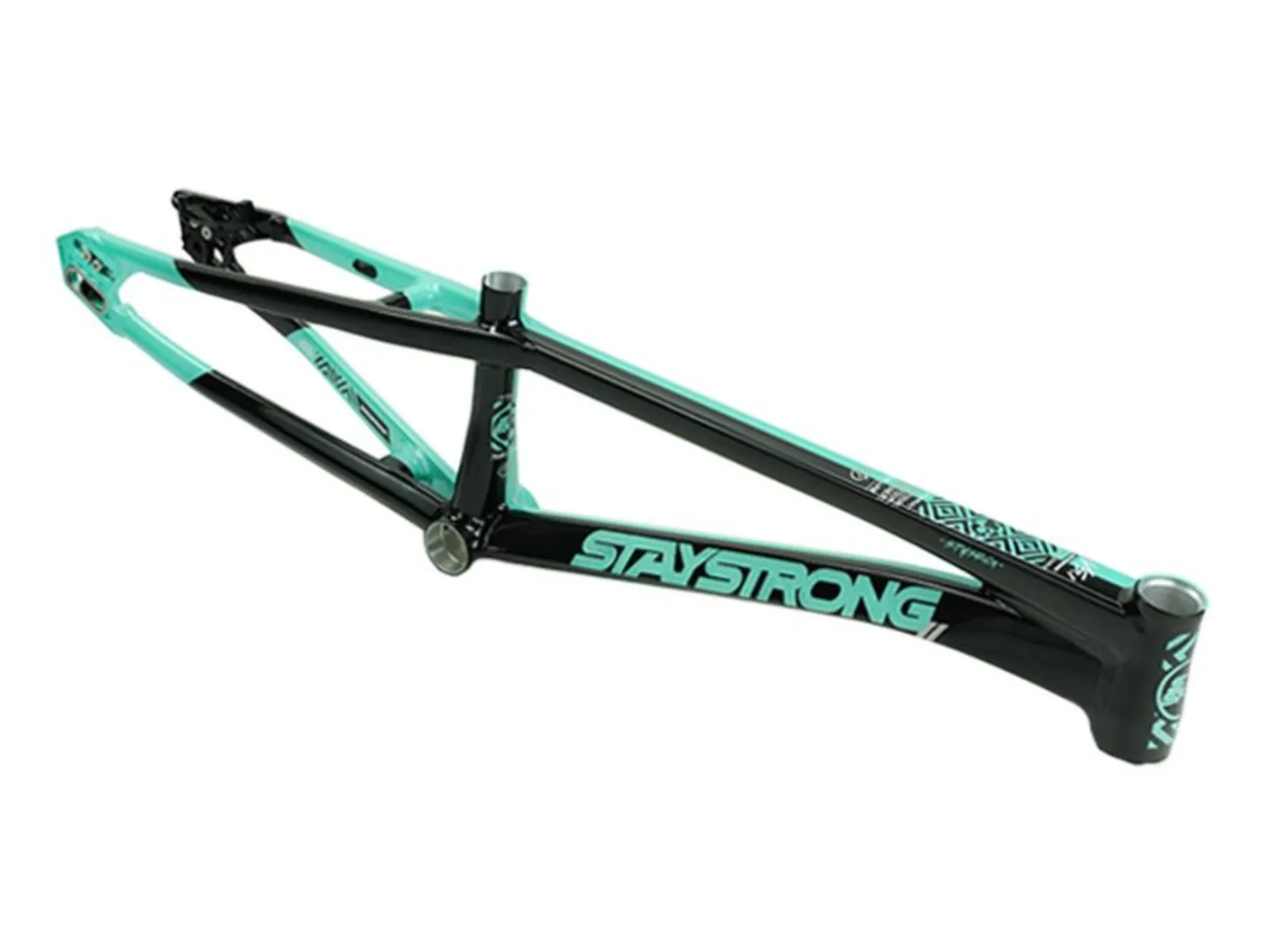

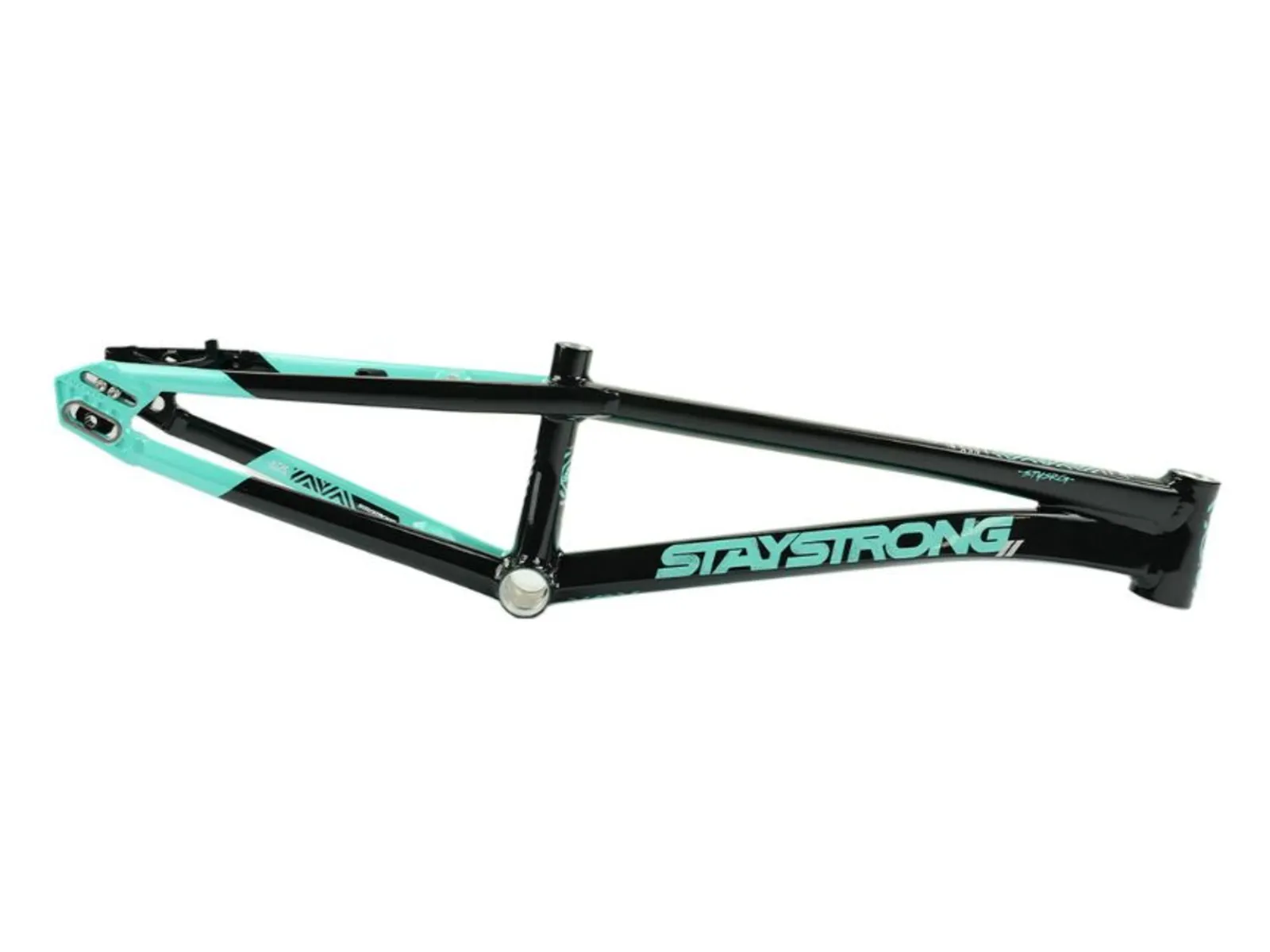

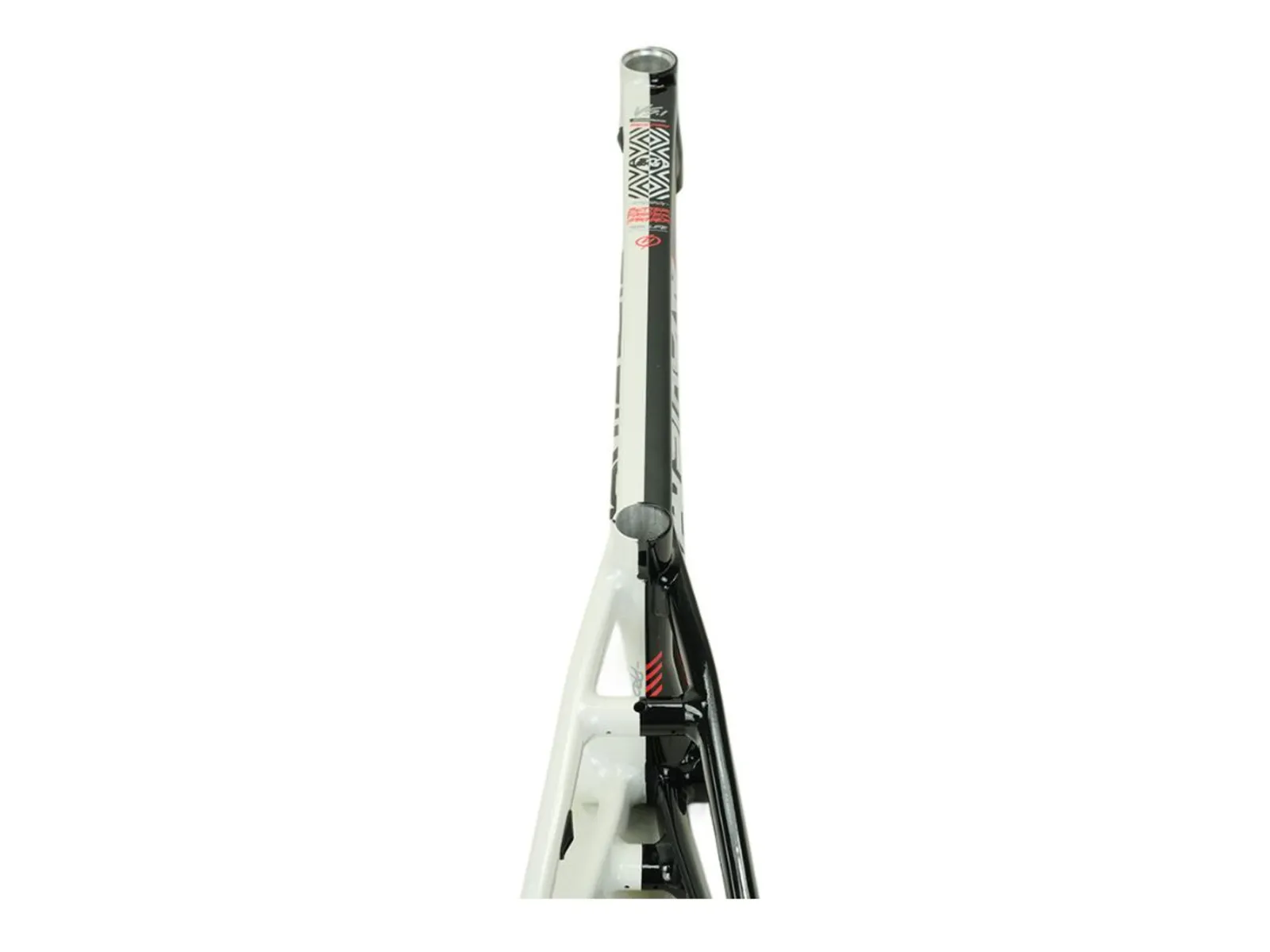

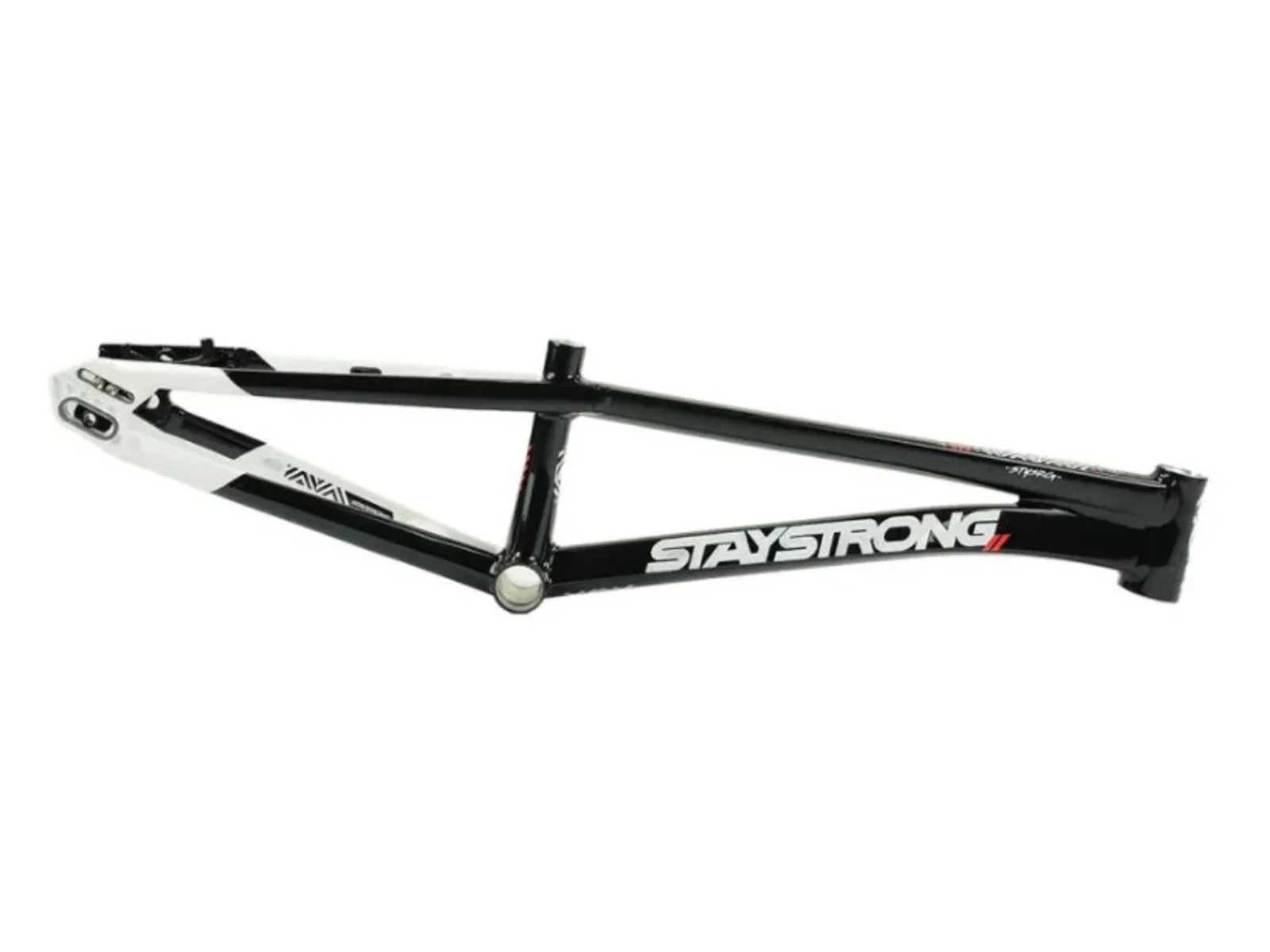

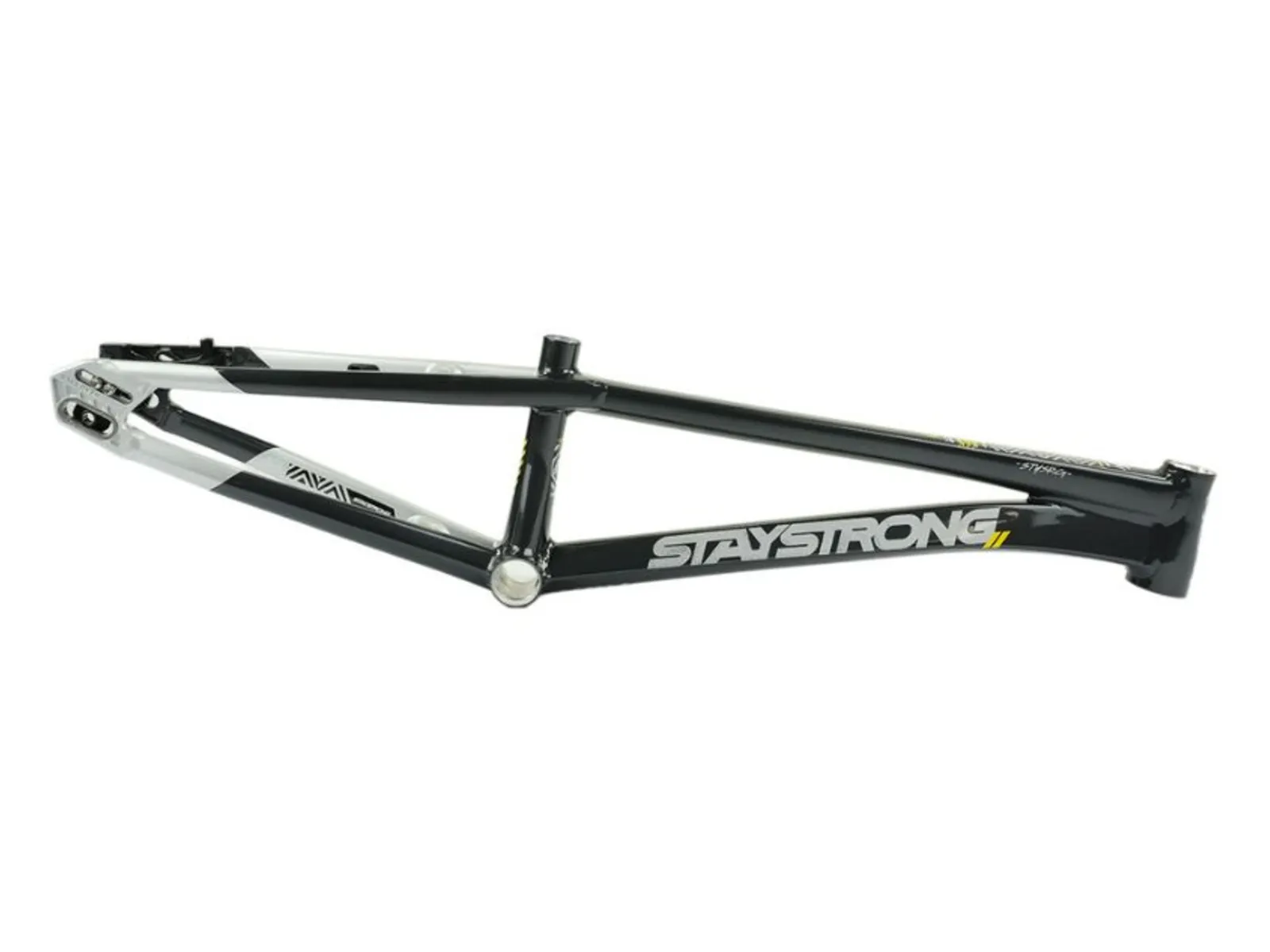

The Stay Strong "For Life V5.1 Cruiser" 2026 BMX Race Frame is a high-quality race frame built from 100% 6061-T6 aluminum with multi-butted tubing, a BB86 bottom bracket, and the proven race geometry that has made previous versions so successful. New for 2026 is the internal brake hose routing for a cleaner, more streamlined look, along with the Race DVSN dropouts featuring an integrated chain tensioner system that makes rear wheel adjustment and removal noticeably easier. With the Stay Strong "For Life V5.1 Cruiser" 2026 BMX Race Frame, you get a technically refined competition frame that combines stiffness, efficiency, and a well-thought-out disc-only brake system in a modern design.
Facts: Stay Strong "For Life V5.1 Cruiser" 2026 BMX Race Frame
- Wheel Size: 24"
- Material: 100% 6061-T6 aluminum, multi-butted tubing, flat welds for a refined finish
- Geometry:
- Top Tube Length (TT): #17#
- Chain Stay Length (CS): #93# - #94#
- Head Tube Length: #104#
- Head Tube Angle (HA): #95#
- Seat Tube Angle (SA): #96#
- Bottom Bracket Height: #97#
- Stand Over Height (SO): #98# - Headset Size: Tapered 1-1/8" - 1.5"
- Seat Clamp: #99#
- Seat Post Diameter: #100#
- Bottom Bracket: BB86

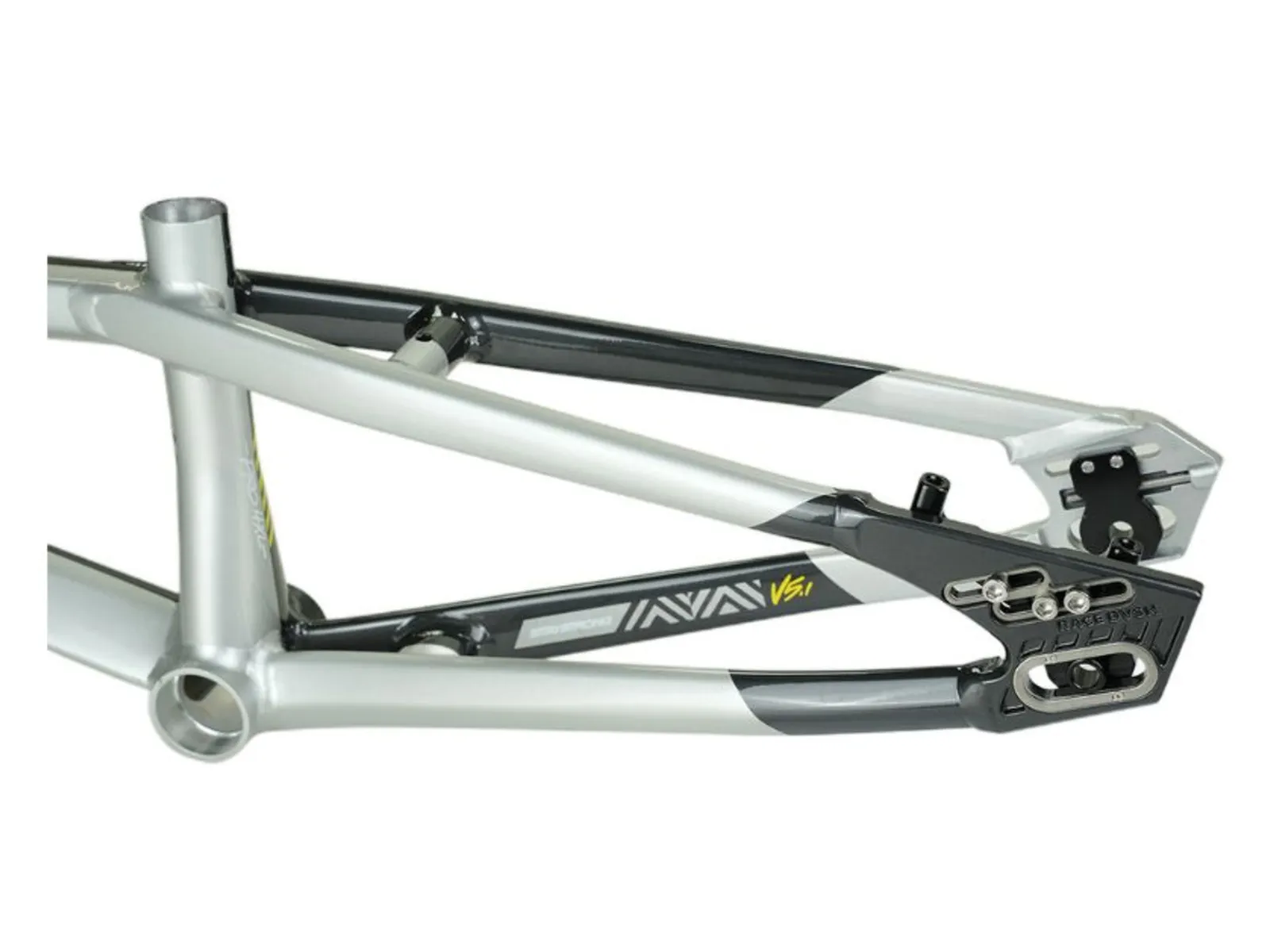

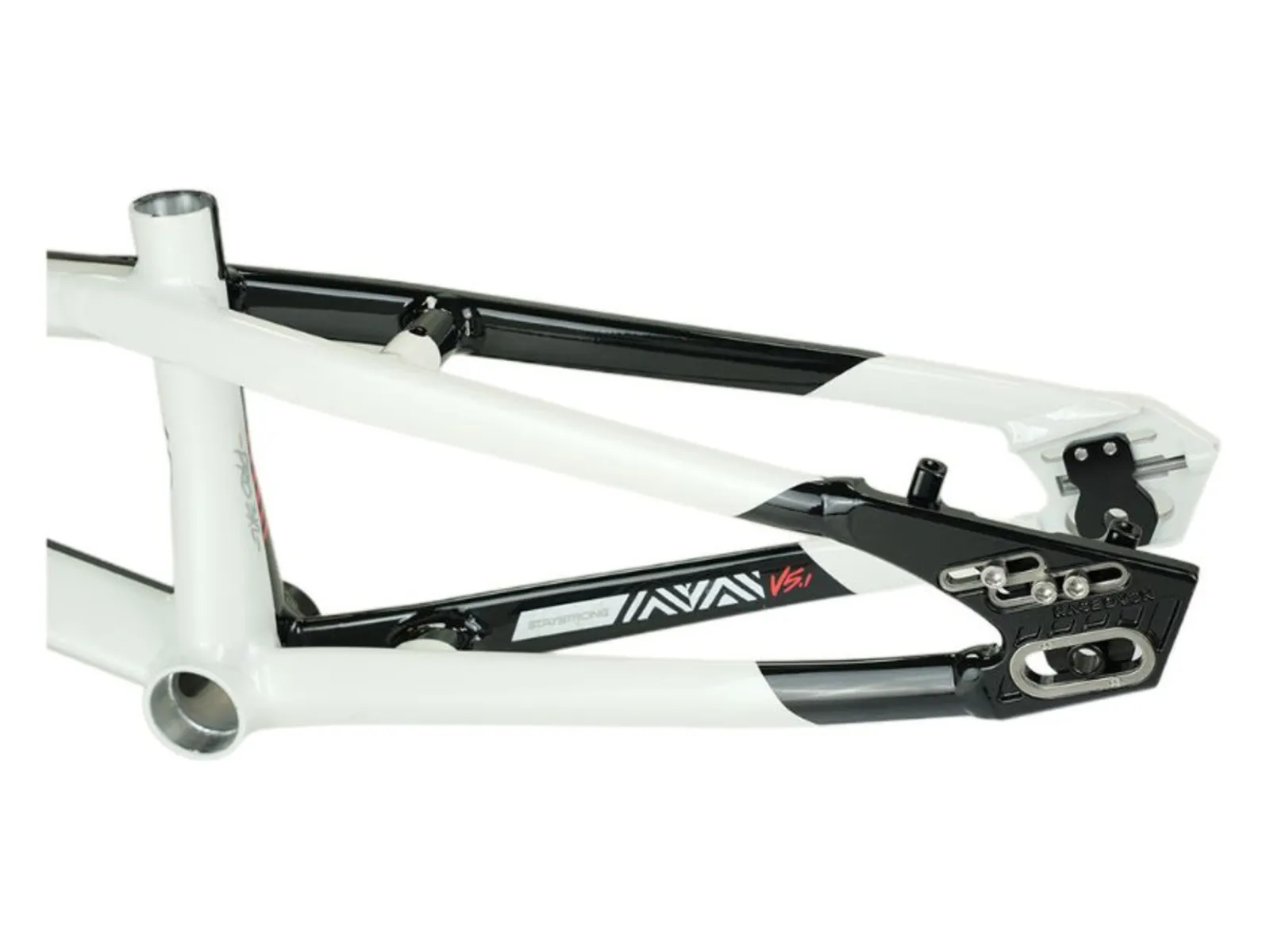

- Dropouts: Race DVSN dropouts with 5-point mounting system and integrated chain tensioners (Pro and Cruiser sizes only)
- Chain Tensioner: Integrated into Race DVSN dropouts (Pro and Cruiser sizes only)
- Brake Type: Disc Only
- Brake Mount: 120mm (Junior / Exp / Exp XL / Cruiser Exp XL), 140mm (Pro and Cruiser sizes)
- Brake Mount Included: Yes
- Rotor Compatible: Yes
- Features:
- Property: Signature frame, internal brake hose routing (New for 2026)
- Axle Compatibility: 10mm (adapter kit for 15mm thru-axle sold separately: CASG5022)
- Rear End: Oversized junction between down tube and seat tube for increased stiffness - Model Year: 2026
