Tall Order "280" 2023 BMX Frame
-
Weight : 2.38kg / 5.25lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25755
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

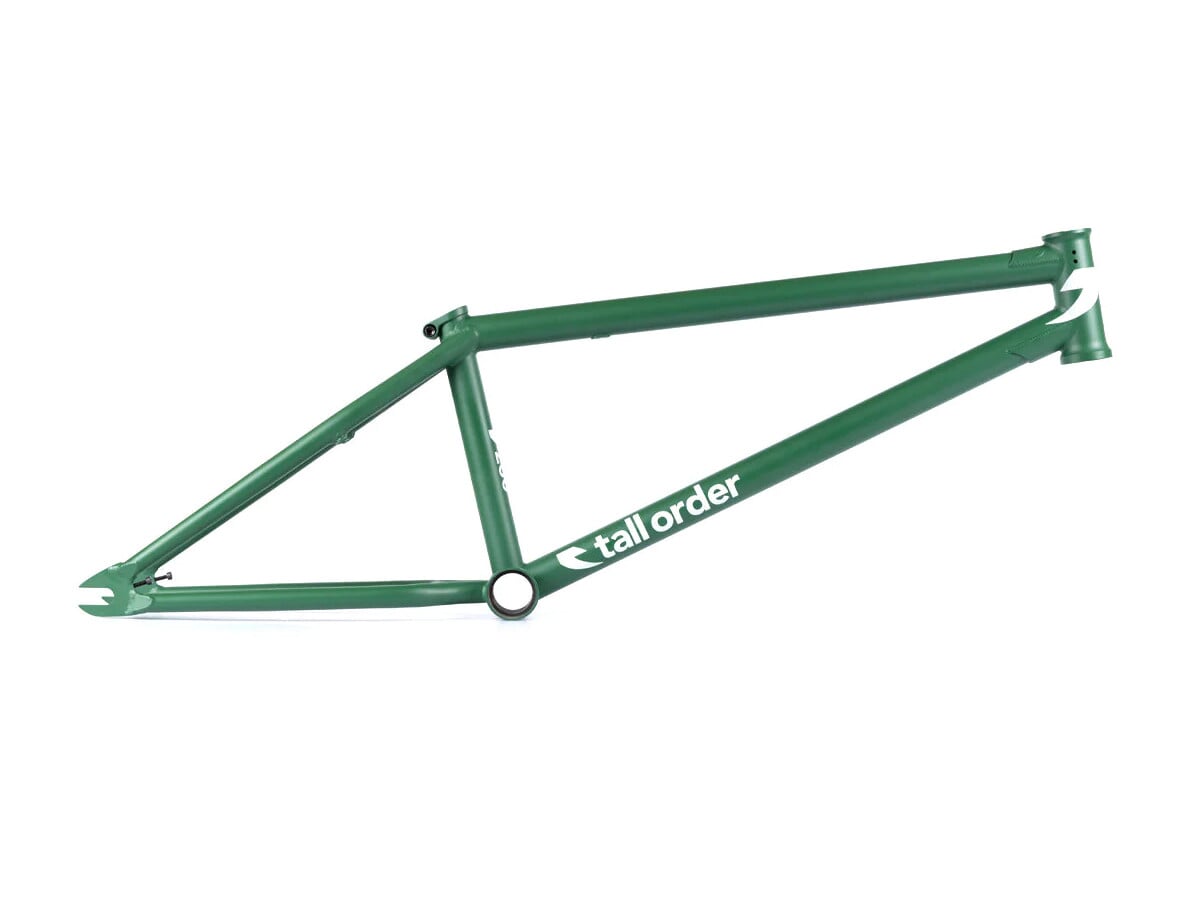

Tall Order "280" 2023 BMX Frame
has a frame height (standover height) of 9" with a unique integrated investment cast seat clamp, which visually fits perfectly into the lines of the rear triangle and comes with reinforcement (gusset) on the top tube, integrated chain tensioners and S-bend chainstays, so that you can also can drive chainrings up to 31T in size.
Facts: Tall Order "280" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
- Top Tube Length (TT): 20.6", 21.25" or 21.5"
- Chainstay Length (CS): 13.5" (34.29cm) - 13.9" (35.31cm)
- Head Tube Angle (HA): 74.75°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.5" (29.21cm)
- Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Model Year: 2023
