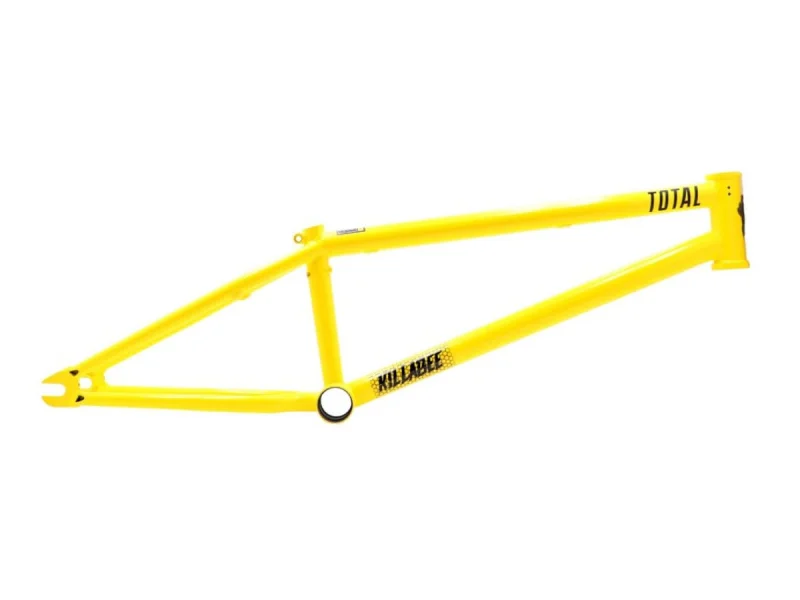

Total BMX "Killabee K4" BMX Frame
-
Weight : 2.1kg / 4.63lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 18182
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Total BMX "Killabee K4" BMX Frame
is Kyle Baldock's signature frame and was in accordance to his wishes and his riding style for modern and technical Pro level BMX Park riding designed and manufactured.
The
Total BMX "Killabee K4" BMX Frame
has had a few refinements, internally it has been beefed up in key areas to increase the strength and perfectly balance the weight of the frame. Expect the Killabee K3 to be both lighter and stronger than ever before. Total BMX have added cut outs on the stays end caps and a new angle cut seat tube for a more aggressive look.
The
Total BMX "Killabee K4" BMX Frame
is made from heat treated 100% 4130 CrMo and a steep 75.75° degrees head tube paired with a short length 12.65" (slmmed) rear end.
For the
Total BMX "Killabee K4" BMX Frame
Total BMX added the DBS brake mod which works a treat and simplifies the lower brake cables of a gyro, this mod was originally designed by team mate Mark Webb but has been refined by total's product designer for the production model Killabee frame.
Facts: Total BMX "Killabee K4" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, tapered chainstays, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.65" (32.13cm) - 12.9" (32.77cm)
Head Tube Angle (HA): 75.75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 7.7" (19.56cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots, CNC cutouts
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Kyle Baldock Signature frame, Killabee Metal Head Badge, "DBS" (Dual Brake System)
