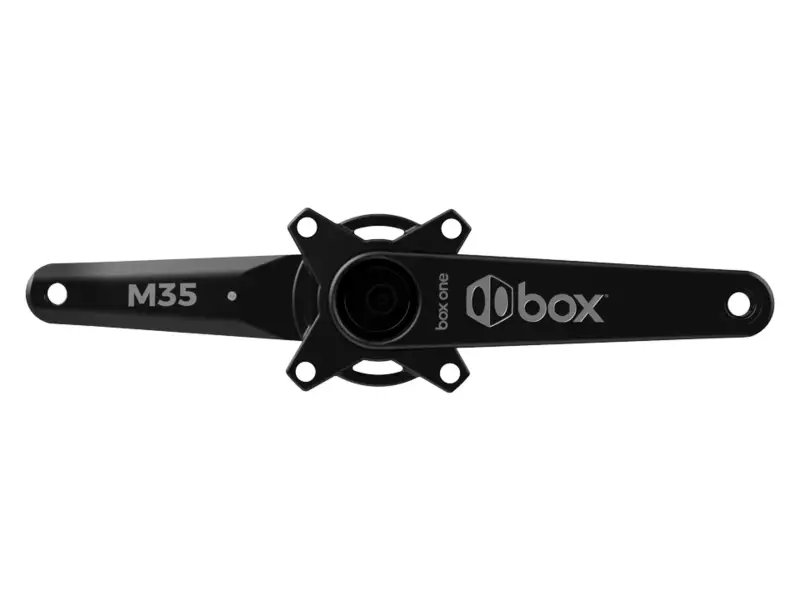

BOX Components "Box One M35" BMX Race Crankset
- Weight : 0.95kg / 2.09lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43070
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

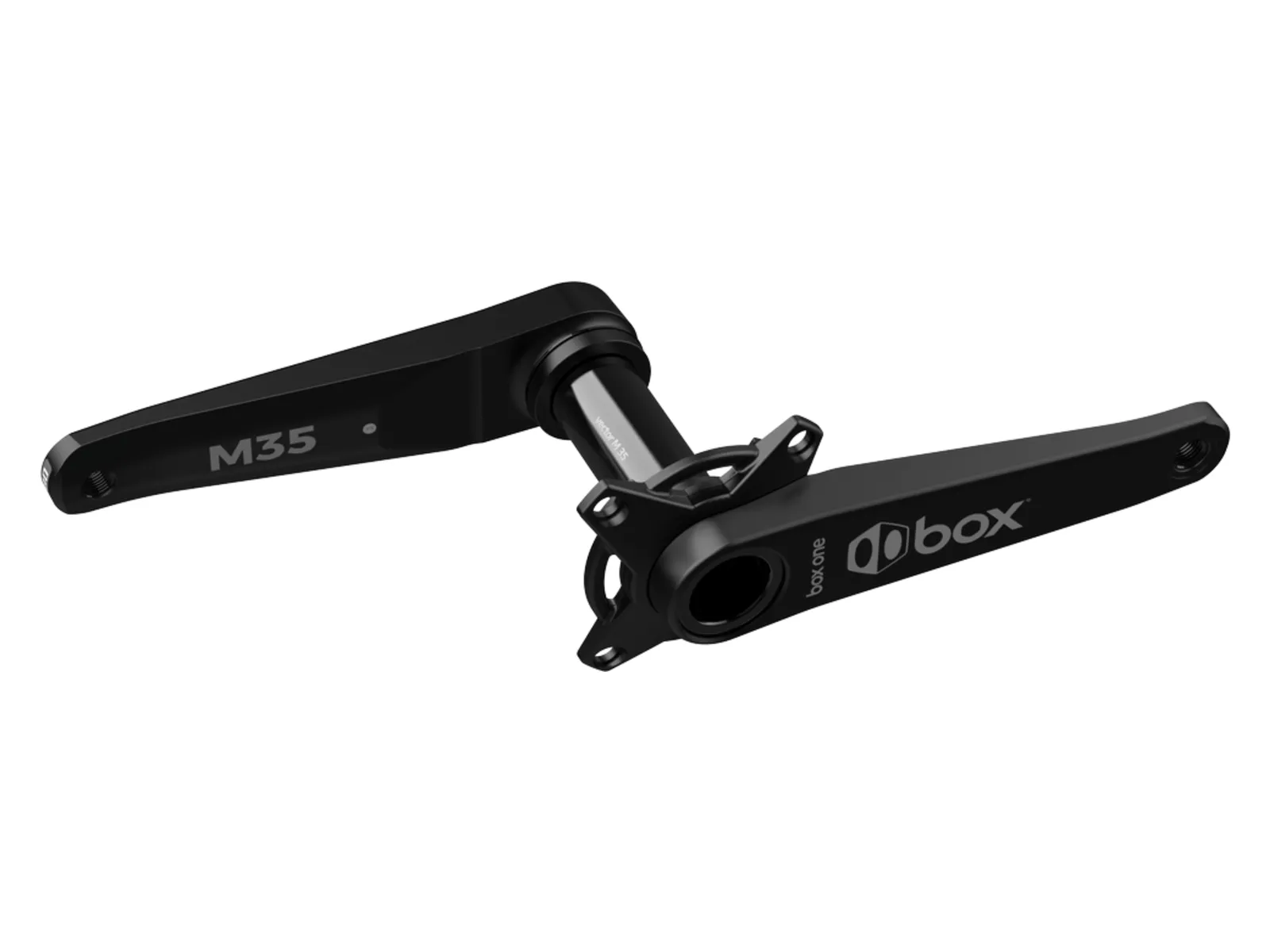

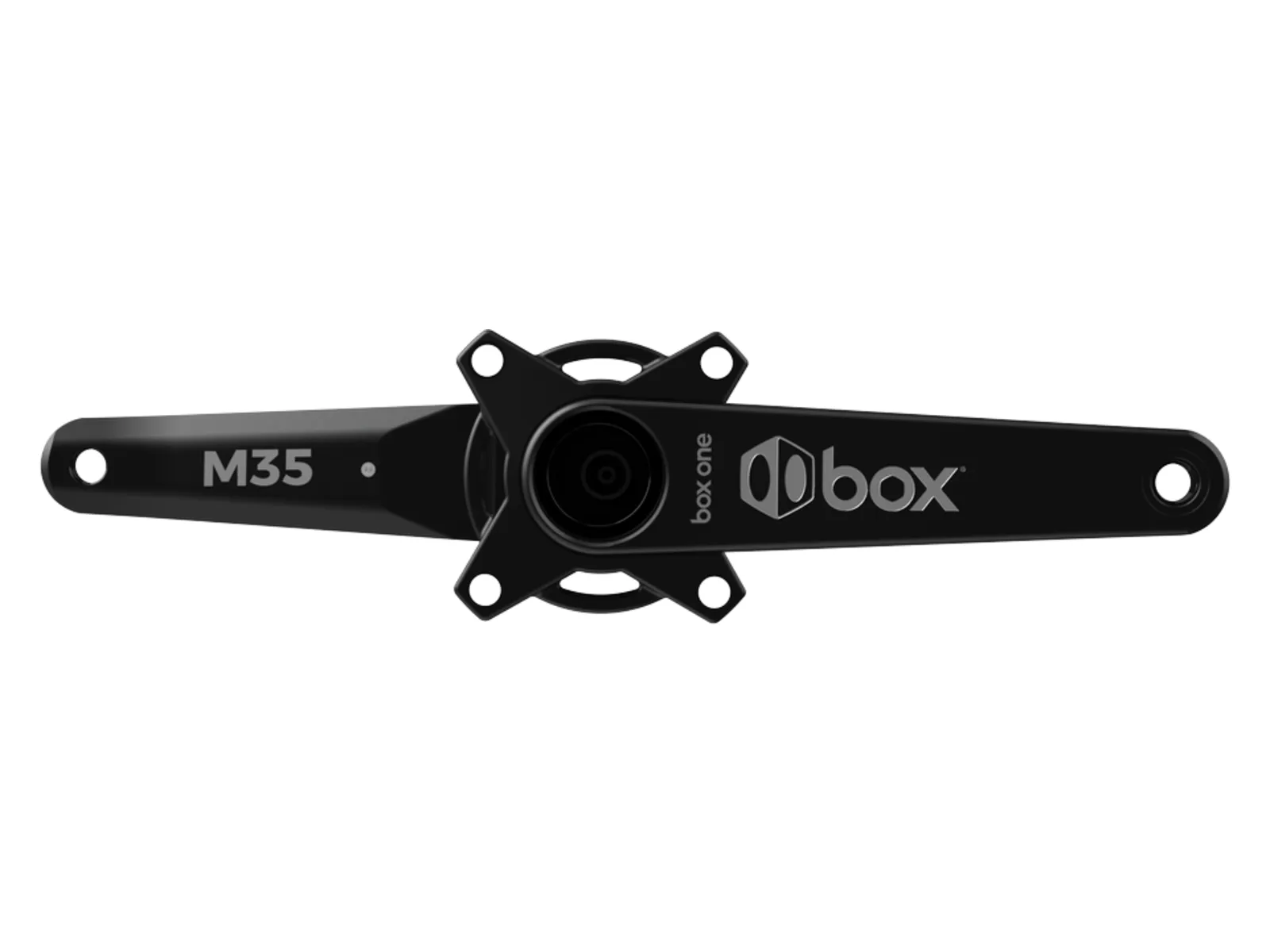

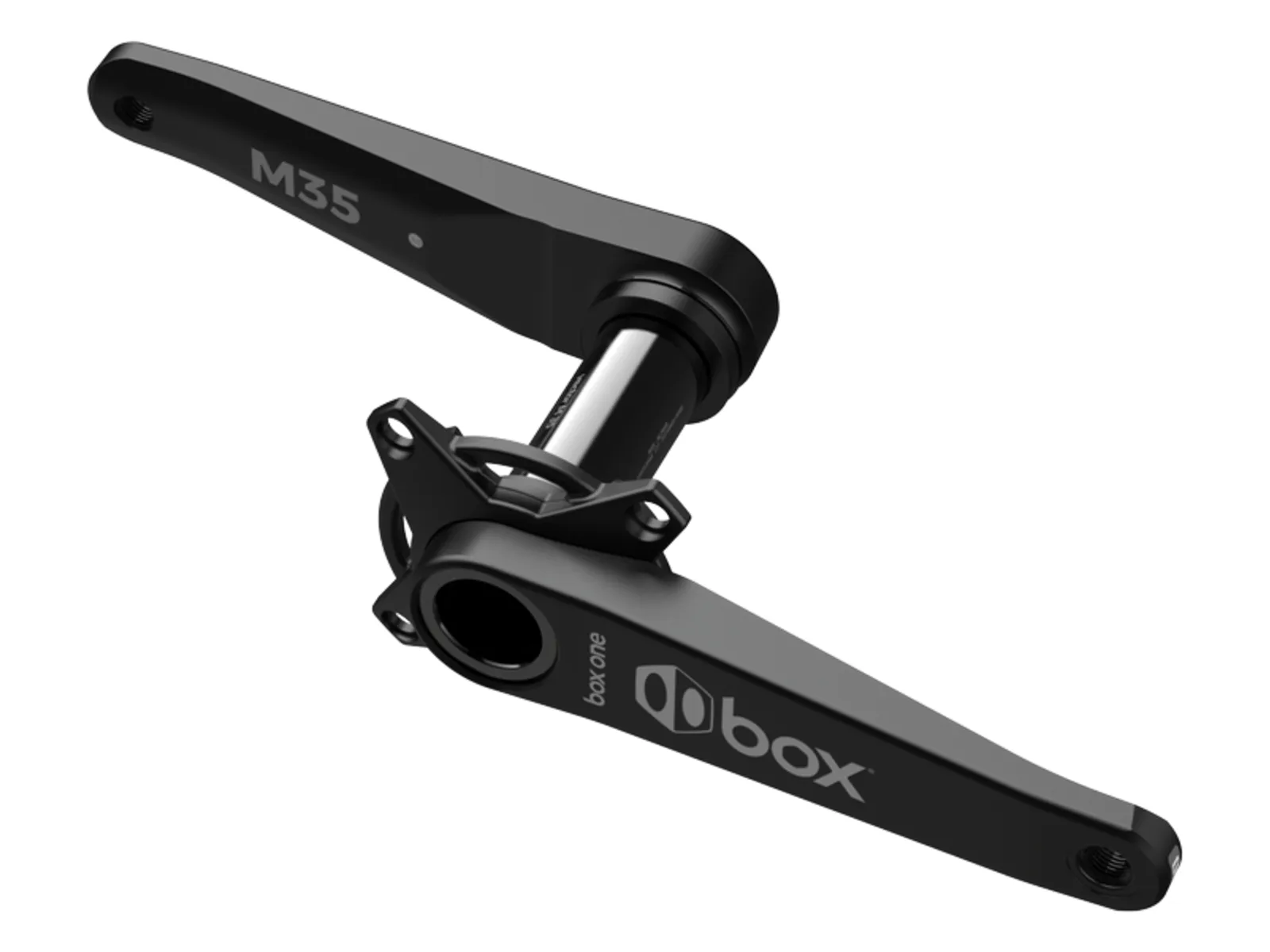

The BOX Components "Box One M35" BMX Race Crankset is BOX Components' oversized crankset for pros with a 35mm Praxis spindle made from cold-forged 7075-T6 aluminum. The large arms are hollow-forged with the wall thickness where the load is, and a stabilizer ring between the spider legs stops it from twisting. A self-extracting crank bolt system secures everything, and the 35mm BB30/PF30 bottom bracket is included. You need a frame with a matching bottom bracket shell.
Facts: BOX Components "Box One M35" BMX Race Crankset
- Material Crank Arms: 7075-T6 aluminum, hollow-forged and CNC machined
- Material Crank Spindle: 7075-T6 aluminum (Praxis), cold-forged and ground, 35mm
- Crank-Type: 2-piece
- Crank Arm Length: 175mm, 177.5mm or 180mm
- Spindle Diameter: 35mm
- possible Sprocket Mount by: bolt drive: 4-bolt spider, 104mm BCD
- Spindle Bolt: chromoly/alloy self-extracting crank bolt system
- Extras: spider with flex-resistant ring, needs a frame with BB30/PF30 shell, chainline 44.5mm, Q factor 168mm, anodized with laser-etched graphics, weight: 945g (175mm), 950g (177.5mm), 955g (180mm)
- Recommended for: Race
- Content: crankset with 35mm spindle, 35mm BB30/PF30 bottom bracket
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
