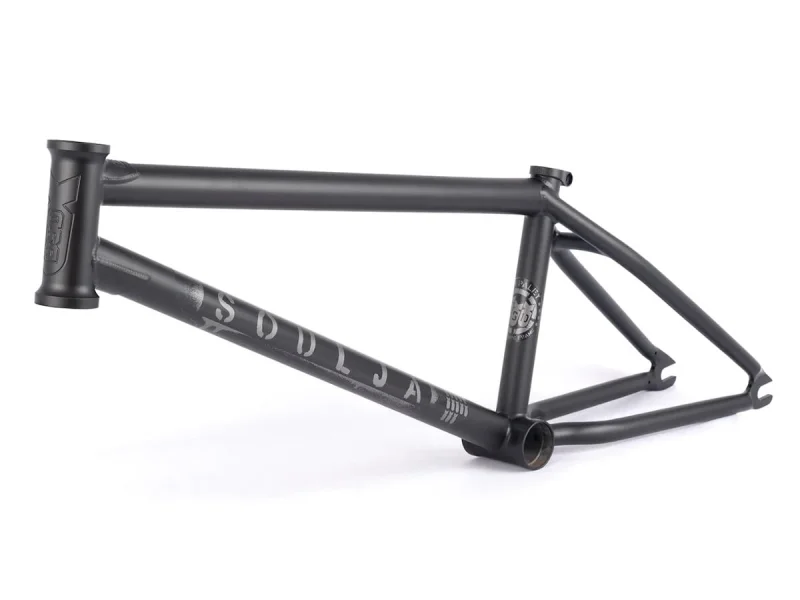

BSD "Soulja V4" BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20310
This BSD "Soulja V4" BMX Frame is Dan Paley's signature frame and was in accordance to his wishes and his riding style designed and manufactured for top modern and technical Pro level street riding. The BSD "Soulja V4" BMX Frame is made from best quality, partially heat treated 100% Sanko Japanese seamless 4130 CrMo and has a steep 75.2° degrees head tube paired with a short rear end and a 11.7" high bottom bracket make this high quality Street frame very maneuverable. Furthermore this street frame includes high quality made investment cast dropouts with chain tensioners, a integrated seat clamp and as brakeless version.
Facts: BSD "Soulja V4" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset, integrated seatclamp, Mid BB
- Geometry:
Top Tube Length (TT): 20.6", 20.9" or 21.2"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.2°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 8.8" (22.35cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Dan Paley Signature frame, wide rear end for fat 2.4" tires
