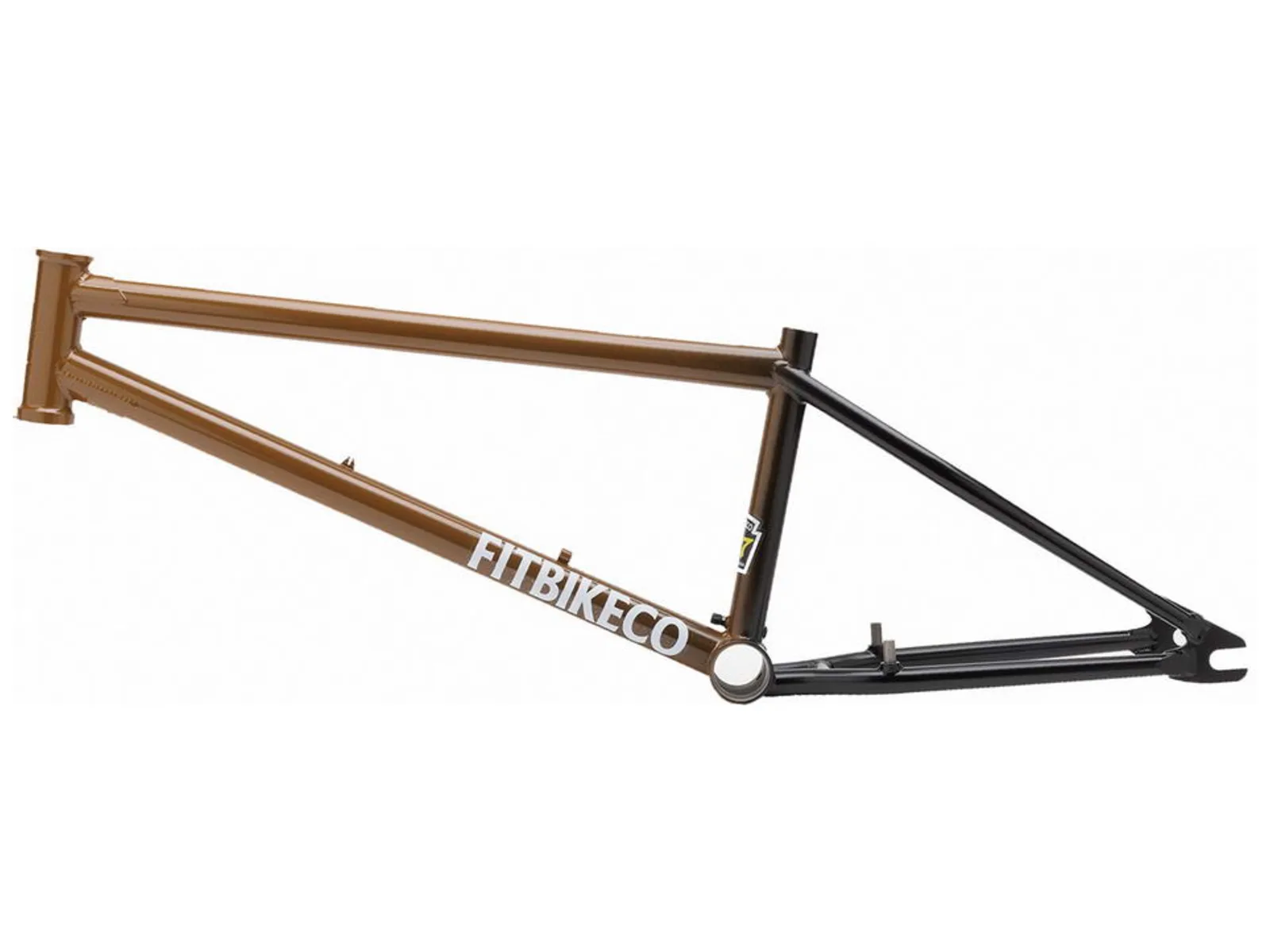

Fit Bike Co. "57" BMX Rahmen - Brown/Black

Name: Fit Bike Co. 57 BMX Rahmen - Brown/Black - 21.5"
Brand: Fit Bike Co.
SKU: 32342-2-1-500,9-34,17-582
Price: 685.95 EUR
Availability: InStock

685.95 EUR

Taxfree excl. shipping

Color | Brake Mounts | Top Tube Length

Please Select
- - brown/black | with | 21.5"

Straight to the checkout with PayPal: delivery address and payment come from there. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 32342
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

The Fit Bike Co. "57" BMX Rahmen - Brown/Black is the signature frame of Shane Halahan – the youngest of the Halahan brothers from Pennsylvania – designed to perform confidently on big dirt jumps and in concrete parks alike. Built entirely from 4130 CrMo, it features tapered tubes, investment cast dropouts, an integrated Campy-style headset with engraved Key logo, and wide chainstays to accommodate tires up to 2.4" – all made in the USA. Available in top tube lengths from 20.75" to 21.5", the Fit Bike Co. "57" BMX Rahmen - Brown/Black gives you the right fit for your riding style.

Facts: Fit Bike Co. "57" BMX Rahmen - Brown/Black

Wheel Size: 20"
Material: 100% Chromoly, top tube and down tube gussets, tapered tubes, tapered chainstay tubes, integrated headset
Geometry:
- Top Tube Length (TT): 21.5"
- Chainstay Length (CS): 13.57" – 14"
- Head Tube Length: 5"
- Head Tube Angle (HA): 74.25°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.57"
- Standover Height (SO): 8.75"
Seat Clamp: No integrated seat clamp
Seatpost Diameter: 1" / 25.4mm
Bottom Bracket: Mid
Dropouts: Investment Cast, 6.5mm thick, 14mm axle
Brake Type: U-Brake
Brake Mounts: Welded to chainstays
Features: Shane Halahan Signature Frame, wide chainstays for 2.4" tires, Campy-style headset with engraved Key logo, made in the USA
Model Year: 2026
