Pride Racing "Wave Spacer" BMX Race Crank Spacer - 24mm
- Weight : 0.01kg / 0.02lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 31096
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/pride-racing-wave-spacer-bmx-race-crank-spacer-24mm-p-31096
Printed: 10/21/2026
Printed: 10/21/2026

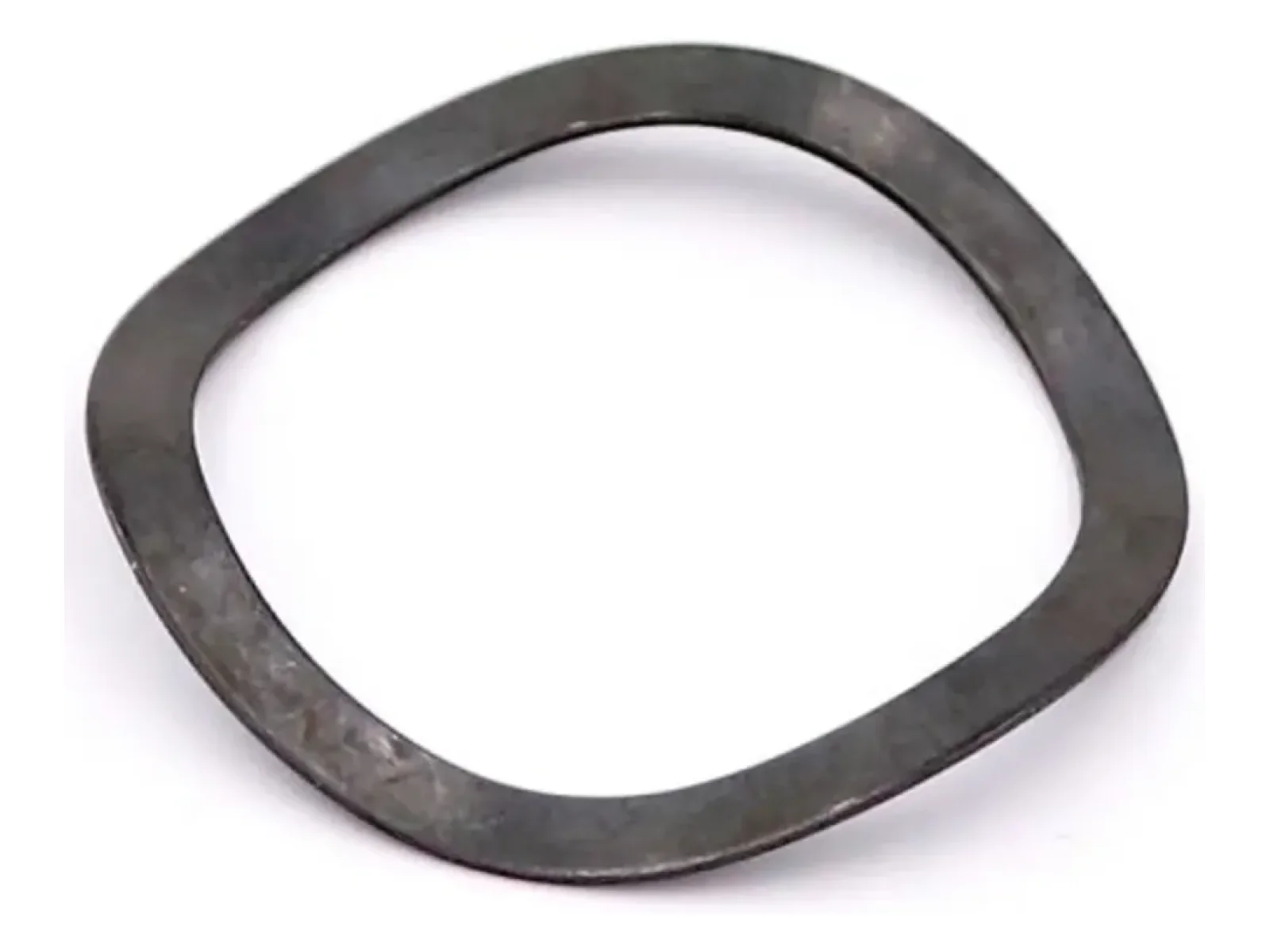

The Pride Racing "Wave Spacer" BMX Race Crank Spacer - 24mm is a wave washer for 24mm crank spindles that takes up lateral play when the crank is installed without loading the bottom bracket bearings. It has a 25mm inner and 31mm outer diameter, is 3.5mm thick uncompressed and compresses to 0.4mm when tightened, so the crank runs without play while the bearings still turn freely. Pride recommends the Pride Racing "Wave Spacer" BMX Race Crank Spacer - 24mm for the Vortex V2 24mm crank together with the Pride BB86 bottom bracket. One wave washer is included.
Facts: Pride Racing "Wave Spacer" BMX Race Crank Spacer - 24mm
- Contains: 1x wave washer (wave spacer) for 24mm crank spindle
- Extras:
- Inner diameter: 25mm
- Outer diameter: 31mm
- Thickness: 3.5mm uncompressed, 0.4mm compressed
- adjusts lateral play without compressing the bottom bracket bearings
- recommended for: Pride Vortex V2 24mm crank with Pride BB86 bottom bracket
