Insight "Alloy Pro" BMX Race Pedals
- Weight : 0.41kg / 0.90lbs
- Packaging Unit: Pair
- Product ID (PID): 45499
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-alloy-pro-bmx-race-pedals-p-45499
Printed: 10/29/2026
Printed: 10/29/2026

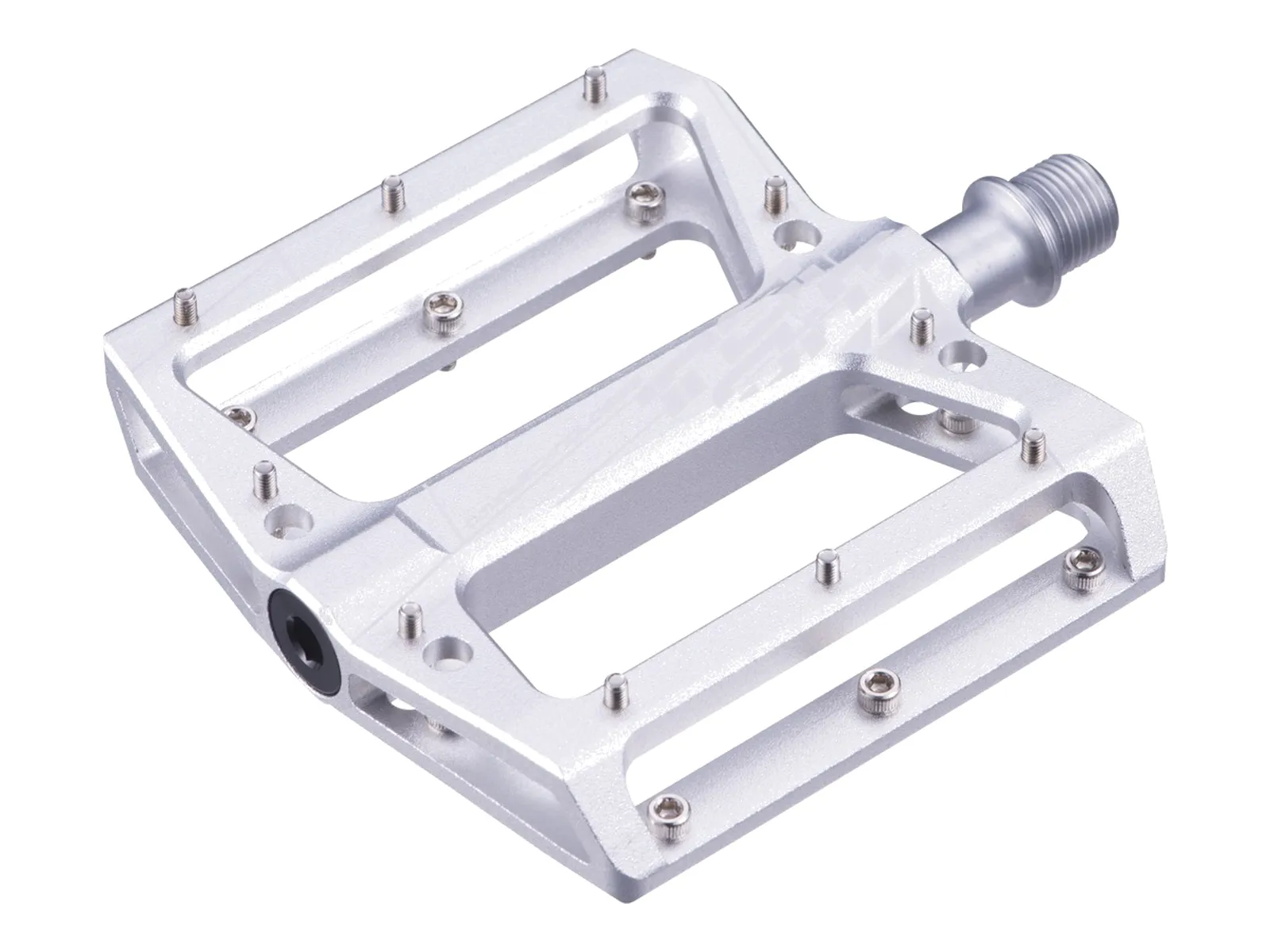

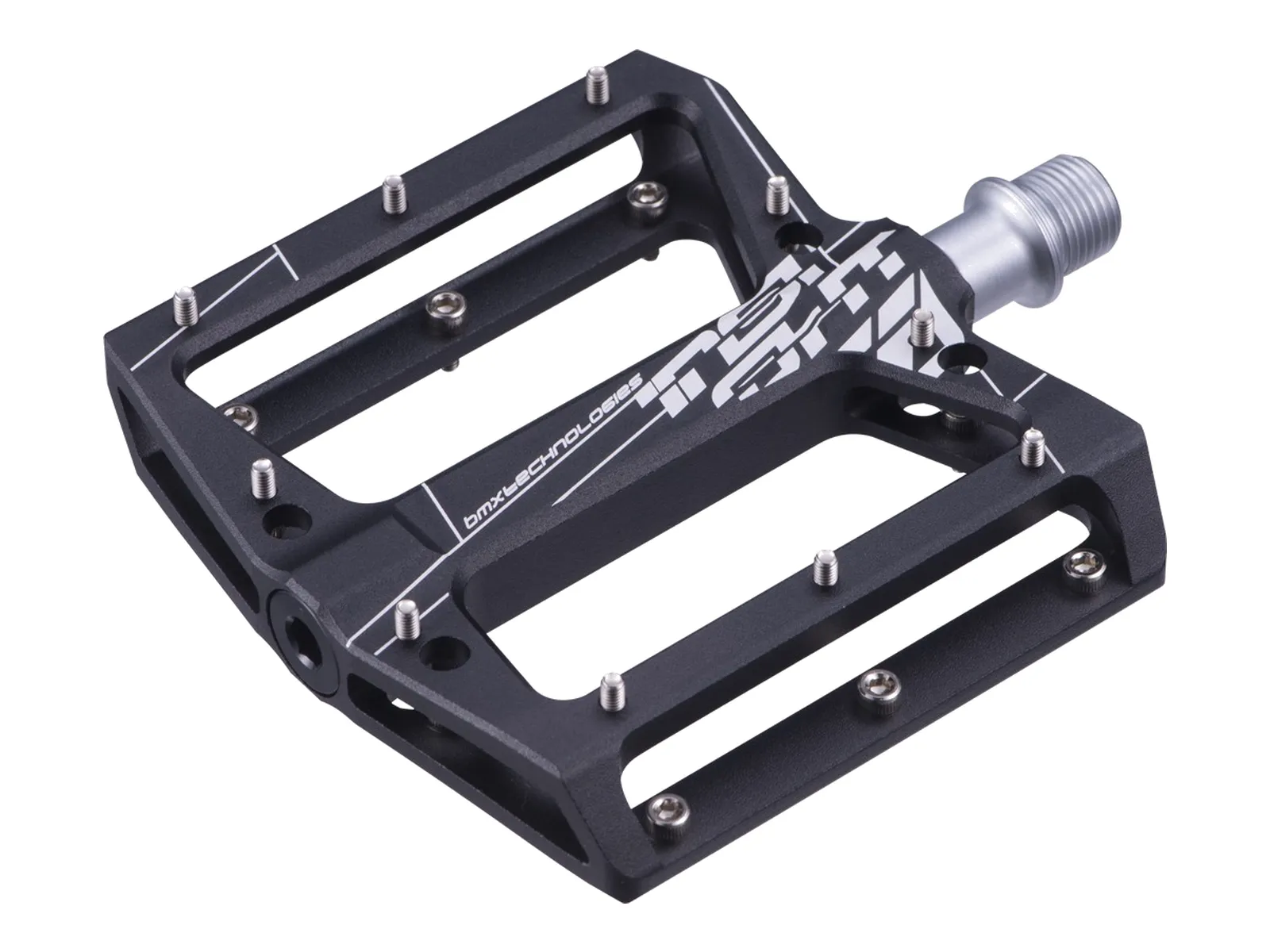

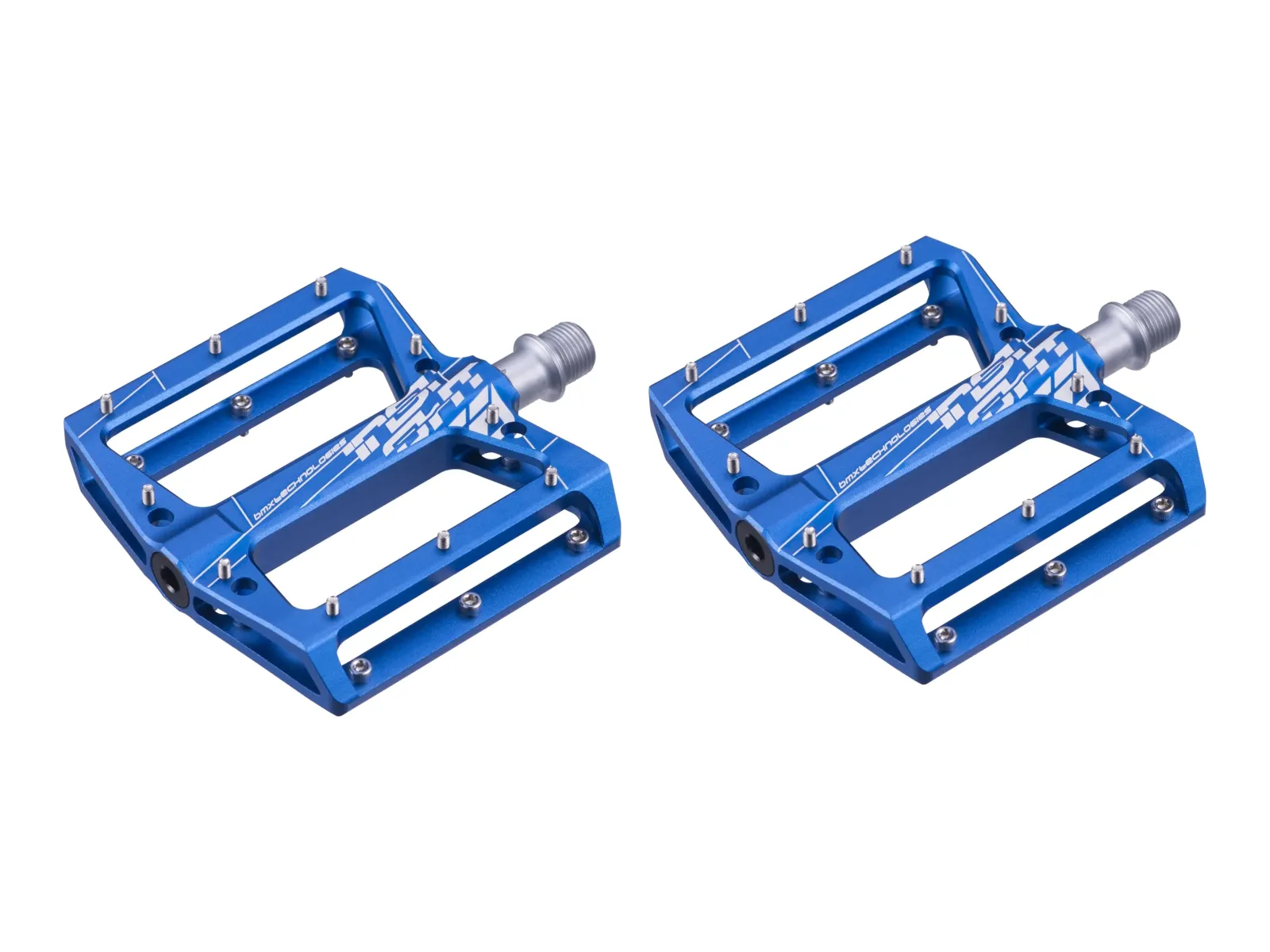

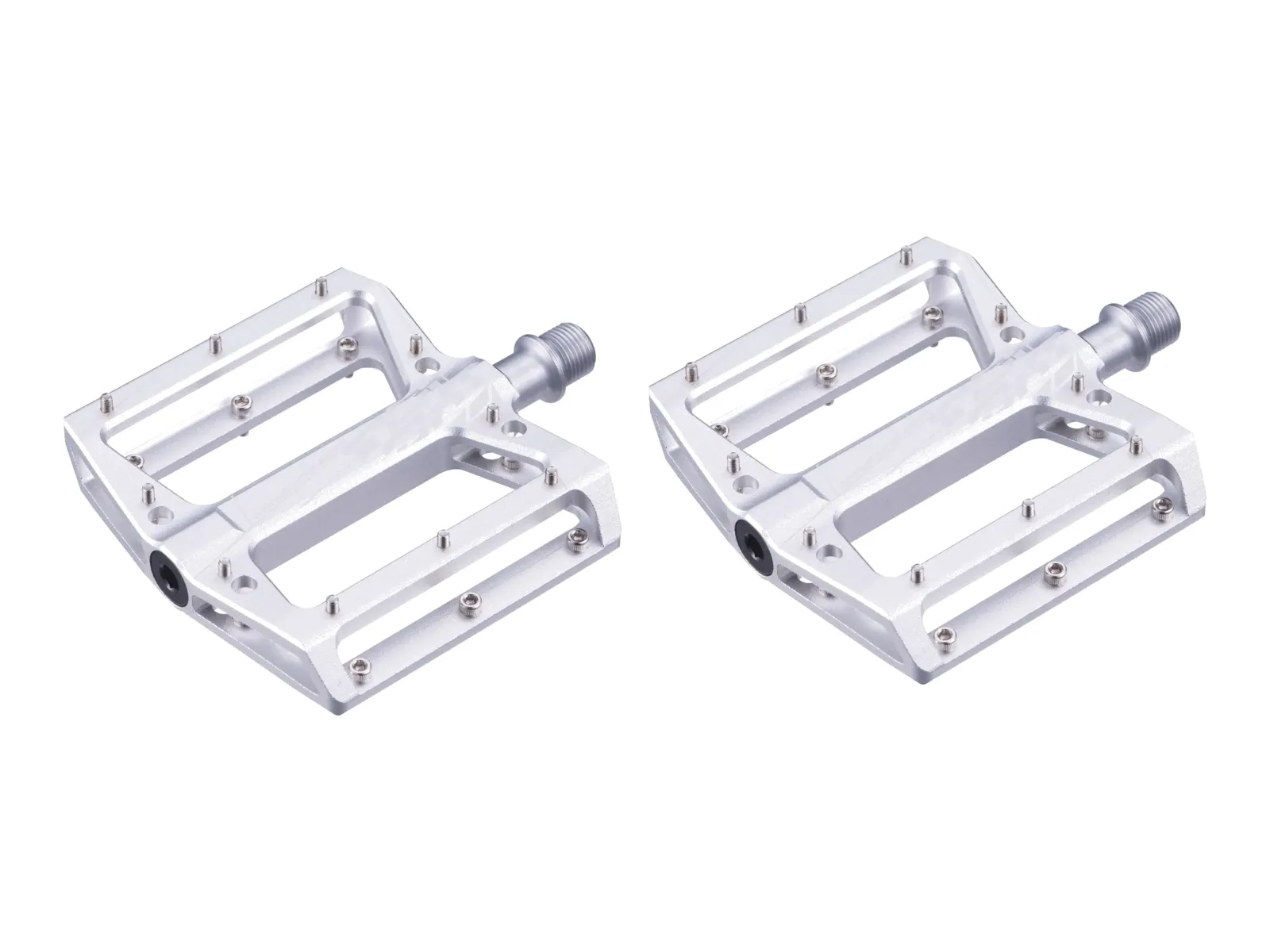

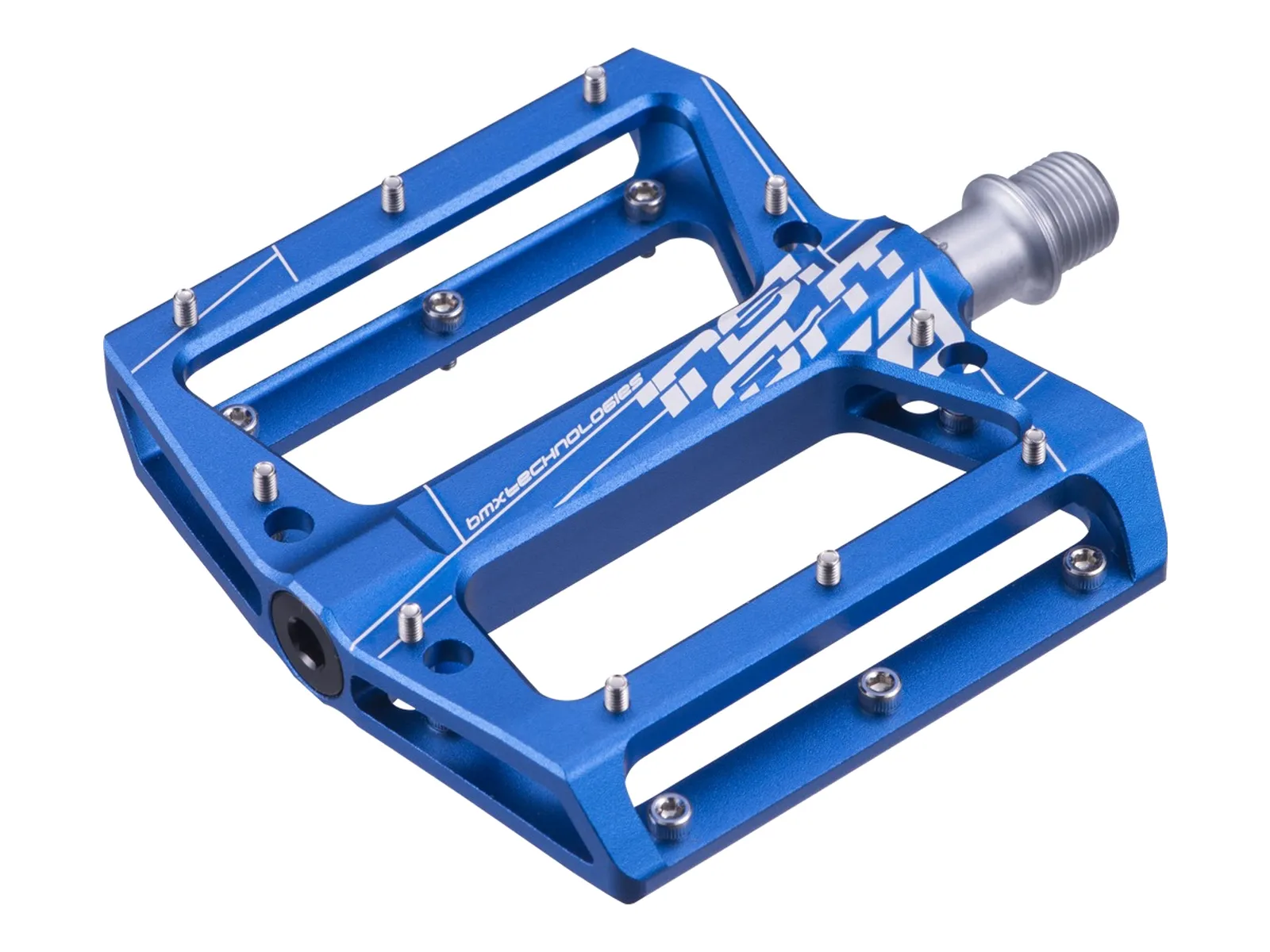

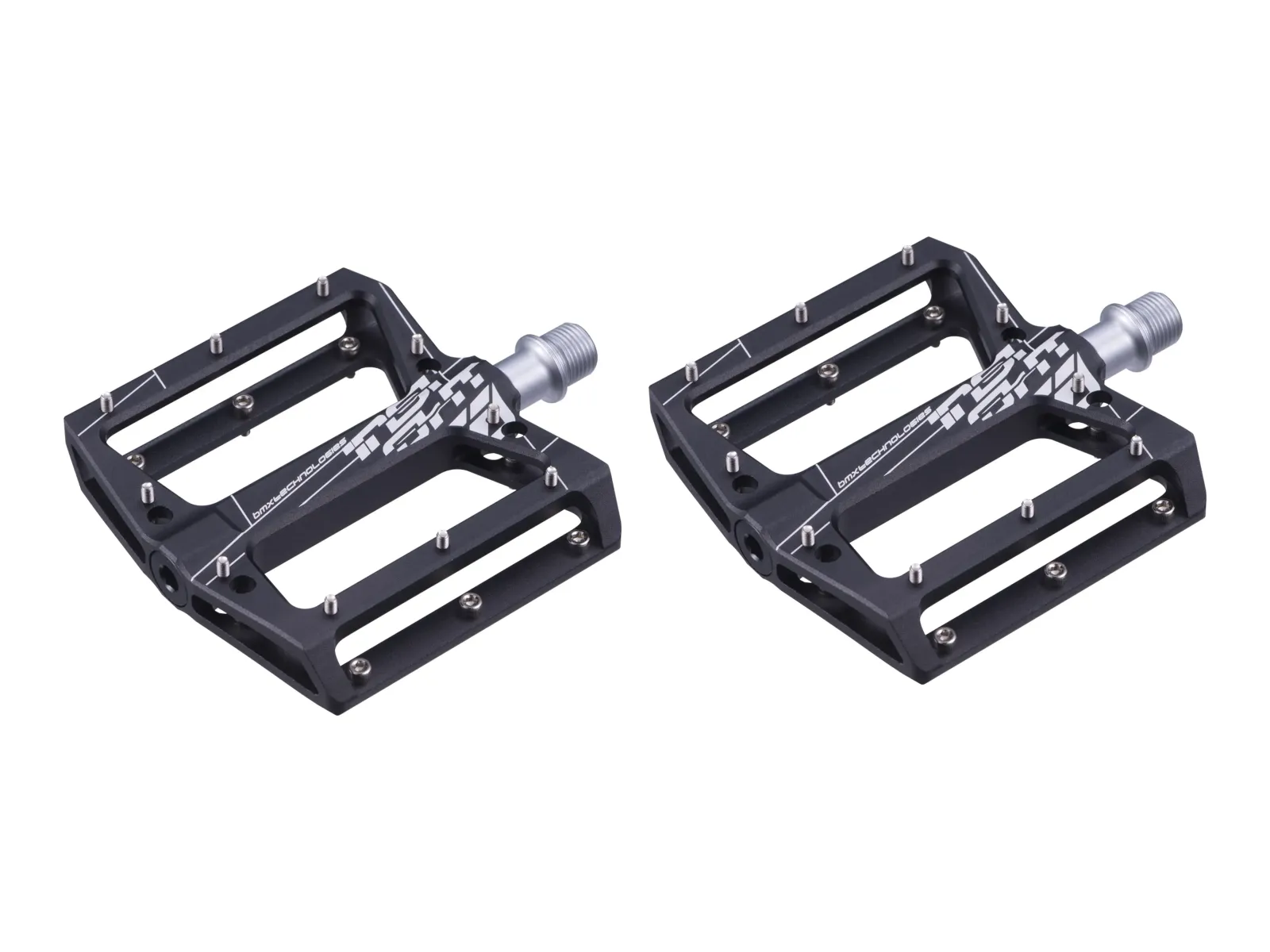

The Insight "Alloy Pro" BMX Race Pedals have a CNC machined 6061 aluminum body with a concave platform that keeps your foot centred. Ten threaded, replaceable pins per side give your sole grip.
The key part sits inside: the CNC machined 9/16" chromoly axle is made to take big jumps and landings without bending. It runs on a self-lubricating LSL bushing inboard and a sealed industrial bearing outboard. The pedals measure 113 x 105mm, the pair weighs 410g.
Facts: Insight "Alloy Pro" BMX Race Pedals
- Material:
- Pedal Body: Aluminum 6061, CNC machined
- Axle: chromoly, CNC machined - Thread Size: 9/16" for 3-piece cranks
- Bearing: sealed bearing (SB) outboard, self-lubricating LSL bushing inboard
- Scope of Delivery: a pair of pedals (for left and right)
- Extras:
- concave platform
- 10 threaded, replaceable pins per side
- dimensions: 113 x 105mm
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
