Magura "MDR-P" Rotor - 6 Bolt
- Weight : 0.22kg / 0.49lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 38463
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/magura-mdr-p-rotor-6-bolt-p-38463
Printed: 11/05/2026
Printed: 11/05/2026

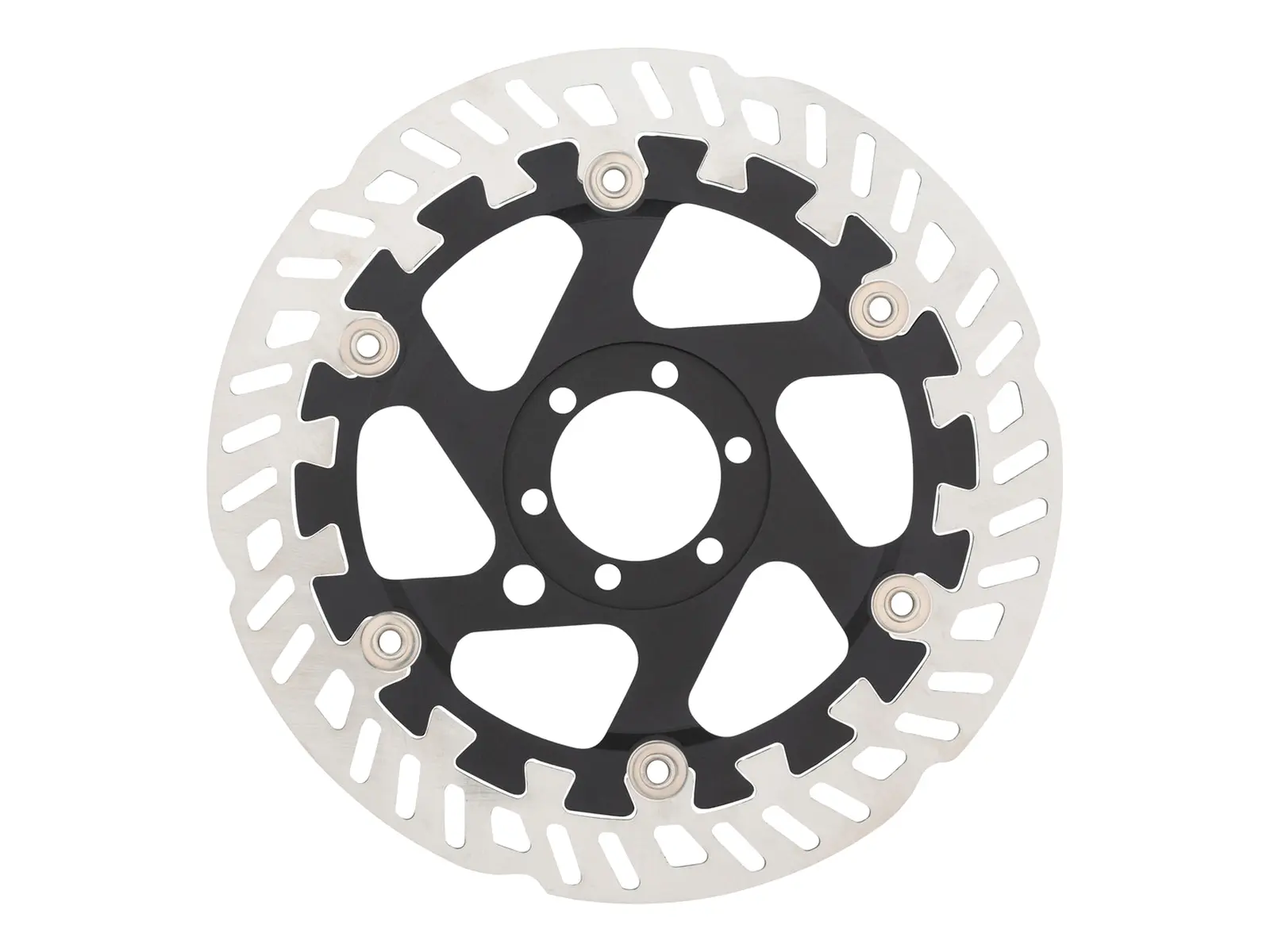

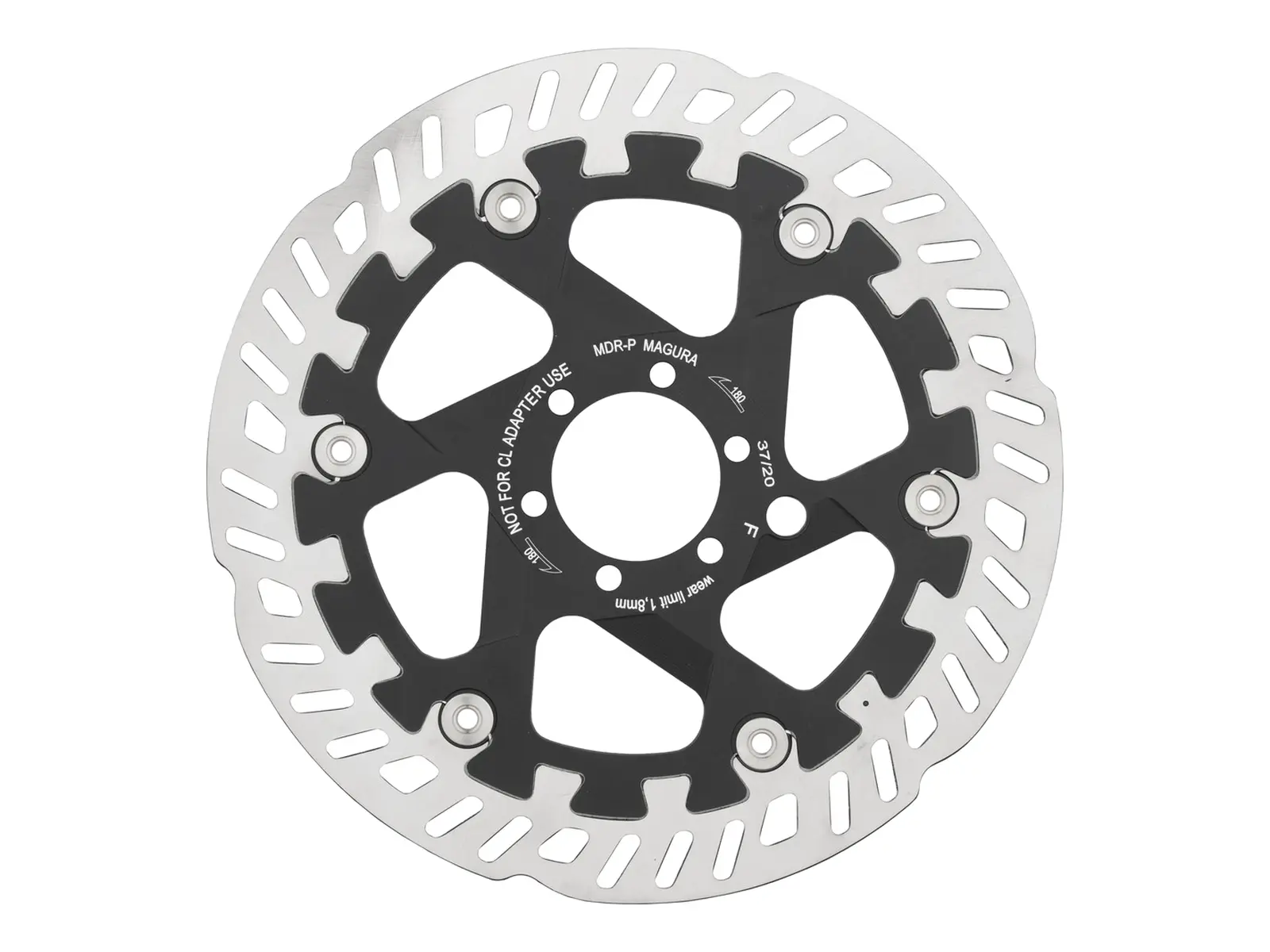

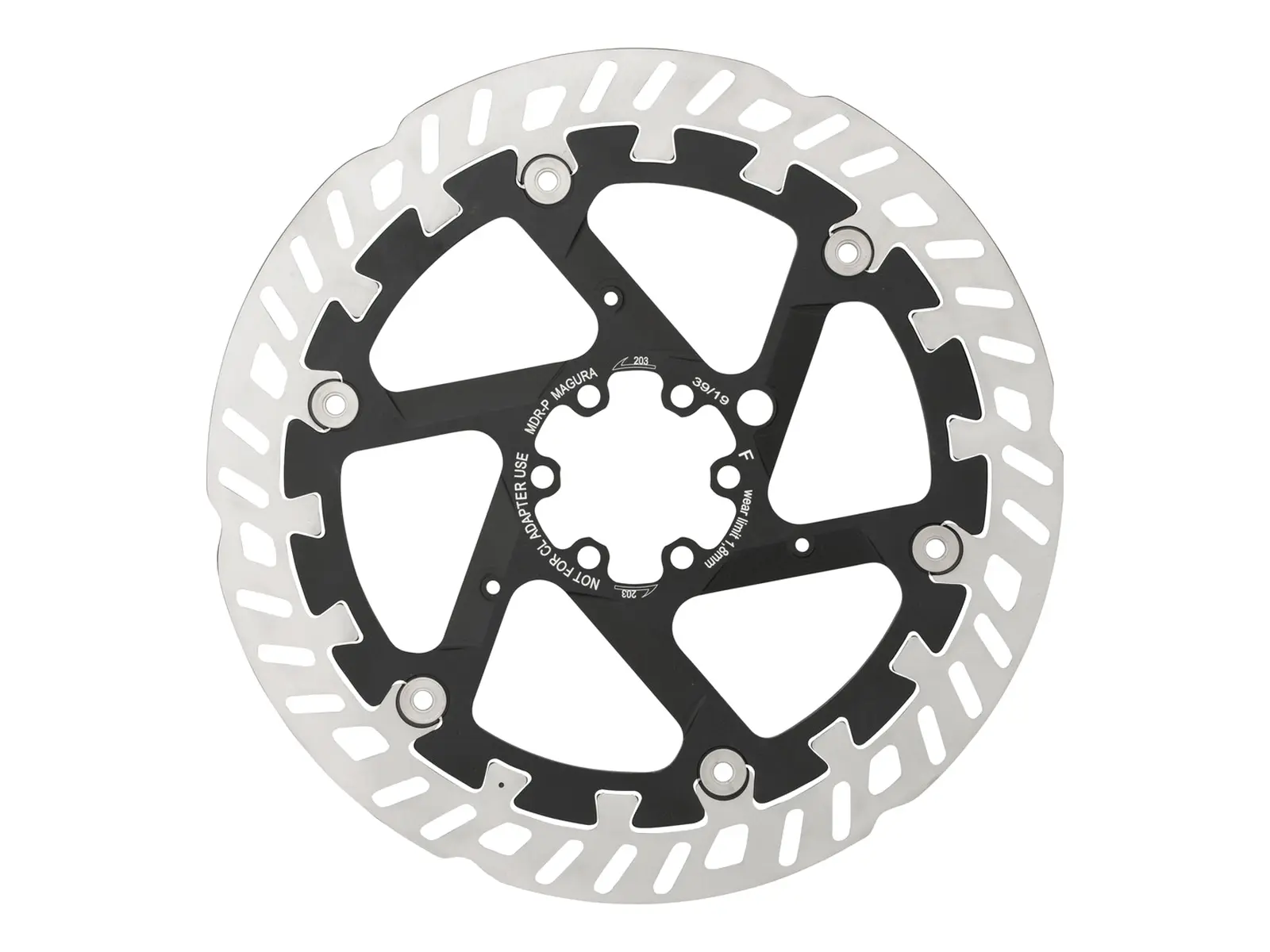

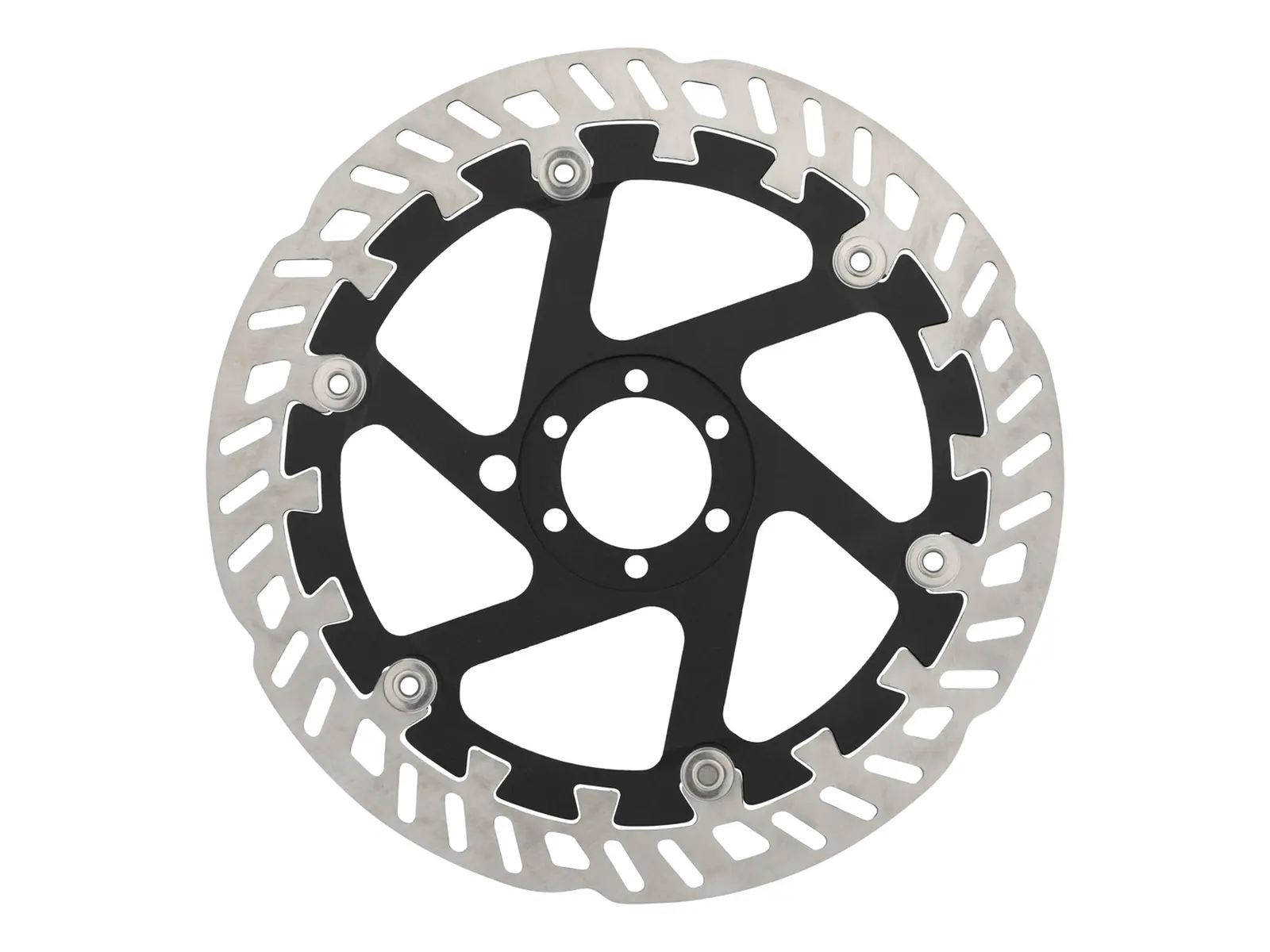

The MDR-P is Magura rotor for long, hard descents. Outer and inner ring interlock through the Dovetail Interlink splines, so torque travels across the whole surface instead of through the rivets alone. That keeps braking power constant under sustained load. The 220mm version delivers around ten percent more power than 203mm. Do not use with a Center Lock adapter.
Facts: Magura "MDR-P" Rotor - 6 Bolt
- Diameter: 180mm, 203mm or 220mm
- Mount: 6 bolt (IS)
- Material: stainless steel
- Design: two piece, Dovetail Interlink splines
- Rotor Thickness: 2.0 mm
- Weight:
- 180 mm: 190 g
- 203 mm: 216 g
- 220 mm: 241 g - Fits: Magura MT series (except MT A2), MT C series, CMe series

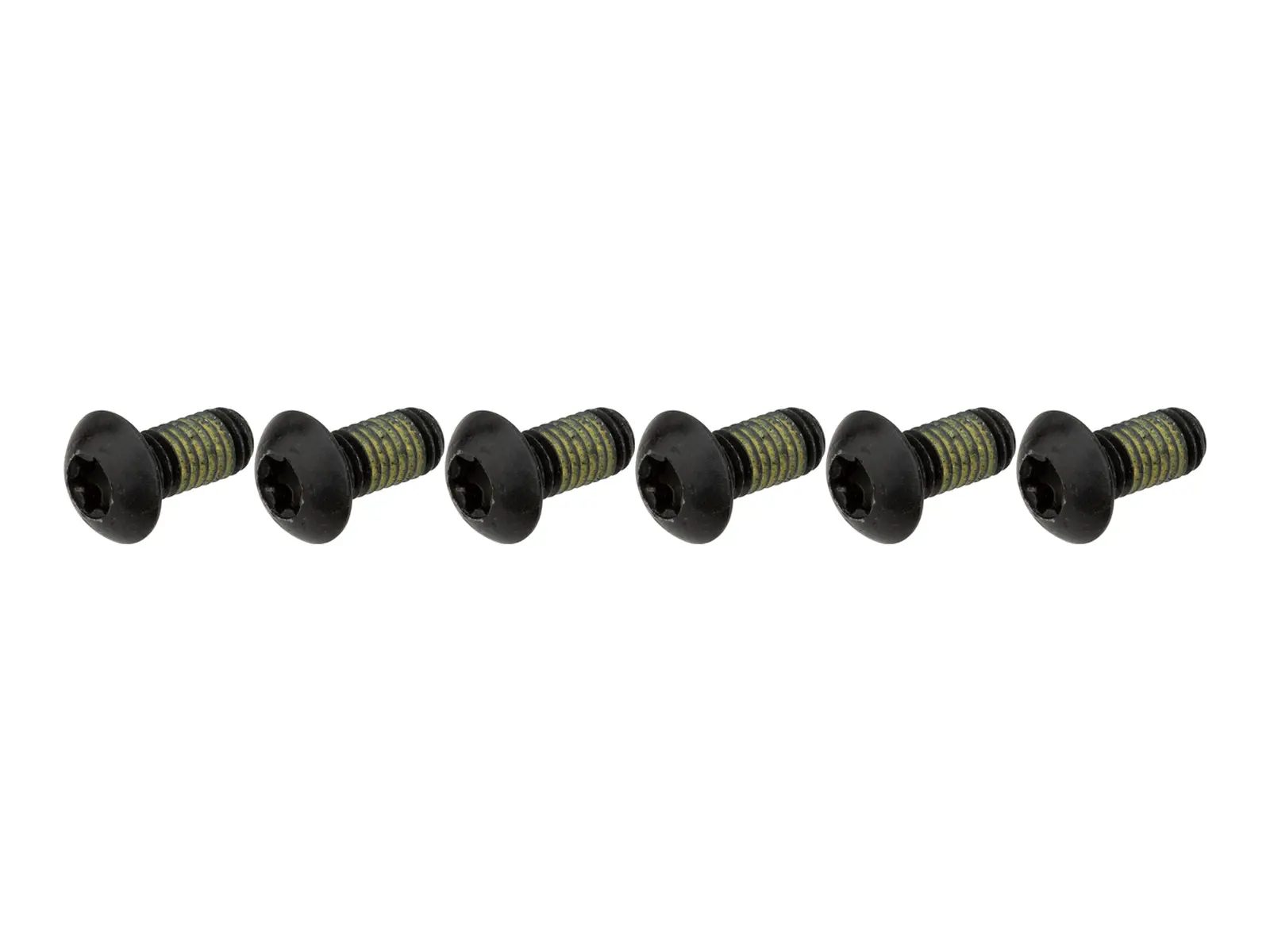

- Content: 1 rotor, 6 mounting bolts
