Shimano "XTR M9100" BMX Race Disc Brake - Post Mount
- Weight : 0.34kg / 0.75lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45907
- Product safety
Weight
Source: BMX Glossary
Printed: 10/29/2026

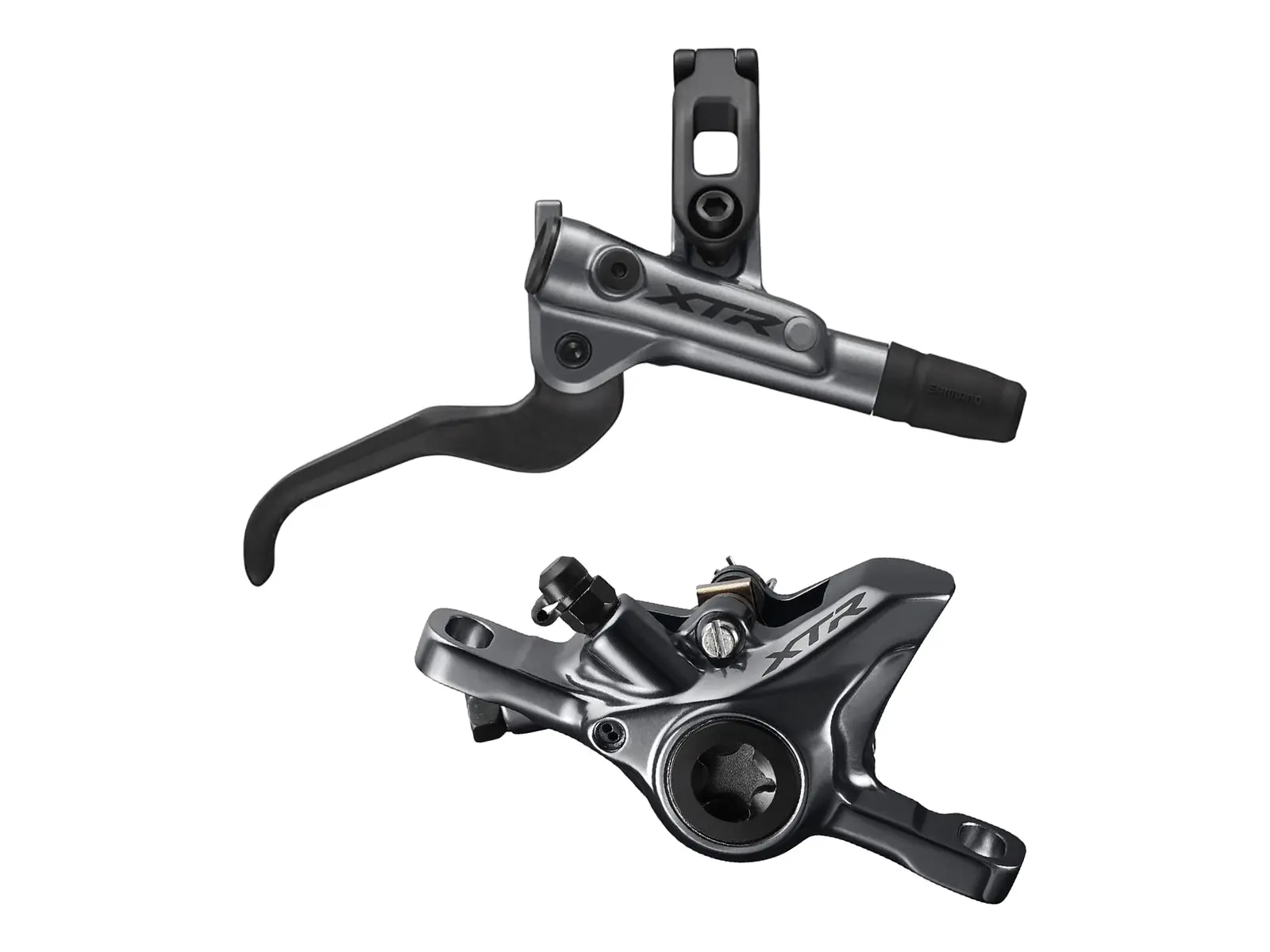

The Shimano "XTR M9100" BMX Race Disc Brake - Post Mount combines the XTR BL-M9100 lever with its magnesium master cylinder and the two piston BR-M9100 caliper. The lever is 10% stiffer and 26g lighter than the M9000, returns faster and brakes more smoothly, stroke and feedback travel are 30% shorter than on the M9000. The caliper is machined from a cold forged aluminum block and has two ceramic pistons, one way bleeding makes bleeding quick.
It mounts via post mount, the lever clamps to 22.2mm bars via I-Spec EV. The brake is set up for the rear wheel with a right hand lever: the 1700mm SM-BH90-SS hose is fitted to the caliper, the lever is connected by you as a J-Kit, so you can cut the hose to length and route it internally. Only use Shimano mineral oil. Rotor and adapter are not included.
Facts: Shimano "XTR M9100" BMX Race Disc Brake - Post Mount
- Material: forged aluminum caliper, magnesium master cylinder
- Style: hydraulic disc brake
- Brake Lever:

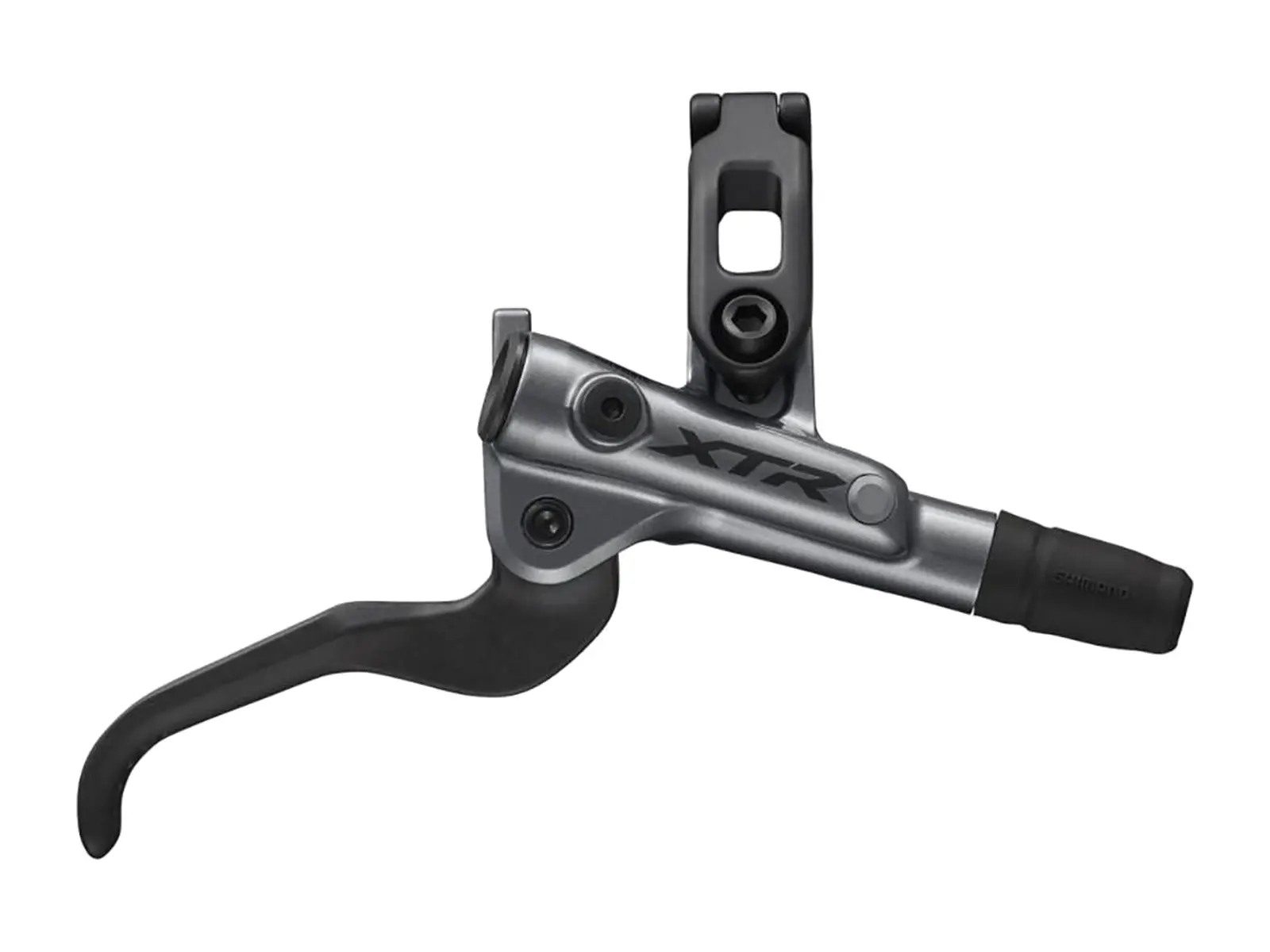

- Model: Shimano XTR BL-M9100
- bar clamp 22.2mm, I-Spec EV
- straight hose connection - Caliper:

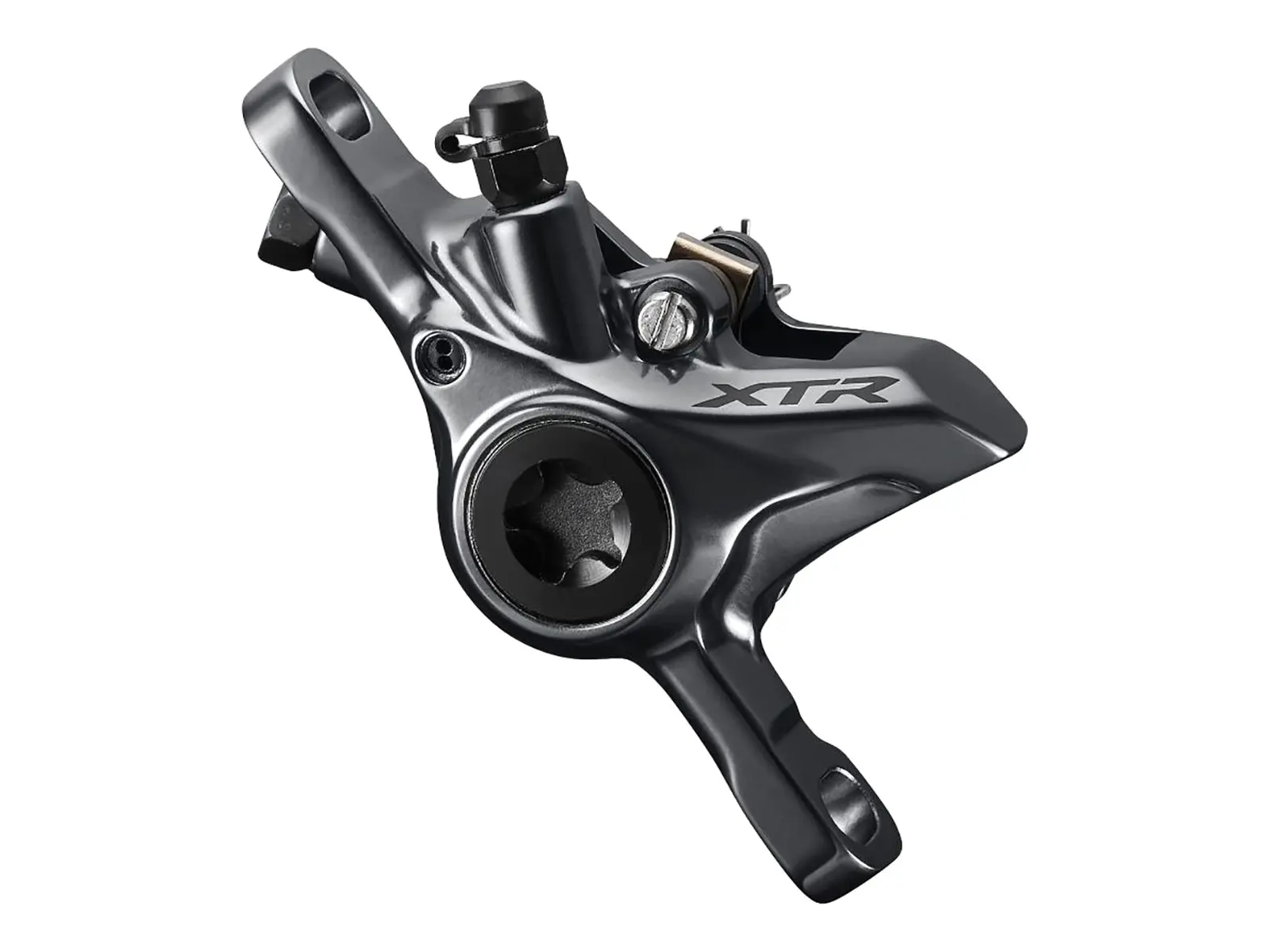

- Model: Shimano XTR BR-M9100, post mount
- Pistons: 2 ceramic pistons
- banjo connection, one way bleeding - Assembly Side: right (rear brake)
- Hose: SM-BH90-SS, 1700mm, fitted to the caliper, J-Kit
- Oil Type: Shimano mineral oil
- Pad Type: fits K03Ti and K04Ti
- Rotor: not included, adapter not included either
- Content: 1 brake lever, 1 caliper with pads, brake hose fitted to the caliper
