Shimano "Deore M6100" BMX Race Disc Brake - Post Mount
- Weight : 0.34kg / 0.75lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45928
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/shimano-deore-m6100-bmx-race-disc-brake-post-mount-p-45928
Printed: 10/29/2026
Printed: 10/29/2026

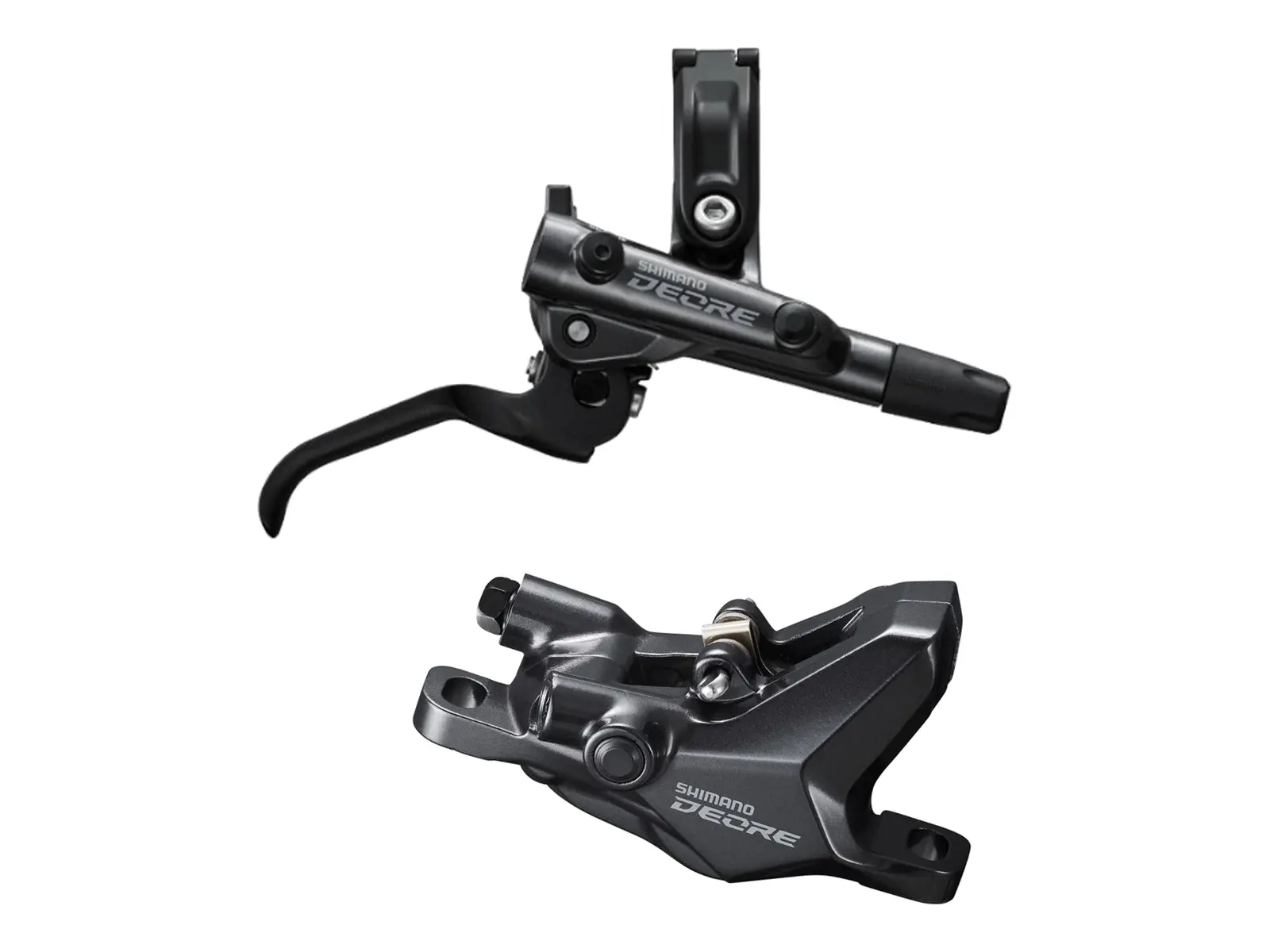

The Shimano "Deore M6100" BMX Race Disc Brake - Post Mount is a hydraulic two piston brake from Shimano's Deore group for MTB and BMX. The BL-M6100 aluminum lever with Servo Wave action engages quickly with a short stroke, the reach is adjustable and it mounts via I-Spec EV. The aluminum BR-M6100 post mount caliper works with two pistons and Ice Technologies cooling, the one way bleeding system keeps air out while bleeding.
The SM-BH90-SS hose (1700 mm) is fitted to the caliper, the lever is connected by you as a J-Kit, so the hose can be cut to the right length. G04S metal pads are fitted. Rotor and adapter are not included.
Facts: Shimano "Deore M6100" BMX Race Disc Brake - Post Mount
- Material: aluminum lever and caliper
- Style: hydraulic disc brake
- Brake Lever:

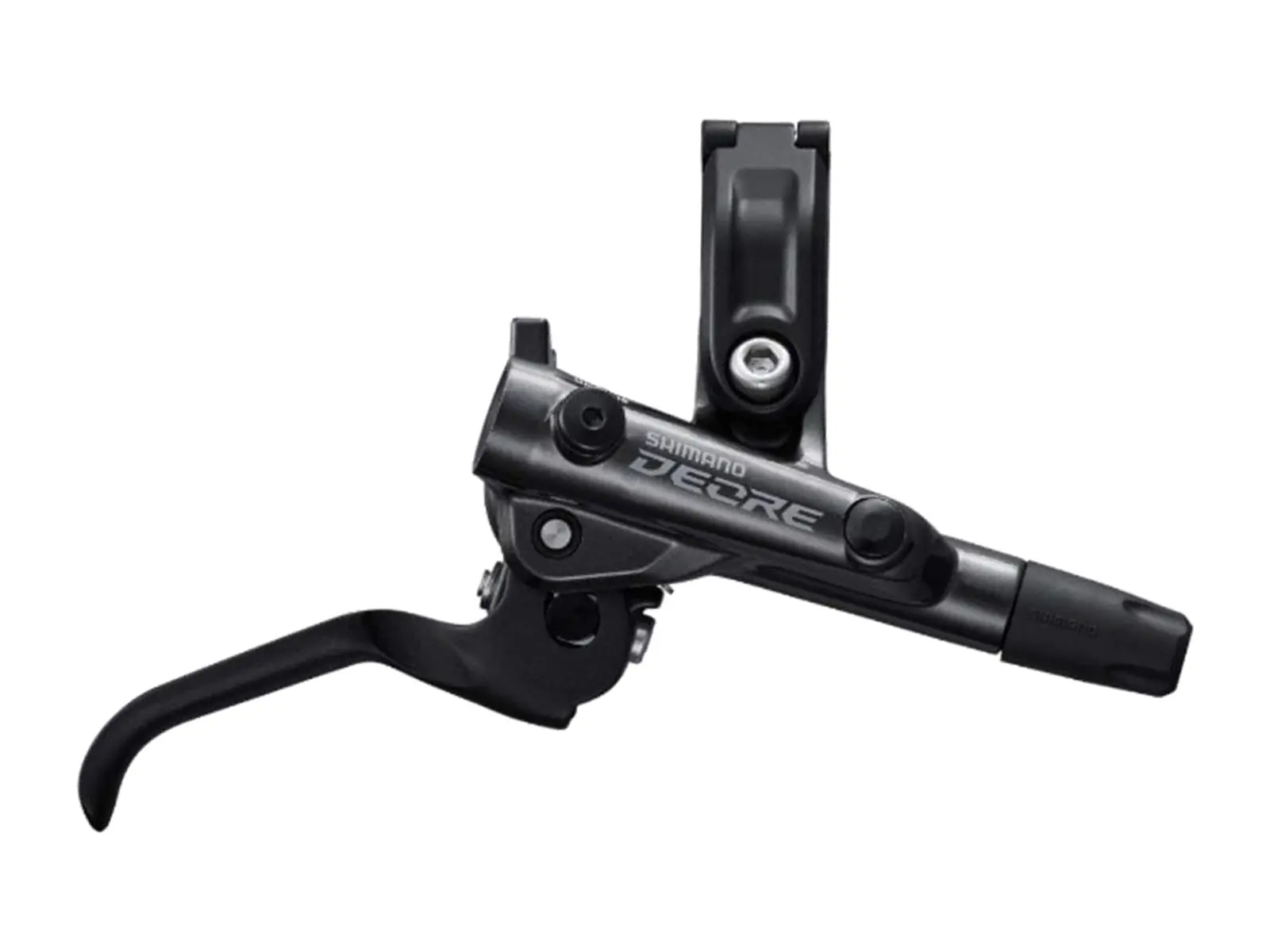

- Model: Shimano BL-M6100
- Servo Wave action
- adjustable reach
- I-Spec EV mount, handlebar clamp 22.2mm
- straight hose connection - Brake Caliper:

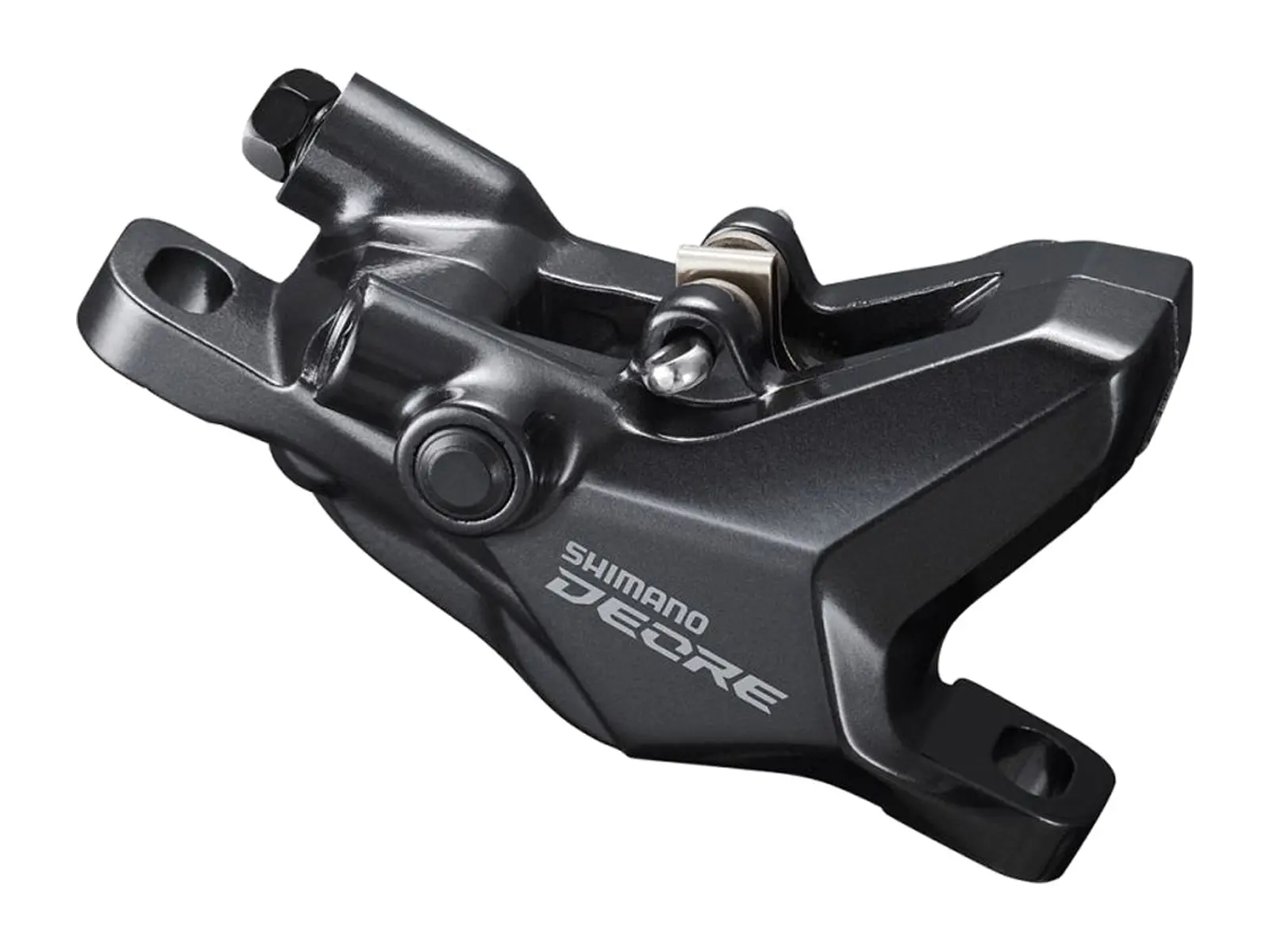

- Model: Shimano BR-M6100, post mount
- Pistons: 2 pistons
- Ice Technologies cooling
- one way bleeding
- straight hose connection - Brake Hose: SM-BH90-SS, 1700 mm, fitted to the caliper, J-Kit
- Oil Type: Shimano mineral oil, no DOT
- Pad Type: G04S, metal, G03S and J03A resin also fit
- Rotor: not included, adapter not included either
- Content: 1 brake lever, 1 brake caliper with pads, 1 hose fitted to the caliper
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
