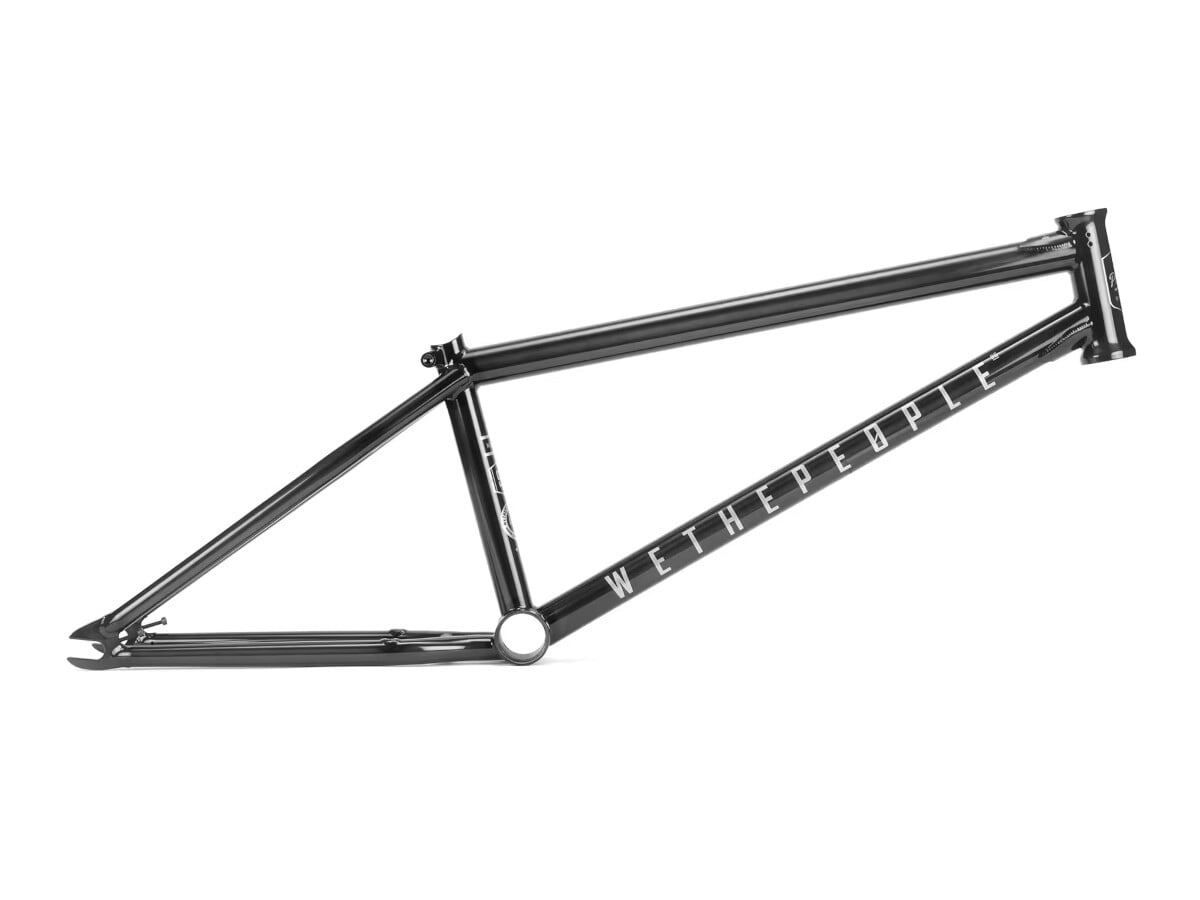

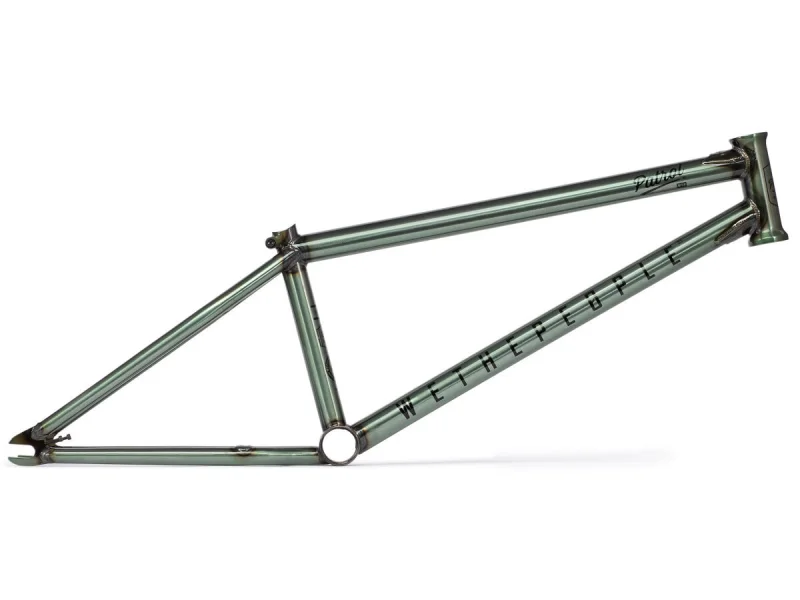

wethepeople "Patrol" BMX Frame
-
Weight : 2.38kg / 5.25lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20976
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The "Patrol" Range is a whole sub-brand of wethepeople which is heavily influenced from the trails and concrete park riding. The full line features a frame, fork and handlebar as well as stem, sprocket and barends.
The
wethepeople "Patrol" BMX Frame
is designed to be run with a larger 28-9 gearing and with chainstay located brakemounts.
The
wethepeople "Patrol" BMX Frame
pairs up a classic and stable geometry which is optimzed for trails and concret bowl riding.
Facts: wethepeople "Patrol" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
- Top Tube (TT): 21.15"
- Chain Stay (CS): 13.6" - 14"
- Head Tube Angle (HA): 74.25°
- Seat Tube Angle (SA): 71°
- BB Height: 11.5"
- Standover Height (SO): 8.9" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB, heat treated, CNC machined
- Dropouts: 6mm thick, 14mm slots, minimal size, not suitable for pegs, heat-treated
- Chain Tensioners: integrated
- Brakemounts: removable, pivot-3 (M6), not included with delivery
- Extras: extended 125mm headtube, wide rear end for fat 2.4" tires
