wethepeople "Tomorrow" BMX Frame
-
Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28772
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

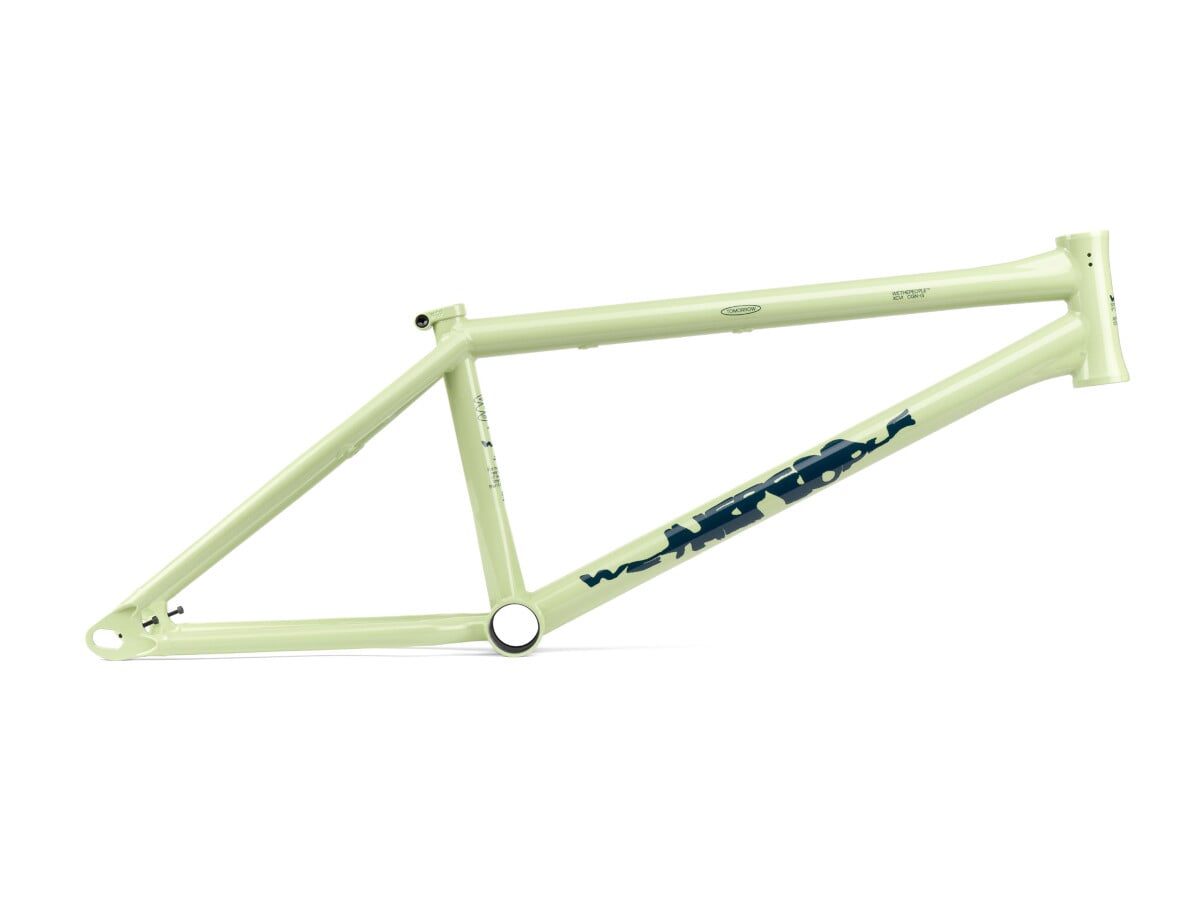

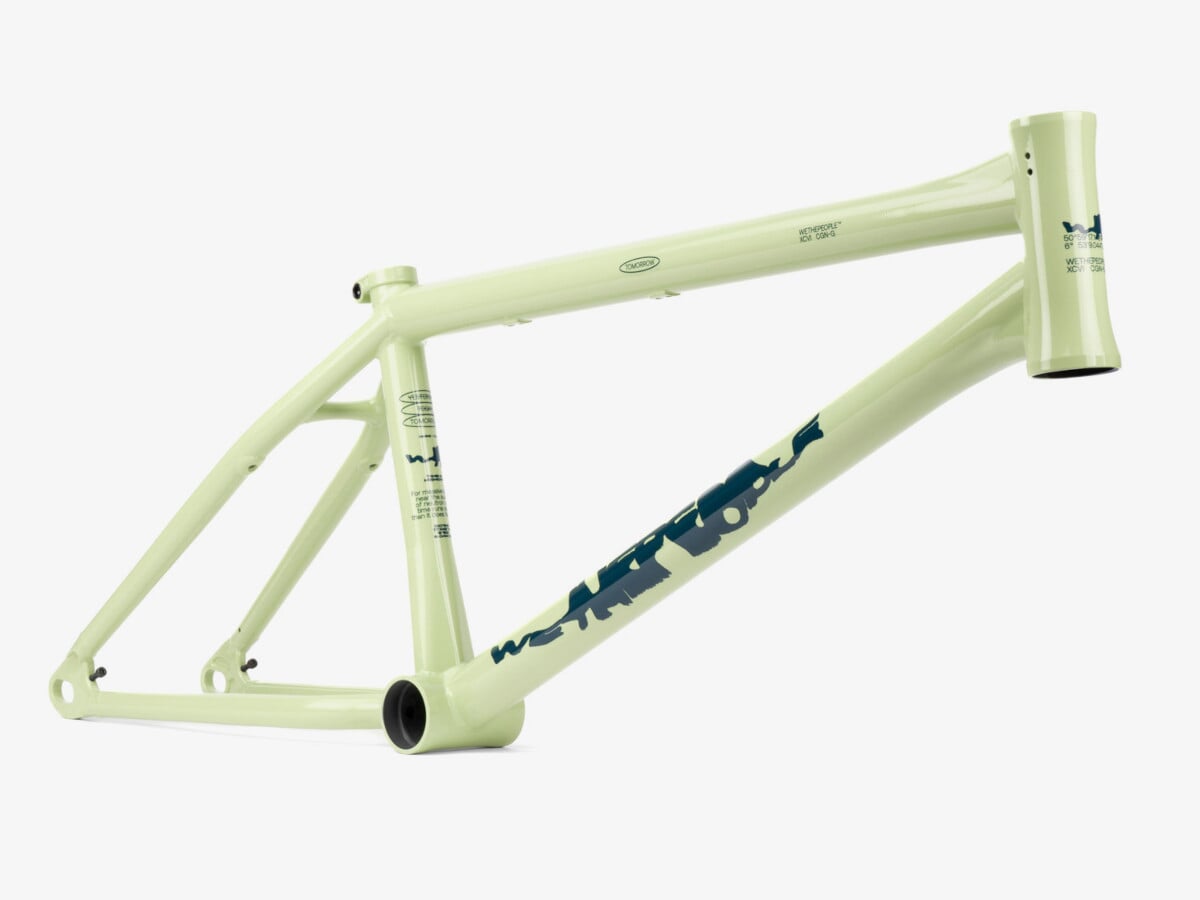

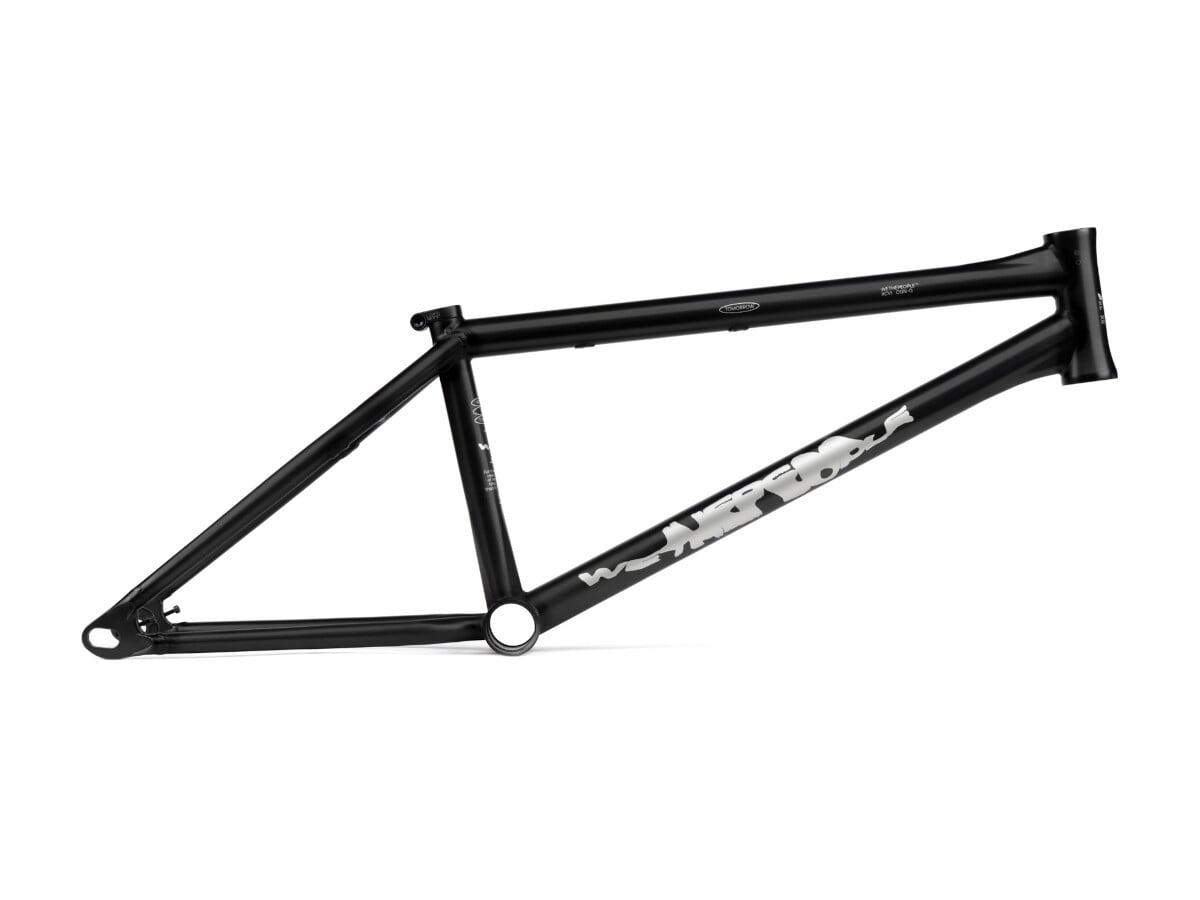

wethepeople "Tomorrow" BMX Frame
comes with several new features, such as a hydroformed top tube and down tube, and newly shaped closed investment cast dropouts, which are compatible only with female hubs while offering increased stability.
The
wethepeople "Tomorrow" BMX Frame
also includes integrated chain tensioners and a wider rear triangle to accommodate up to a 2.5" tire.
Facts: wethepeople "Tomorrow" BMX Frame
- Wheel Size: 20"

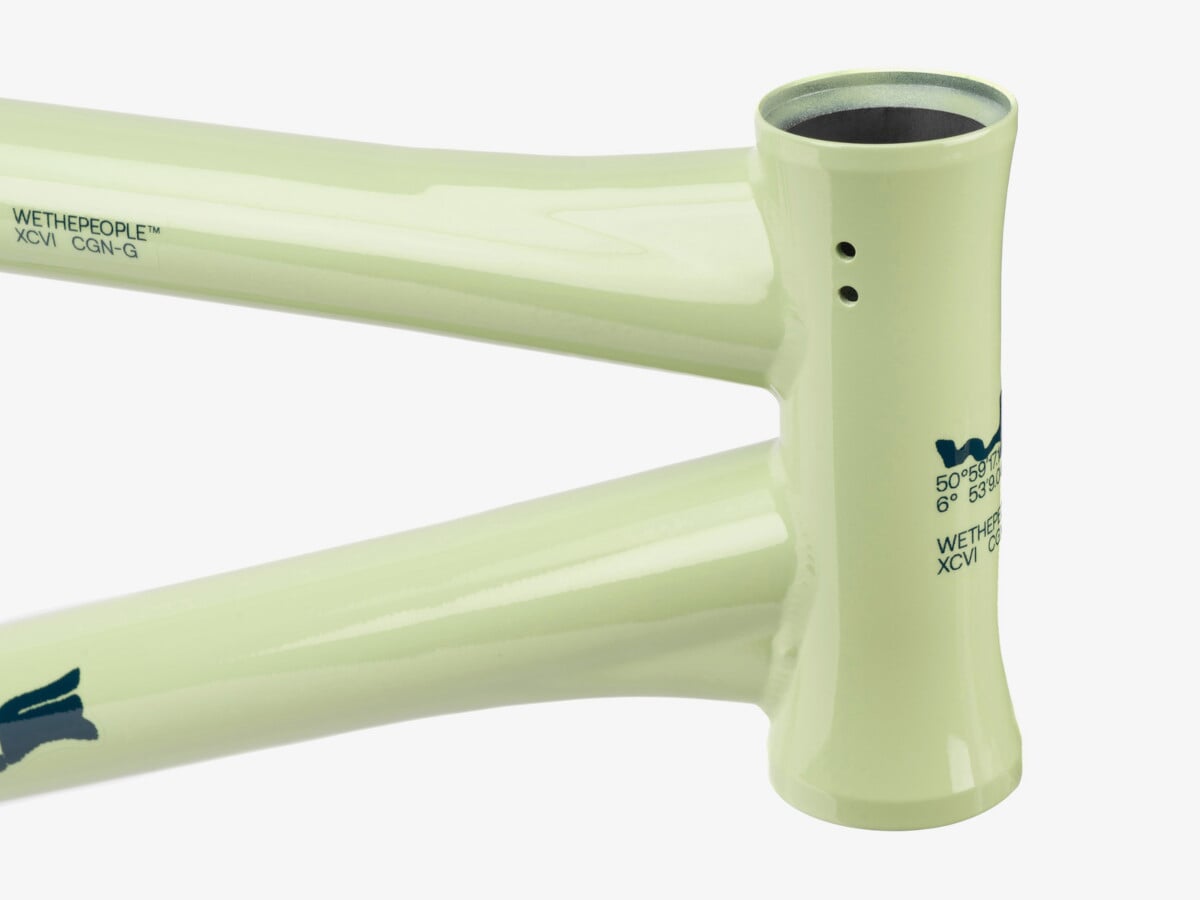

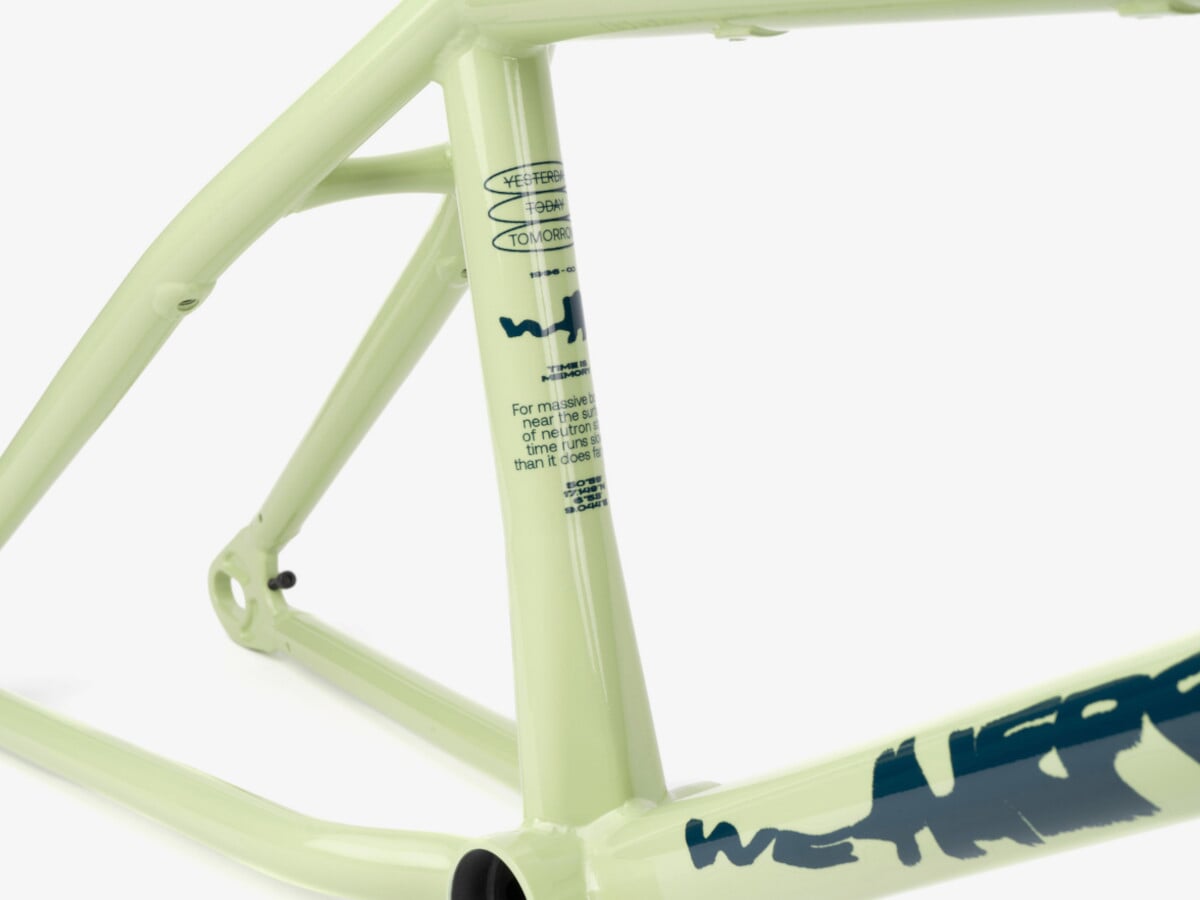

- Material: 100% 4130 Japanese CrMo, hydroformed top tube and down tube gussets, hydroformed seat tube gusset, butted tubes, integrated headset, integrated chain tensioners, dropouts for for 14mm female bolt/thru-axle (TA) hubs only
- Geometry:
- Top Tube Length (TT): 20.75" or 21.0"
- Chainstay Length (CS): 12.7" (32.26cm) - 13.25" (33.65cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9.5" (24.13cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

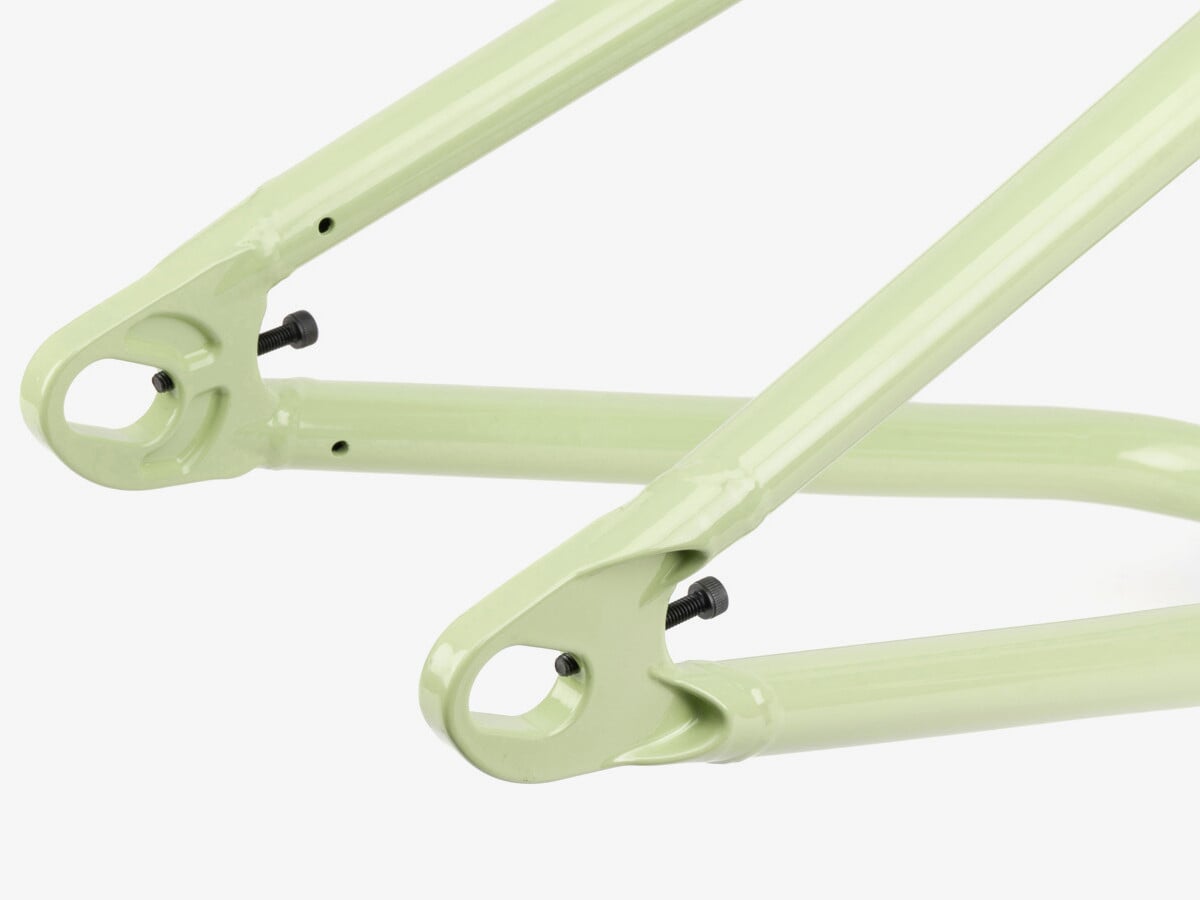

- Dropouts: Investment cast, 8mm thick, 14mm slots, new shape for perfect hubguard/peg fit, female bolt/thru-axle (TA) hubs only
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Hydroformed top and down tube for the strongest possible connection to the headtube, Frame suitable only for female bolts
