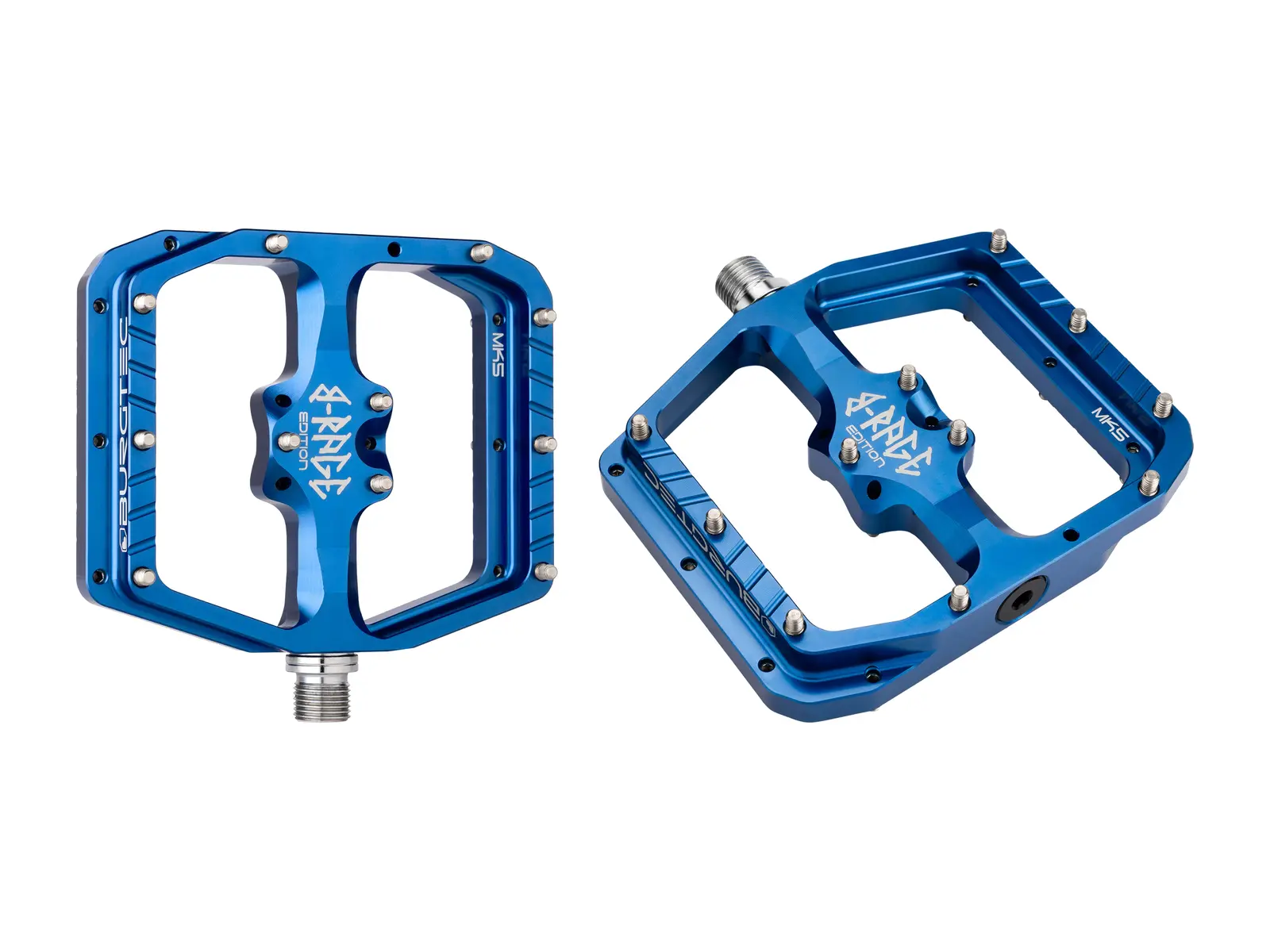

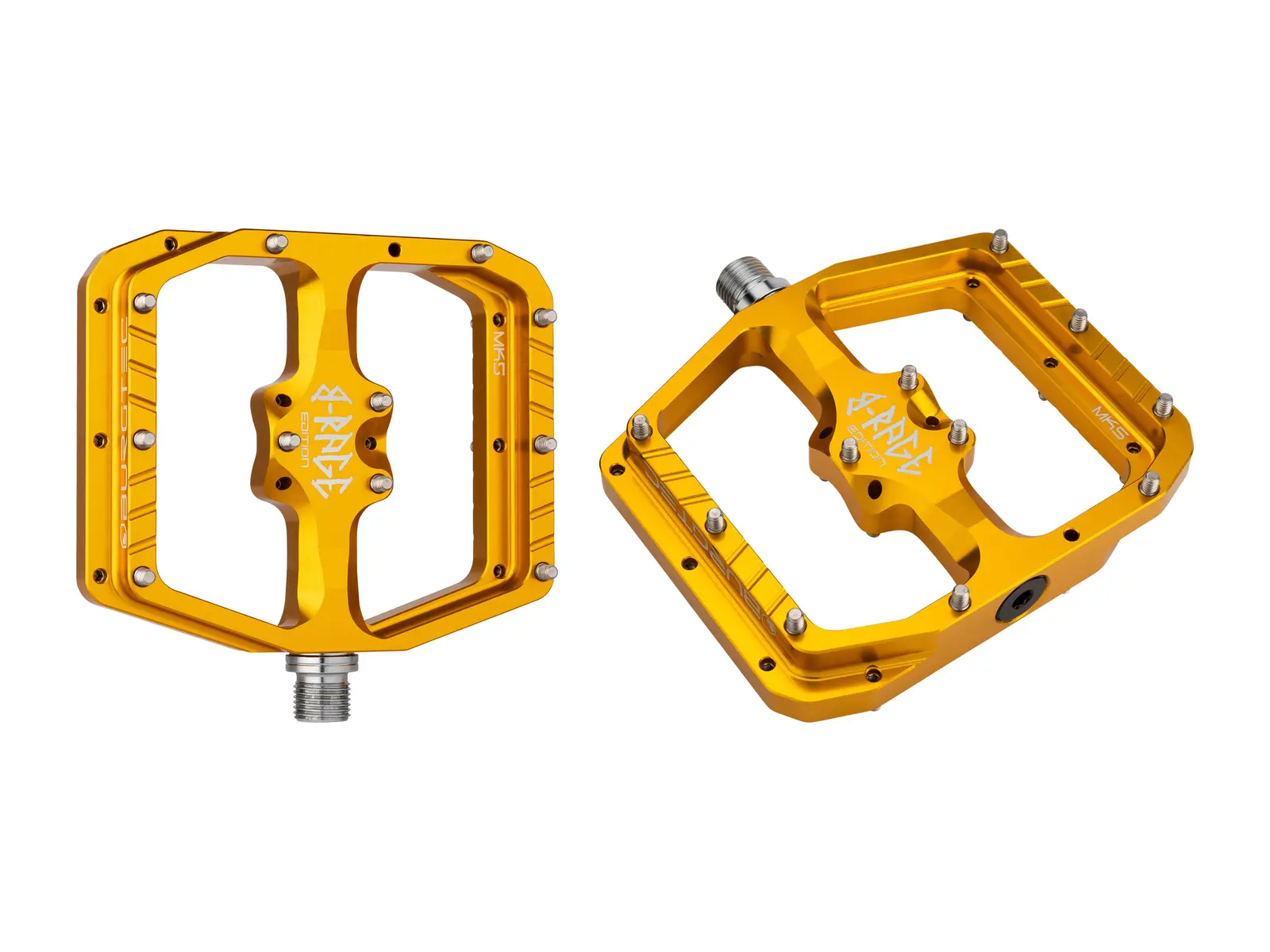

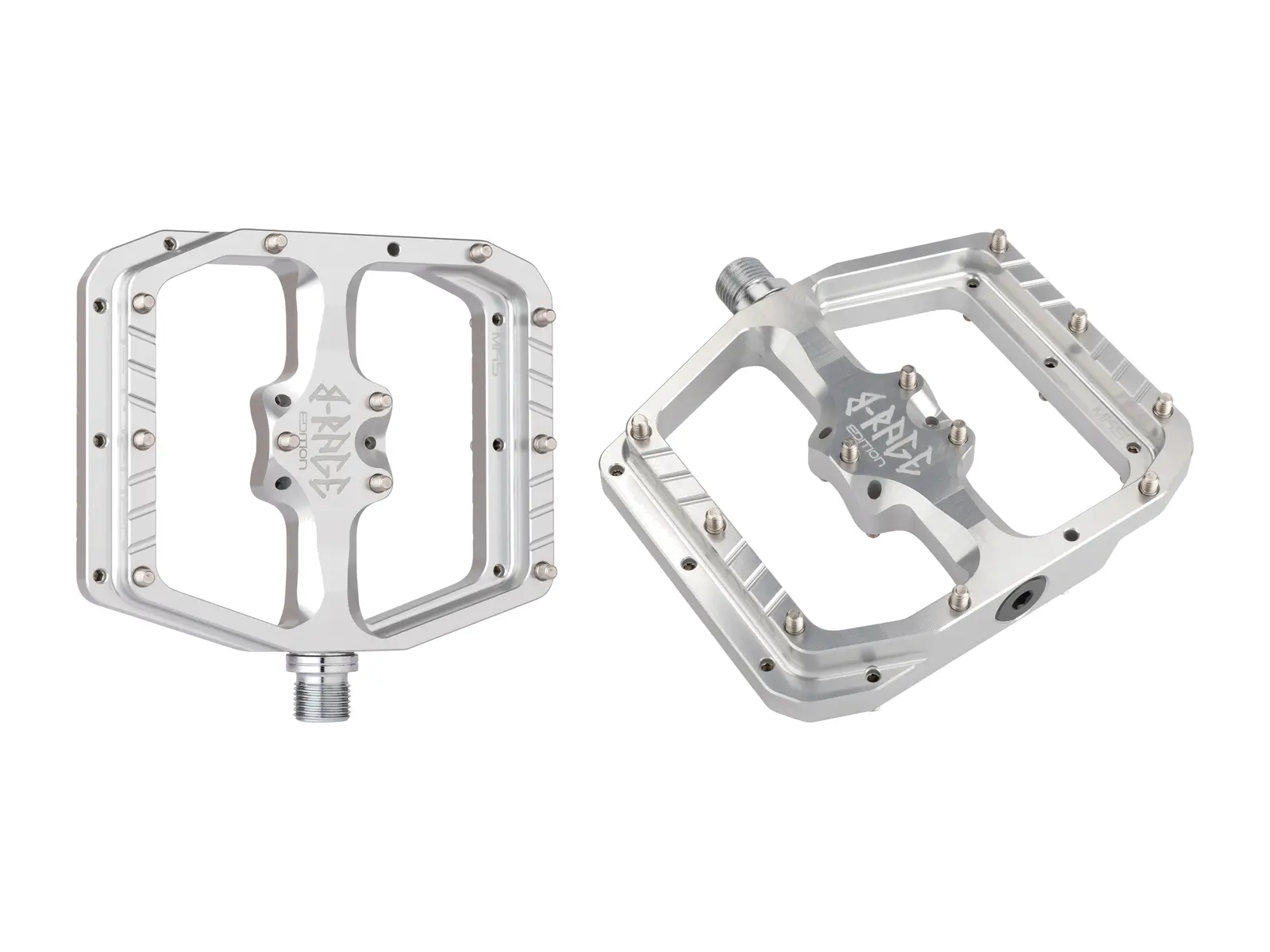

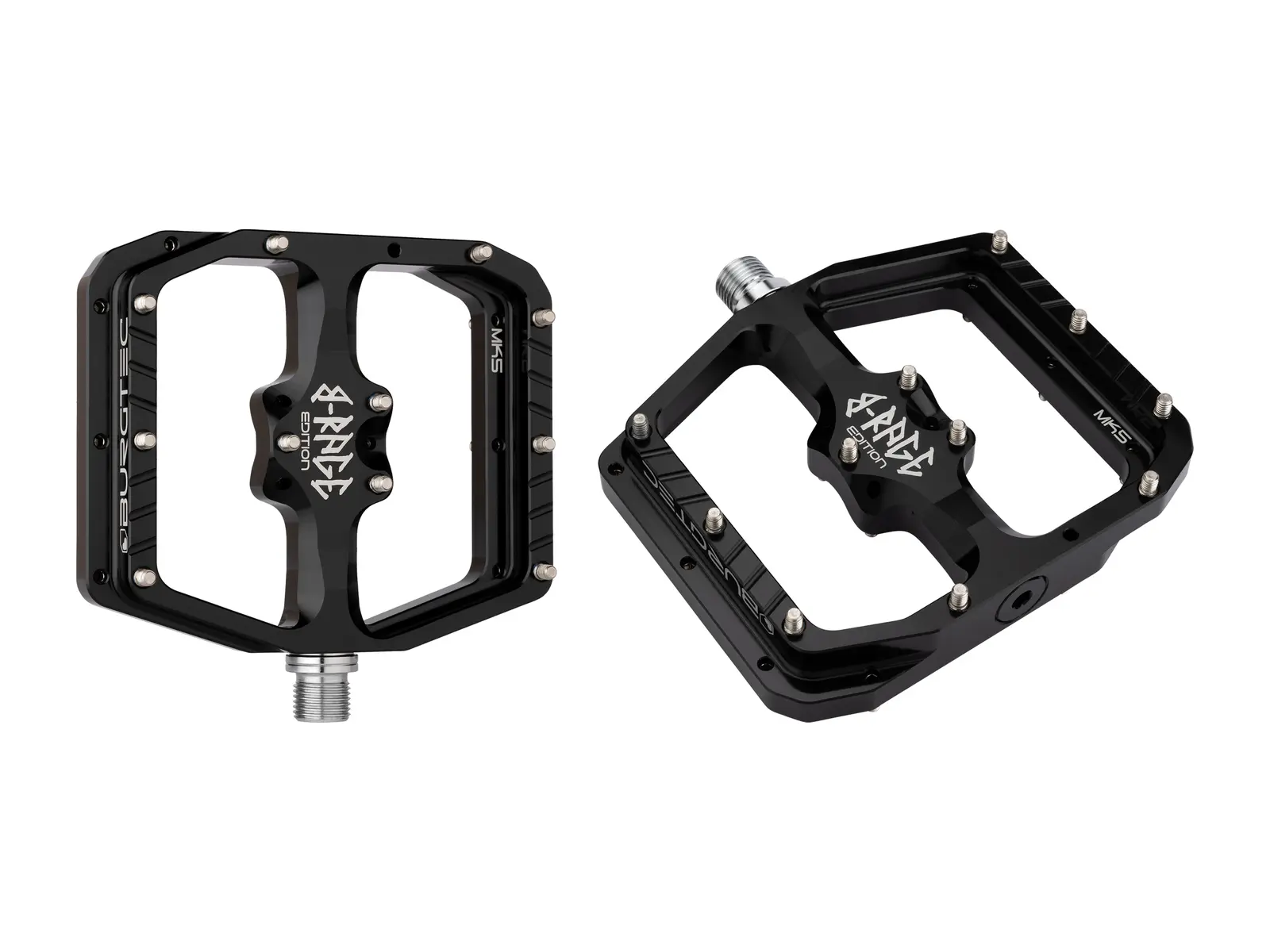

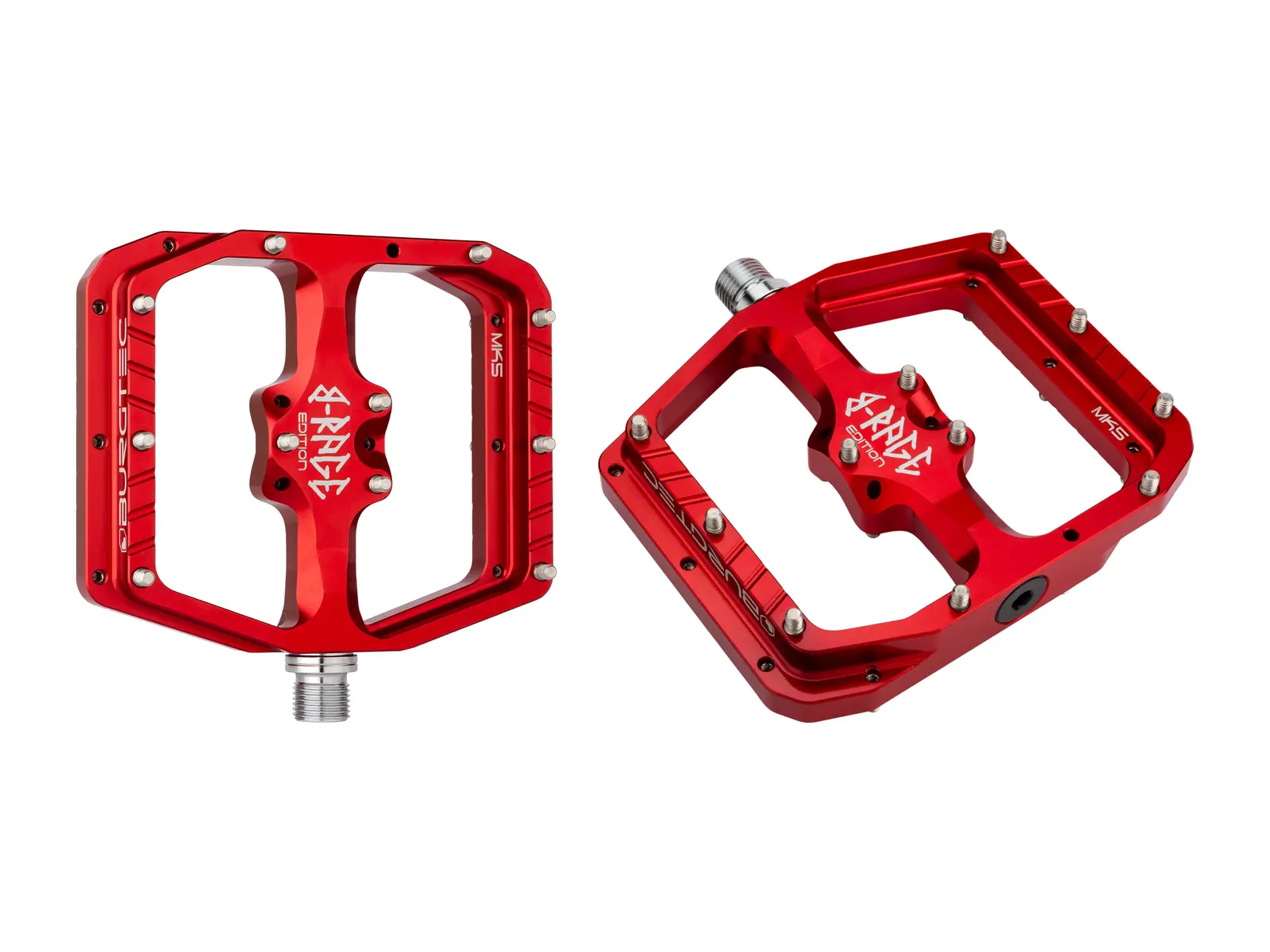

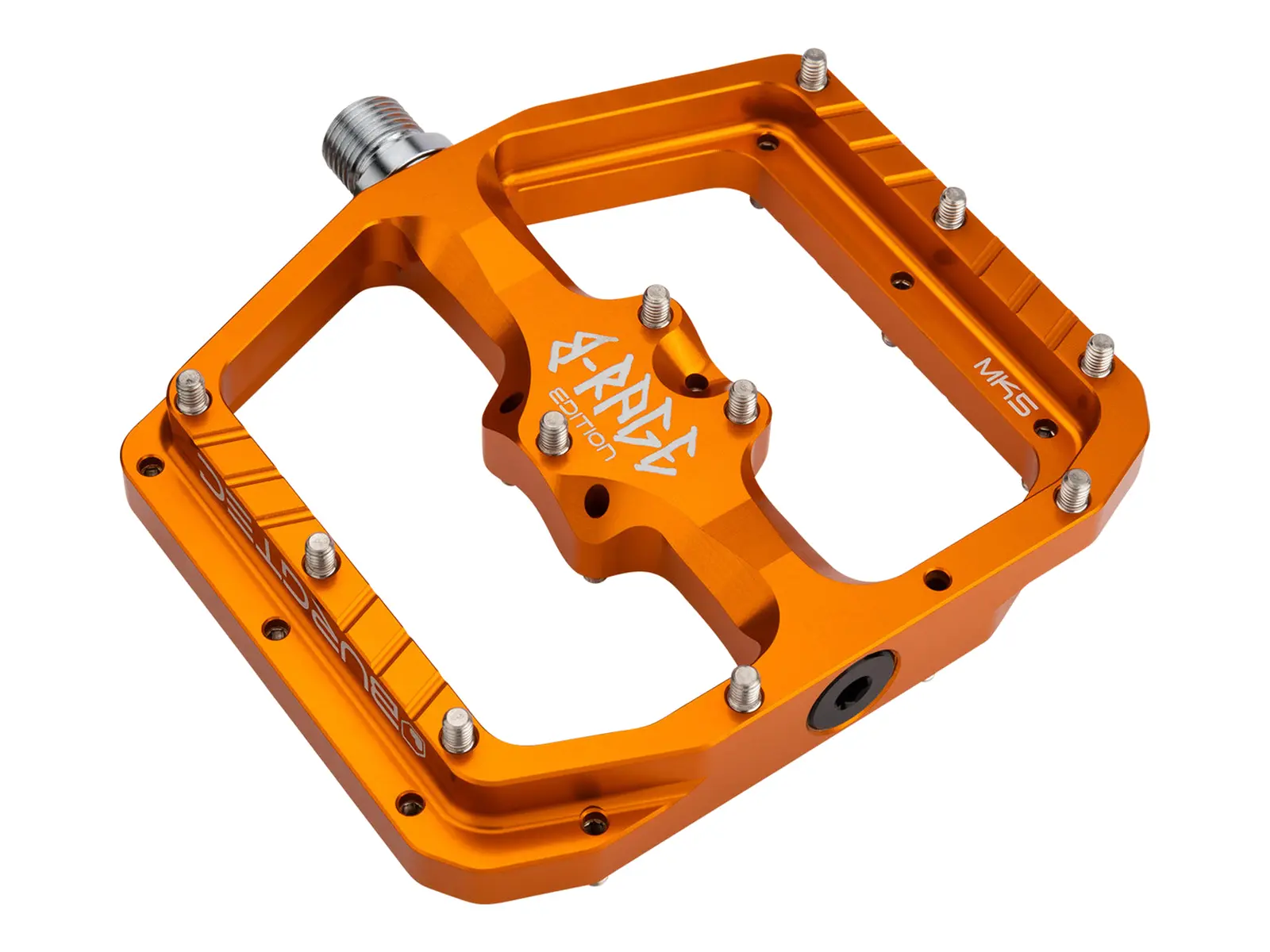

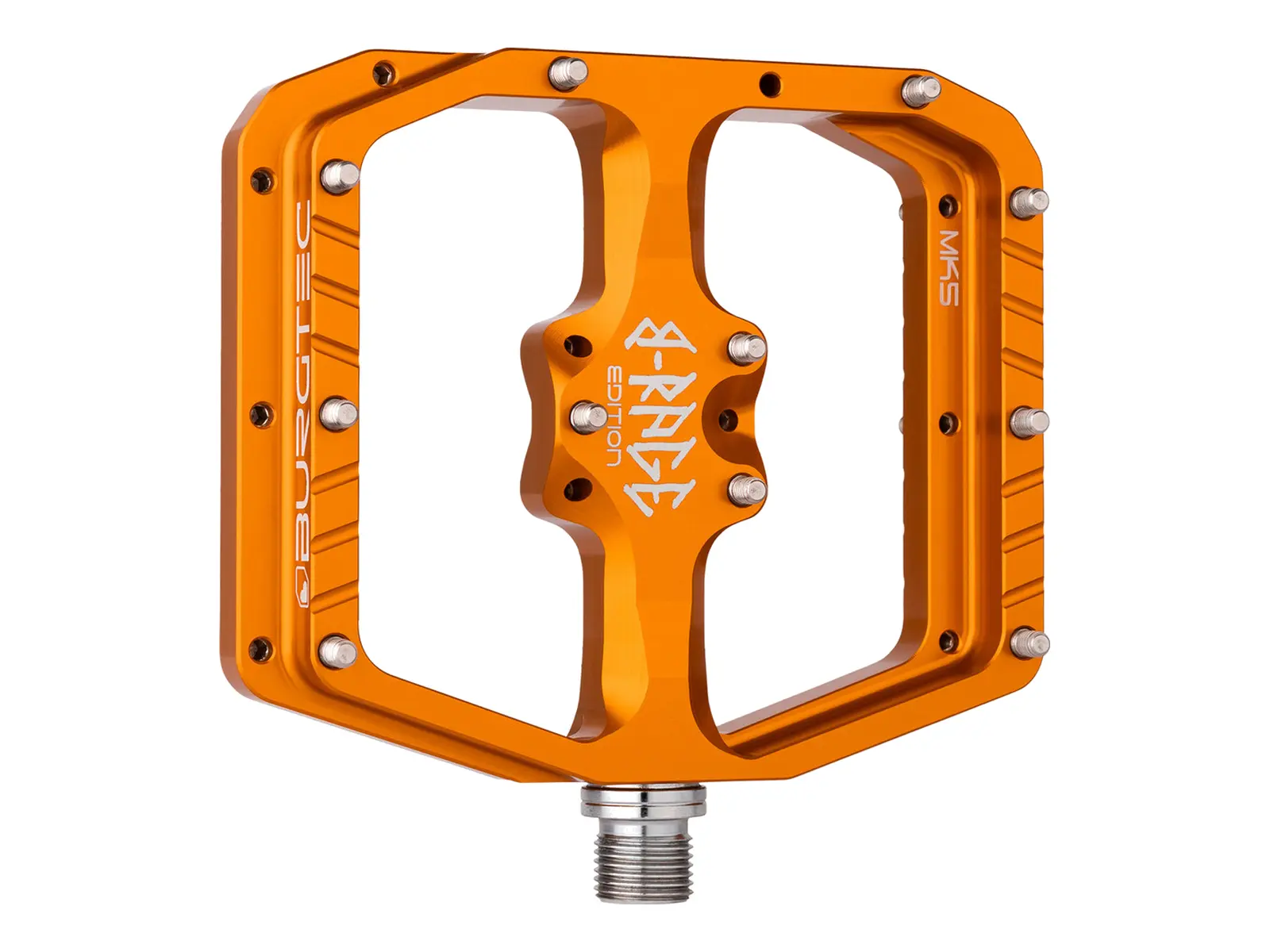

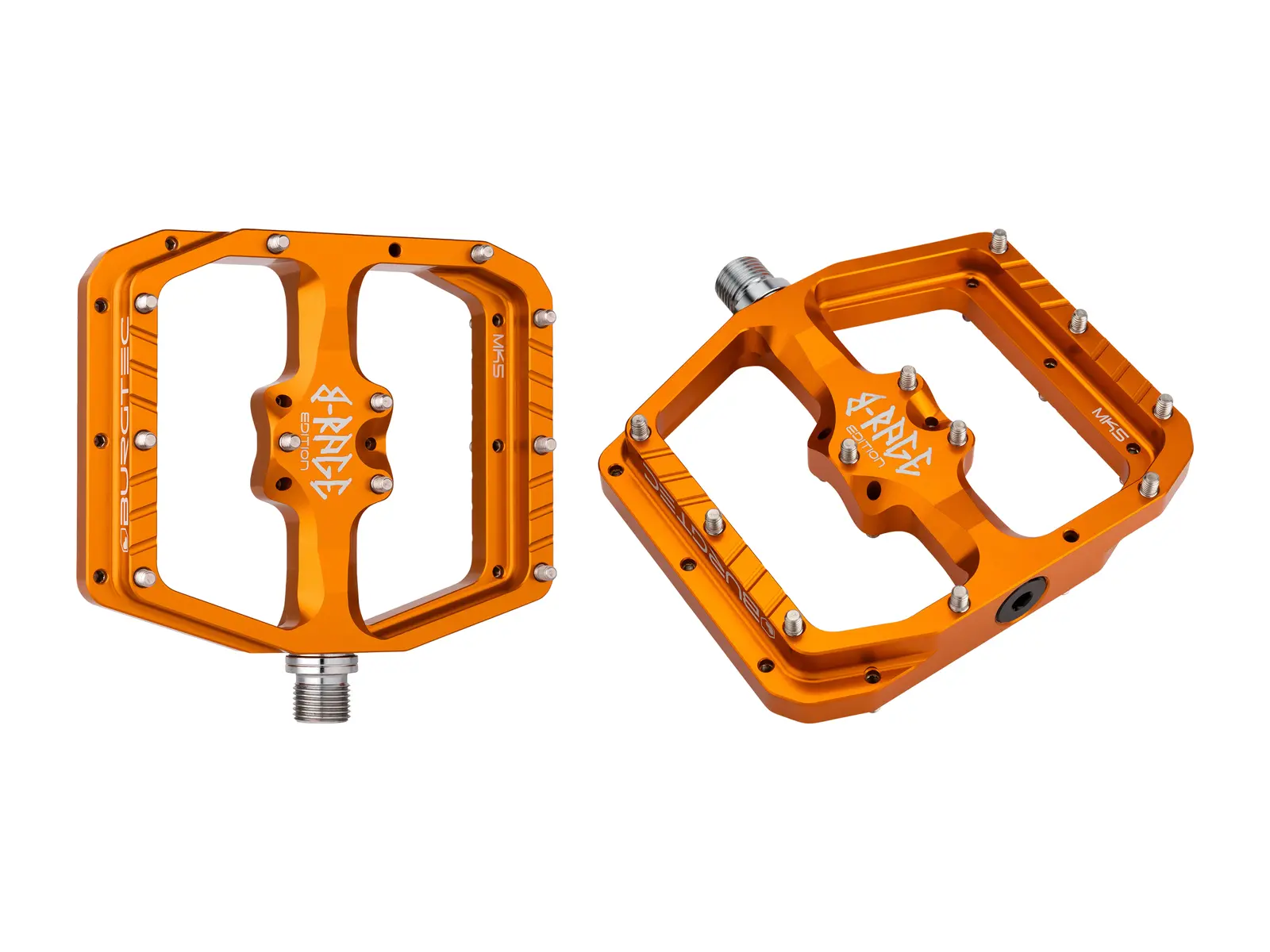

Burgtec "Penthouse Flat MK5 B-Rage Edition" MTB Pedals
-
Weight : 0.51kg / 1.12lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: Pair
- Product ID (PID): 38399
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

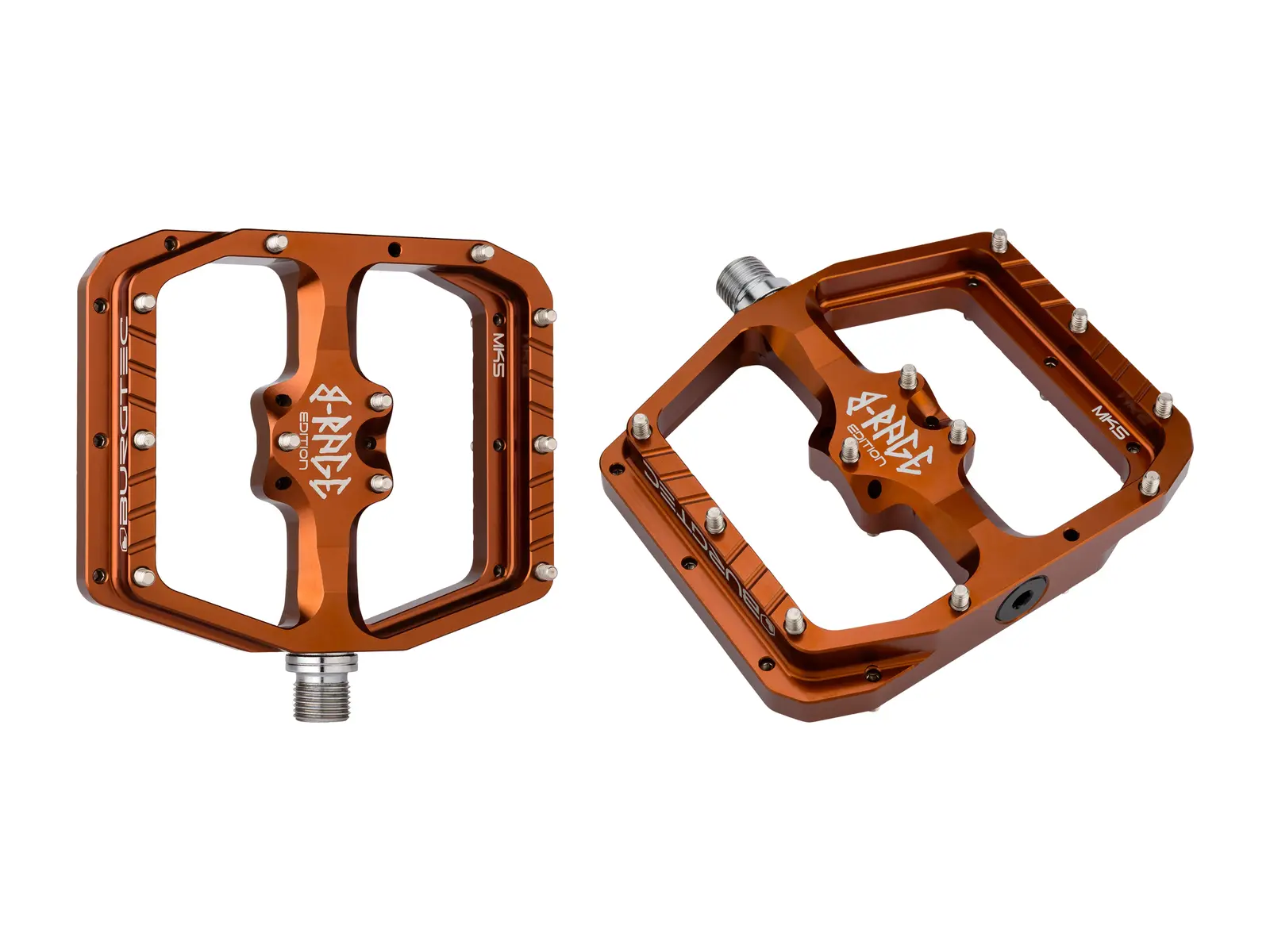

The Burgtec "Penthouse Flat MK5 B-Rage Edition" MTB Pedals are the big version of the Penthouse Flat MK5, developed with Brage Vestavik. The platform is 12 mm longer at 112 x 102 mm with 18 mm of stack and 3 mm of dish, while width and q-factor stay the same as the MK5. A pad in the centre carries three extra pins, 22 stainless steel pins per pedal in total at 5 mm height. 7075 aluminium body, EN24T steel axle, and internally the same build as the MK5 with igus bushings, a sealed cartridge bearing and an oil seal. 513 g per pair.
Facts: Burgtec "Penthouse Flat MK5 B-Rage Edition" MTB Pedals
- Material:
- pedal body: aluminium (7075)
- axle: steel (EN24T)
- pins: stainless steel - Bearing: two igus W300 bushings and one sealed cartridge bearing per pedal, inboard oil seal
- Extras:
- platform 12 mm longer than the Penthouse Flat MK5
- 3 mm concave platform
- extra centre pad carrying three pins
- 22 pins per pedal, 11 per side
- 4 mm pin width, 5 mm pin height
- weight 513 g per pair - Width: 102 mm
- Length: 112 mm
- Height: 18 mm
- Scope of Delivery: 1 pair of pedals
