Promax "EX-1" BMX Race Bottom Bracket - 24mm
- Weight : 0.1kg / 0.22lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45022
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/promax-ex-1-bmx-race-bottom-bracket-24mm-p-45022
Printed: 10/30/2026
Printed: 10/30/2026

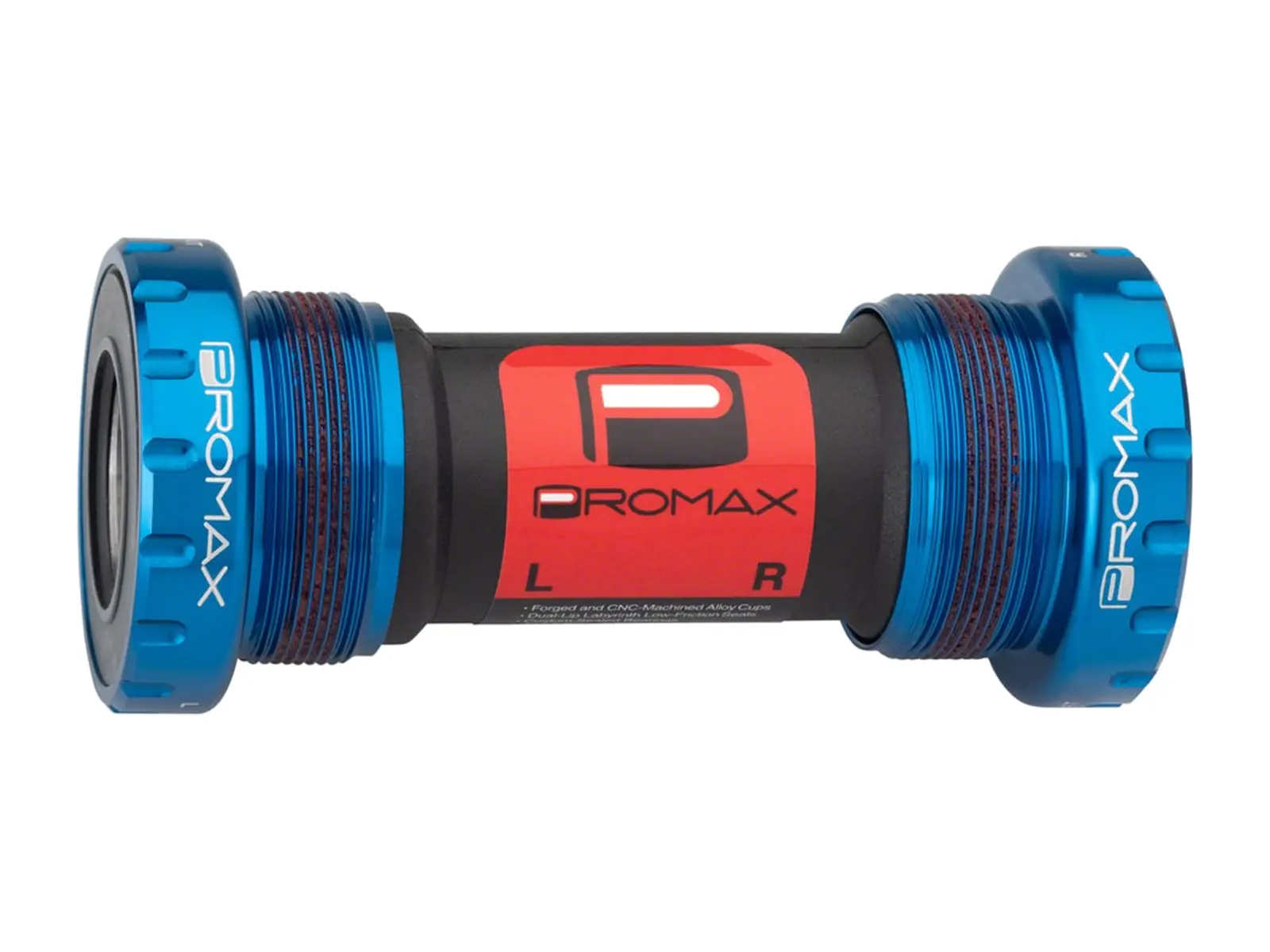

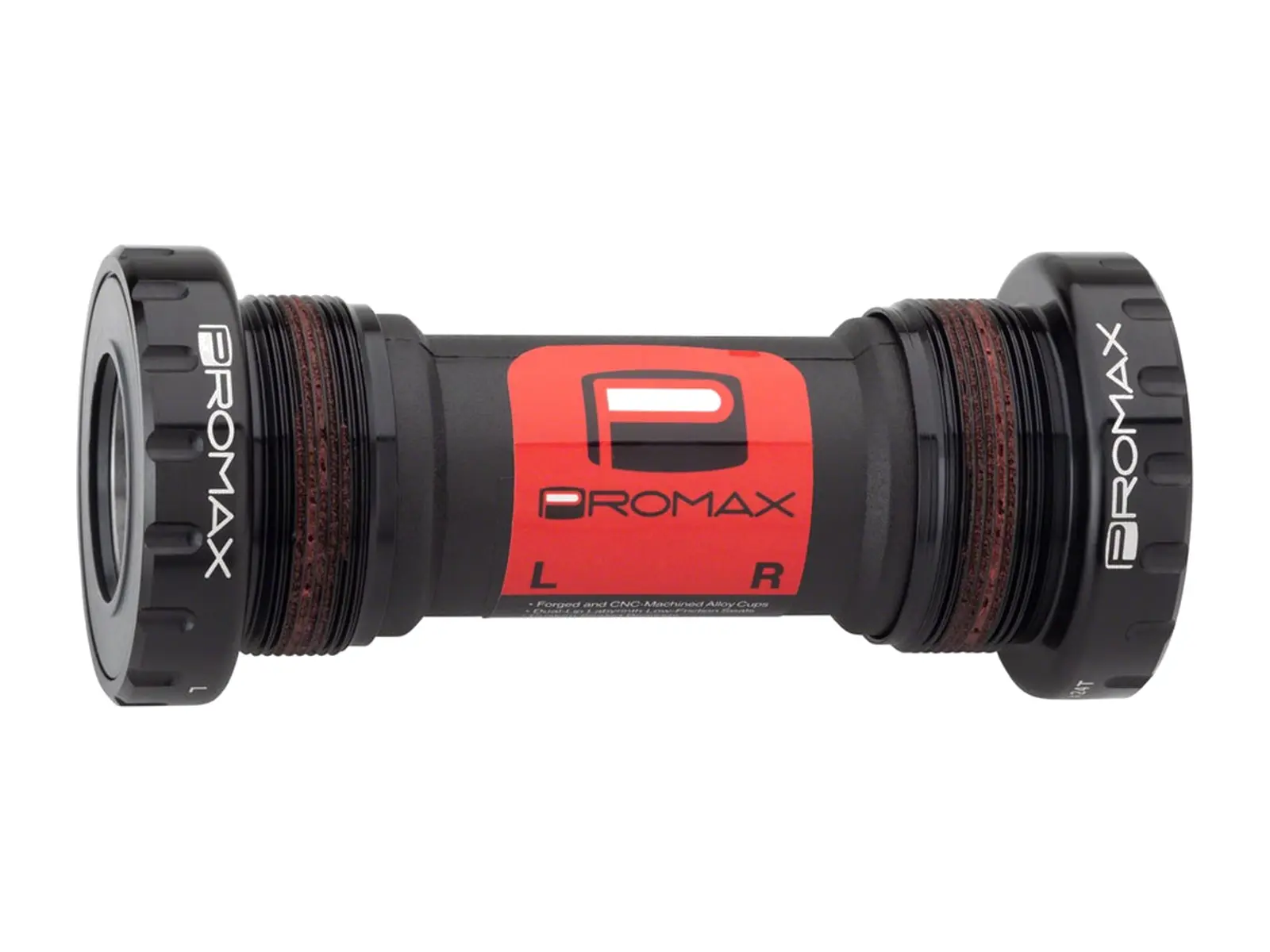

The Promax "EX-1" BMX Race Bottom Bracket - 24mm is an external bottom bracket for cranks with a 24mm spindle and fits internally threaded Euro BSA/BSC shells with 68 or 73mm width. The cups are CNC machined from 6061-T6 aluminum and support the sealed bearings well in the shell, so the crank turns easily and without play. Three spacers are included. Choose the colour as an option.
Facts: Promax "EX-1" BMX Race Bottom Bracket - 24mm
- Style: BSA (Euro BSA/BSC, internal thread), external bearings
- Axle Diameter: 24mm
- Bearings: 2 x sealed bearings
- Spacers: 3 spacers included
- Extras: CNC machined 6061-T6 aluminum cups, for 68/73mm shells, weight: 103g
- Content: 2 bearing cups, 3 spacers
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
