Shimano "Saint M820" BMX Race Disc Brake - Post Mount
- Weight : 0.34kg / 0.75lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45932
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/shimano-saint-m820-bmx-race-disc-brake-post-mount-p-45932
Printed: 10/29/2026
Printed: 10/29/2026

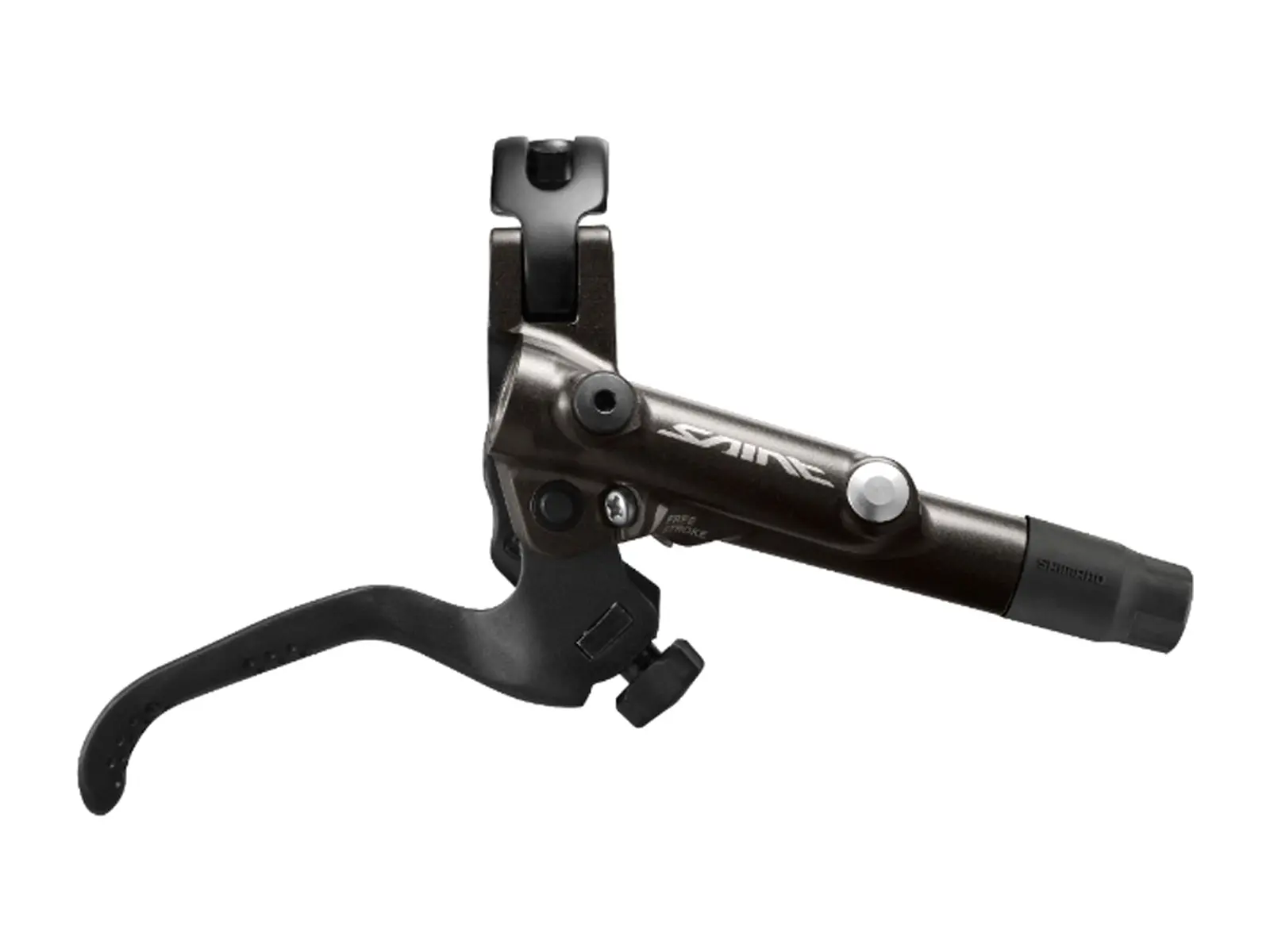

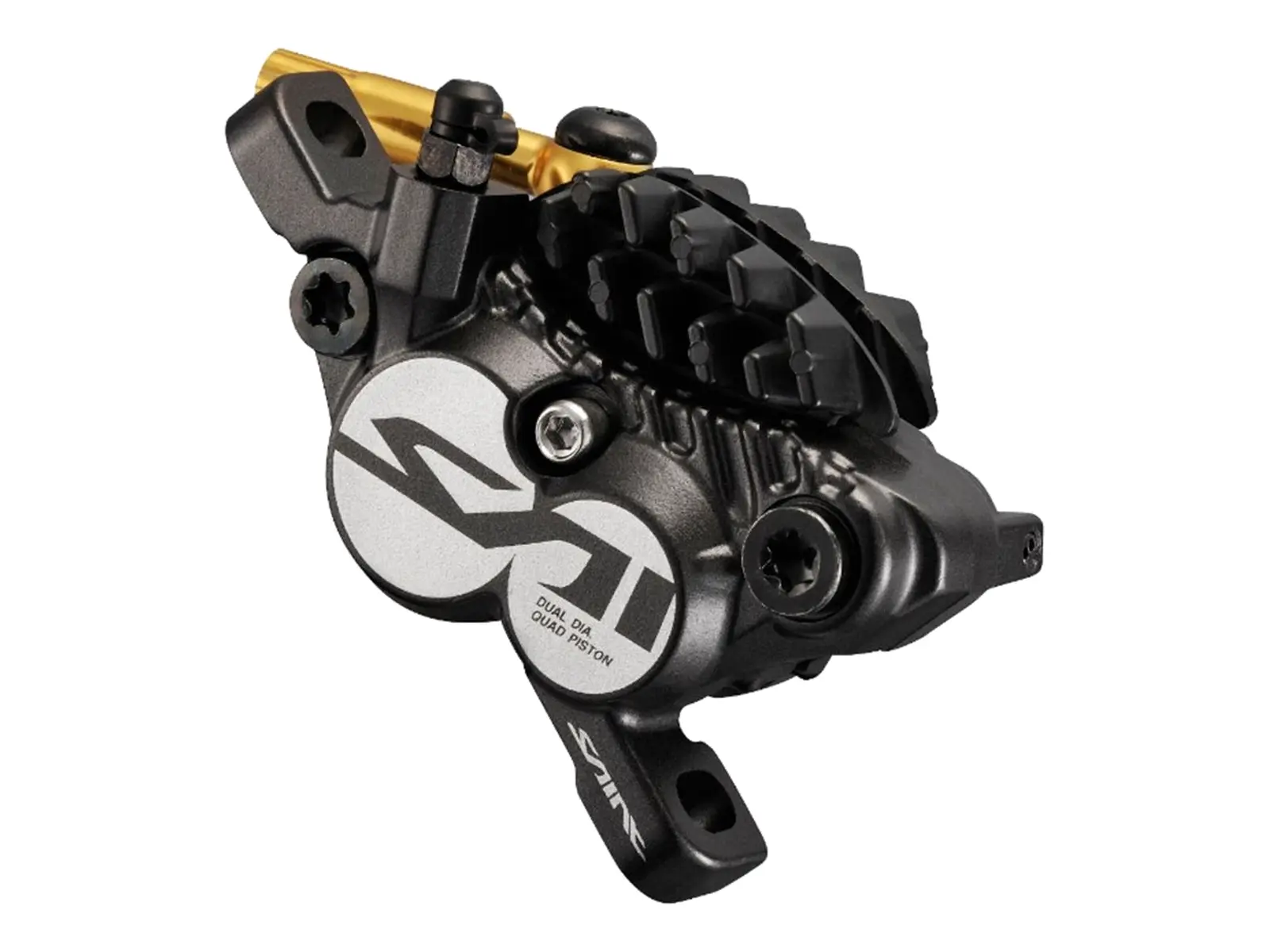

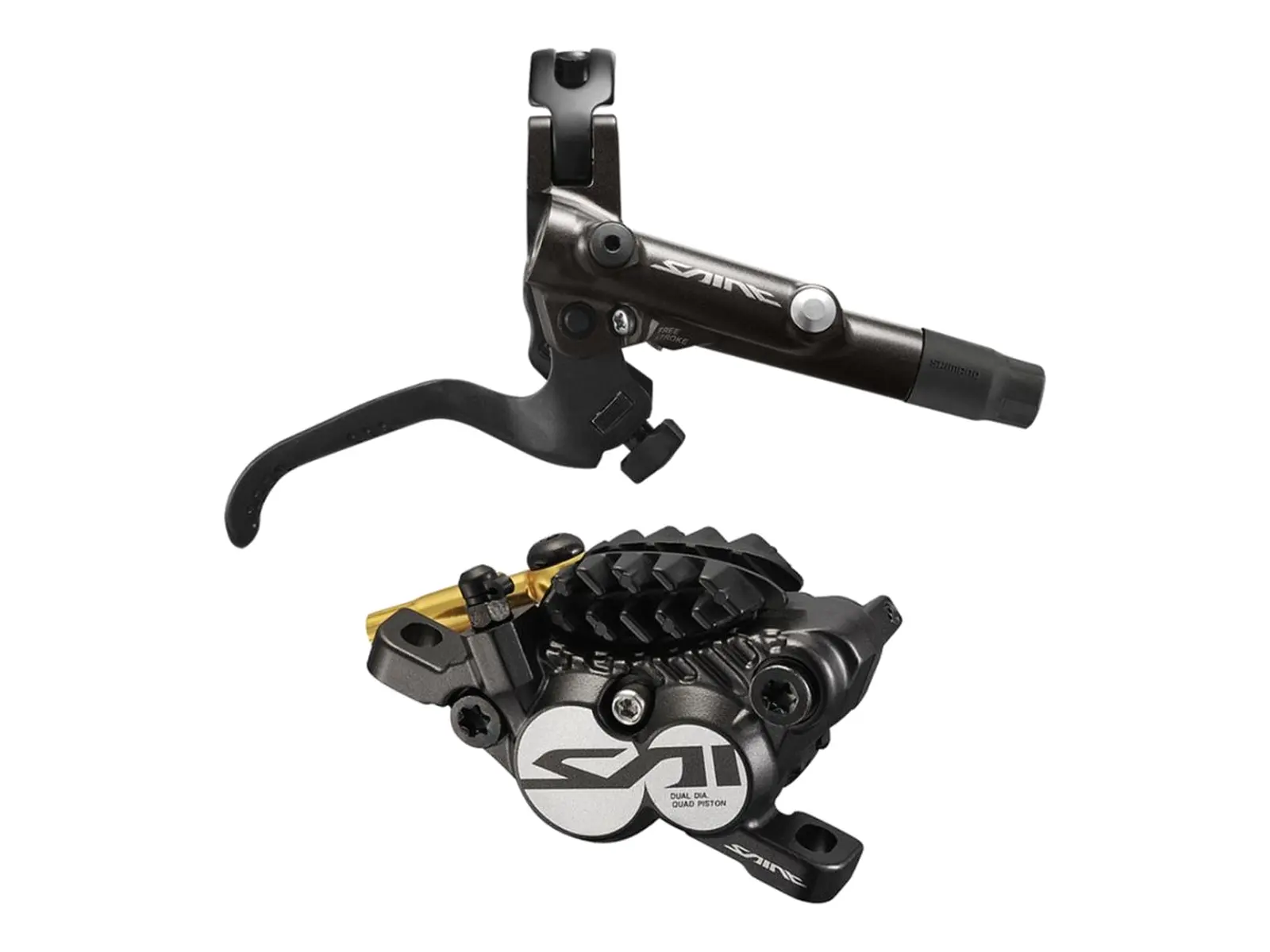

The Shimano "Saint M820" BMX Race Disc Brake - Post Mount is Shimano's four piston brake of the Saint group, built for hard descents. The ergonomic BL-M820 two finger aluminum lever with a non slip blade and Servo Wave action turns hand force into braking power, the reach is adjustable and it mounts via I-Spec II. The aluminum BR-M820 post mount caliper works with four ceramic pistons, Ice Technologies cooling keeps the performance constant on long descents, and the one way bleeding system keeps air out while bleeding.
The hose (1700 mm) is fitted to the caliper with a banjo. H03C metal pads are fitted. Rotor and adapter are not included.
Facts: Shimano "Saint M820" BMX Race Disc Brake - Post Mount
- Material: aluminum lever and caliper
- Style: hydraulic disc brake
- Brake Lever:
- Model: Shimano BL-M820
- two finger lever, non slip blade
- Servo Wave action
- adjustable reach
- I-Spec II mount, handlebar clamp 22.2mm
- straight hose connection - Brake Caliper:
- Model: Shimano BR-M820, post mount
- Pistons: 4 ceramic pistons
- Ice Technologies cooling
- one way bleeding
- banjo hose connection - Brake Hose: 1700 mm, fitted to the caliper
- Oil Type: Shimano mineral oil, no DOT
- Pad Type: H03C, metal, H01A and H03A resin also fit
- Rotor: not included, adapter not included either
- Content: 1 brake lever, 1 brake caliper with pads, 1 hose fitted to the caliper
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
