wethepeople "Jackal Titanium" BMX Frame
-
Weight : 1.35kg / 2.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 29315
The

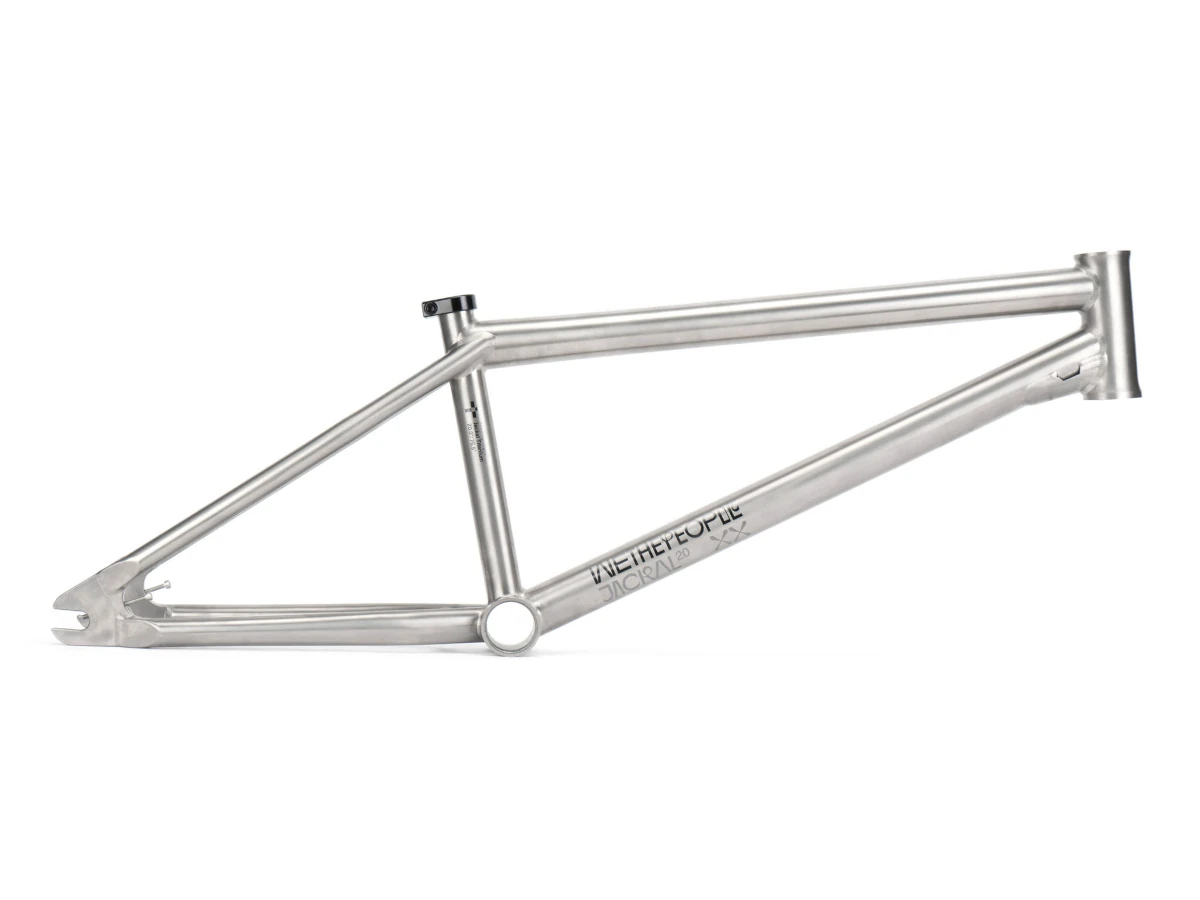

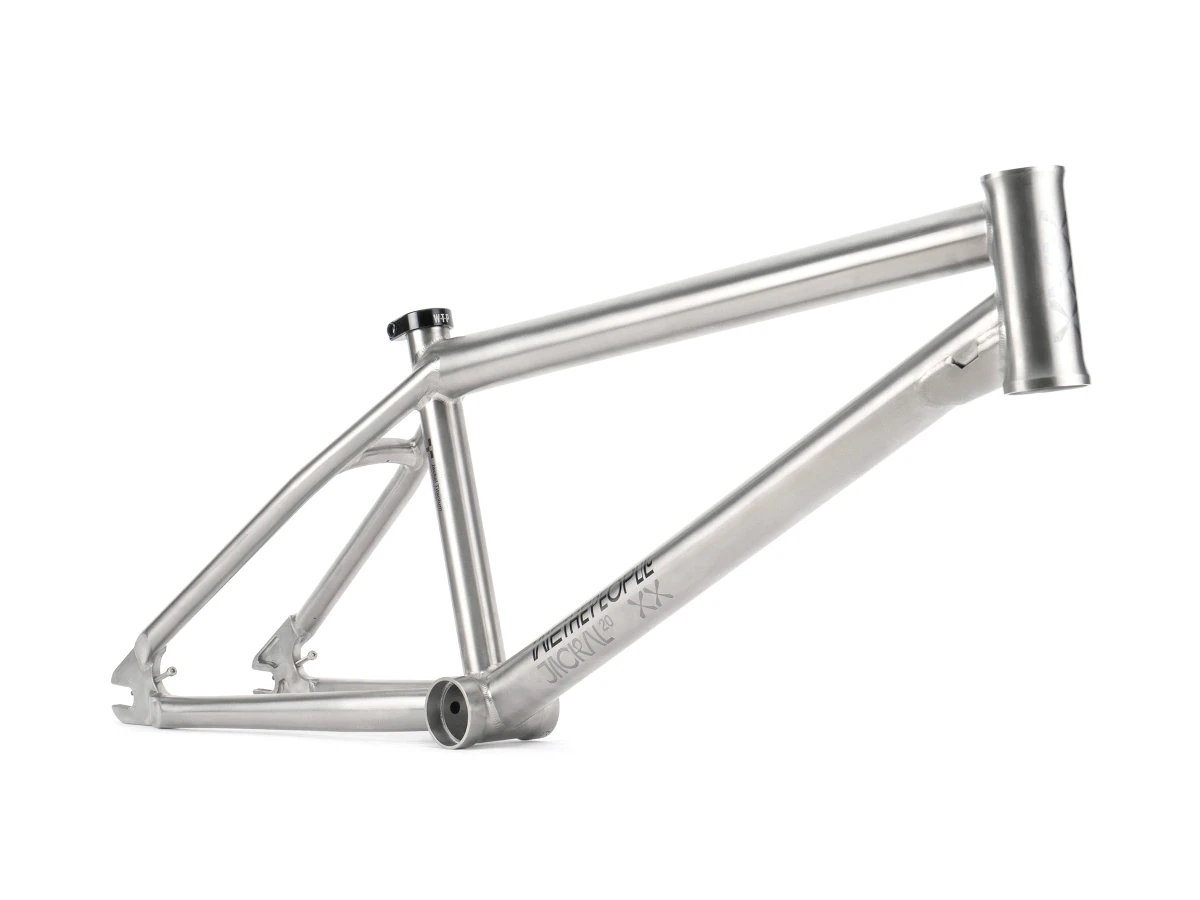

wethepeople "Jackal Titanium" BMX Frame
is made by super light Grade 9 Ti-3A-2.5V Titanium and was developed in collaboration with the wethepeople BMX flatland team, the
wethepeople "Jackal Titanium" BMX Frame
boasts a new-school flatland geometry. It features a taller 8.6" standover and a 117mm head tube, providing a modern feel and enhanced control. The frame is equipped with 14mm slot dropouts, complete with integrated chain tensioner bolts, ensuring your wheel stays perfectly aligned during the most demanding tricks.
The
wethepeople "Jackal Titanium" BMX Frame

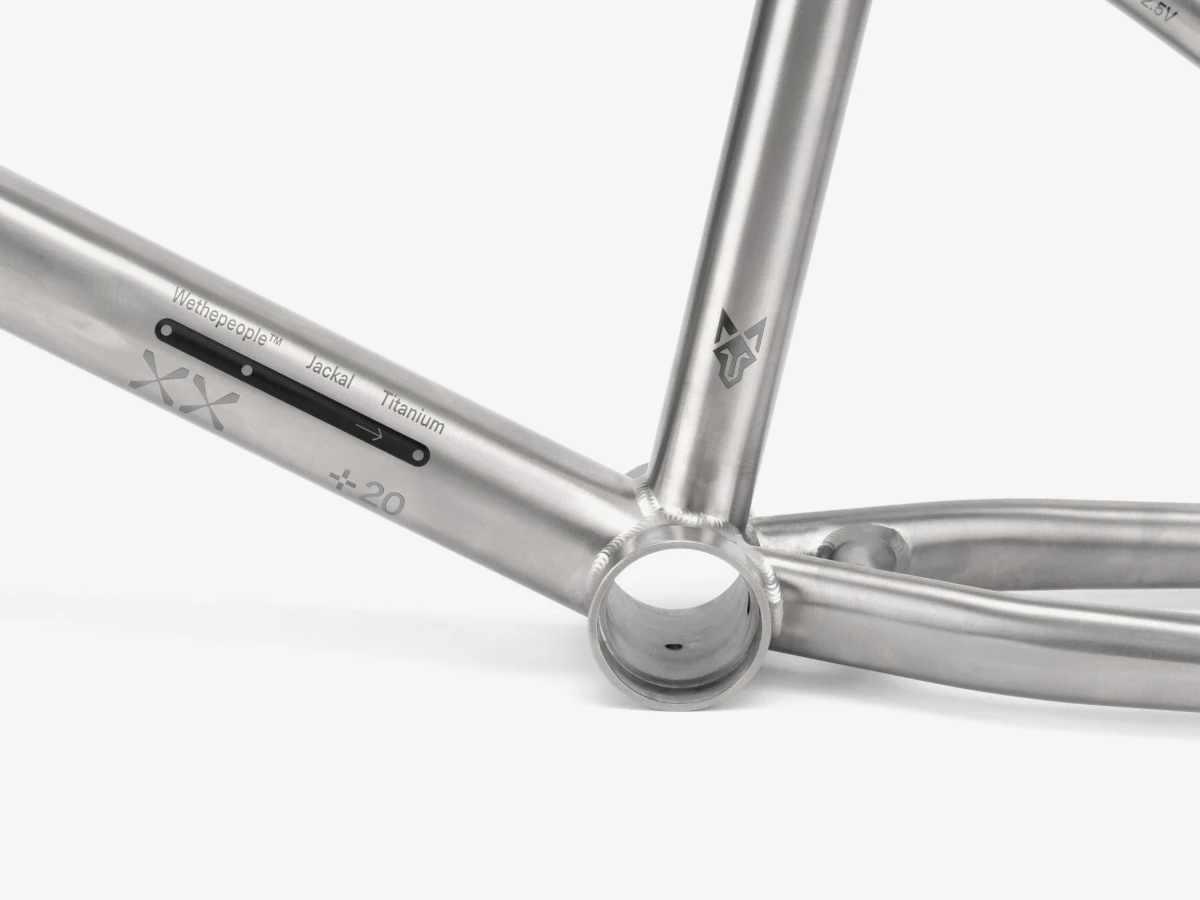

features a Mid sized bottom bracket and tapered seat and chain stays with longer tapers, providing crucial foot clearance. The curved seat stay and chain stay bridges add to the frame's sleek aesthetic while the wider rear triangle accommodates tires up to 2.3" in width. An oversized gusset at the head tube junction adds strength and durability where it's needed most.
:Please note: The frame does not include a seat clamp and requires a 28.6mm ID seat clamp. Each Wethepeople Jackal frame is covered against manufacturing defects, giving you peace of mind as you push the limits of flatland riding.
Weight:
- 20" top tube: 1.58 kg
- 19" top tube: 1.35 kg
Facts: wethepeople "Jackal Titanium" BMX Frame
- Wheel Size: 20"
- Material: Grade 9 Ti-3A-2.5V Titanium, integrated headset, integrated chain tensioners
- Geometry:
Top Tube Length (TT): 19.0" or 20.0"
Chainstay Length (CS): 12.7" (32.26cm) - 13.25" (33.65cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71.5°
Bottom Bracket Height: 11.9" (30.23cm)
Standover Height (SO): 8.6" (21.84cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

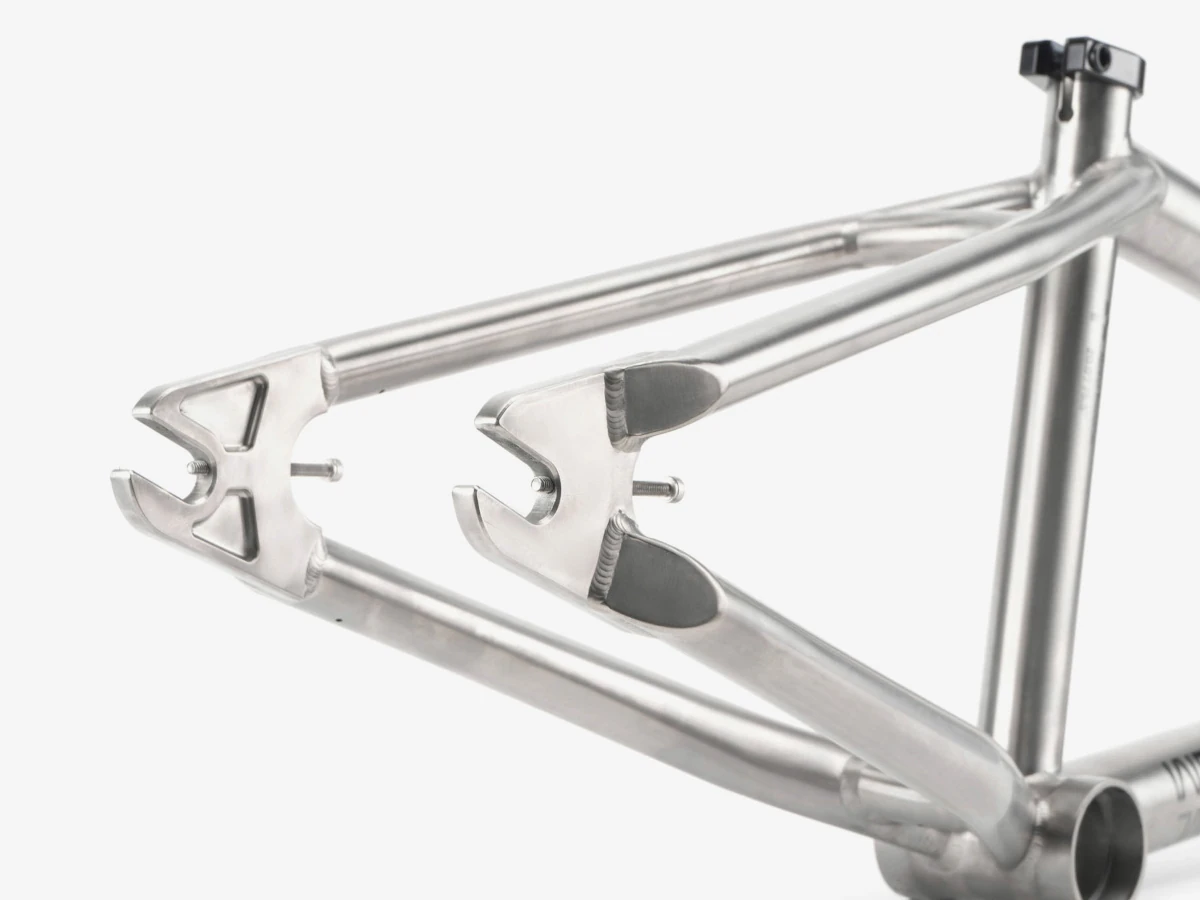

- Dropouts: Investment cast, 8mm thick, 14mm slots, new shape for perfect hubguard/peg fit, female bolt/thru-axle (TA) hubs only
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Gyro compatible: No
- Features:
- extremely lightweight frame designed exclusively for flatland riding
- highest grade 9 Ti-3A-2.5V Titanium tubing
- hand-crafted at one of the highest quality Titanium factories in the industry
- new-school flatland geometry developed with the Wethepeople flatland team
- taller 8.6" standover and 117mm head tube
- frame comes with 14mm slot dropouts with chain tensioner bolts
- Mid sized bottom bracket
- tapered seat stays and chain stays with longer tapers for foot clearance
- curved seat stay bridge and chain stay bridge
- wider rear triangle allows clearance for a 2.3" tire
- comes without seat clamp (fits 28.6mm ID seat clamp)
- covered against manufacturers defects
- oversized Gusset
