Chase "Edge Expert XL" 2026 BMX Race Bike - Slate/Black
- Weight : 8.85kg / 19.51lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45833
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

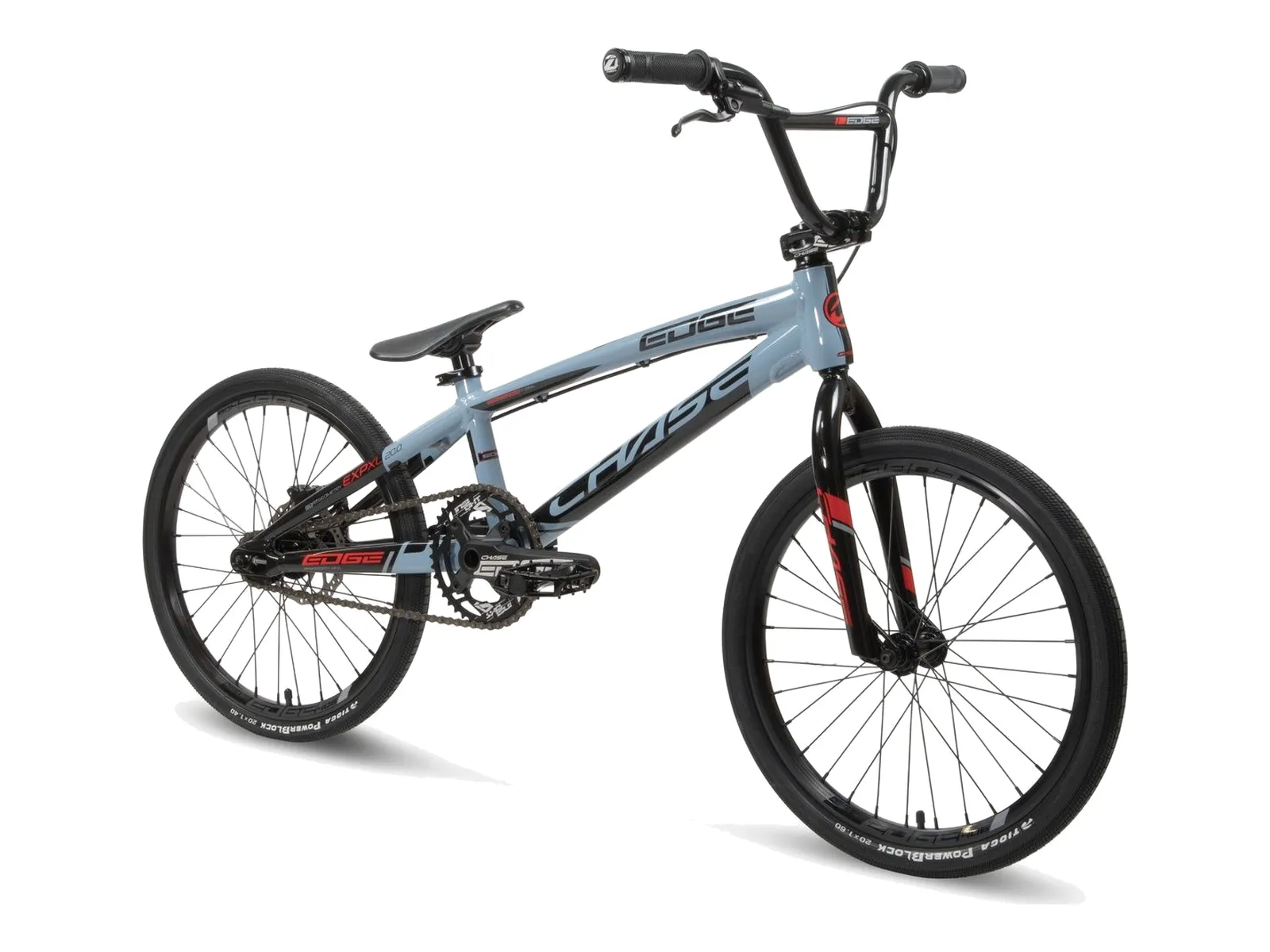

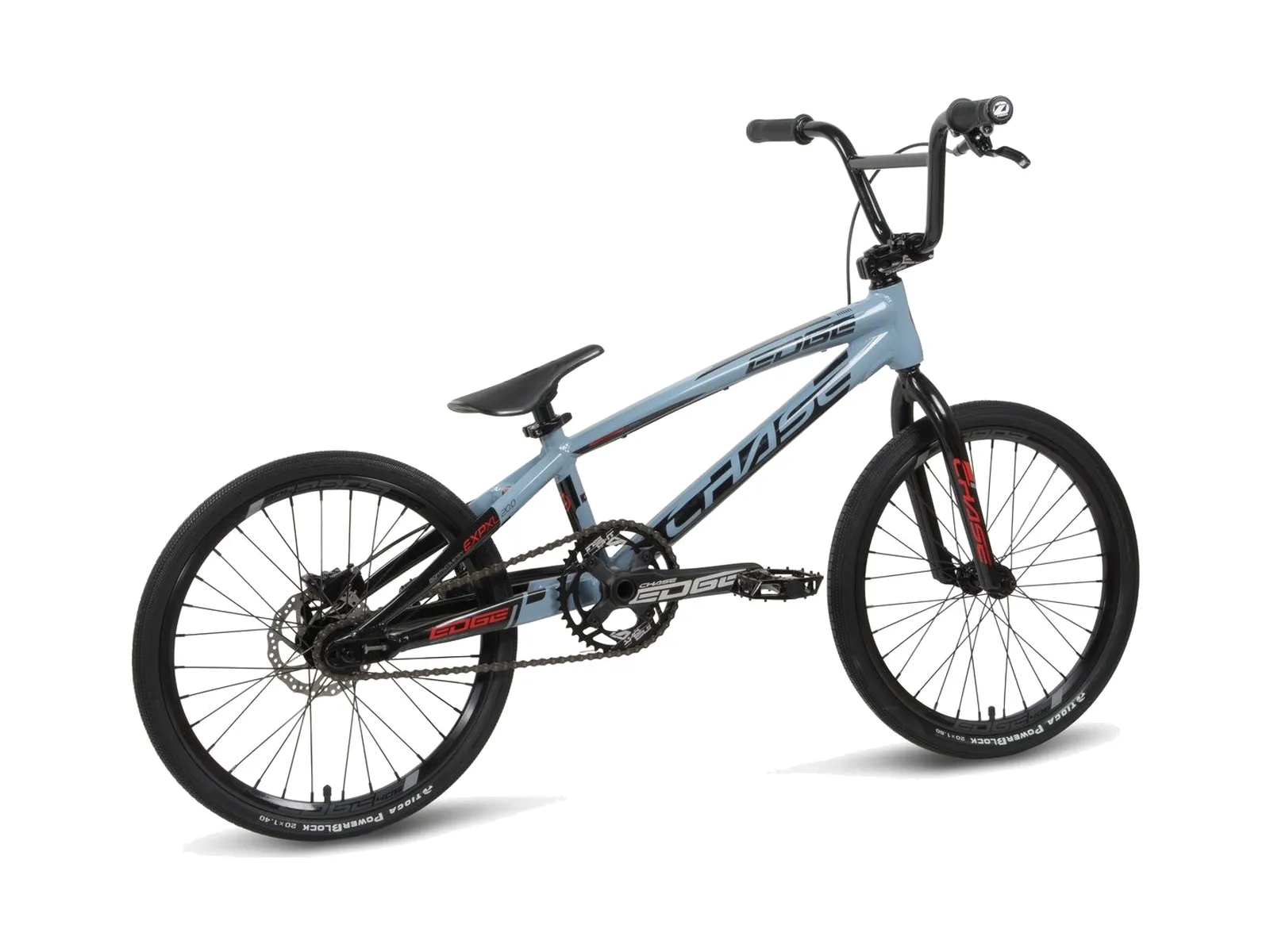

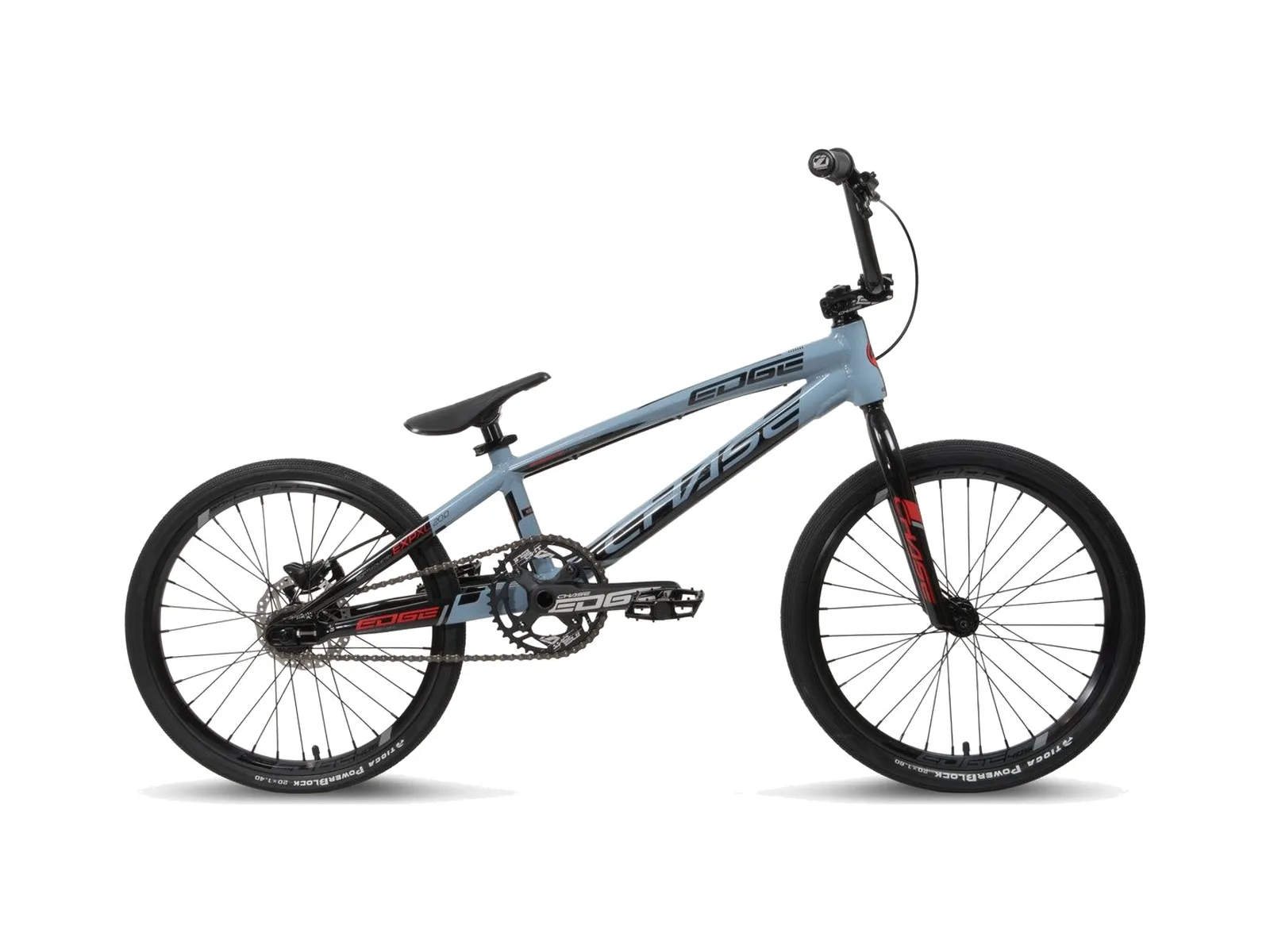

The Chase "Edge Expert XL" 2026 BMX Race Bike - Slate/Black is the Chase Edge in size Expert XL from model year 2026, in Slate/Black: slate grey frame with black rear end, black fork and red accents. The frame is triple butted, hydroformed 6061-T6 aluminum with an integrated head tube and enclosed dropouts with built-in chain tensioners. Fork and bar (6.5" rise) are chromoly.
The rear brake is a Shimano MT200 hydraulic disc brake with a 140mm rotor. It comes with a 2-piece Chase alloy crank with 24mm spindle and 170mm arms, an Insight 41T chainring, a 16T cog, hubs with 10mm axles and M6 bolts, double wall Chase Edge rims with 32 holes and Tioga PowerBlock tires.
US Pro lists size Expert XL for riders from 1.44 to 1.55m. Without pedals the bike weighs 8.85 kg according to US Pro. Its successor is the Edge 2027.
Facts: Chase "Edge Expert XL" 2026 BMX Race Bike - Slate/Black
- Wheelsize: 20"
- Race-Size: Expert XL
- Model Year: 2026
- BMX Frame: Chase "Edge Expert XL", 6061-T6 aluminum, triple butted and hydroformed, enclosed dropouts with integrated chain tensioners, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 20.0"
- Head Angle (HA): 73°
- Seat Angle (SA): 72°
- Head Tube (HT): 4.7"
- BB Height (BBH): 11.5"
- Wheelbase (WB): 903mm - BMX Fork: Chase Edge, CrMo, 1-1/8" steerer, tapered blades
- BMX Bar:
- Chase Edge, CrMo
- Height: 6.5"
- Width: 26"
- Backsweep: 8°
- Upsweep: 2° - Grips: Insight "C.O.G.S", 130mm, lock-on
- Stem: Chase Edge, 6061-T6 aluminum, 50mm
- Headset: integrated (IS42/42), 1-1/8", Sealed Bearing

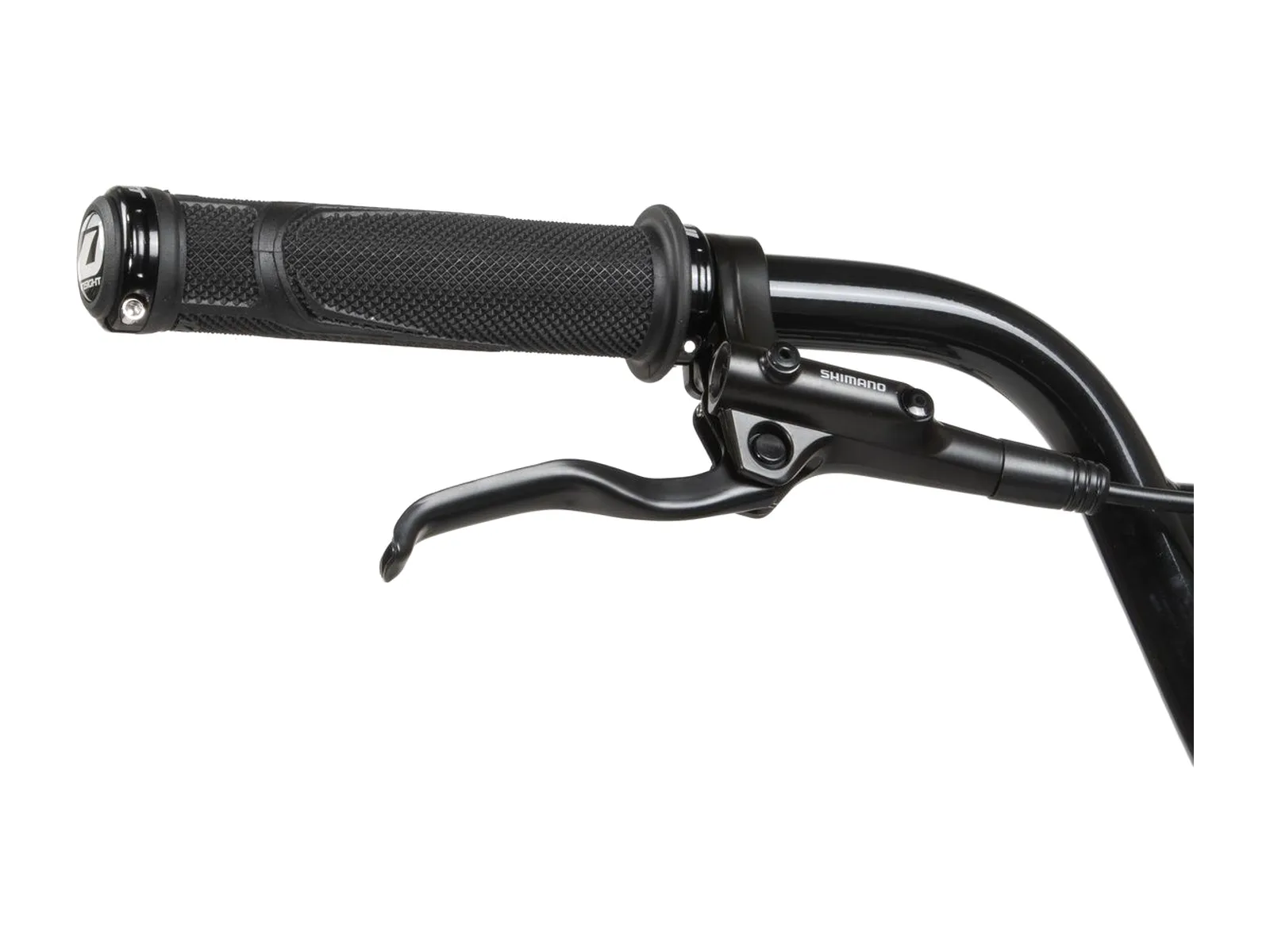

- Brake Lever (right): Shimano BL-MT200, hydraulic

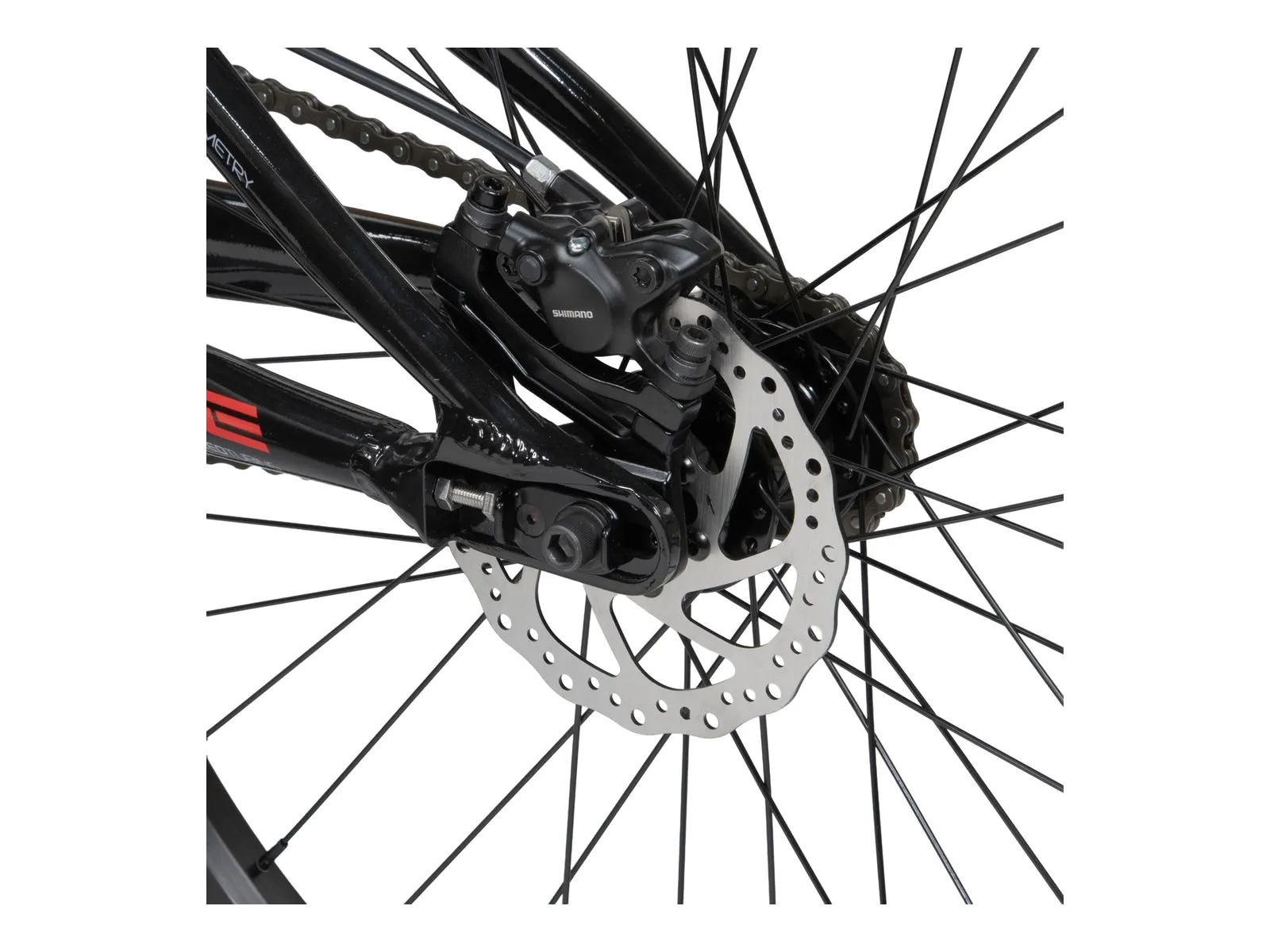

- Brake (rear): Shimano BR-MT200, hydraulic disc brake, 140mm rotor, resin pads

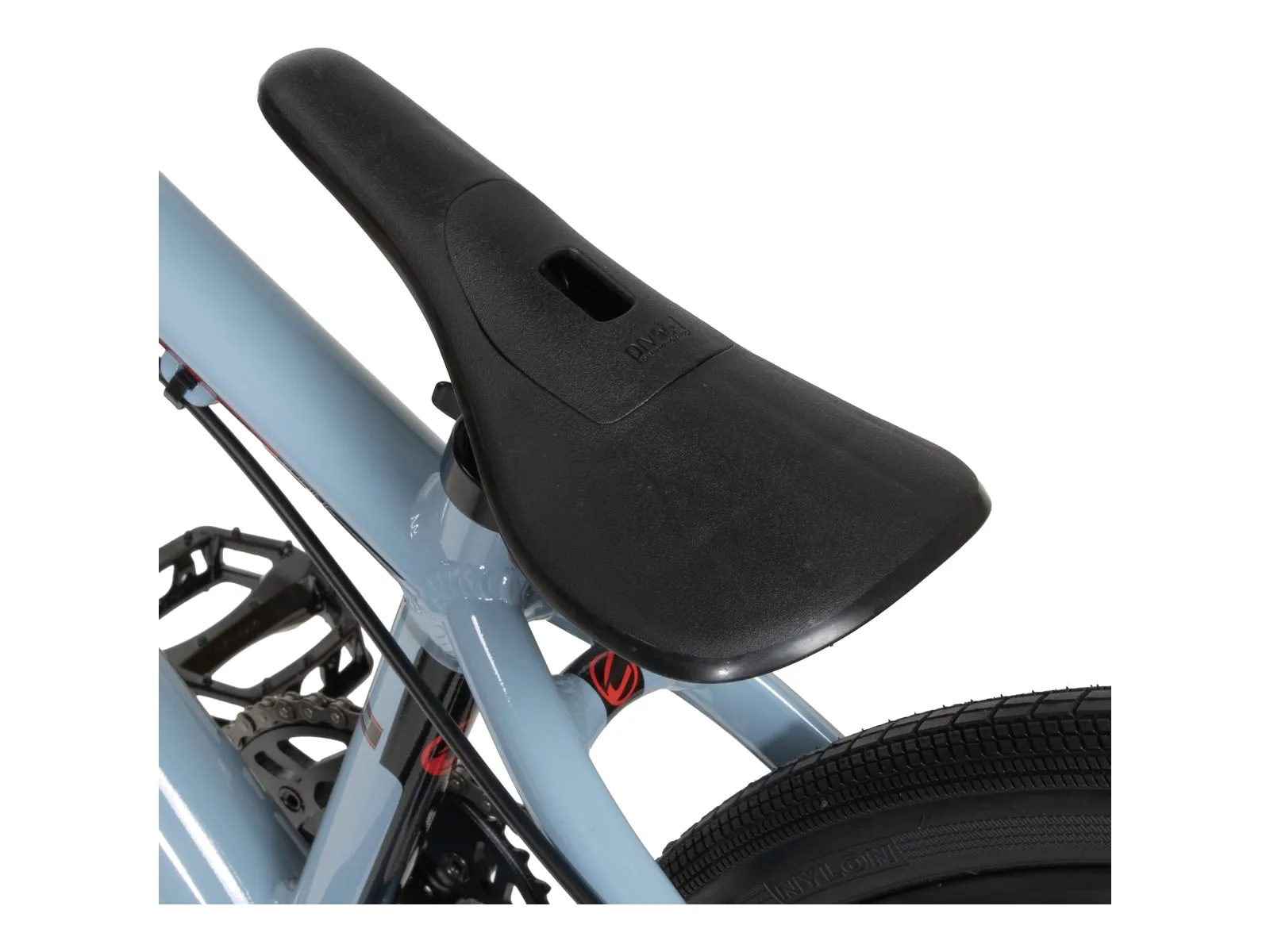

- Seat: Chase Edge Pro, pivotal
- Seat Post: pivotal, aluminum, 27.2 x 250mm
- Seat Clamp: Chase Edge, quick release, aluminum, 31.8mm
- Pedals: platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 5mm, 4-bolt (104mm BCD), 41T
- Cog: 16T, steel
- Crank: Chase Edge, 2-piece, aluminum, 24mm spindle, 170mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external, 24mm, Sealed Bearing
- Hub (front): Chase Edge Mini, 32H, Sealed Bearing, 10mm axle, M6 bolts
- Hub (rear): Chase Edge Pro, cassette hub, ISO disc mount, 32H, Sealed Bearing, 10mm axle, M6 bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, front 181mm, rear 173/174mm, brass nipples 16mm
- Rim (front): Chase Edge 150, aluminum, double wall, 32H, 20" x 1.50", Schrader
- Rim (rear): Chase Edge 150, aluminum, double wall, 32H, 20" x 1.50", Schrader
- Tire (front): Tioga "PowerBlock", 20" x 1.60", wire bead
- Tire (rear): Tioga "PowerBlock", wire bead
- Tubes: 20" x 1.50"-1.75", Schrader
- Rider Height: 1.44 - 1.55m
- Usage: BMX Race
