Chase "Edge Pro Cruiser" 2027 BMX Race Bike - 24 Inch - Black/Dark Grey
- Weight : 10kg / 22.05lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45834
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

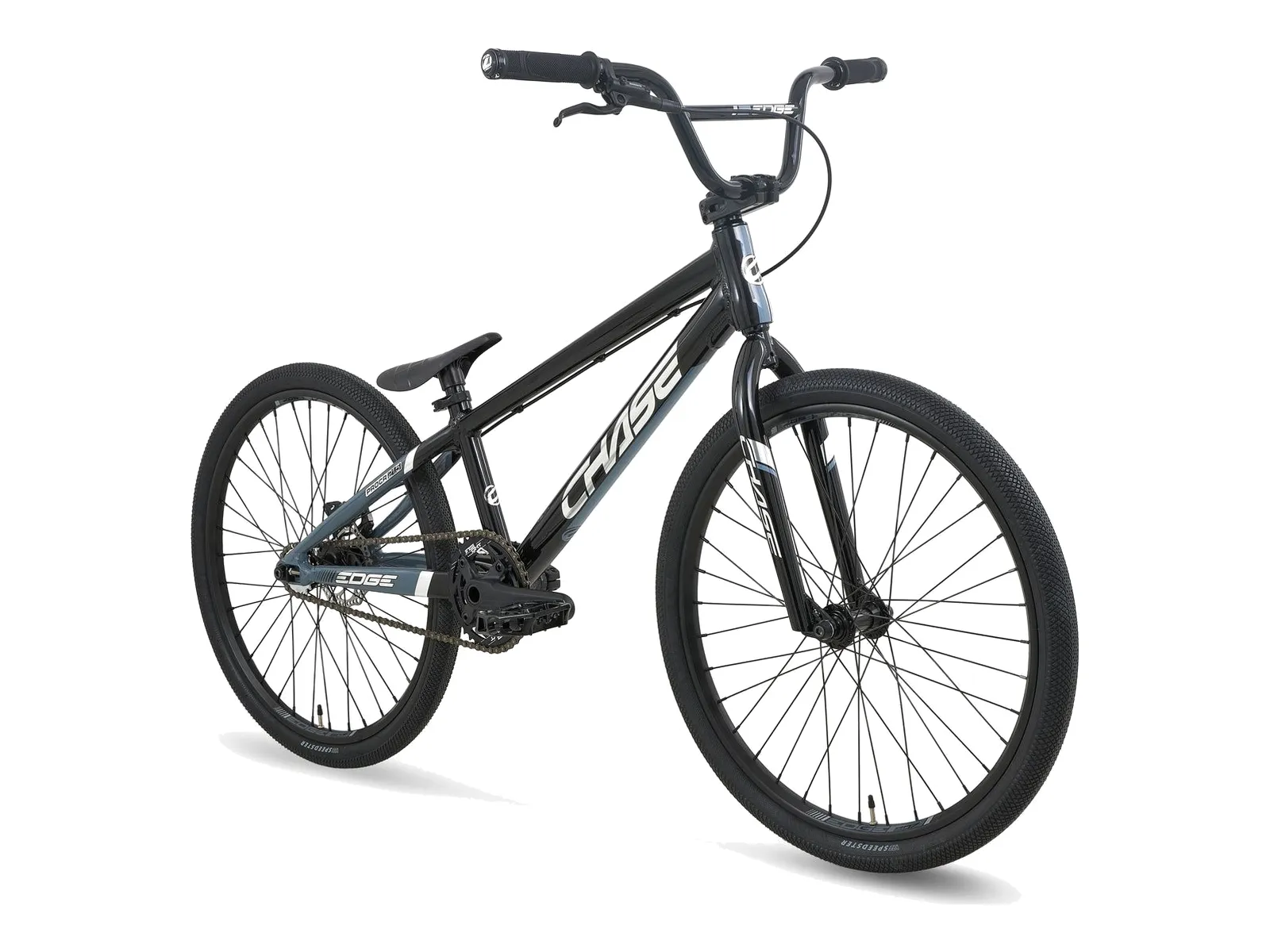

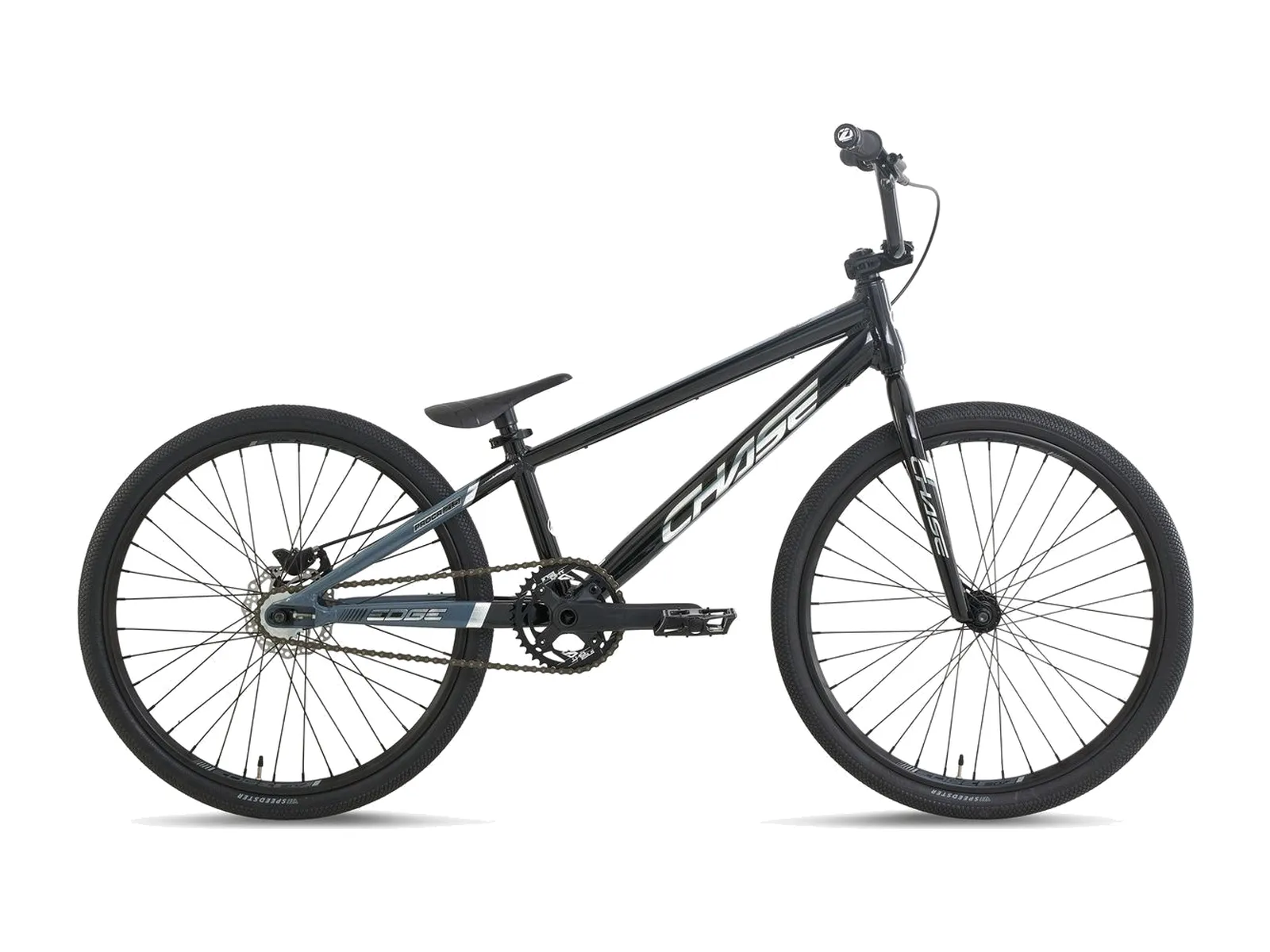

The Chase "Edge Pro Cruiser" 2027 BMX Race Bike - 24 Inch - Black/Dark Grey is the 24 inch cruiser race bike of the Chase Edge line in model year 2027, in the chromoly fork version and in Black/Dark Grey. The frame has the new 21.5" top tube and is triple butted, hydroformed 6061-T6 aluminum with an integrated head tube and enclosed dropouts with built-in chain tensioners; the decals are water slide decals.

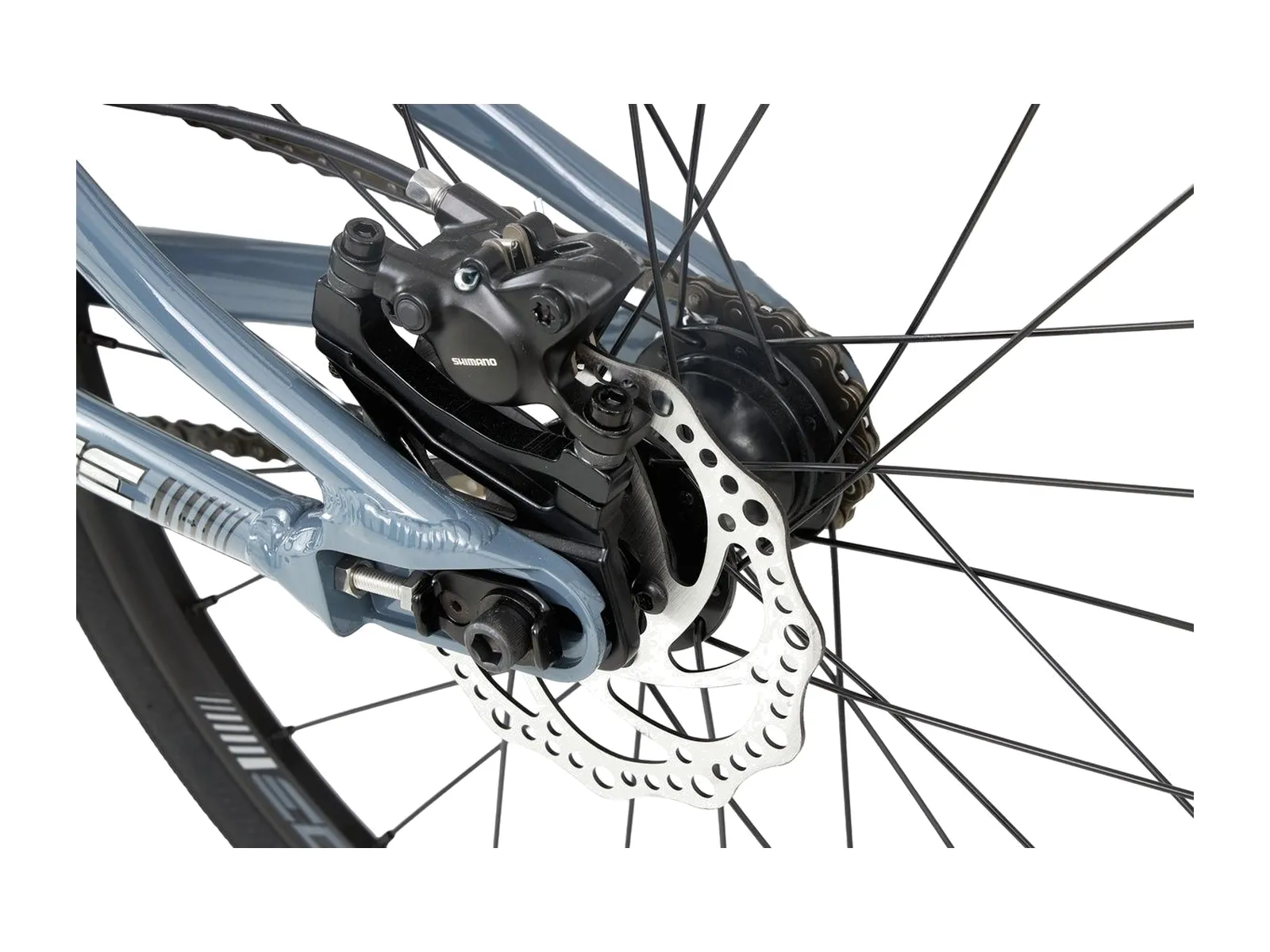

The rear brake is a Shimano MT200 hydraulic disc brake with a 140mm rotor. It comes with a 2-piece Chase alloy crank with 24mm spindle and 175mm arms, an Insight 39T chainring, an 18T cog on a cassette hub with three pawls, double wall 24" rims with 36 holes and Vee Rubber SpeedSter tires. Bar (5.75" rise) and fork are chromoly.
US Pro and Chase list the bike for riders from 1.68 to 1.85m. Without pedals it weighs 10 kg according to Chase.
Facts: Chase "Edge Pro Cruiser" 2027 BMX Race Bike - 24 Inch - Black/Dark Grey
- Wheelsize: 24"
- Race-Size: Cruiser
- Model Year: 2027
- BMX Frame: Chase "Edge Pro Cruiser", 6061-T6 aluminum, triple butted and hydroformed, enclosed dropouts with integrated chain tensioners, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 21.5"
- Chain Stay (CS): 14.5" (min.)
- Head Angle (HA): 74°
- Seat Angle (SA): 71°
- Head Tube (HT): 4.7"
- BB Height (BBH): 12"
- Wheelbase (WB): 964.5mm - BMX Fork: Chase Edge, CrMo, 1-1/8" steerer, tapered blades
- BMX Bar:
- Chase Edge, CrMo
- Height: 5.75"
- Width: 28.5"
- Backsweep: 11°
- Upsweep: 2.5° - Grips: Insight "C.O.G.S", 145mm, lock-on with alloy clamps
- Stem: Chase Edge, 6061-T6 aluminum, 50mm, 1-1/8", 22.2mm clamp
- Headset: integrated (IS42/42), 1-1/8", Sealed Bearing

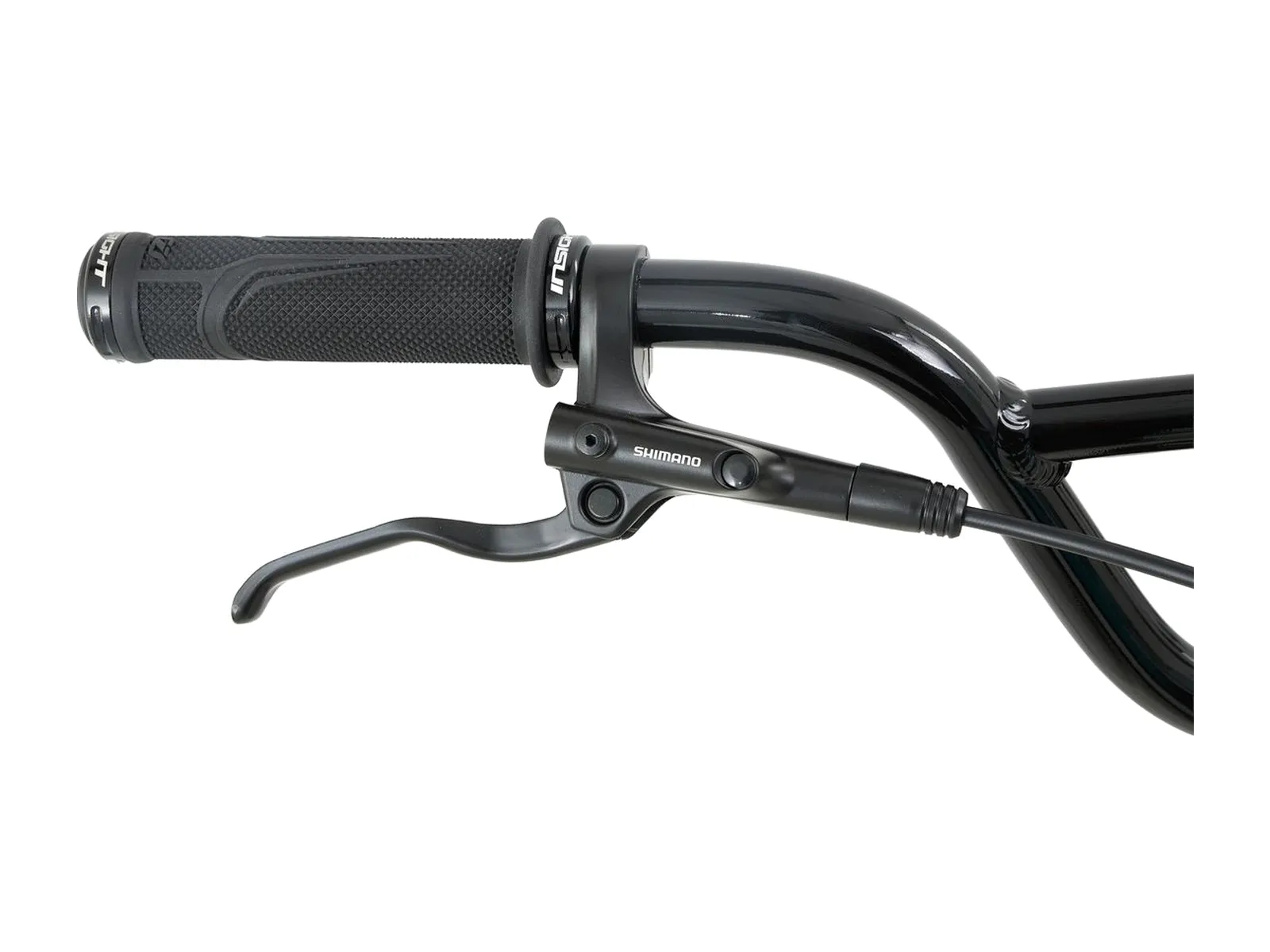

- Brake Lever (right): Shimano BL-MT200, hydraulic
- Brake (rear): Shimano BR-MT200, hydraulic disc brake, 140mm rotor, resin pads

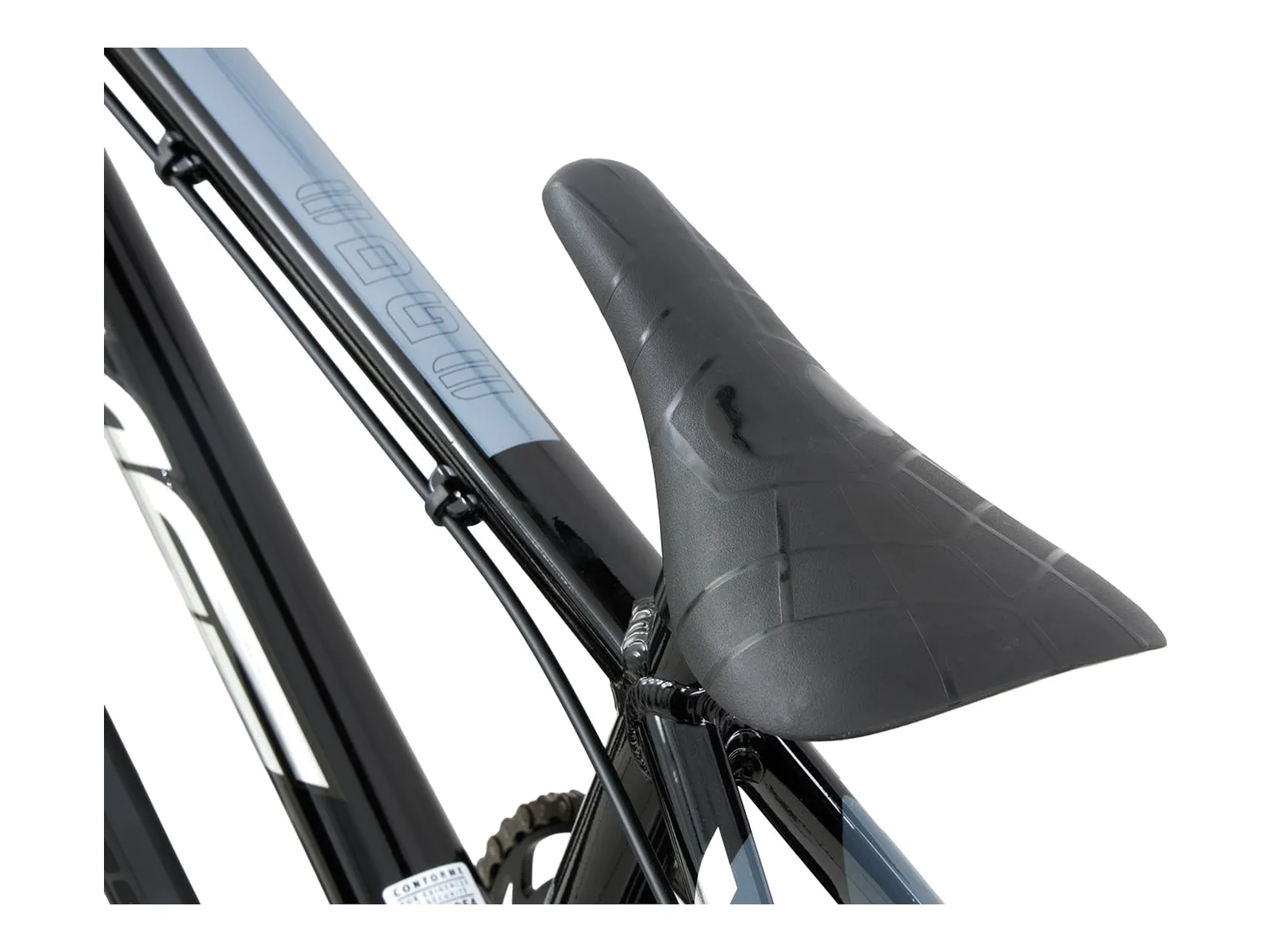

- Seat: Expert/Pro Combo, nylon
- Seat Post: seat/seat post combo, aluminum, 27.2mm
- Seat Clamp: Chase Edge, quick release, aluminum, 31.8mm
- Pedals: platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 5mm, 4-bolt (104mm BCD), 39T
- Cog: 18T
- Crank: Chase Edge, 2-piece, aluminum, 24mm spindle, 175mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external, 24mm, Sealed Bearing
- Hub (front): 36H, Sealed Bearing, 3/8" axle bolts
- Hub (rear): cassette hub, ISO disc mount, 36H, Sealed Bearing, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): Chase Edge, aluminum, double wall, 507, 36H, 24" x 1.75", Presta
- Rim (rear): Chase Edge, aluminum, double wall, 507, 36H, 24" x 1.75", Presta
- Tire (front): Vee Rubber "SpeedSter", 24" x 1.75", wire bead
- Tire (rear): Vee Rubber "SpeedSter", 24", wire bead
- Tubes: 24" x 1.50"-1.75", Presta
- Rider Height: 1.68 - 1.85m
- Usage: BMX Race
