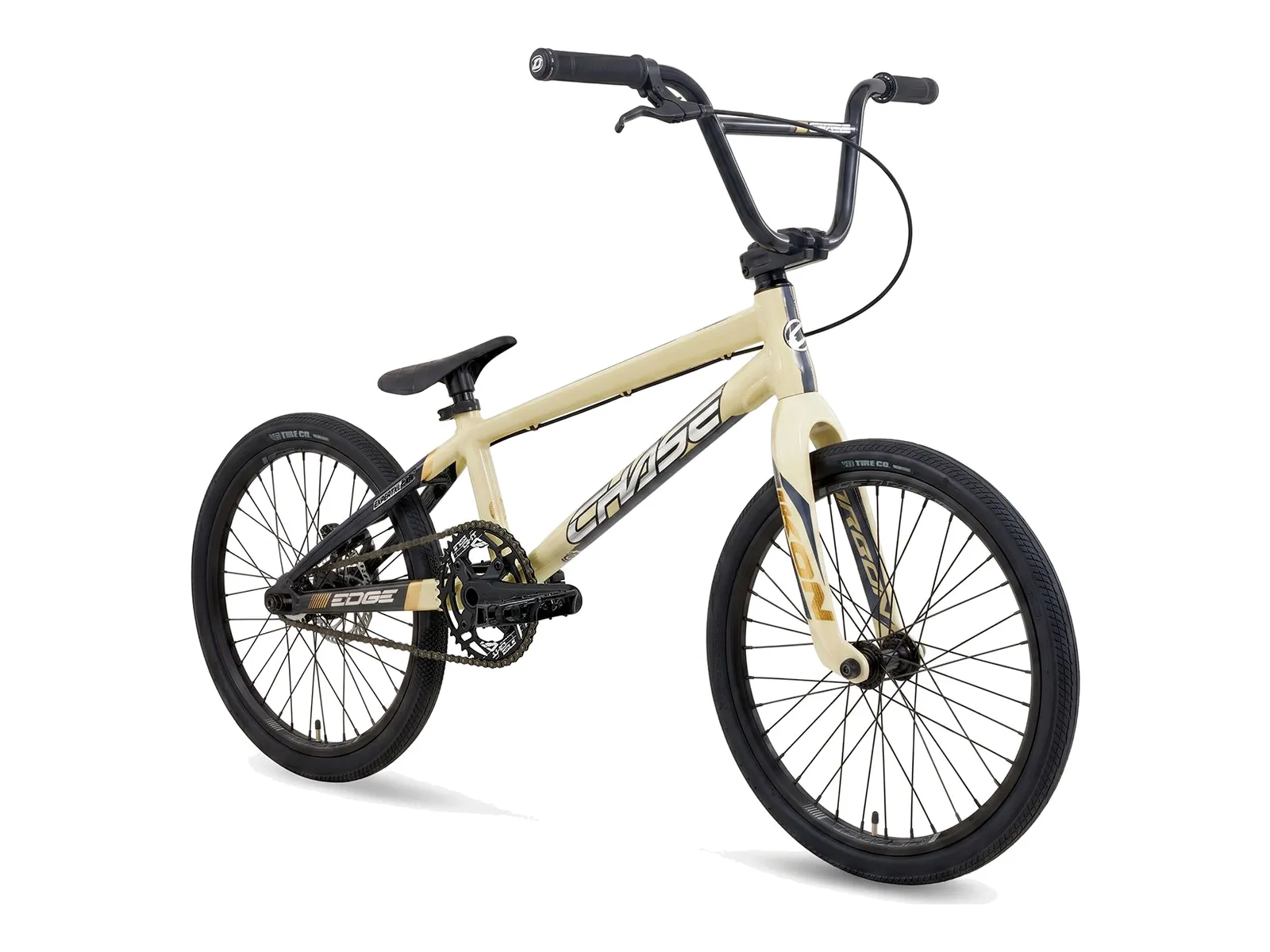

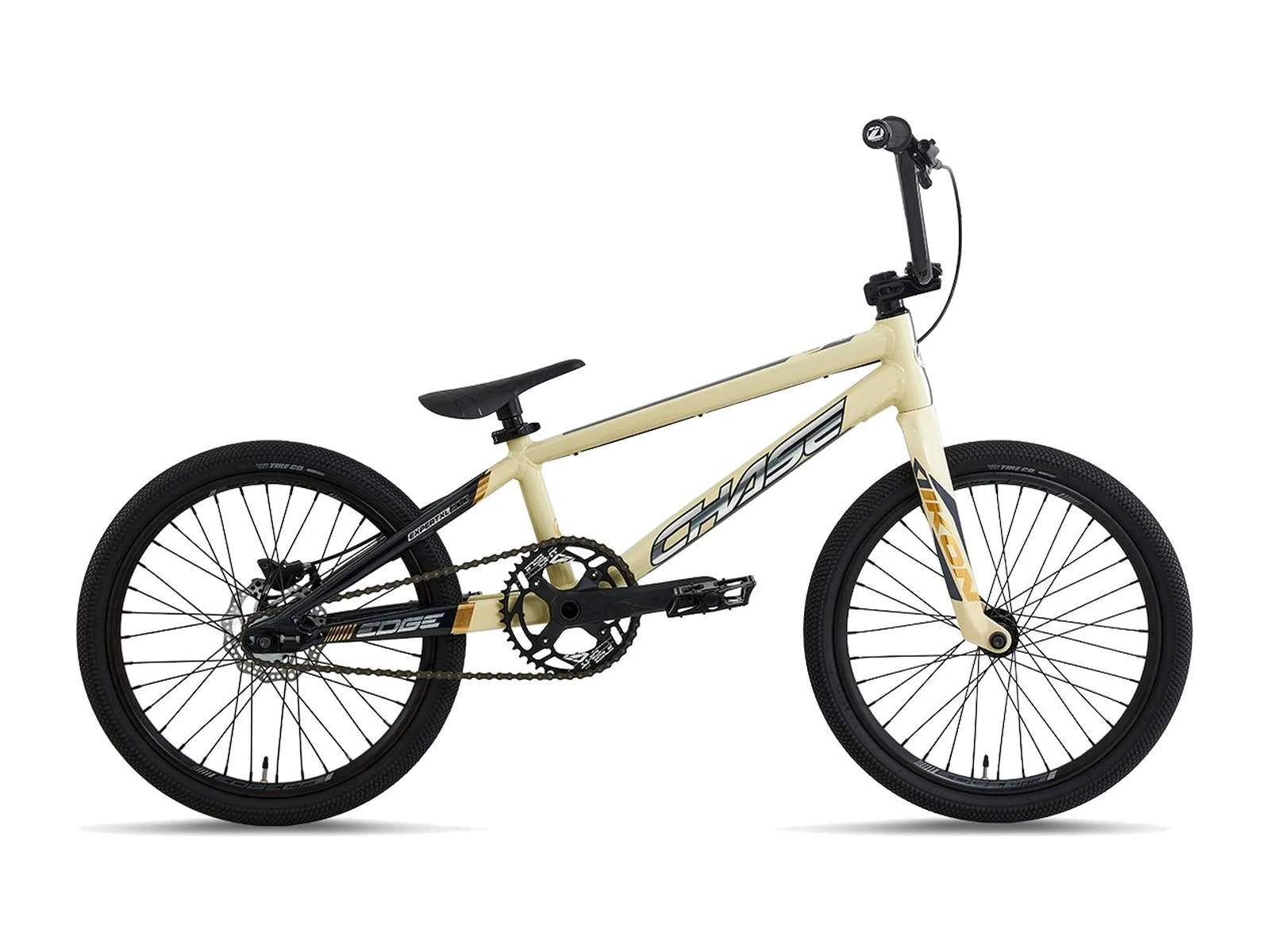

Chase "Edge Expert XL" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Weight : 8.85kg / 19.51lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45801
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026
The Chase "Edge Expert XL" 2027 BMX Race Bike - Gold Sand/Dark Grey is the Chase race bike for riders who want to get serious about racing. The frame is made from triple butted, hydroformed 6061 aluminium tubes with an integrated head tube and enclosed dropouts that hold the chain tensioner. The graphics sit under the clear coat.
This colourway comes with an Ikon carbon fork. At the rear a hydraulic Shimano MT200 disc brake with a 140mm rotor does the stopping, the rear hub is a cassette hub with three pawls. It comes with an Insight chainring, a KMC chain, double wall rims and Vee Rubber Speedster tires. From this size on the bike has a 2-piece Chase crank with a 24mm spindle.
The Expert XL size rolls on 20 inch wheels and according to Chase fits riders from 1.44 - 1.55m. Without pedals the bike weighs 8.85 kg according to Chase.
Facts: Chase "Edge Expert XL" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Wheelsize: 20"
- Race-Size: Expert XL
- Model Year: 2027
- BMX Frame: Chase "Edge Expert XL", 6061-T6 aluminium, enclosed dropouts, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 20.0"
- Chain Stay (CS): 13.5"
- Head Angle (HA): 73°
- Seat Angle (SA): 72°
- Head Tube (HT): 4.7" - BMX Fork: Ikon "Pro Carbon", carbon, 1-1/8" aluminium steerer
- BMX Bar:
- Chase "Edge", CrMo
- Height: 6.5"
- Width: 26"
- Backsweep: 8°
- Upsweep: 2° - Grips: Insight "C.O.G.S", 130mm, lock-on with aluminium clamps
- Stem: Chase "Edge", 6061-T6 aluminium, 50mm, 1-1/8" steerer, 22.2mm clamp
- Headset: integrated (IS42 | IS42), 1-1/8", sealed bearing

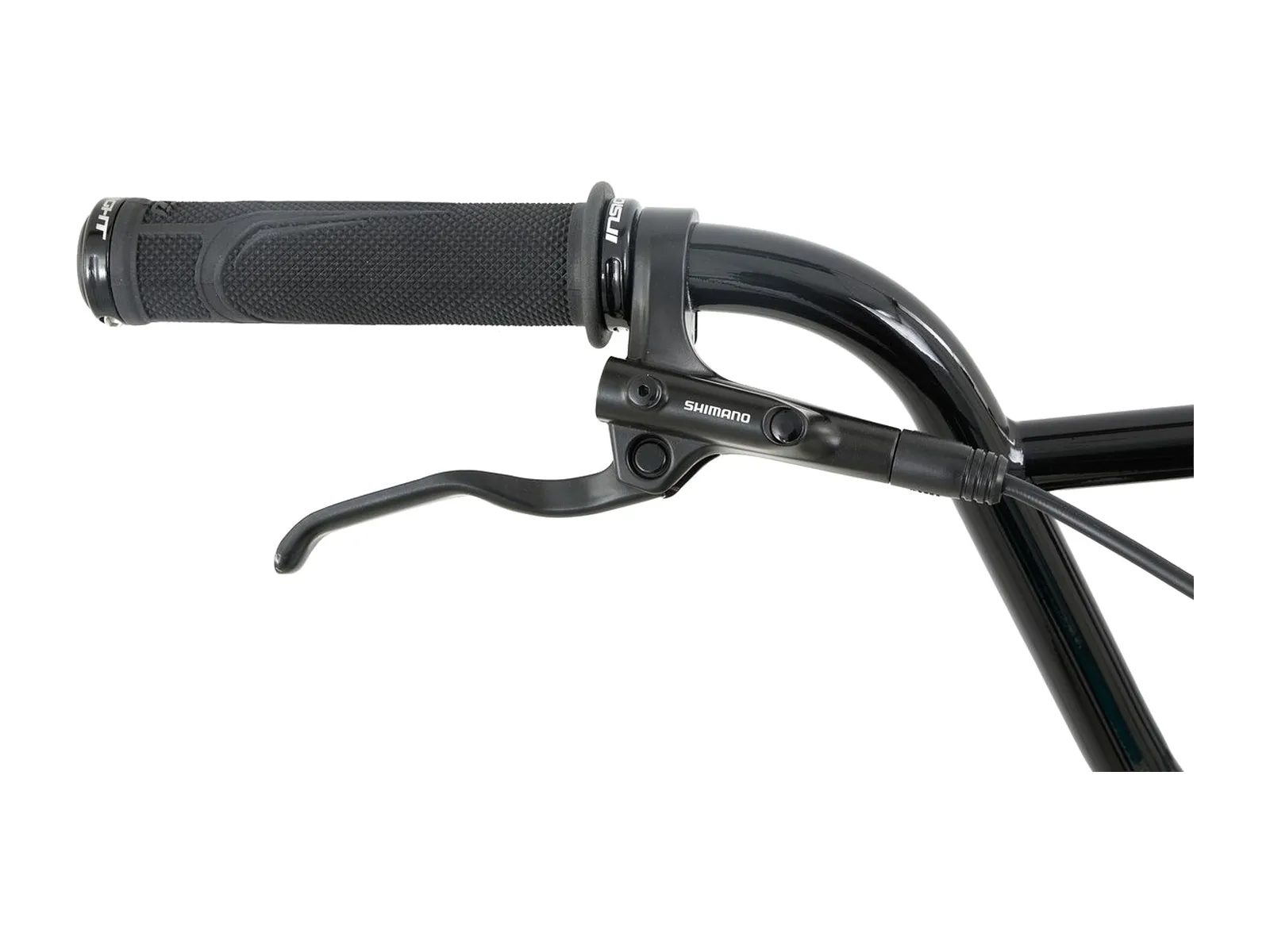

- Brake Lever (right): Shimano "BL-MT200", hydraulic

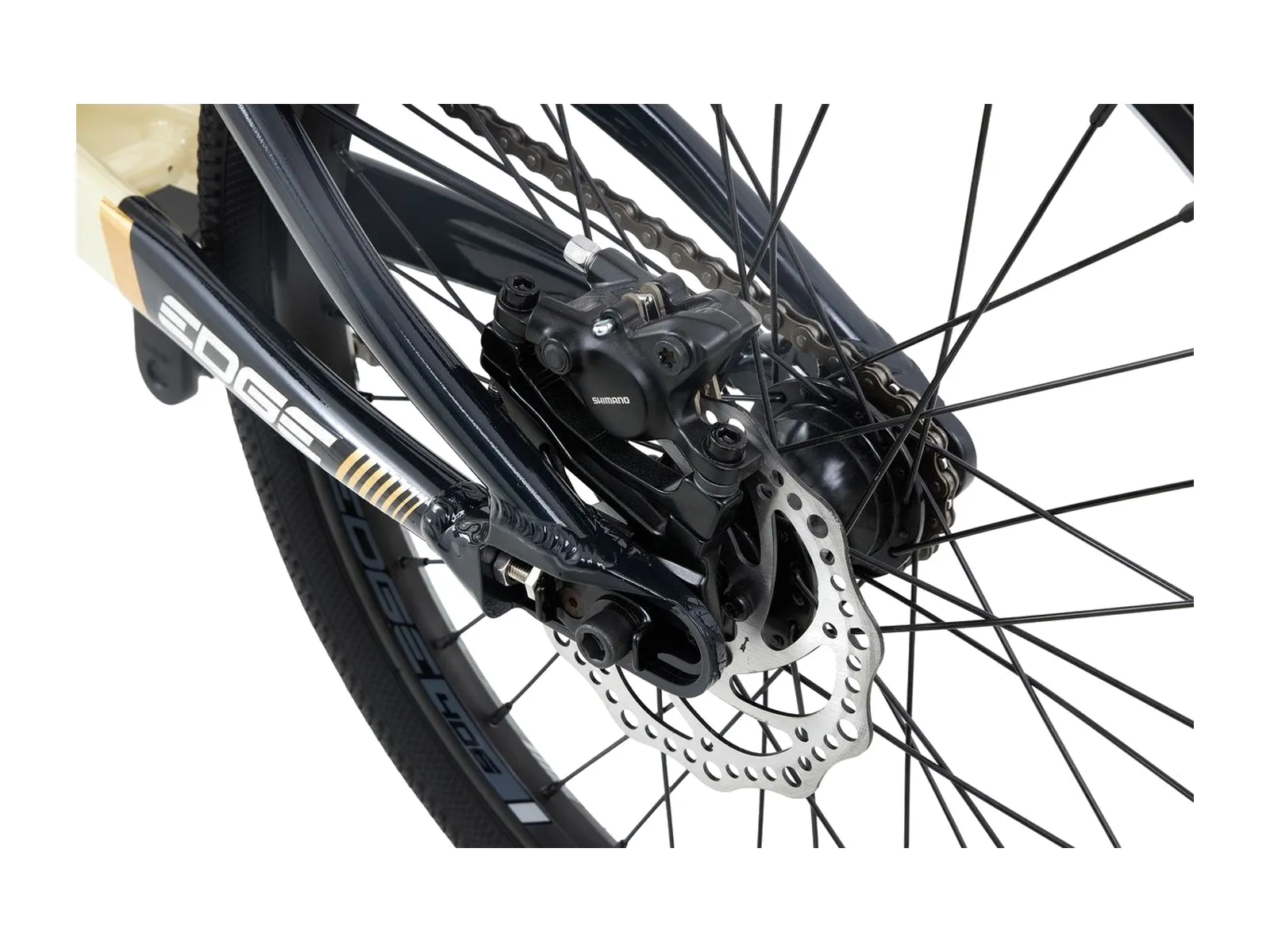

- Brake (rear): Shimano "BR-MT200", hydraulic disc brake, resin pads, 140mm rotor, 140mm adaptor

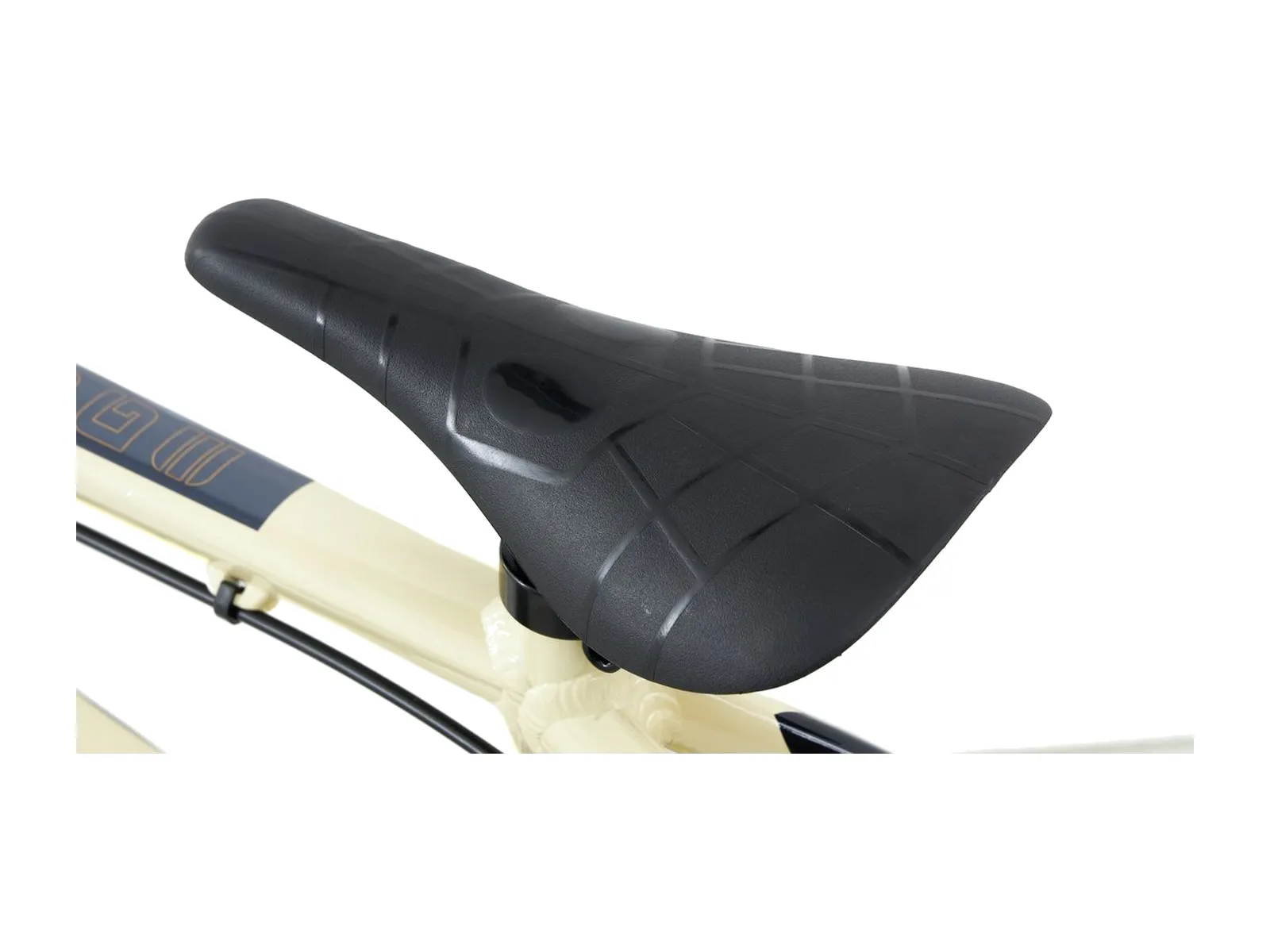

- Seat: Expert/Pro combo, nylon seat with aluminium post, 27.2mm
- Seat Post: seat/seat post combo, aluminium, 27.2mm
- Seat Clamp: Chase "Edge", quick release, aluminium, 31.8mm
- Pedals: pro platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminium, 4-bolt (104mm BCD), 39T, 5mm
- Cog: 16T
- Crank: Chase "Edge", 2-piece, aluminium, 24mm spindle, 160mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external bearings, 24mm, sealed bearing
- Hub (front): 36H, sealed bearings, 3/8" axle bolts
- Hub (rear): ISO cassette hub, 36H, sealed bearings, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): Chase "Edge", aluminium, double wall, 406, 36H, 20" x 1.50"
- Rim (rear): Chase "Edge", aluminium, double wall, 406, 36H, 20" x 1.50"
- Tire (front): Vee Rubber "Speedster", 20" x 1.60", wire bead
- Tire (rear): Vee Rubber "Speedster", 20" x 1.50", wire bead
- Tubes: 20" x 1.50"-1.75", Presta valve
- Chain Tensioner: integrated, with disc adaptor
- Rider Height: 1.44 - 1.55m
- Usage: BMX Race
