Chase "Edge Pro" 2026 BMX Race Bike - Cement/Grey
- Weight : 9.37kg / 20.66lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45832
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

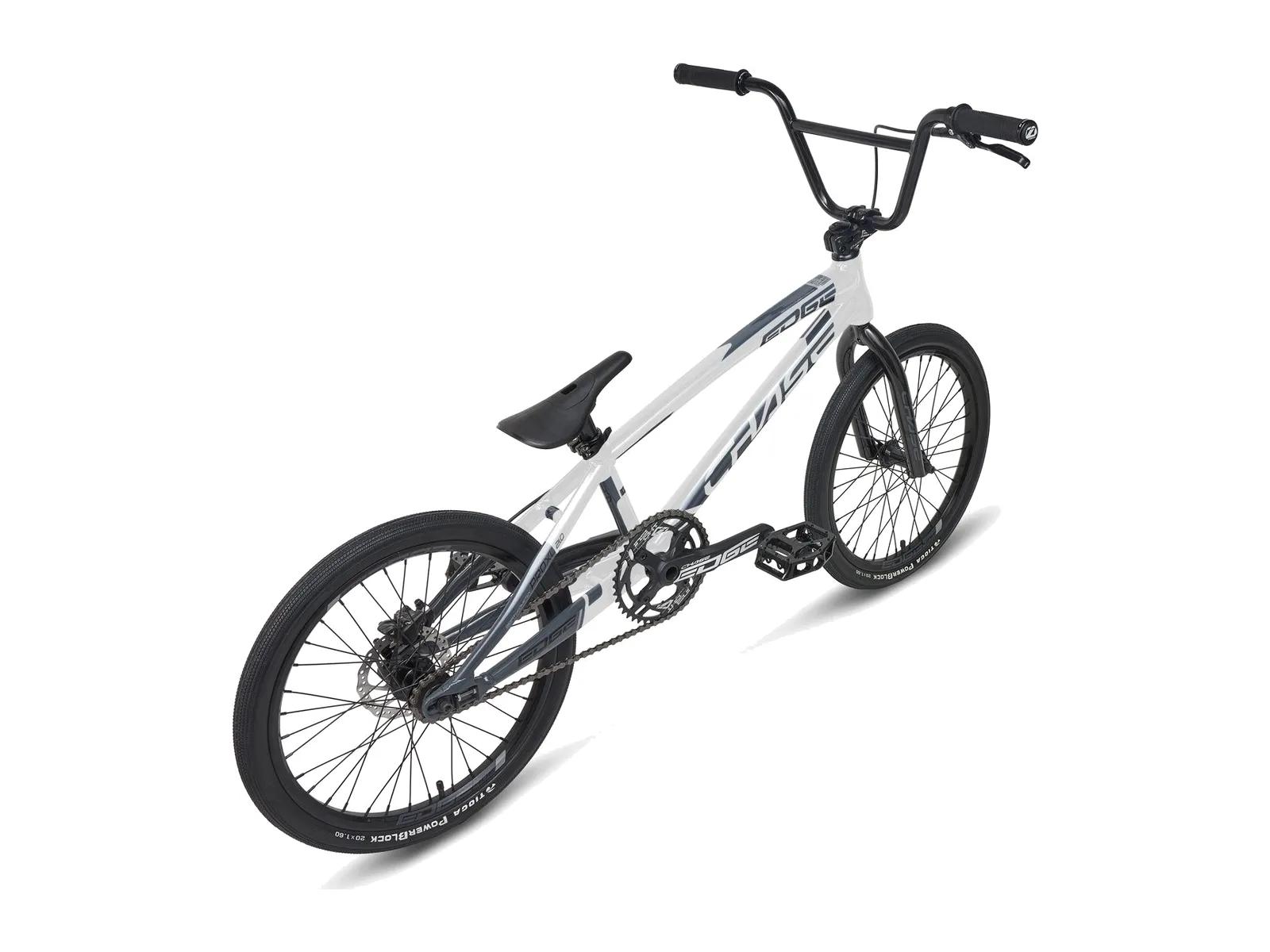

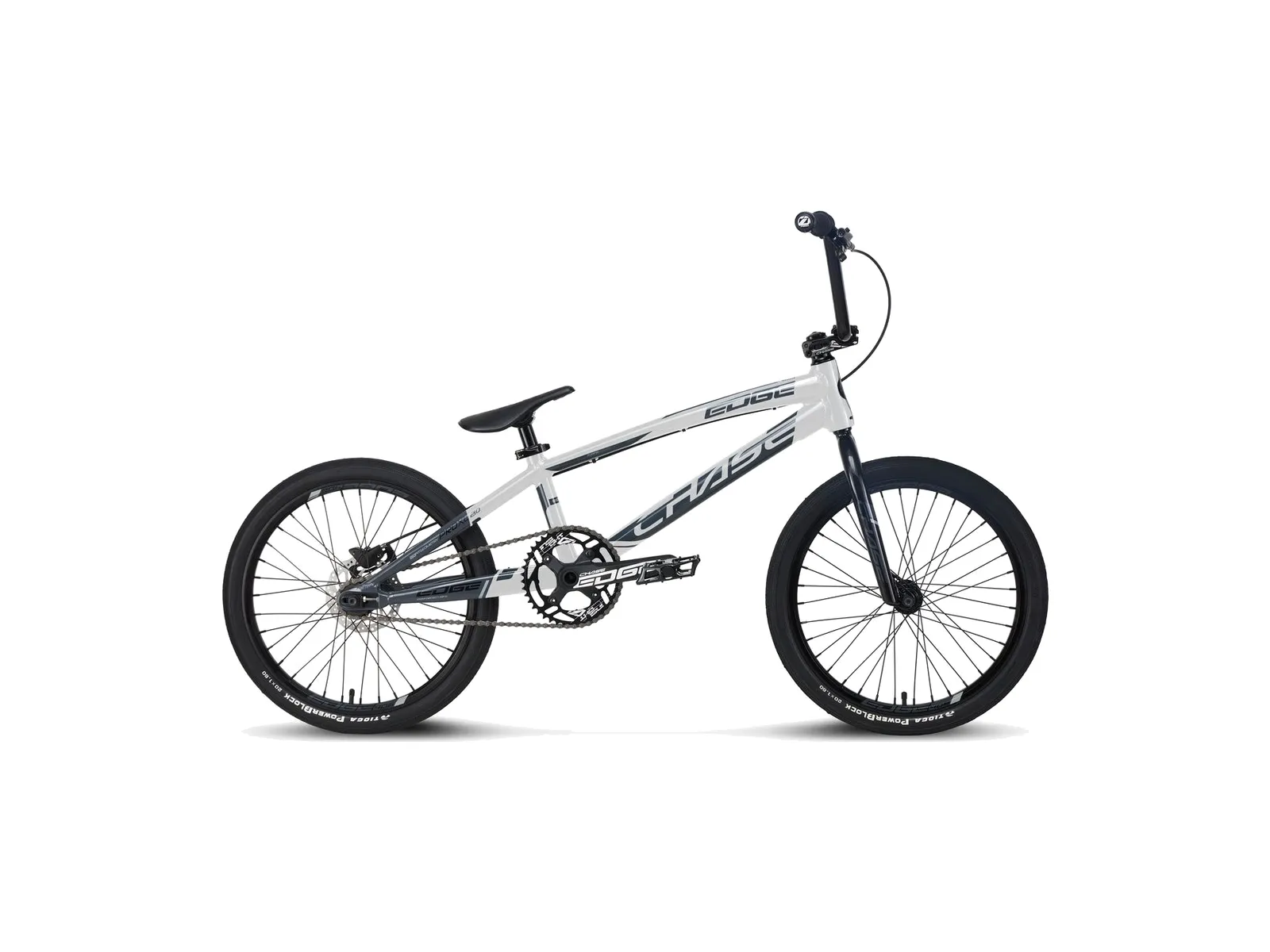

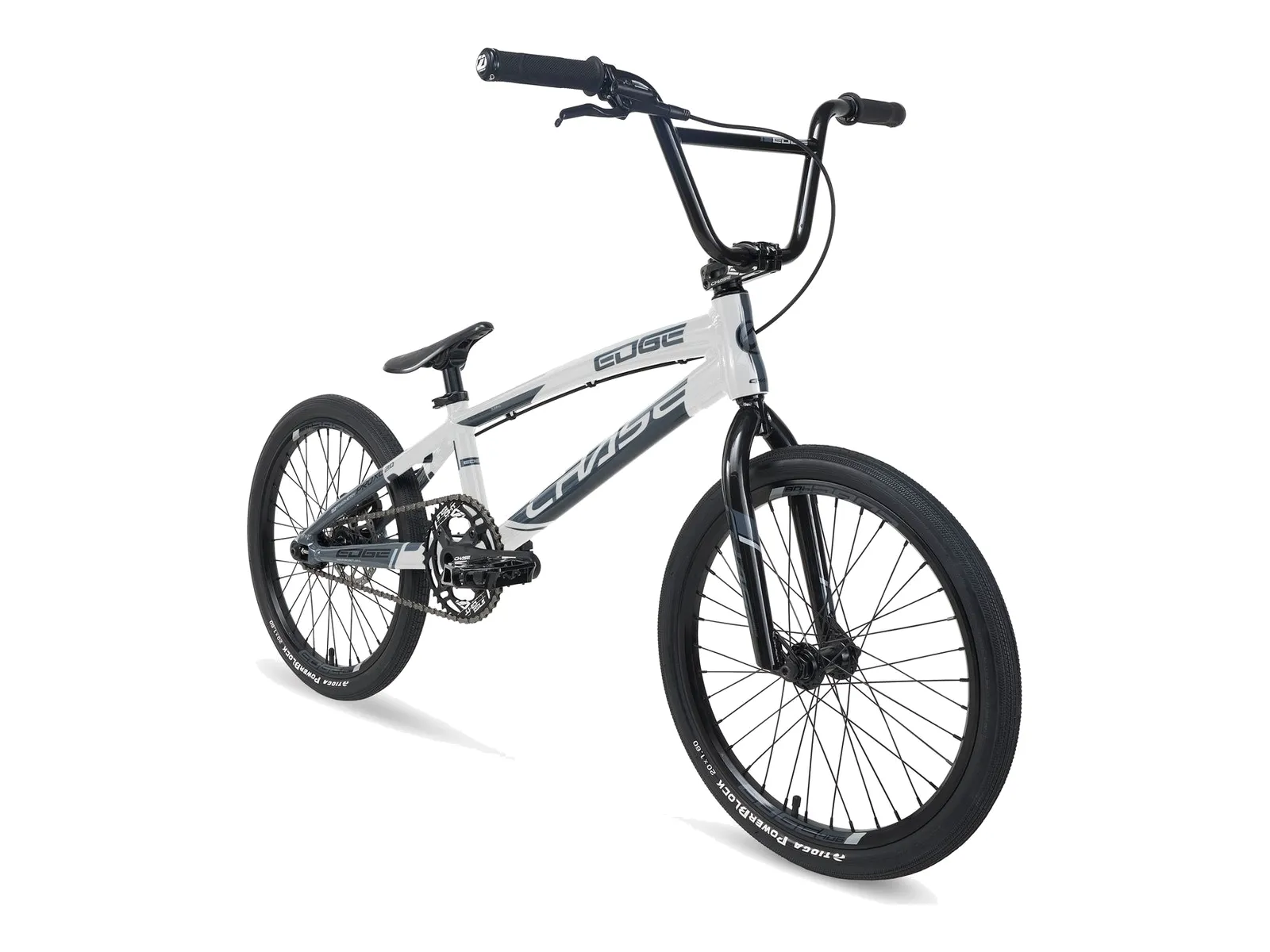

The Chase "Edge Pro" 2026 BMX Race Bike - Cement/Grey is the Chase Edge in size Pro from model year 2026, in Cement/Grey: light grey frame with grey graphics and a grey rear end. The frame is triple butted, hydroformed 6061-T6 aluminum with an integrated head tube and enclosed dropouts with built-in chain tensioners. Fork and bar (7.5" rise) are chromoly.
The rear brake is a Shimano MT200 hydraulic disc brake with a 140mm rotor. It comes with a 2-piece Chase alloy crank with 24mm spindle and 175mm arms, an Insight 42T chainring, a 16T cog on a cassette hub with three pawls, double wall Chase Edge rims with 32 holes and Tioga tires.
US Pro lists size Pro for riders from 1.52 to 1.66m. Without pedals the bike weighs 9.37 kg according to US Pro. Its successor is the Edge 2027.
Facts: Chase "Edge Pro" 2026 BMX Race Bike - Cement/Grey
- Wheelsize: 20"
- Race-Size: Pro
- Model Year: 2026
- BMX Frame: Chase "Edge Pro", 6061-T6 aluminum, triple butted and hydroformed, enclosed dropouts with integrated chain tensioners, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 20.5"
- Chain Stay (CS): 14" (min.)
- Head Angle (HA): 74°
- Seat Angle (SA): 72°
- Head Tube (HT): 4.7"
- BB Height (BBH): 11"
- Wheelbase (WB): 938mm - BMX Fork: Chase Edge, CrMo, 1-1/8" steerer, tapered blades
- BMX Bar:
- Chase Edge, CrMo
- Height: 7.5"
- Width: 27"
- Backsweep: 11°
- Upsweep: 3.5° - Grips: Insight "C.O.G.S", 145mm, lock-on
- Stem: Chase Edge, 6061-T6 aluminum, 50mm
- Headset: integrated (IS42/42), 1-1/8", Sealed Bearing

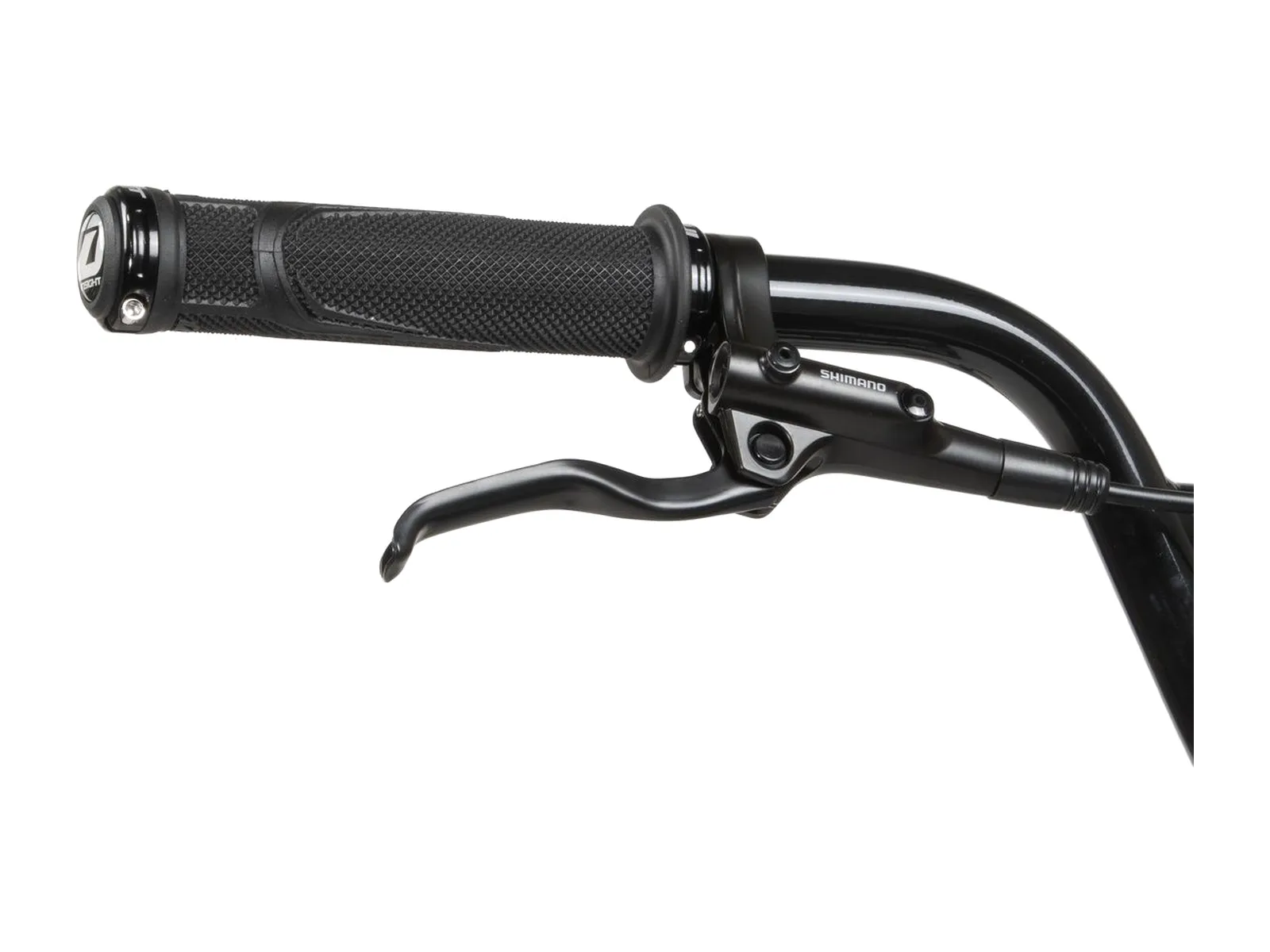

- Brake Lever (right): Shimano BL-MT200, hydraulic

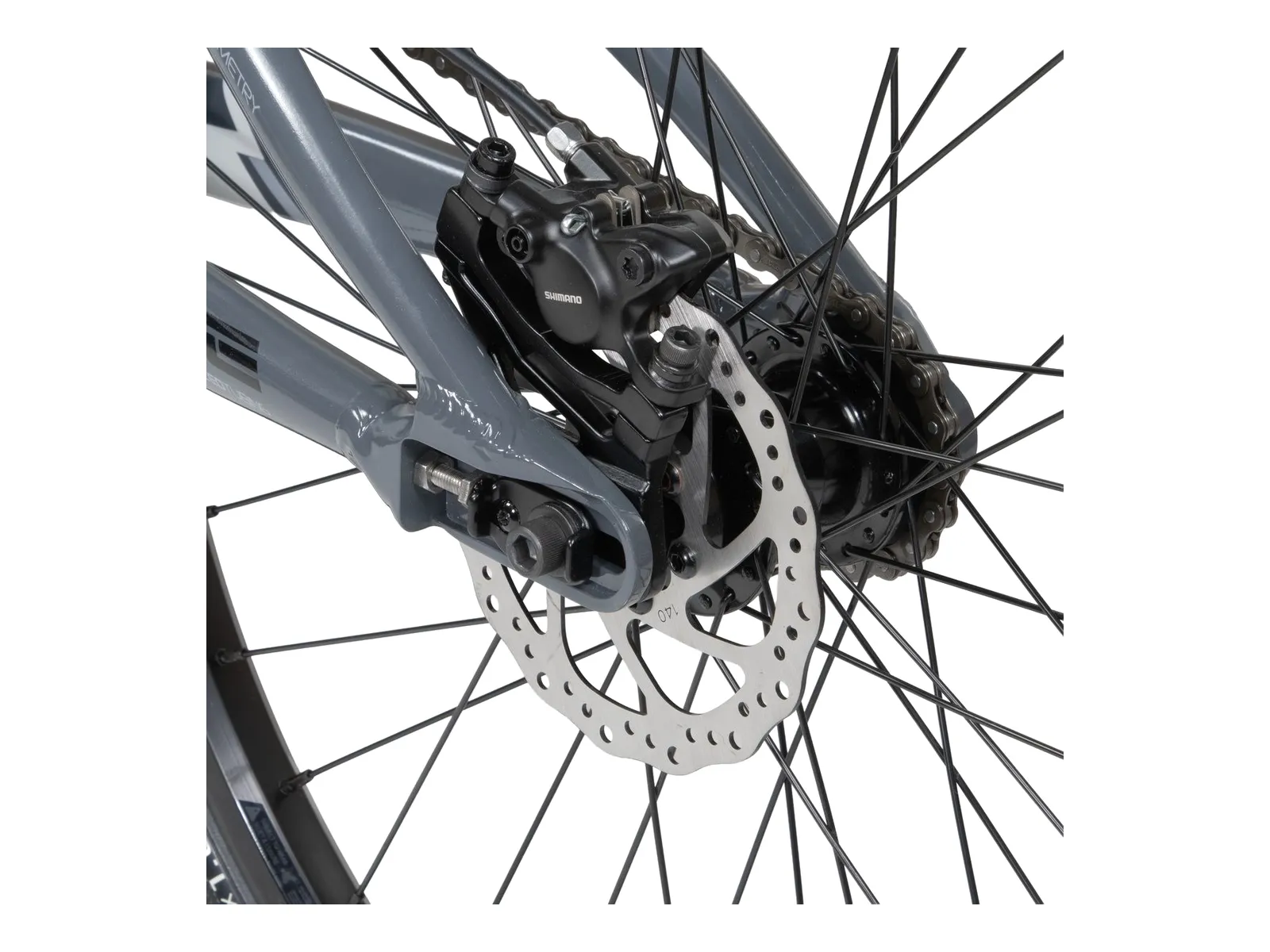

- Brake (rear): Shimano BR-MT200, hydraulic disc brake, 140mm rotor, resin pads

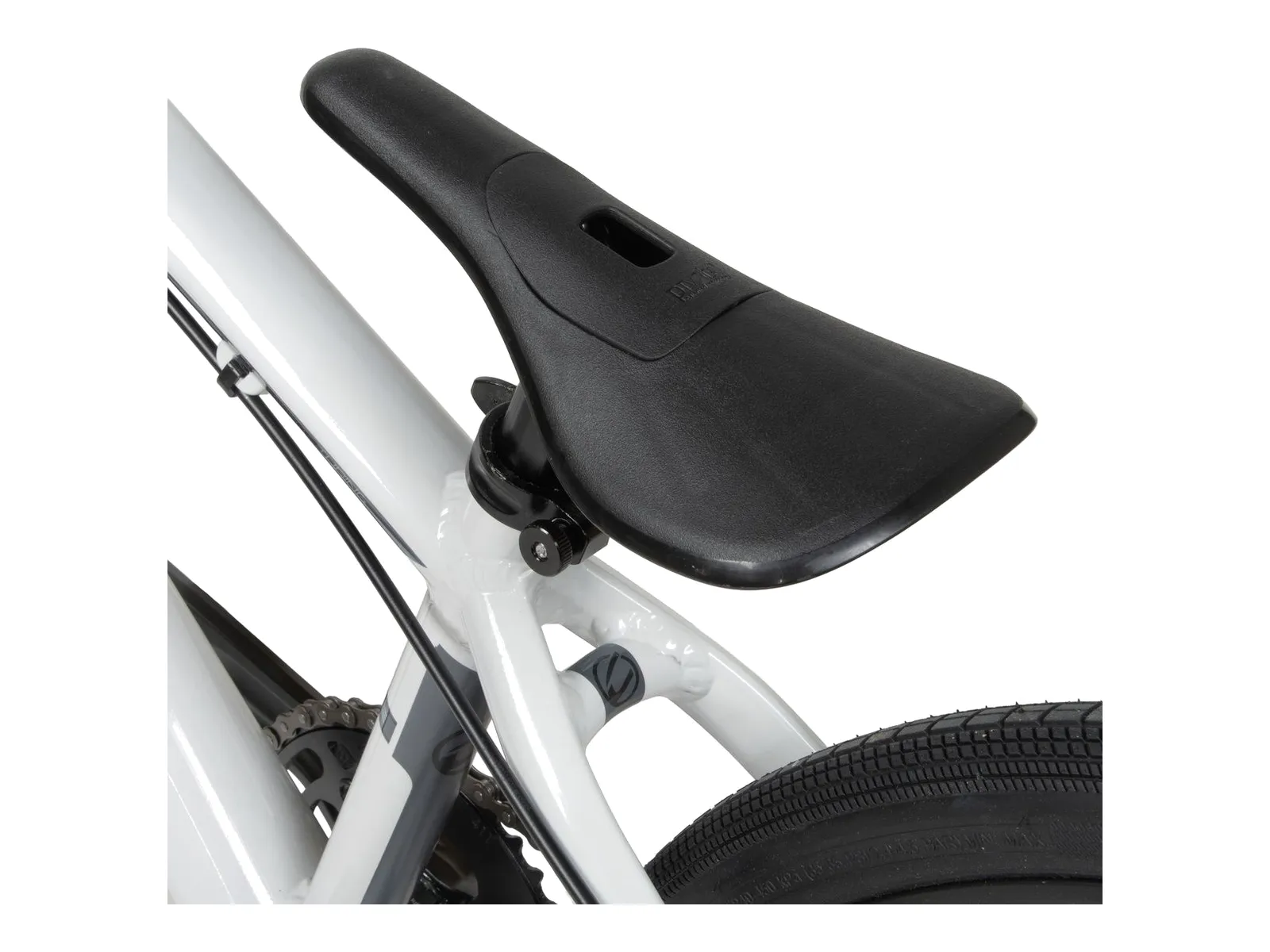

- Seat: Chase Edge Pro, pivotal
- Seat Post: pivotal, aluminum, 27.2 x 250mm
- Seat Clamp: Chase Edge, quick release, aluminum, 31.8mm
- Pedals: platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 5mm, 4-bolt (104mm BCD), 42T
- Cog: 16T, steel
- Crank: Chase Edge, 2-piece, aluminum, 24mm spindle, 175mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external, 24mm, Sealed Bearing
- Hub (front): Chase Edge Pro, 32H, Sealed Bearing, 10mm axle
- Hub (rear): Chase Edge Pro, cassette hub, ISO disc mount, 32H, Sealed Bearing, 10mm axle, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, front 179mm, rear 173/174mm, brass nipples 16mm
- Rim (front): Chase Edge 150, aluminum, double wall, 32H, 20" x 1.50", Schrader
- Rim (rear): Chase Edge 150, aluminum, double wall, 32H, 20" x 1.50", Schrader
- Tire (front): Tioga, 20" x 1.85", wire bead
- Tire (rear): Tioga "PowerBlock", 20" x 1.60", wire bead
- Tubes: 20" x 1.50"-1.75", Schrader
- Rider Height: 1.52 - 1.66m
- Usage: BMX Race
