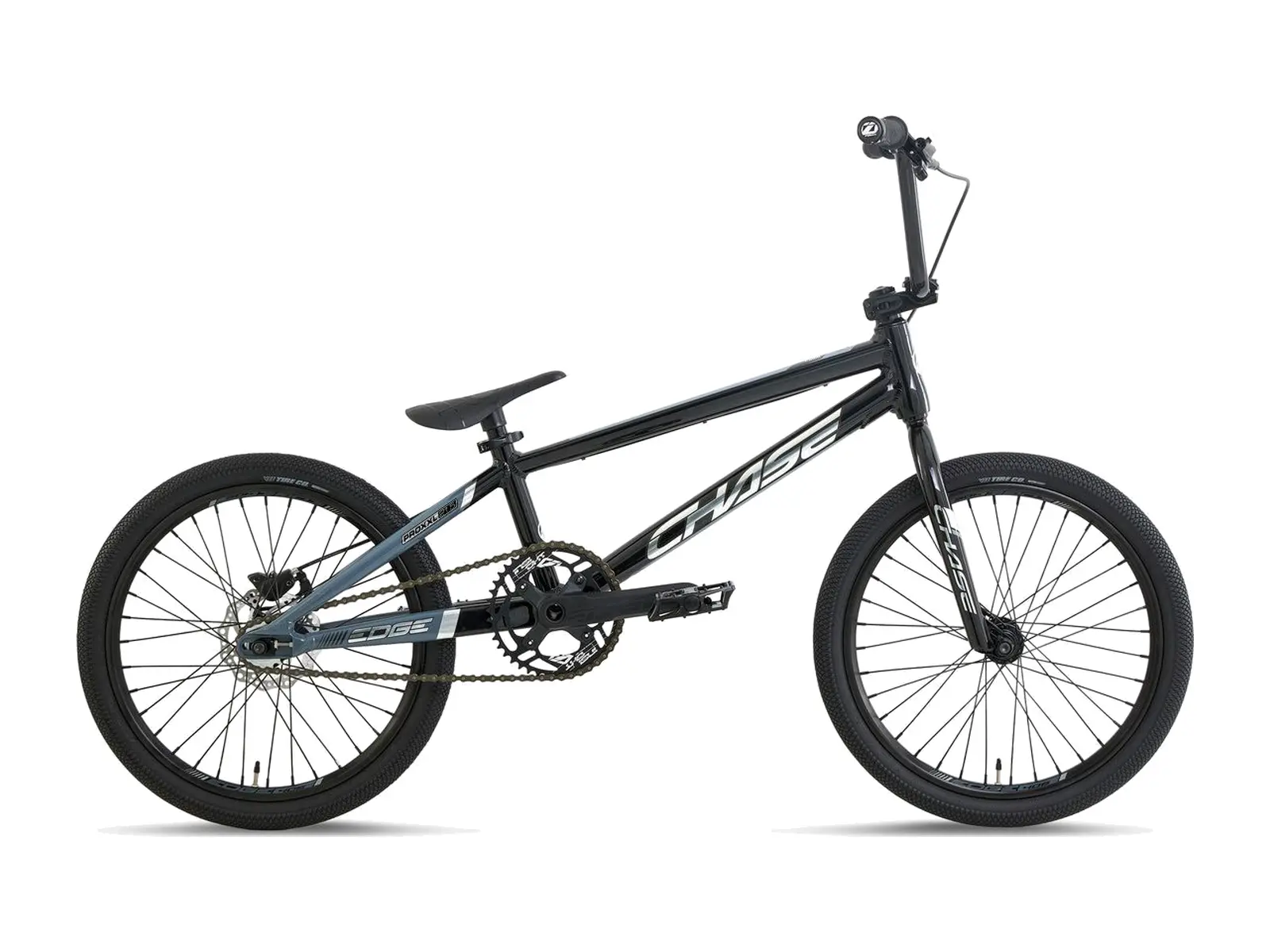

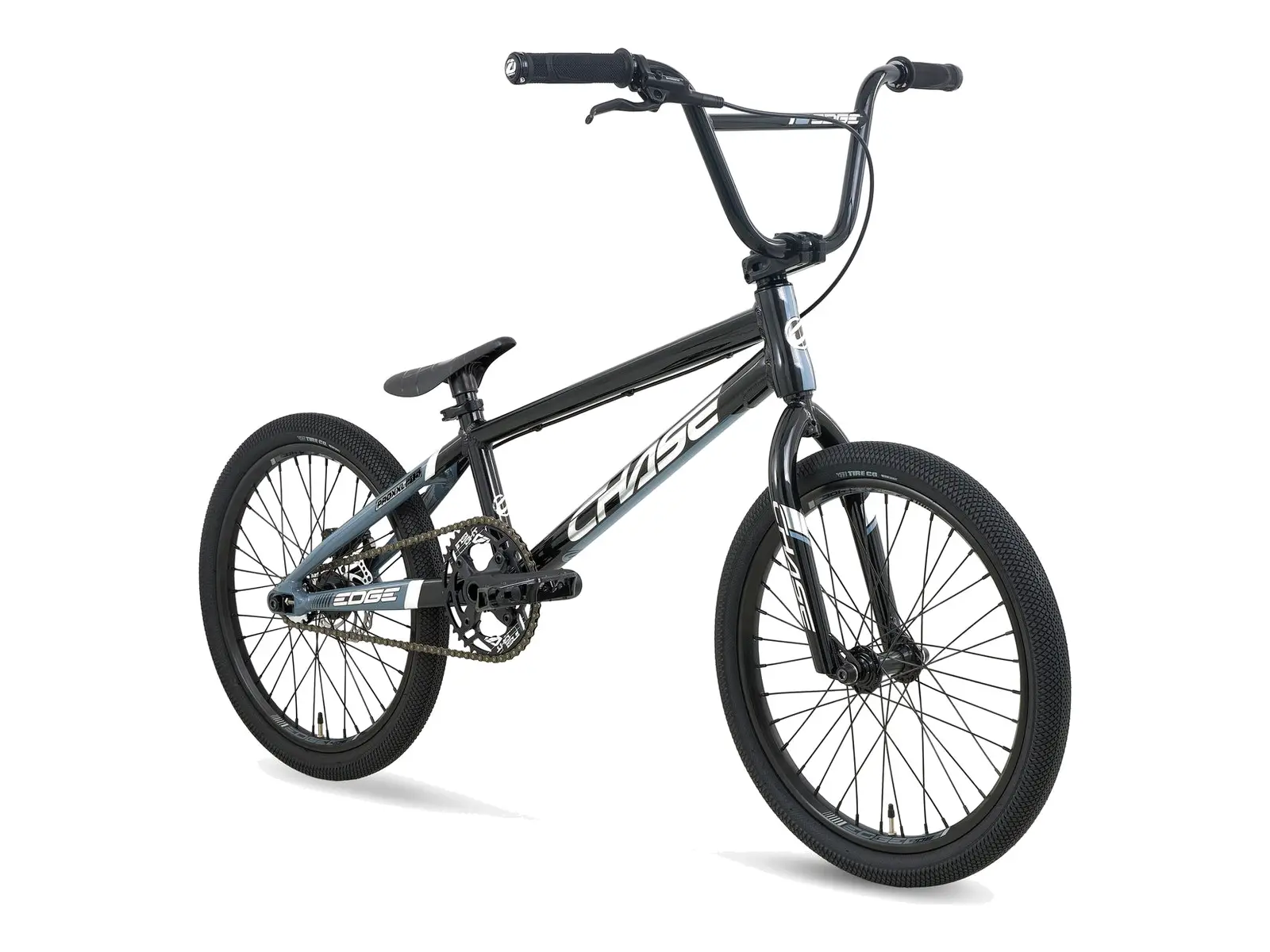

Chase "Edge Pro XXL" 2027 BMX Race Bike - Black/Dark Grey
- Weight : 9.43kg / 20.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45776
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026
The Chase "Edge Pro XXL" 2027 BMX Race Bike - Black/Dark Grey is the Chase Edge in size Pro XXL in the chromoly fork version. Chase redid the Edge for model year 2027: the frame is triple butted, hydroformed 6061-T6 aluminum with an integrated head tube and enclosed dropouts with built-in chain tensioners. The paint is two-tone Black/Dark Grey with decals under the clear coat.
The rear brake is a Shimano MT200 hydraulic disc brake with a 140mm rotor. It comes with a 2-piece Chase alloy crank with 24mm spindle and 175mm arms, an Insight 43T chainring, a 16T cog on a cassette hub with three pawls, double wall rims and Vee Rubber SpeedSter tires. Bar (8.5" rise) and fork are chromoly, the seat/post combo sits in a quick release clamp.
Chase recommends size Pro XXL for riders from 1.75 to 1.87m. Without pedals the bike weighs 9.43 kg according to Chase.
Facts: Chase "Edge Pro XXL" 2027 BMX Race Bike - Black/Dark Grey
- Wheelsize: 20"
- Race-Size: Pro XXL
- Model Year: 2027
- BMX Frame: Chase "Edge Pro XXL", 6061-T6 aluminum, triple butted and hydroformed, enclosed dropouts with integrated chain tensioners, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 21.5"
- Chain Stay (CS): 14.15" (min.)
- Head Angle (HA): 74°
- Seat Angle (SA): 72°
- Head Tube (HT): 4.7"
- BB Height (BBH): 11.5"
- Wheelbase (WB): 969.5mm - BMX Fork: Chase Edge, CrMo, 1-1/8" steerer, tapered blades
- BMX Bar:
- Chase Edge, CrMo
- Height: 8.5"
- Width: 29"
- Backsweep: 12°
- Upsweep: 1°
- Clamp: 22.2mm - Grips: Insight "C.O.G.S", 145mm, lock-on with alloy clamps
- Stem: Chase Edge, 6061-T6 aluminum, 50mm, 1-1/8"
- Headset: integrated (IS42/42), 1-1/8", Sealed Bearing
- Brake Lever (right): Shimano BL-MT200, hydraulic

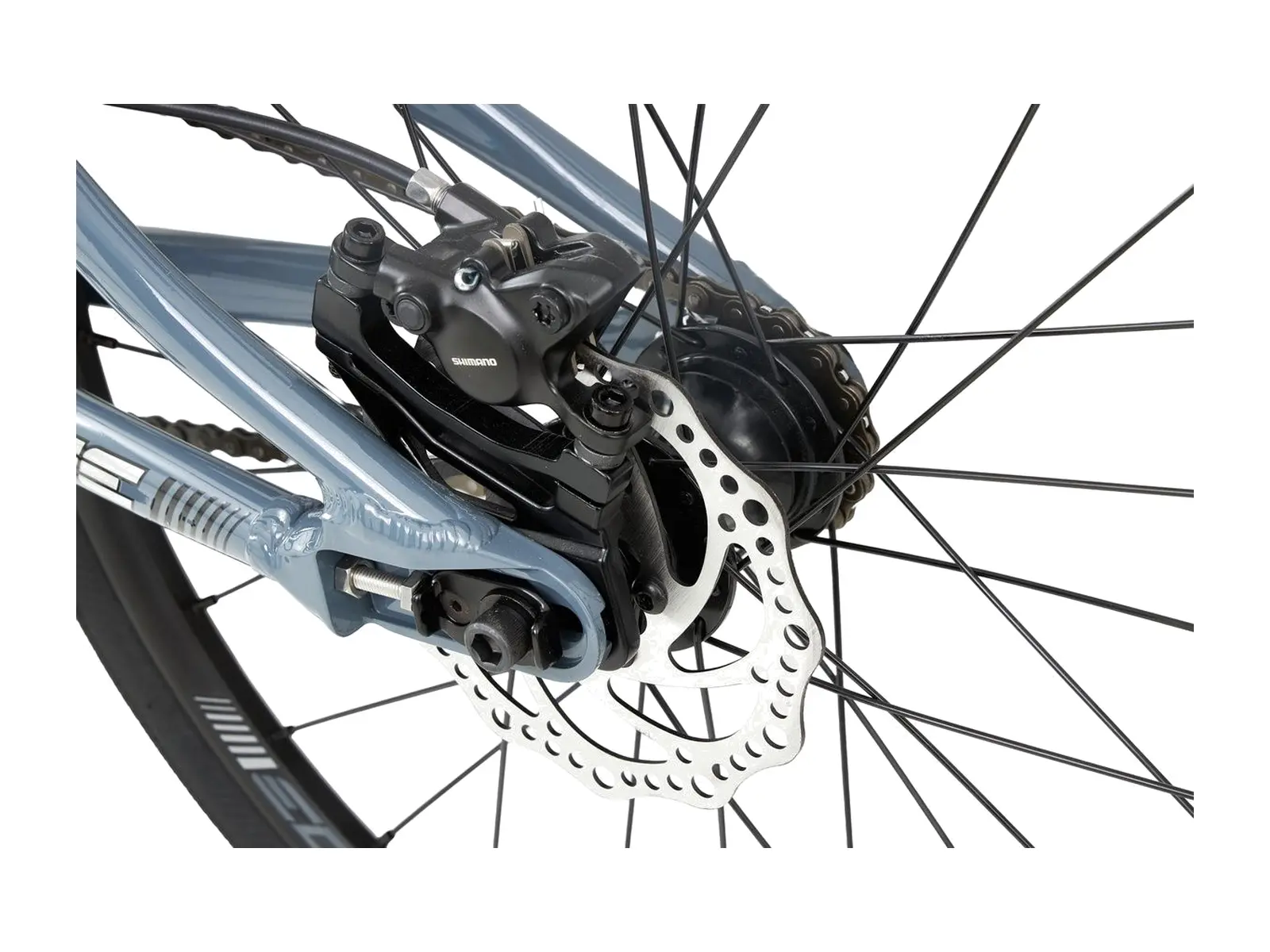

- Brake (rear): Shimano BR-MT200, hydraulic disc brake, 140mm rotor, resin pads

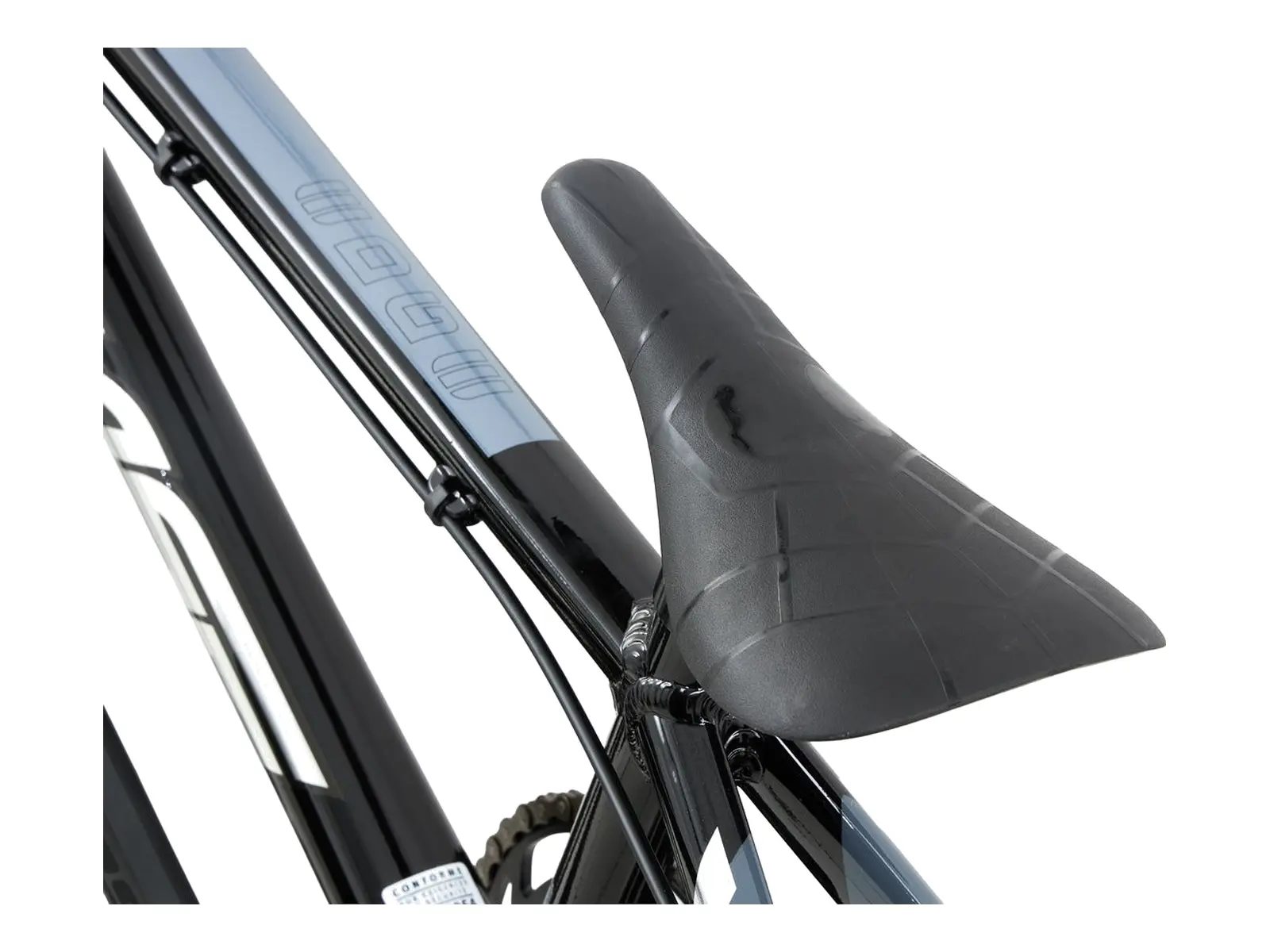

- Seat: Expert/Pro Combo, Nylon
- Seat Post: seat/seat post combo, aluminum, 27.2mm
- Seat Clamp: Chase Edge, quick release, aluminum, 31.8mm
- Pedals: platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 5mm, 4-bolt (104mm BCD), 43T
- Cog: 16T
- Crank: Chase Edge, 2-piece, aluminum, 24mm spindle, 175mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external, 24mm, Sealed Bearing
- Hub (front): 36H, Sealed Bearing, 3/8" axle bolts
- Hub (rear): cassette hub, ISO disc mount, 36H, Sealed Bearing, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): Chase Edge, aluminum, double wall, 406, 36H, Presta
- Rim (rear): Chase Edge, aluminum, double wall, 406, 36H, Presta
- Tire (front): Vee Rubber "SpeedSter", 20" x 1.75", wire bead
- Tire (rear): Vee Rubber "SpeedSter", 20" x 1.60", wire bead
- Tubes: 20" x 1.50"-1.75", Presta
- Rider Height: 1.75 - 1.87m
- Usage: BMX Race
