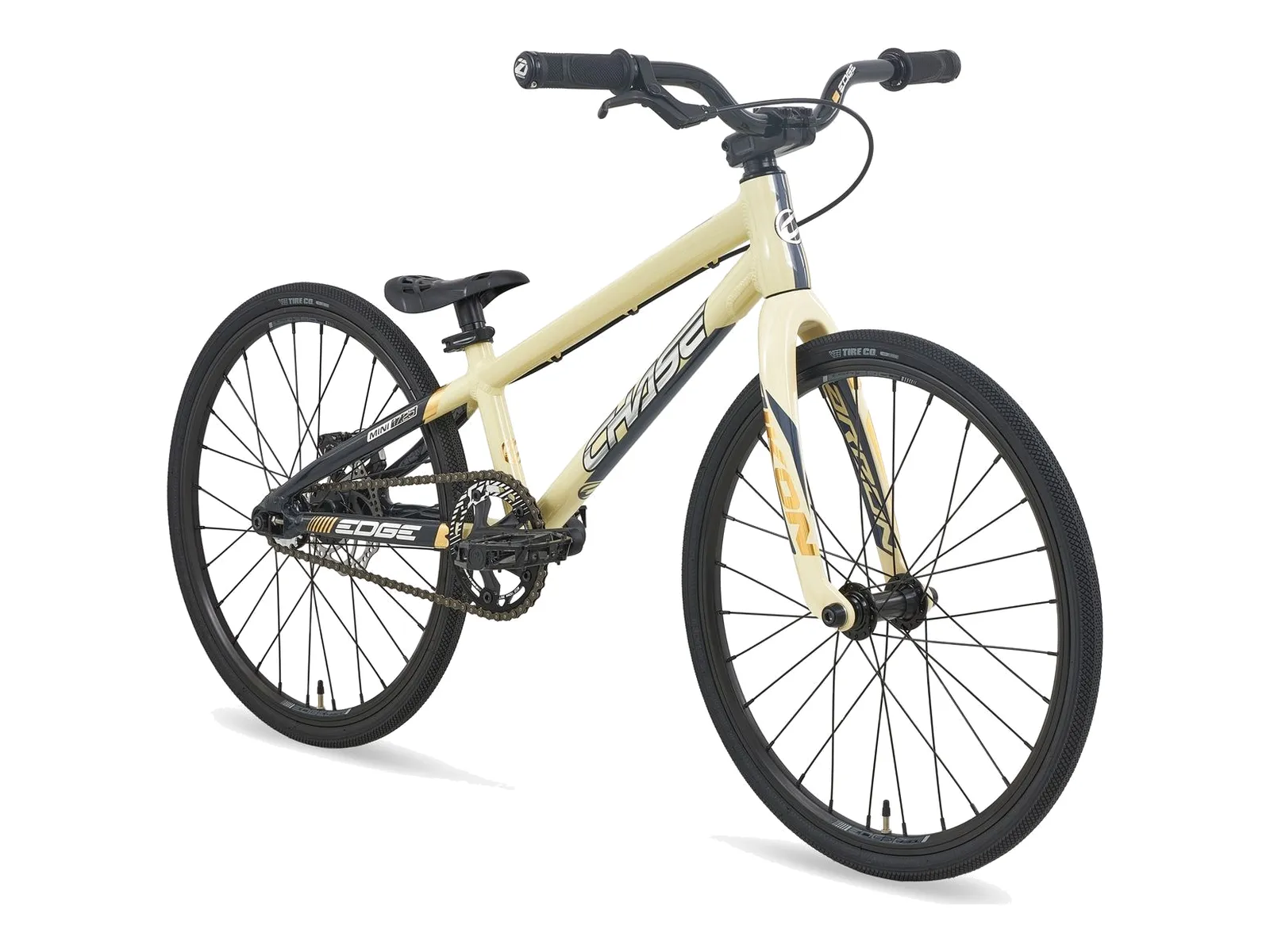

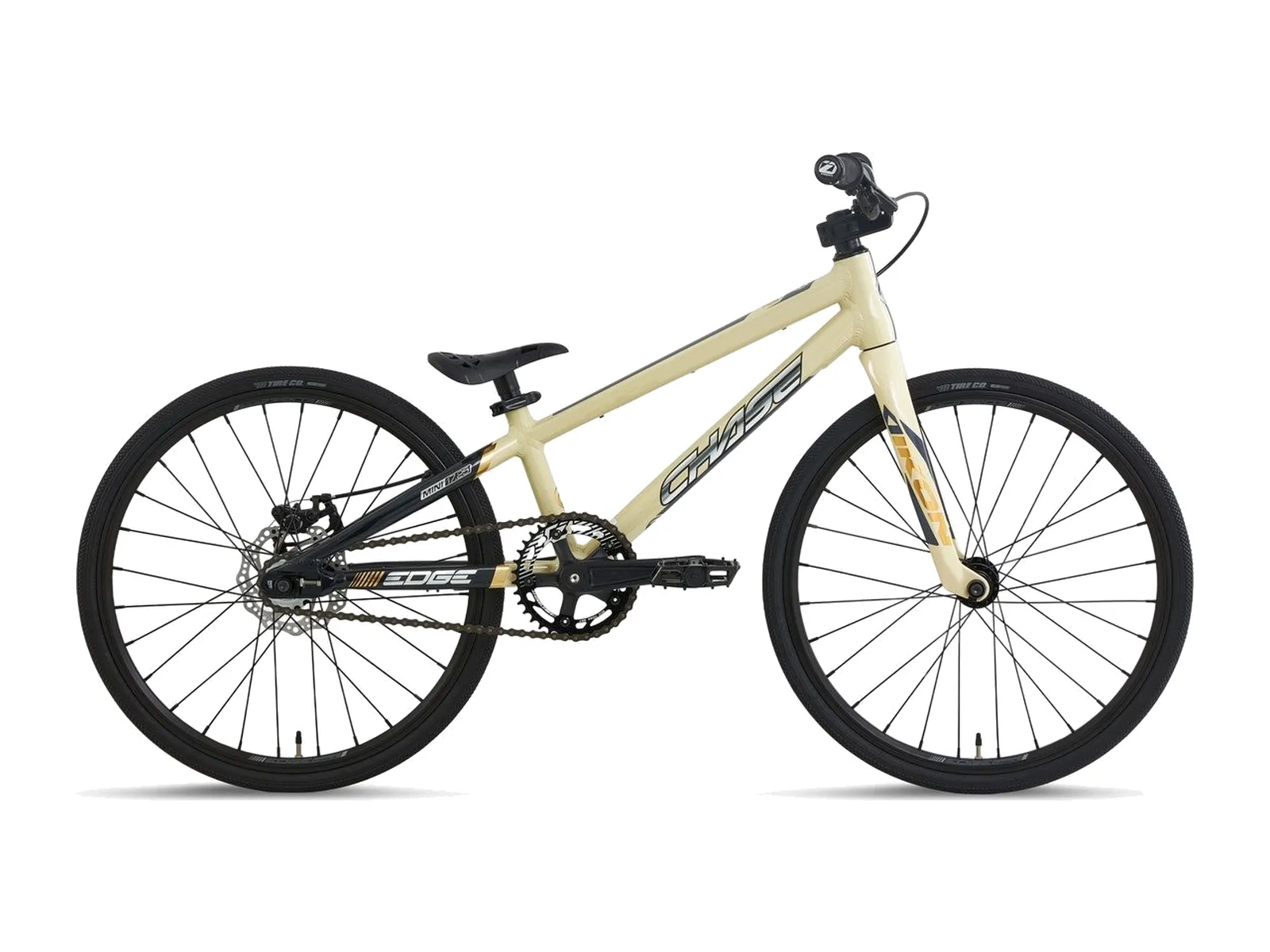

Chase "Edge Mini" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Weight : 7.59kg / 16.73lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45792
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026
The Chase "Edge Mini" 2027 BMX Race Bike - Gold Sand/Dark Grey is the Chase race bike for riders who want to get serious about racing. The frame is made from triple butted, hydroformed 6061 aluminium tubes with an integrated head tube and enclosed dropouts that hold the chain tensioner. The graphics sit under the clear coat.
This colourway comes with an Ikon carbon fork. At the rear a mechanical disc brake with a 140mm rotor does the stopping, the rear hub is a cassette hub with three pawls. It comes with an Insight chainring, a KMC chain, double wall rims and Vee Rubber Speedster tires.
The Mini size rolls on 20 inch wheels and according to Chase fits riders from 1.10 - 1.25m. Without pedals the bike weighs 7.59 kg according to Chase.
Facts: Chase "Edge Mini" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Wheelsize: 20"
- Race-Size: Mini
- Model Year: 2027
- BMX Frame: Chase "Edge Mini", 6061-T6 aluminium, enclosed dropouts, integrated 1" head tube
- Frame-Geometry:
- Top Tube (TT): 17.25"
- Chain Stay (CS): 12.25"
- Head Angle (HA): 72°
- Seat Angle (SA): 70°
- Head Tube (HT): 4.33"
- BB Height (BBH): 10.6" - BMX Fork: Ikon "Mini/Junior", carbon, 1" steerer
- BMX Bar:
- Chase "Edge", aluminium
- Height: 2.25"
- Width: 20"
- Backsweep: 8°
- Upsweep: 2° - Grips: Insight "C.O.G.S", 115mm, lock-on with aluminium clamps
- Stem: Chase "Edge", 6061-T6 aluminium, 40mm, 1" steerer, 22.2mm clamp
- Headset: integrated (IS42 | IS42), reducer to 1", sealed bearing
- Brake Lever (right): aluminium, Micro/Mini
- Brake (rear): mechanical disc brake, 140mm rotor, 140mm adaptor
- Seat: Mini combo, nylon seat with aluminium post, 25.4mm
- Seat Post: seat/seat post combo, aluminium, 25.4mm
- Seat Clamp: Chase "Edge", quick release, aluminium, 28.6mm
- Pedals: mini platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminium, 5-bolt (110mm BCD), 36T, 3mm
- Cog: 16T
- Crank: Chase "Edge", 3-piece, aluminium, 140mm, CrMo chainring bolts
- Bottom Bracket: Euro, square taper, 113mm, sealed bearing
- Hub (front): sealed bearings, 3/8" axle bolts
- Hub (rear): ISO cassette hub, 28H, sealed bearings, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): Chase "Edge", aluminium, double wall, 451, 20" x 1-1/8"
- Rim (rear): Chase "Edge", aluminium, double wall, 451, 28H, 20" x 1-1/8"
- Tire (front): Vee Rubber "Speedster", 20" x 1-1/8", wire bead
- Tire (rear): Vee Rubber "Speedster", 20" x 1-1/8", wire bead
- Tubes: 20" x 1-1/8", Presta valve
- Chain Tensioner: integrated, with disc adaptor
- Rider Height: 1.10 - 1.25m
- Usage: BMX Race
