Chase "Edge Pro XXL" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Weight : 9.43kg / 20.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45808
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026

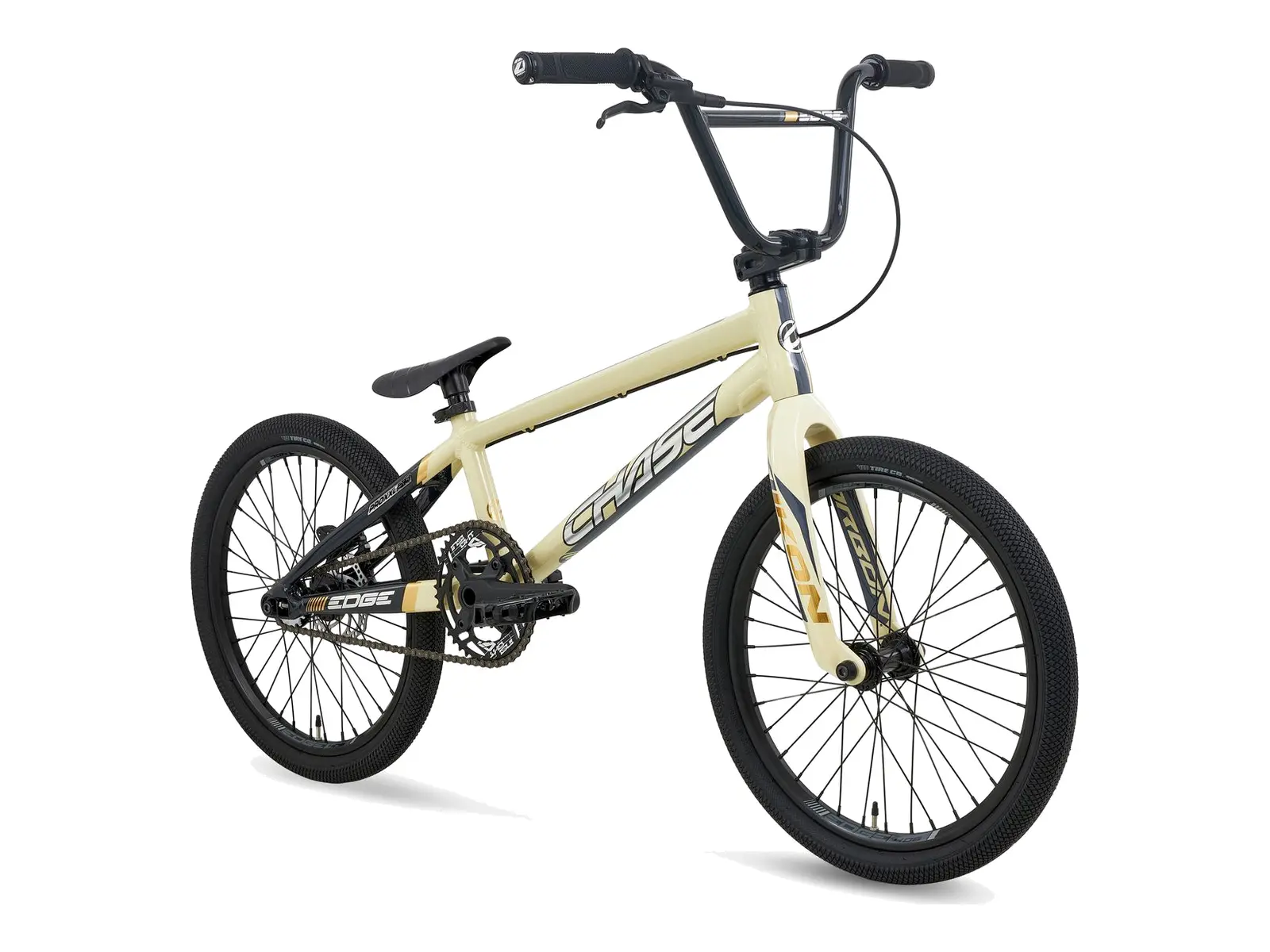

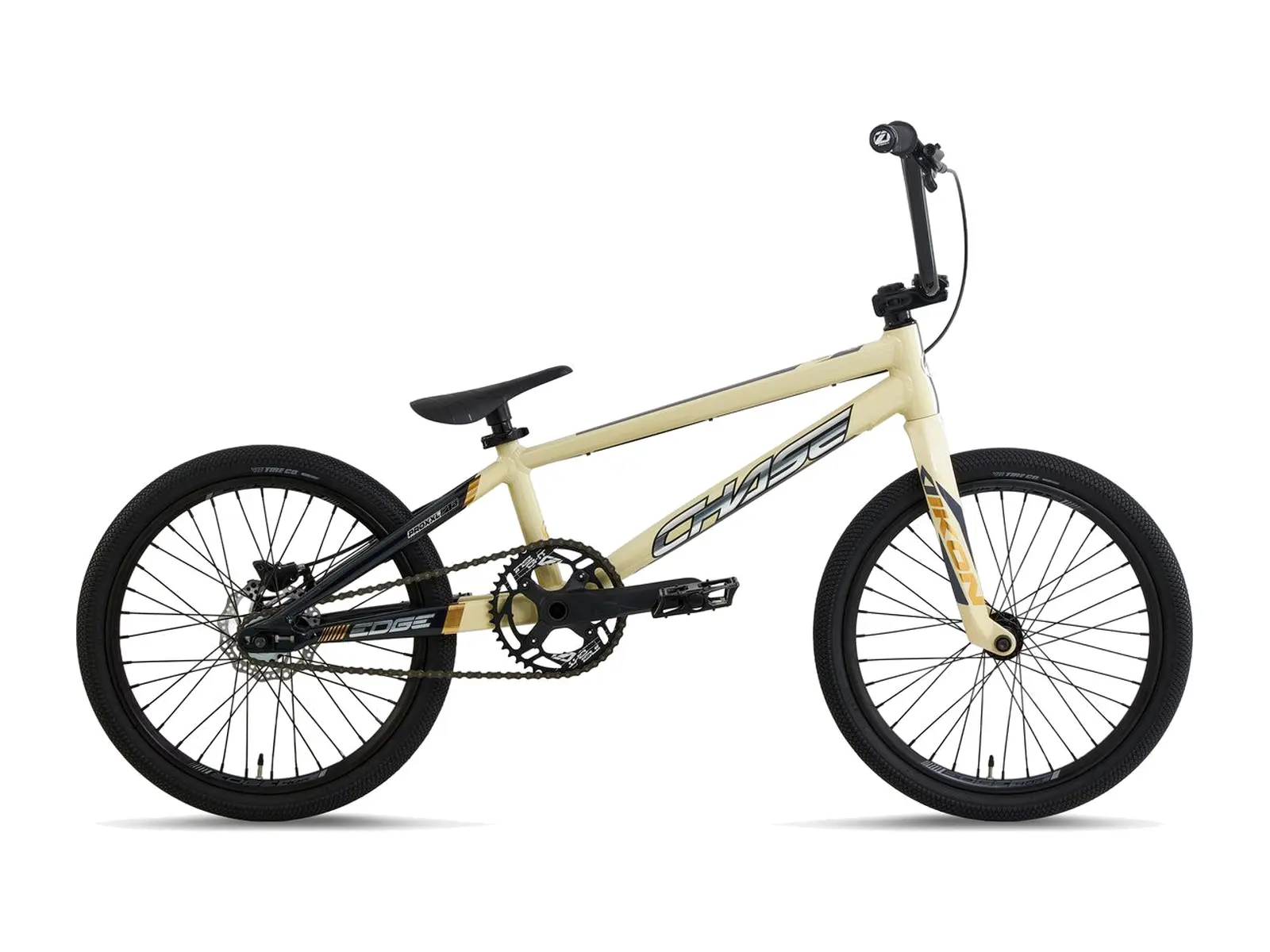

The Chase "Edge Pro XXL" 2027 BMX Race Bike - Gold Sand/Dark Grey is the Chase Edge in size Pro XXL in the carbon fork version. Chase redid the Edge for model year 2027: the frame is triple butted, hydroformed 6061-T6 aluminum with an integrated head tube and enclosed dropouts with built-in chain tensioners. The paint is two-tone Gold Sand and Dark Grey, the decals sit under the clear coat.
Up front sits an Ikon Pro Carbon fork with an aluminum steerer. Chase offers the carbon fork only in the two colourways Dark Midnight and Gold Sand/Dark Grey, the black version comes with a chromoly fork. The rear brake is a Shimano MT200 hydraulic disc brake with a 140mm rotor. It comes with a 2-piece Chase alloy crank with 24mm spindle and 175mm arms, an Insight 43T chainring, a 16T cog on a cassette hub with three pawls, double wall rims and Vee Rubber SpeedSter tires. The bar (8.5" rise) is chromoly, the seat/post combo sits in a quick release clamp.
Chase recommends size Pro XXL for riders from 1.75 to 1.87m. Without pedals the bike weighs 9.43 kg according to Chase.
Facts: Chase "Edge Pro XXL" 2027 BMX Race Bike - Gold Sand/Dark Grey
- Wheelsize: 20"
- Race-Size: Pro XXL
- Model Year: 2027
- BMX Frame: Chase "Edge Pro XXL", 6061-T6 aluminum, triple butted and hydroformed, enclosed dropouts with integrated chain tensioners, integrated 1-1/8" head tube
- Frame-Geometry:
- Top Tube (TT): 21.5"
- Chain Stay (CS): 14.15" (min.)
- Head Angle (HA): 74°
- Seat Angle (SA): 72°
- Head Tube (HT): 4.7"
- BB Height (BBH): 11.5"
- Wheelbase (WB): 969.5mm - BMX Fork: Ikon "Pro Carbon", carbon, 1-1/8" aluminum steerer
- BMX Bar:
- Chase Edge, CrMo
- Height: 8.5"
- Width: 29"
- Backsweep: 12°
- Upsweep: 1°
- Clamp: 22.2mm - Grips: Insight "C.O.G.S", 145mm, lock-on with alloy clamps
- Stem: Chase Edge, 6061-T6 aluminum, 50mm, 1-1/8"
- Headset: integrated (IS42/42), 1-1/8", Sealed Bearing

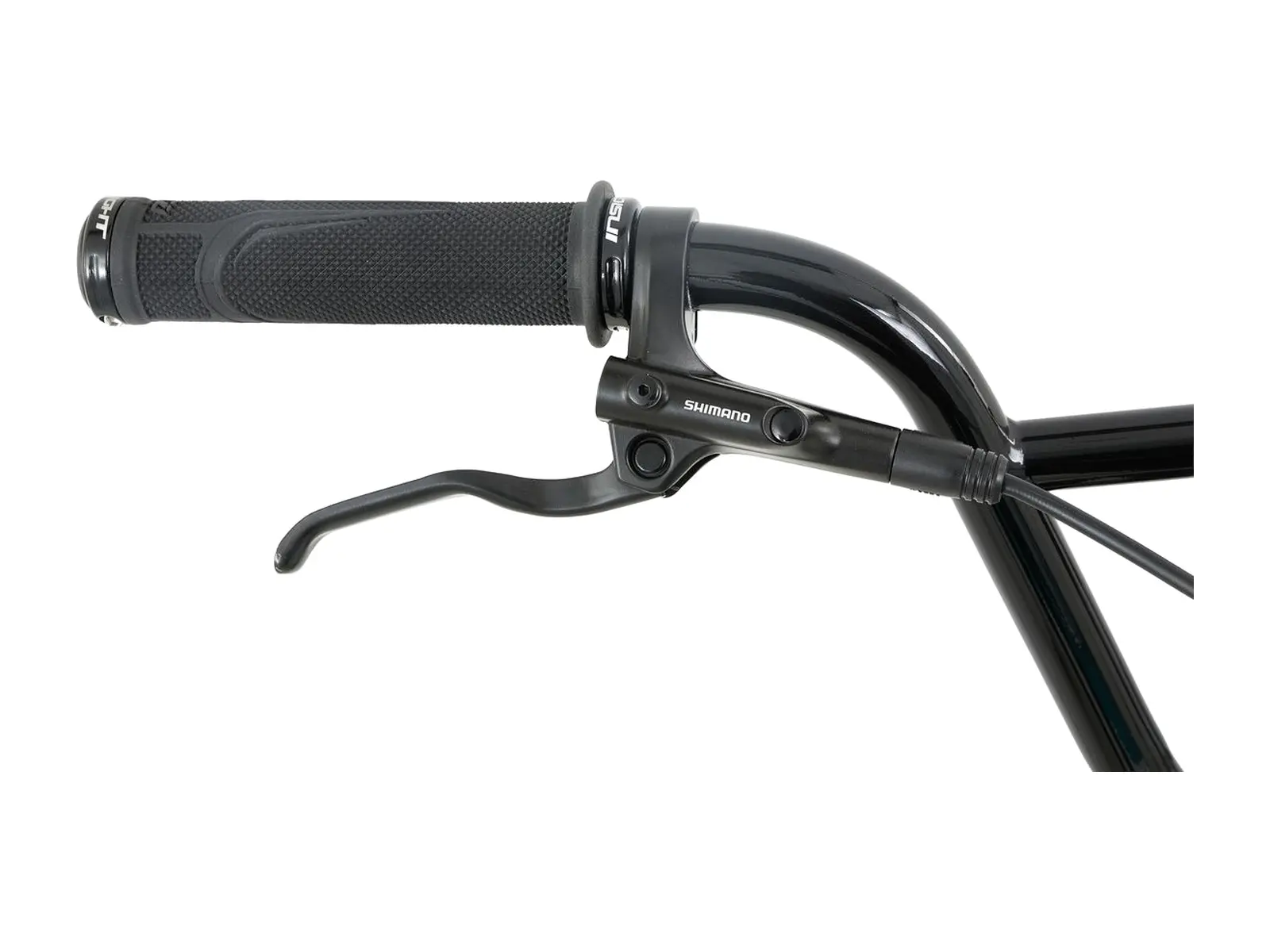

- Brake Lever (right): Shimano BL-MT200, hydraulic

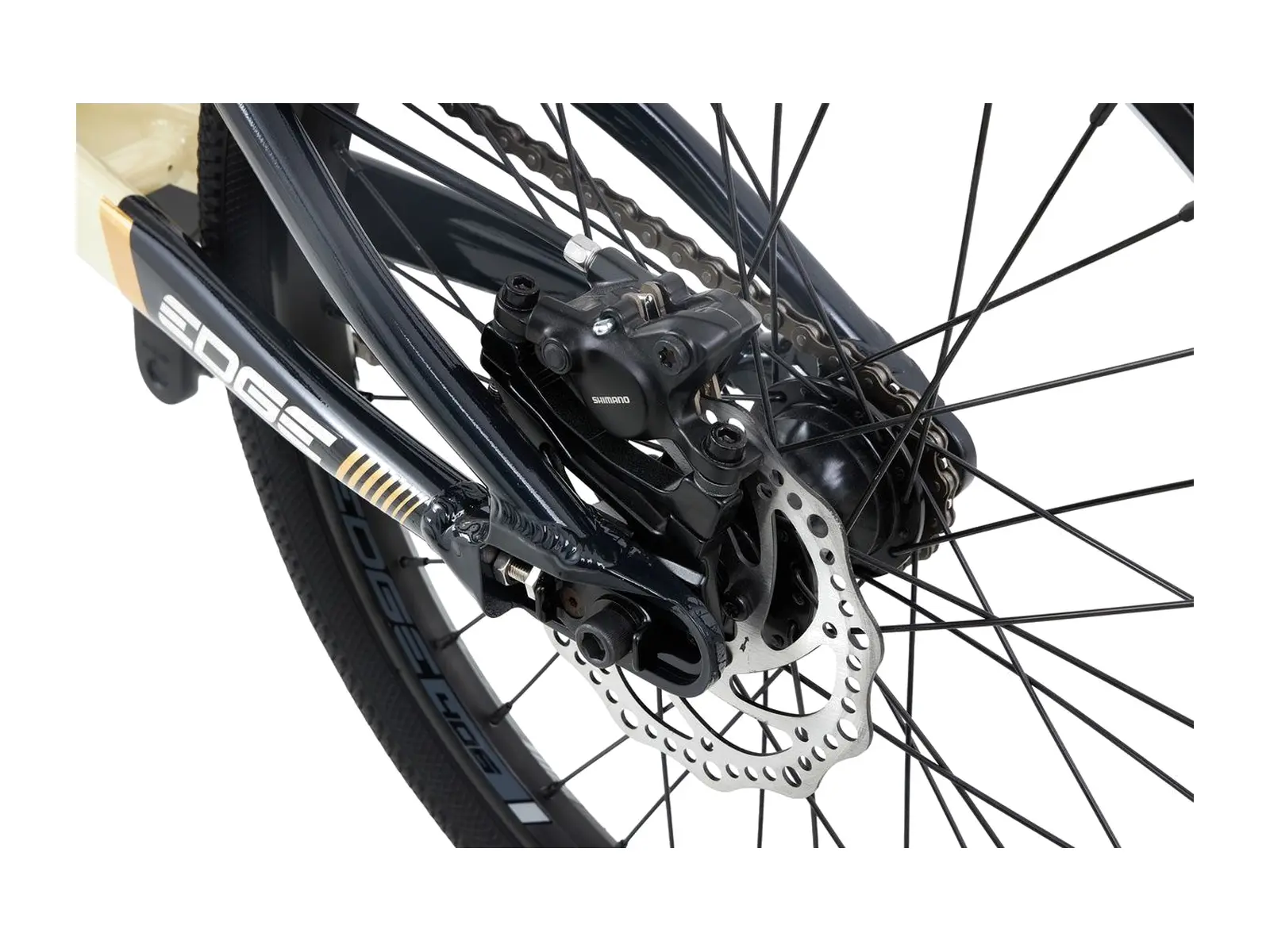

- Brake (rear): Shimano BR-MT200, hydraulic disc brake, 140mm rotor, resin pads

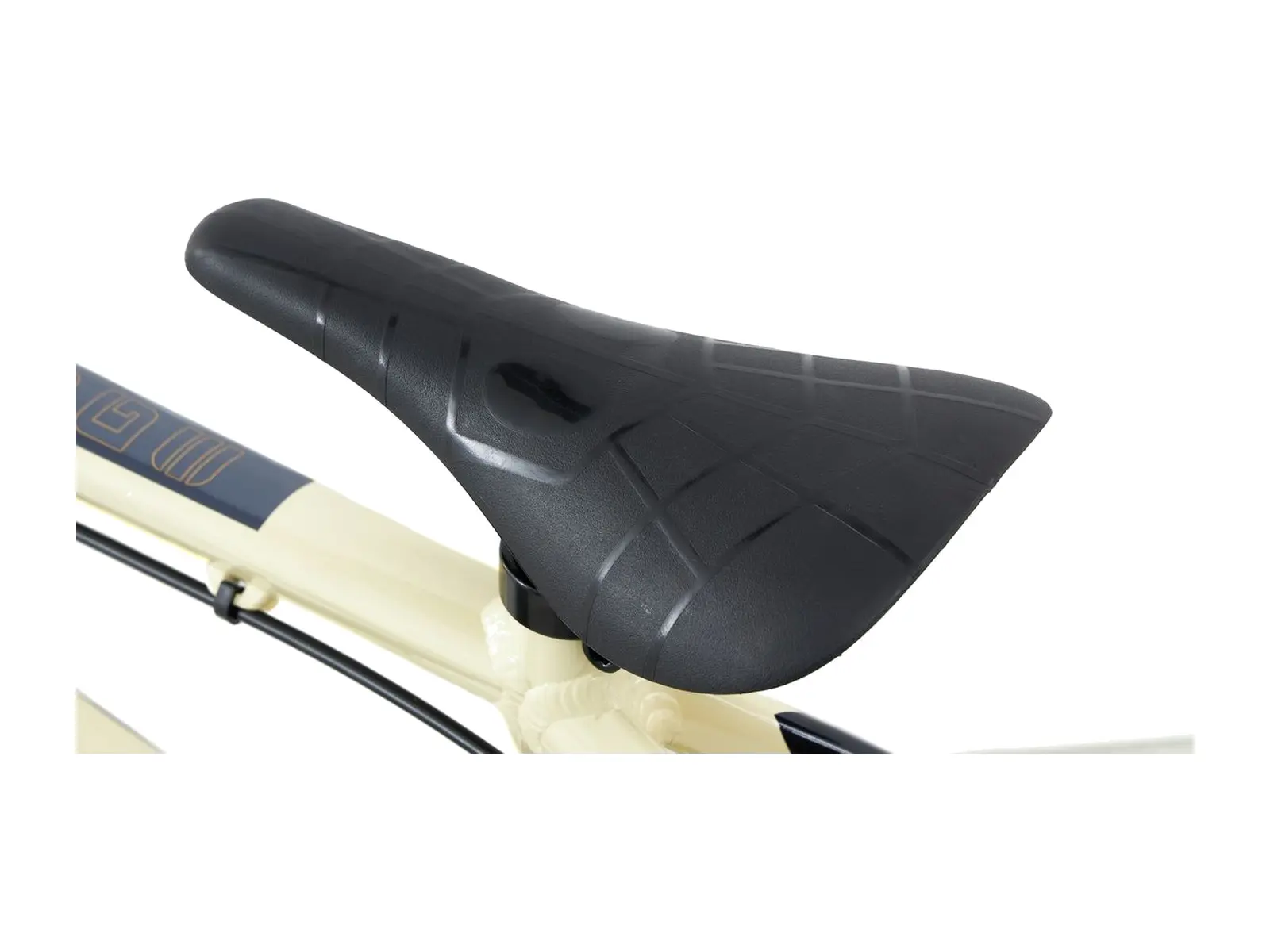

- Seat: Expert/Pro Combo, Nylon
- Seat Post: seat/seat post combo, aluminum, 27.2mm
- Seat Clamp: Chase Edge, quick release, aluminum, 31.8mm
- Pedals: platform, 9/16", boron steel axle, ball bearings
- Chain: KMC "Z1 Narrow", 1/2" x 3/32"
- Sprocket: Insight, aluminum, 5mm, 4-bolt (104mm BCD), 43T
- Cog: 16T
- Crank: Chase Edge, 2-piece, aluminum, 24mm spindle, 175mm, CrMo chainring bolts
- Bottom Bracket: Euro BSA, external, 24mm, Sealed Bearing
- Hub (front): 36H, Sealed Bearing, 3/8" axle bolts
- Hub (rear): cassette hub, ISO disc mount, 36H, Sealed Bearing, 3/8" axle bolts, steel cassette body with 3 pawls, 24T ratchet
- Spokes: steel, 14G, brass nipples 16mm
- Rim (front): Chase Edge, aluminum, double wall, 406, 36H, Presta
- Rim (rear): Chase Edge, aluminum, double wall, 406, 36H, Presta
- Tire (front): Vee Rubber "SpeedSter", 20" x 1.75", wire bead
- Tire (rear): Vee Rubber "SpeedSter", 20" x 1.60", wire bead
- Tubes: 20" x 1.50"-1.75", Presta
- Rider Height: 1.75 - 1.87m
- Usage: BMX Race
